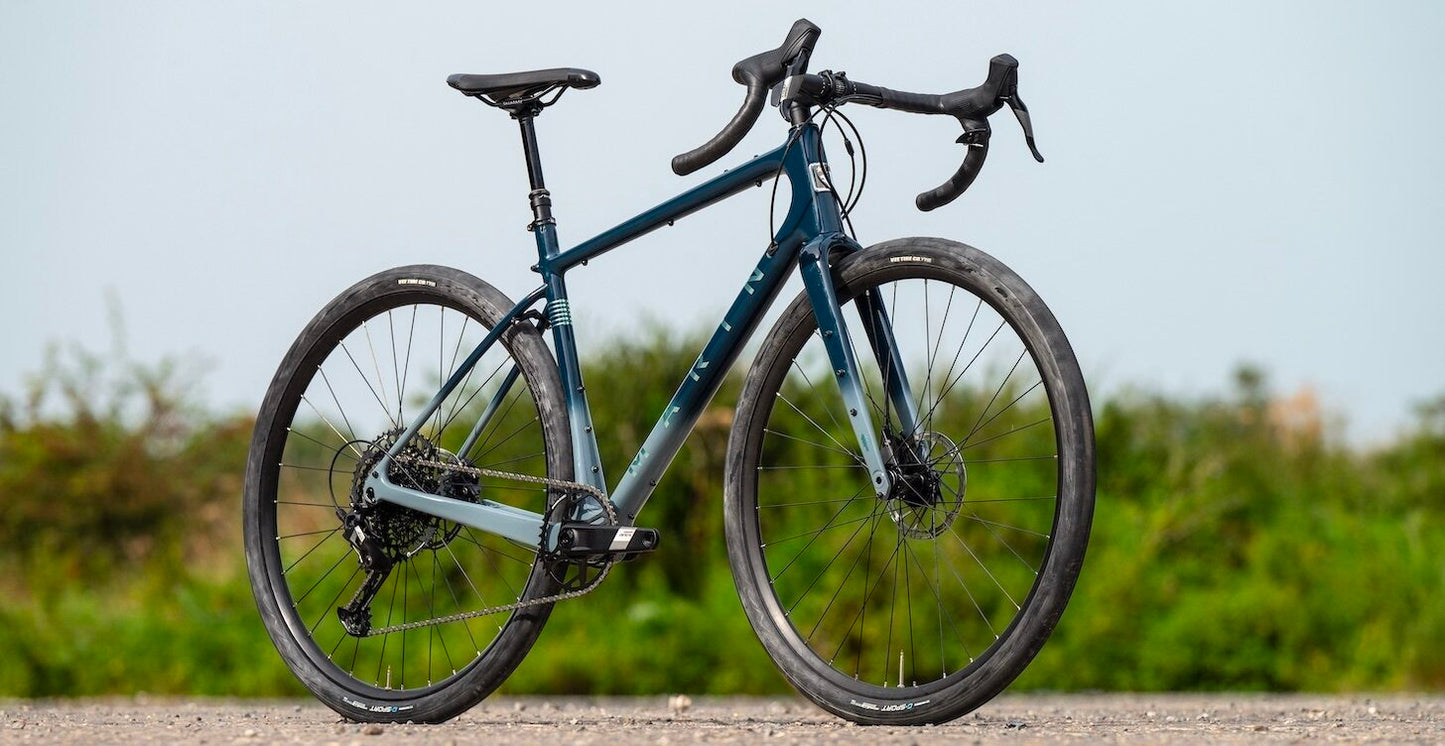

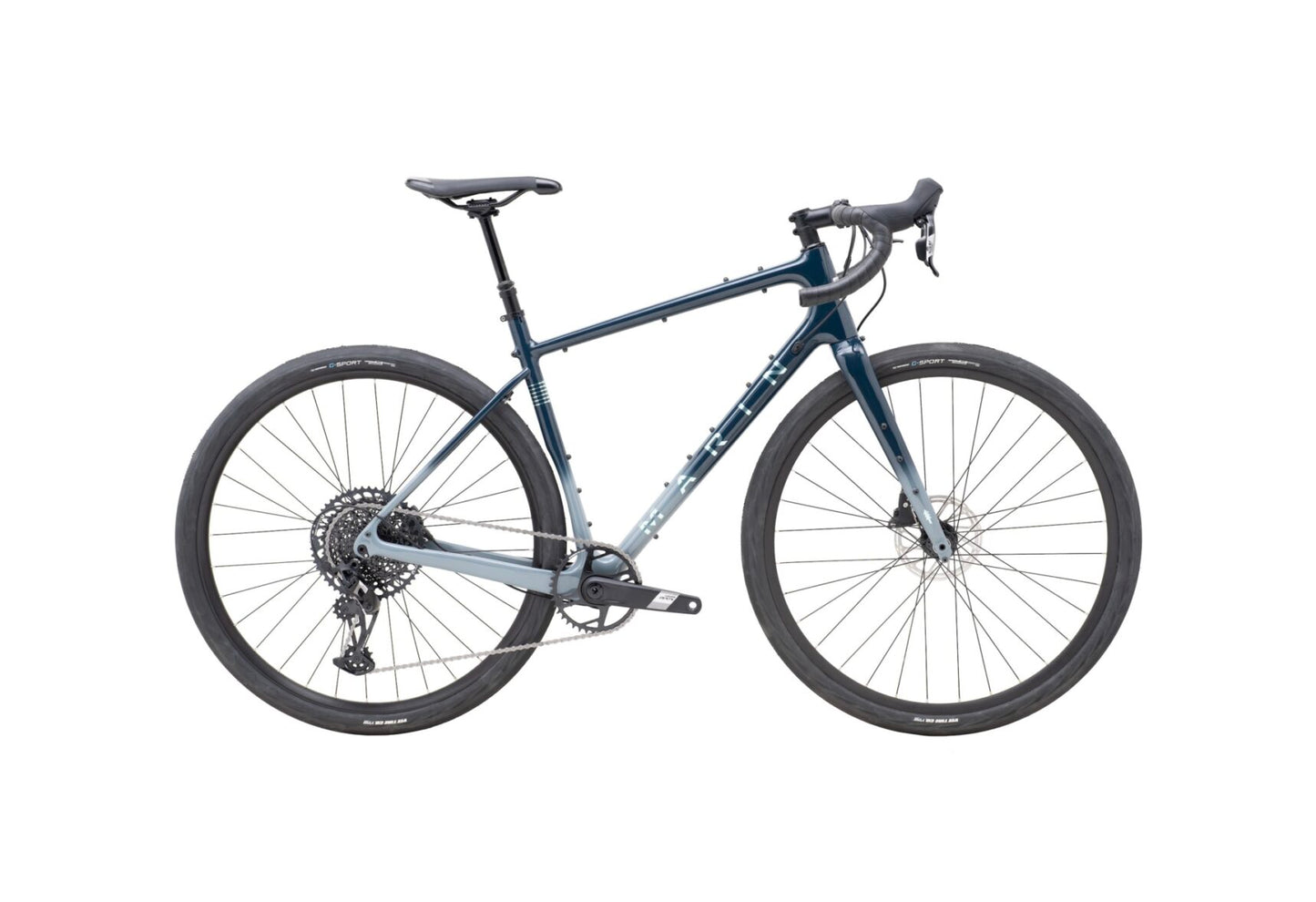

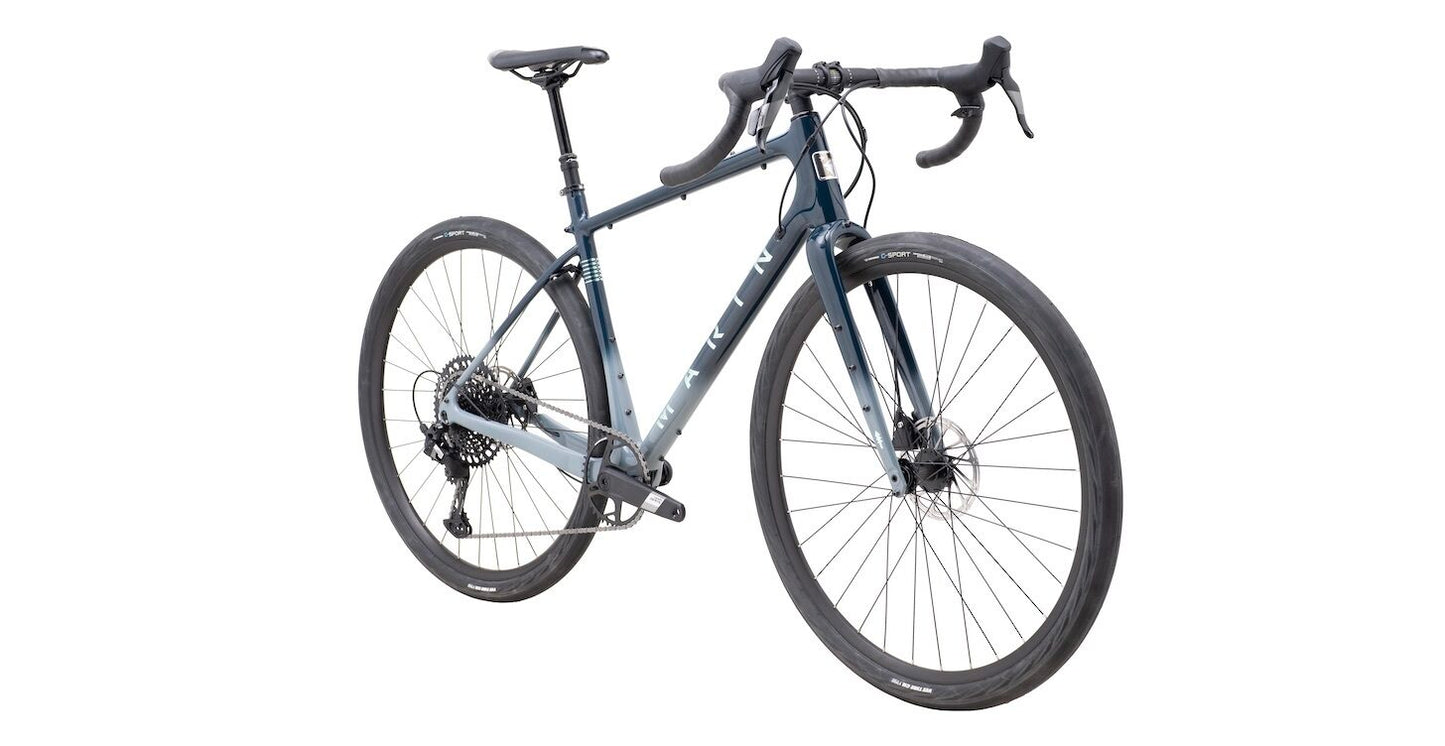

The Marin Headlands 2 is a high-performance carbon fiber gravel and adventure bike, designed for both on-road and off-road riding, long-distance commuting, and gravel racing. Built for versatility and durability, this bike features advanced mountain bike-inspired geometry, ample tire clearance, and numerous mounting points for gear and fenders, making it ideal for fully loaded bike-packing and fast off-road adventures.

Key Upgrades from the Headlands 1

• SRAM Apex 12-speed drivetrain: Ensures smooth and reliable gear shifts.
• TranzX dropper post: Enhances control and confidence on technical trails.

Specifications

Frame

• Material: Unidirectional Carbon Beyond Road Platform
• Compatibility: 700c x 45mm / 650B x 50mm tires
• Mounts: Flat Mount Disc, 142x12mm Thru-Axle, Internal Dropper Post Routing, Internal Housing Routing, Mudguard, Rear Carrier, and Gear Mounting Points

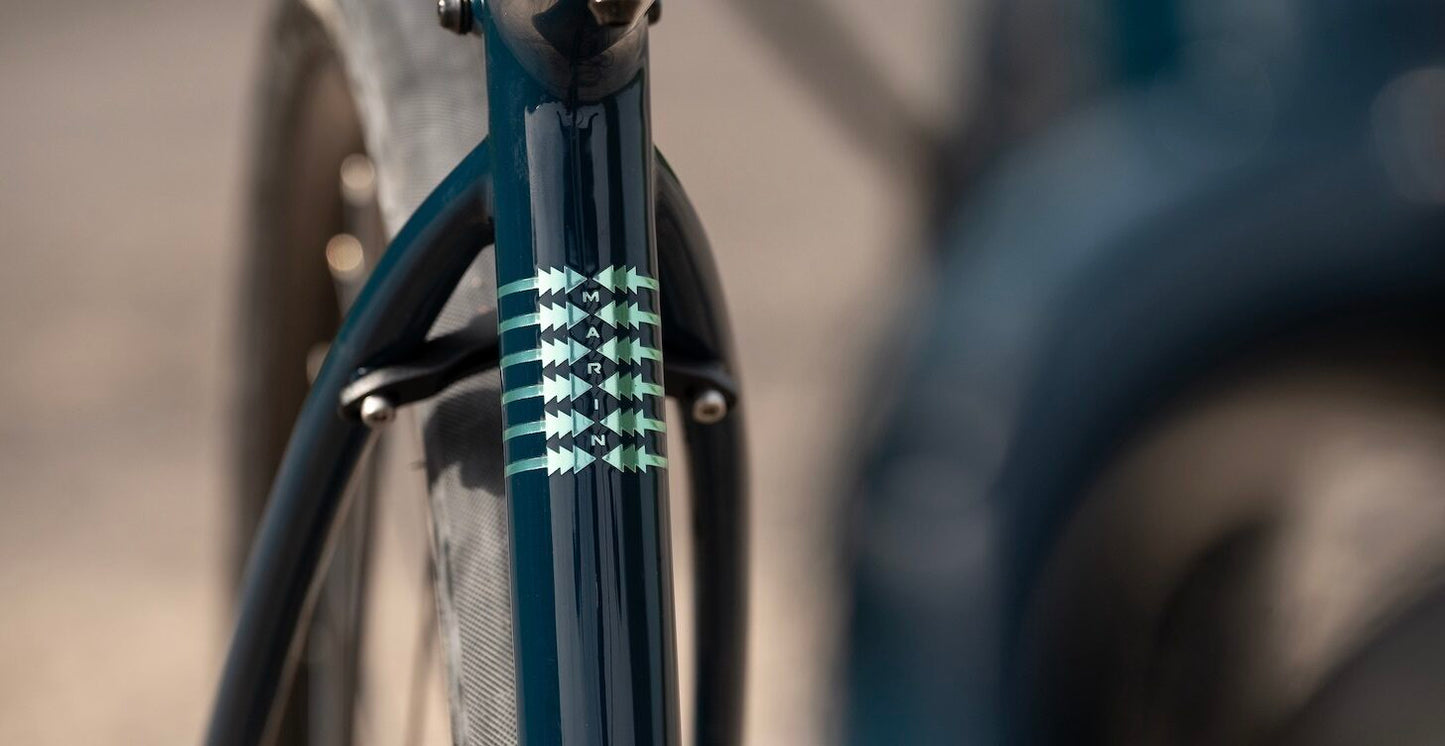

Fork

• Material: Marin Full Carbon with Tapered Steerer
• Mounting: 12mm Thru-Axle, Flat-Mount Disc, Fender Eyelets

Wheels

• Rims: Marin Aluminum Double Wall, 21mm Inner, 21mm Tall, Tubeless Compatible
• Hubs: Forged Aluminum Alloy, Disc, 28H (Front and Rear)
• Spokes: Double Butted Stainless

Tires

• Brand: Vee Tire Co.
• Model: G-Sport, 700c x 44mm, Tubeless Compatible

Drivetrain

• Rear Derailleur: SRAM Apex 1 12-Speed
• Shift Lever: SRAM Apex 1 1x12-Speed
• Crankset: SRAM Apex 1, 40T
• Bottom Bracket: SRAM DUB BSA
• Chain: SRAM NX
• Cassette: SRAM CS-XG-1275, 10-52T

Brakes

• Front & Rear: SRAM Apex 1 Flat-Mount Hydraulic Disc, 160mm Rotor

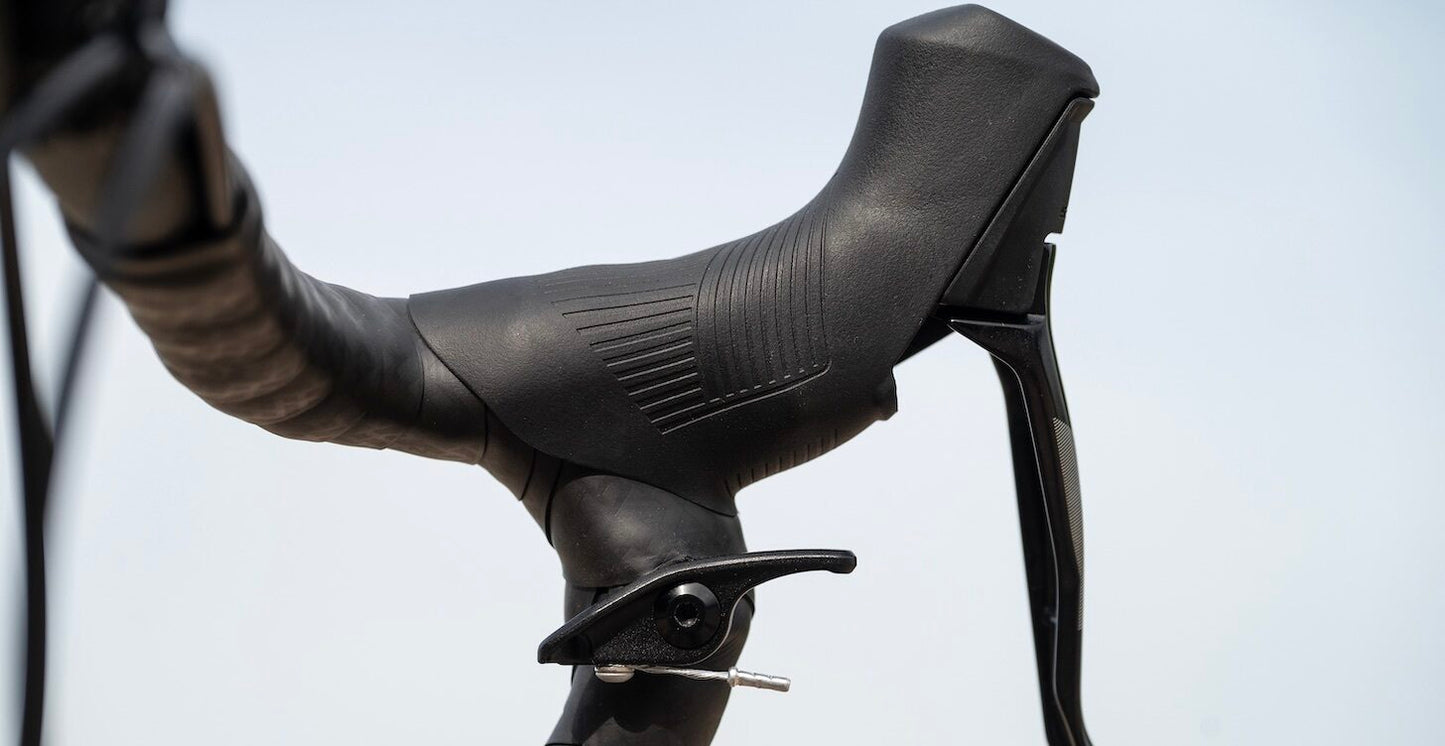

• Brake Levers: SRAM Apex 1 Hydraulic Disc

Cockpit

• Handlebar: Marin Butted Alloy, Compact 16º Flared Drop
• Stem: Marin 3D Forged Alloy
• Grips: Marin Shock Absorbing Tape
• Headset: FSA Orbit IS, Sealed Cartridge Bearings, 1 1/8” x 1 1/2”

Seatpost

• Model: TranzX YSP38J
• Travel: 70mm (Size 49-54), 110mm (Size 56-60)
• Diameter: 27.2mm

Saddle

• Model: Marin Beyond Road Concept Elite

Extras

• Pedals: Not included
• Thru-Axles: Bolt-On (Front and Rear)

Technology Highlights

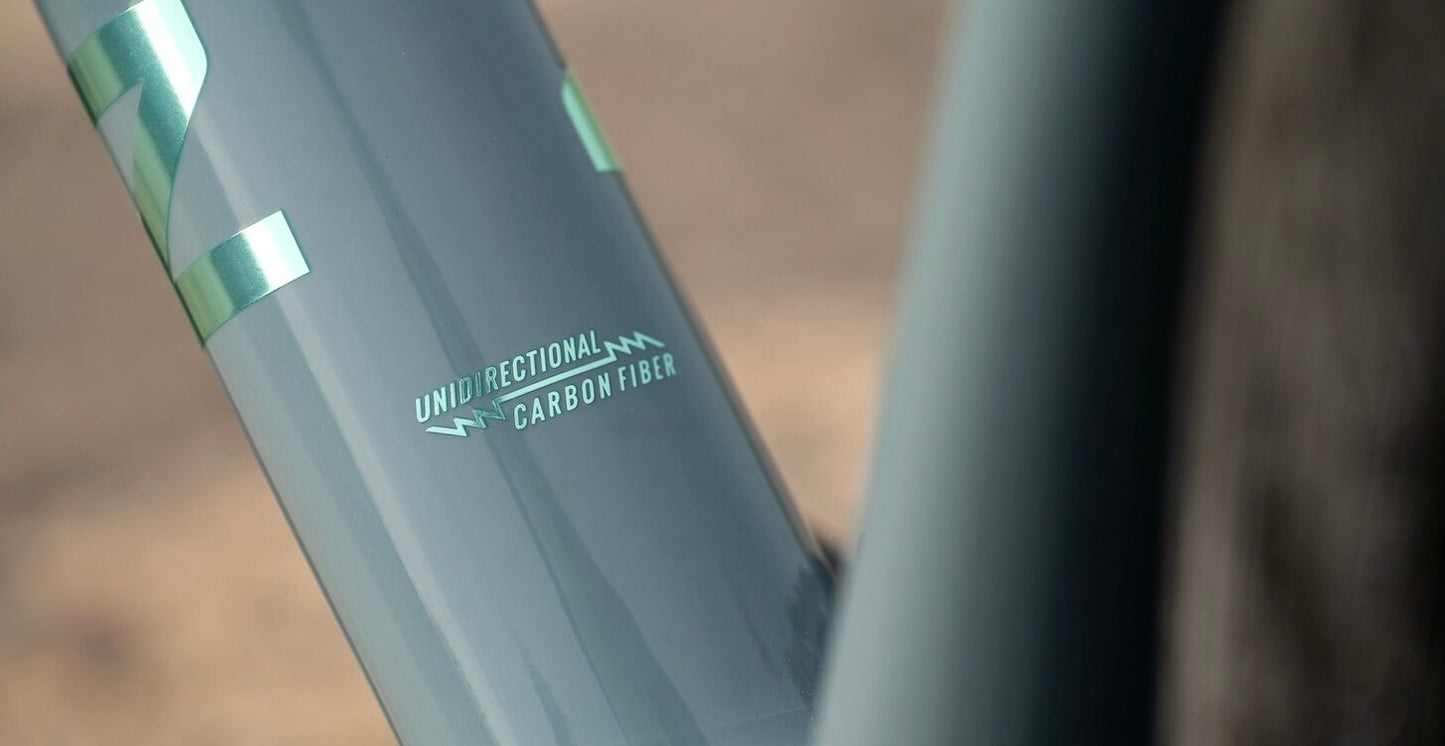

Unidirectional Carbon Fiber Frame

• Design: Built for modern gravel and endurance riding, featuring large tire clearance, 142x12mm thru-axle, and multiple frame eyelets for hydration and gear bags.

Tire Clearance

• Capability: Accommodates up to 700Cx45 or 650Bx50 tires for handling rough terrains with ease.

Internal Dropper Compatibility

• Feature: Seattube port for internal dropper routing, equipped with a 105mm/85mm dropper post on the Headlands 2 model.

Removable Seatstay Brace

• Functionality: Allows easy addition of fenders for wet conditions while maintaining a clean look when fenders are not needed.

Conclusion

The Marin Headlands 2 is designed to be the ultimate gravel and adventure bike, providing top-spec performance and unparalleled versatility. Whether you're commuting long distances, racing on gravel, or embarking on off-road adventures, the Headlands 2 is built to handle it all with speed, comfort, and confidence.
