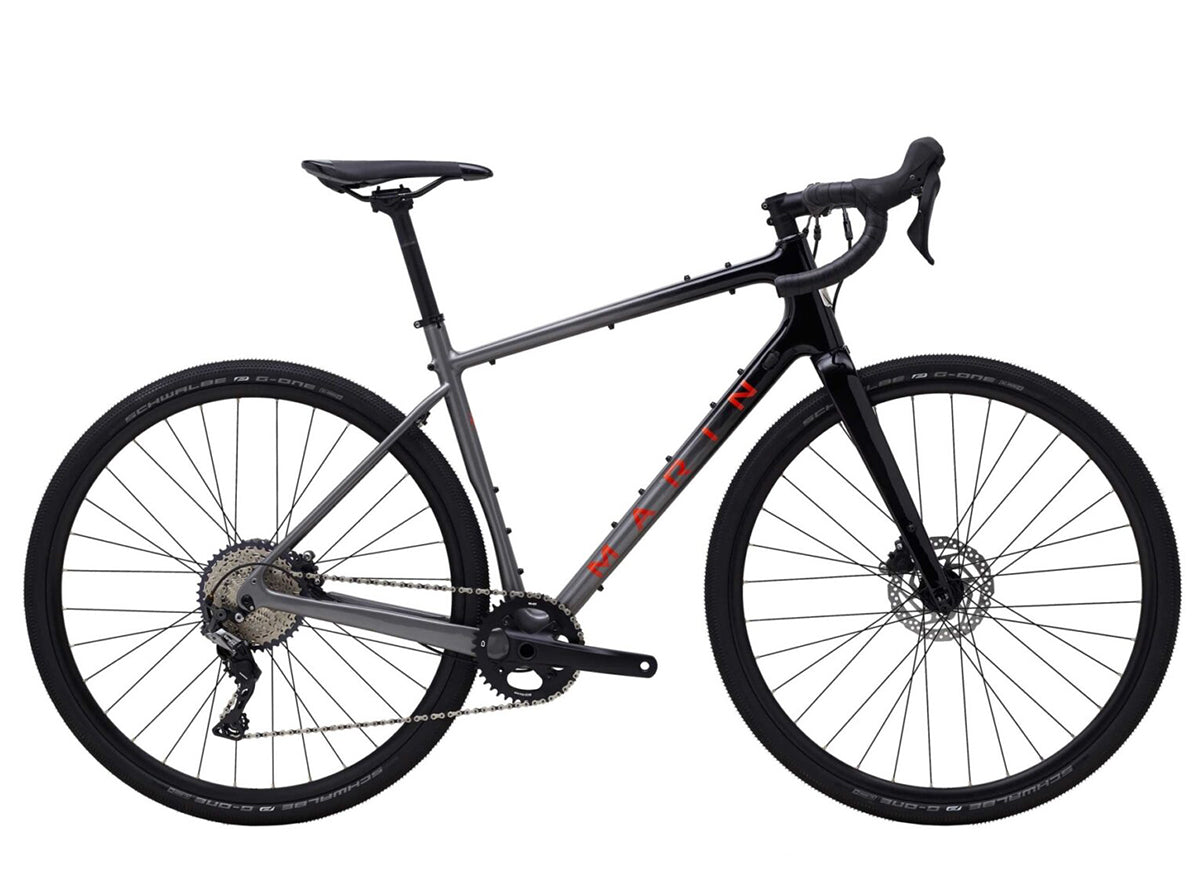

Marin Headlands 1 Adventure Road Bike - 2022

The Headlands takes what we have learned with the alloy Gestalt X line, and brings the spirit to an all-new, full carbon fiber frameset. Modern geometry, generous tire clearance, and sublime ride quality, all combine to make an incredibly capable, lightweight bike that’ll exceed your expectations.

UNIDIRECTIONAL CARBON FIBER FRAME
The Headlands has a unidirectional carbon fiber frame designed to meet the demands of modern gravel and endurance riders and racers with large tire clearance, a 142x12mm thru-axle, and multiple frame eyelets for customized hydration and frame bag needs.

TIRE CLEARANCE
The Headlands was designed with clearance for up to 700Cx45 or 650Bx50 tires to handle even the roughest “roads.”

INTERNAL DROPPER COMPATIBILITY
The Headlands features a seattube port for internal dropper routing, with the Headlands 2 coming stock with a 105mm/85mm dropper post.

REMOVABLE SEATSTAY BRACE
The removable seat stay brace makes it super easy to add fenders for foul weather riding and commuting, while maintaining a clean smooth look when you don’t need the coverage.

• FRAME: Unidirectional Carbon Beyond Road Platform, 1x Drivetrain Specific, 700c x 45mm/650B x 50mm Compatible, Flat Mount Disc, 142x12mm Thru-Axle, Internal Dropper Post Routing, Internal Housing Routing, Mudguard and Rear Carrier Mounting, Plentiful Gear Mounts
• FORK: Marin Full Carbon w/ Tapered Steerer, 12mm Thru-Axle, Flat-Mount Disc, Fender Eyelets
• RIMS: Marin Aluminum Double Wall, 21mm Inner, 21mm Tall, Disc Specific, Tubeless Compatible
• HUB, REAR: Forged Aluminum Alloy, 32H
• HUB, FRONT: Forged Aluminum Alloy, 32H
• SPOKE, NIPPLES: 14g Black Stainless Steel
• TIRES: Schwalbe G-One Performance, 700Cx40mm, Folding Bead
• DERAILLEUR, REAR: Shimano GRX Shadow w/ Clutch
• SHIFT LEVER: Shimano GRX RX600
• CRANKSET: Forged Alloy 1x11, Hollow CrMo Spindle, Narrow Wide 40T
• BOTTOM BRACKET: External Sealed Cartridge Bearings
• CHAIN: KMC X11
• CASSETTE: Shimano CS-M7000 11/42T
• BRAKE, FRONT: Shimano GRX Hydraulic Disc, 160mm Rotor
• BRAKE, REAR: Shimano GRX Hydraulic Disc, 160mm Rotor
• BRAKE LEVERS: Shimano GRX Hydraulic w/ Shifter
• HANDLEBAR: Marin Butted Alloy, Compact 12º Flared Drop, Flat Top
• STEM: Marin 3D Forged Alloy
• GRIPS: Marin Shock Absorbing Tape
• HEADSET: FSA Orbit IS, Sealed Cartridge Bearings, 1 1/8” x 1 1/2”
• SEATPOST: Marin Alloy, 27.2mm
• SADDLE: Marin Beyond Road Concept
• PEDALS: Commute Platform
• EXTRAS: Bolt-On Thru-Axles F and R
