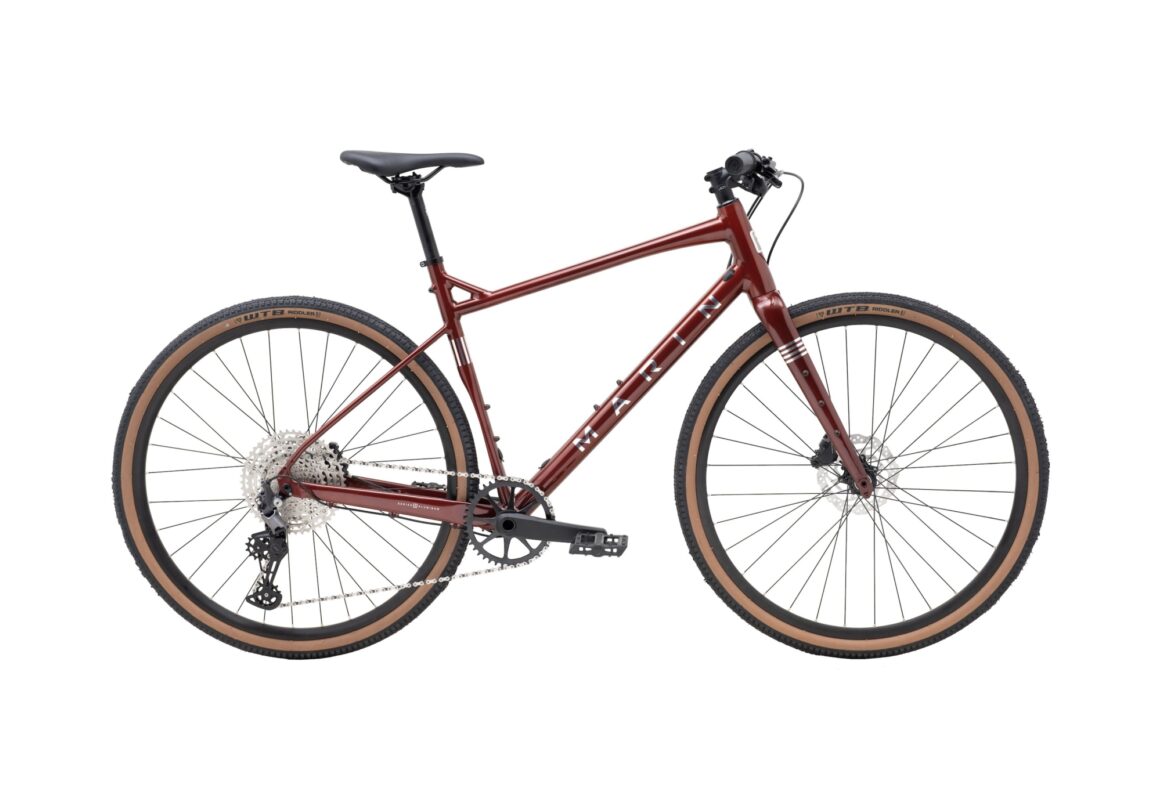

Marin DSX 2: The Ultimate Modern Flat-Bar Gravel Bike

The Marin DSX 2 embodies everything we crave in a contemporary flat-bar gravel bike. With its zippy aluminum frame, carbon fork, generous tire clearance, and low standover height, this bike is designed to handle a variety of terrains with ease. It combines the agility of a mountain bike with the versatility needed for gravel adventures, making it a standout choice for riders who prefer flat bars over drop bars.

The DSX 2 features a Series 3 aluminum frame paired with a lightweight carbon fork that’s equipped with numerous mounting points for all your bikepacking essentials. With a 12-speed 1X Shimano Deore drivetrain, WTB Riddler tires, and powerful Tektro hydraulic brakes, this bike delivers reliable performance on and off the beaten path.

Key Upgrades from the DSX 1:

• Shimano Deore 6100 1x12 drivetrain: Enhanced gear range and shifting precision.
• Tektro R285 hydraulic disc brakes: Superior stopping power and control.

Technology Highlights:

• Series 3 & Series 2 Frames: Both the DSX 2 and DSX 1 models feature butted and formed Series 3 6061 aluminum frames with internal cable routing, 142x12mm thru-axles, flat mount disc brakes, and provisions for racks and fenders. The base DSX model uses a Series 2 frame with similar features.

• Tire Clearance: The DSX 2 comes stock with 700x45mm tires, but it’s designed to accommodate up to 700x50mm rubber, offering flexibility for various riding conditions.

• Disc Brakes: The latest flat mount disc brake standard ensures smooth, reliable stopping power in all conditions with minimal maintenance.

• Dropper Post Routing: For added convenience, the DSX 2 includes internal routing for a dropper post, making upgrades straightforward and keeping your setup clean.

Specifications

• Frame: Series 3 DSX, 6061 Aluminum, Tapered Head Tube, Internal Cable Routing, Mudguard and Rack Mounts, Flat Mount Disc, 142x12mm Thru-Axle
• Fork: Marin Full Carbon w/ Tapered Steerer, 12mm Thru-Axle, Flat-Mount Disc, Fender Eyelets
• Rims: Marin Aluminum Double Wall, 21mm Inner, Disc Specific, Tubeless Compatible
• Hub Rear: Forged Aluminum, 142x12mm, Disc Specific, 32H
• Hub Front: Forged Aluminum, 100x12mm, Disc, 32H
• Spokes Nipples: 14g Black Stainless Steel
• Tires: WTB Riddler, 700Cx45mm
• Derailleur Rear: Shimano Deore, RDM6100, 12-Speed
• Derailleur Front: -
• Shift Lever: Shimano Deore, SLM6100, 12-Speed
• Crankset: Forged Aluminum, 42T Steel Narrow Wide Chainring
• Bottom Bracket: Sealed Outboard Bearing
• Chain: KMC X12
• Cassette: SunRace, 12-Speed, 11-51T
• Brakes Front: Tektro HDR285 Flat Mount Hydraulic, 160mm Rotor
• Brakes Rear: Tektro HDR285 Flat Mount Hydraulic, 160mm Rotor
• Brake Levers: Tektro Hydraulic
• Handlebar: Marin MiniRiser
• Stem: Marin 3D Forged Alloy
• Grips: Marin MTB
• Headset: FSA No.42 ACB, Sealed Cartridge Bearings, 1 1/8” x 1 1/2”
• Seatpost: Marin Alloy
• Saddle: Marin DSX
• Pedals: Marin Oso OE Flat
• Extras: Bolt-On Thru-Axles F and R

Specifications, pricing, and availability are subject to change without notice.
