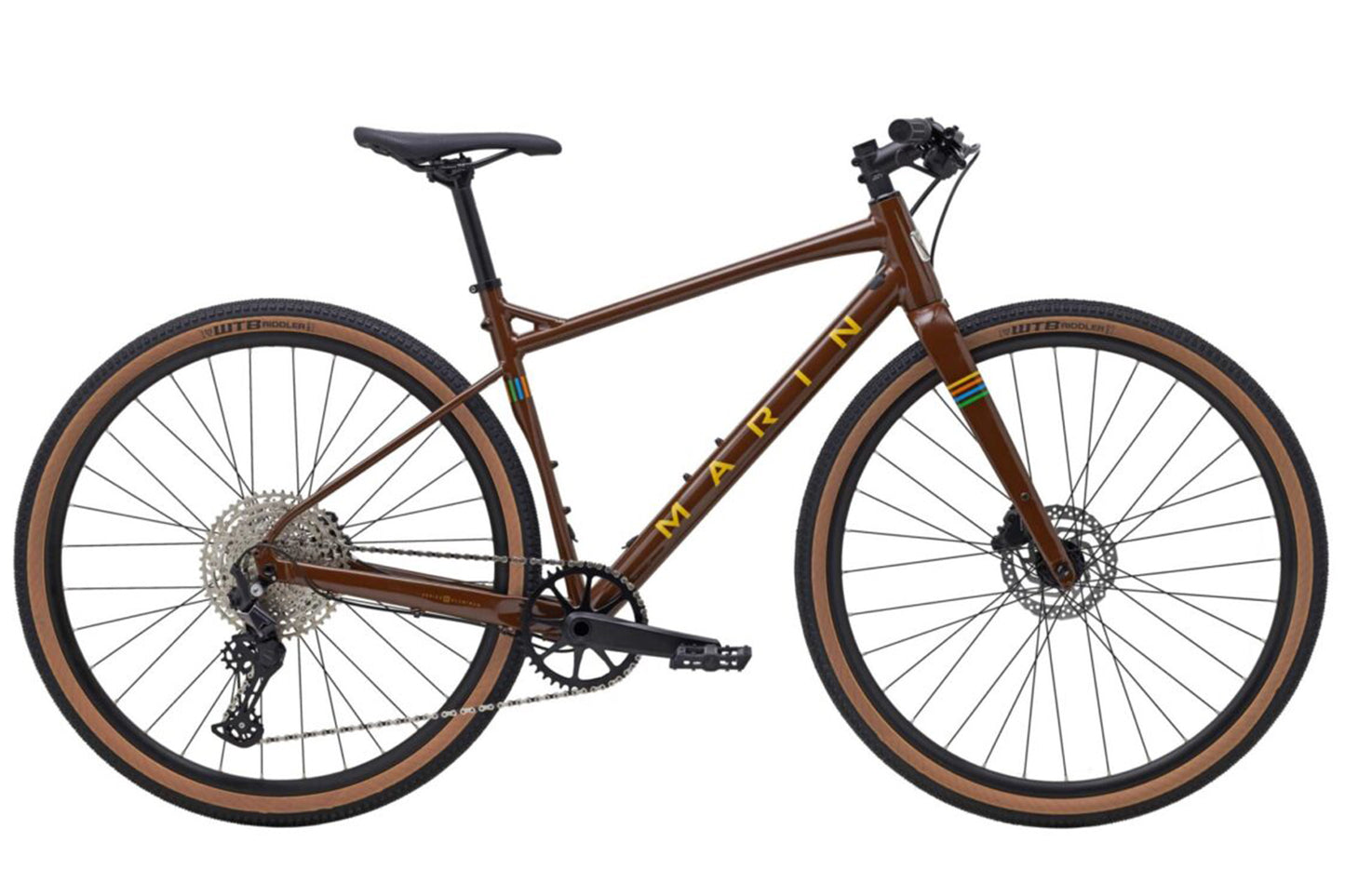

Marin DSX 2 700c/29" Mixed Surface Adventure Bike - Brown - 2023

The DSX is the mountain biker’s gravel bike with familiar hand positioning, reliable 1x drivetrains, large tire clearance, and dropper post routing for better off road control, and on road descending stability.

Key upgrades over the DSX 1:

• Shimano Deore 6100 1x12 drivetrain
• Shimano hydraulic disc brakes

• FRAME: Series 3 DSX, 6061 Aluminum, Tapered Head Tube, Relieved BB, Internal Cable Routing, Mudguard and Rack Mounts, Flat Mount Disc, 142x12mm Thru-Axle
• FORK: Marin Full Carbon w/ Tapered Steerer, 12mm Thru-Axle, Flat-Mount Disc, Fender Eyelets
• RIMS: Marin Aluminum Double Wall, 21mm Inner, Disc Specific
• HUB, REAR: Shimano Forged Aluminum, 142x12mm, Microspline, Centerlock, 32H
• HUB, FRONT: Forged Aluminum, 100x12mm, Centerlock, 32H
• SPOKE, NIPPLES: 14g Black Stainless Steel
• TIRES: WTB Riddler, 700Cx45mm
• DERAILLEUR, REAR: Shimano Deore 12-Speed
• SHIFT LEVER: Shimano Deore 12-Speed
• CRANKSET: Forged Aluminum, 42T Steel Narrow Wide Chainring
• BOTTOM BRACKET: Sealed Outboard Bearing
• CHAIN: KMC X12
• CASSETTE: Shimano Deore 12-Speed, 10-51T
• BRAKE, FRONT: Shimano MT201/UR300 Flat Mount Hydraulic Disc, 160mm Rotor
• BRAKE, REAR: Shimano MT201/UR300 Flat Mount Hydraulic Disc, 160mm Rotor
• BRAKE LEVERS: Shimano Hydraulic
• HANDLEBAR: Marin MiniRiser
• STEM: Marin 3D Forged Alloy
• GRIPS: Marin MTB
• HEADSET: FSA No.42 ACB, Sealed Cartridge Bearings, 1 1/8” x 1 1/2”
• SEATPOST: Marin Alloy
• SADDLE: Marin DSX
• PEDALS: Commute Platform
• EXTRAS: Bolt-On Thru-Axles F and R
