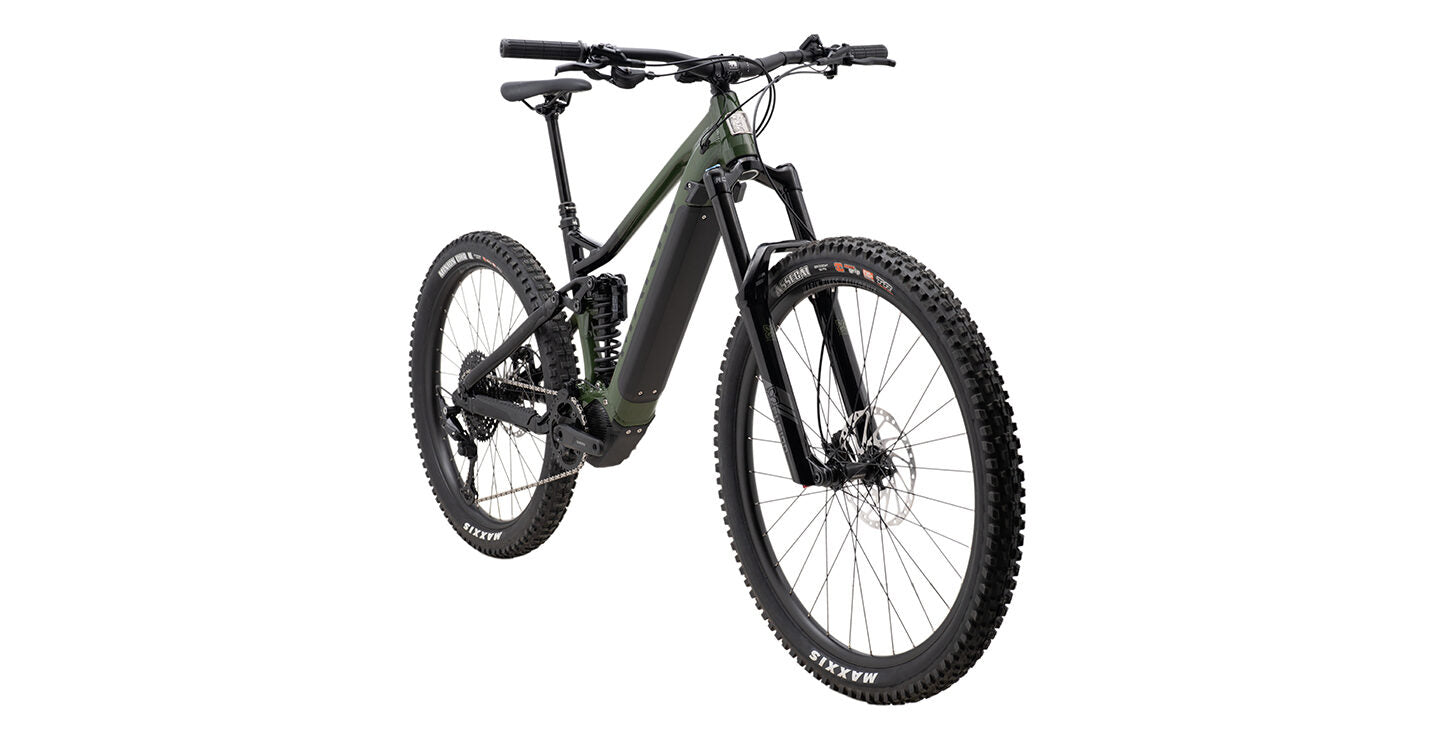

The Marin Alpine Trail E1 sits squarely in the middle of the Alpine Trail family, packing performance and value in equal measure. Go E1 and you’ll get an upgrade to a 630Wh battery, X-Fusion Trace 36RC / RockShox Super Deluxe Coil R suspension and a long-lasting, tough and reliable Shimano 11-speed Deore drivetrain.

KEY UPGRADES FROM THE ALPINE TRAIL E

• Shimano 630Wh battery
• X-Fusion Trace 36RC / RockShox Super Deluxe Coil R suspension
• Shimano Deore 11-speed drivetrain w/11-51t cassette

SPECIFICATIONS

• FRAME: Series 4 Alloy Frame, 150mm MultiTrac Suspension, Integrated Battery/Charging Port, 148mm Rear Thru-Axle, Built-in Rear Speed Sensor
• FORK: X-Fusion Trace 36 RC, 160mm Travel, 29", 110x15mm Bolt-On Axle, 44mm Offset
• SHOCK: RockShock Super Deluxe Coil R, Rebound Adjustment, 205x65mm, 25mmxM8 Lower Hardware, S/M Spring Rate = 300lb, L/XL Spring Rate = 400lb
• RIMS: Front: Marin Aluminum Double Wall, 29" Diameter, 32mm Inner Rim Width, Pinned Joint, Disc Specific, Tubeless Compatible; Rear: Marin Aluminum Double Wall, 27.5" Diameter, 38mm Inner Rim Width, Pinned Joint, Disc Specific, Tubeless Compatible
• HUB REAR: Shimano HB-MT400B, 148x12mm, Centerlock, Standard Freehub Body
• HUB FRONT: Shimano MT-410B, 110x15mm, centerlock Disc, 32H
• SPOKES: 14g Black Stainless Steel
• TIRES: Front: Vee Tire Co. Attack HPL, 29x2.5", Top 40 Tubeless Compatible, Rear: Vee Tire Co. Crown Gem, 27.5x2.8”, TACKEE Compound, Tubeless Compatible
• DERAILLEUR REAR: Shimano Deore, Direct Attachment, 11-Speed, SGS
• SHIFT LEVER: Shimano Deore, 11-Speed, I-Spec E
• CRANKSET: Shimano EM600, 160mm Length, 38t Chainring
• MOTOR: Shimano Steps EP6 Drive Unit, 250W, 85Nm
• CHAIN: KMC X-10E, Silver
• CASSETTE: SunRace 11-Speed, 11-51T
• BRAKES FRONT: Shimano MT420, 4-Piston Hydraulic Disc, Metallic Pads, 203mm Rotor
• BRAKES REAR: Shimano MT420, 4-Piston Hydraulic Disc, Metallic Pads, 203mm Rotor w/ Speed Sensor
• BRAKE LEVERS: Shimano SLX Levers, I-Spec EV
• HANDLEBAR: Marin Mini-Riser, 6061 Double Butted Aluminum, 780mm Width, 28mm Rise, 5º Up, 9º Back
• STEM: Marin 3D Forged Alloy, 35mm
• GRIPS: Marin Grizzly Lock On
• HEADSET: FSA No 57E, Sealed Cartridge Bearings, 1 1/8" x 1 1/2”
• SEATPOST: TranzX, YSP23JL, 1x Remote, Size S 150mm Travel, Size M and L 170mm Travel, Size XL 200mm Travel, 30.9mm
• SADDLE: Marin eMTB Saddle
• PEDALS: Marin MTB Plastic
• BATTERY: BT-8036, Internal 630Wh
• DISPLAY: Shimano SC-E600
• SWITCH: SW-E7000 Left Hand Switch for Assist Mode Change
• EXTRAS: Shimano Battery Charger EC-E6002, Shimano CS-EN800 Chainguide, CushCore, 29" Pro Front, Plus Rear, with CushCore Valve Stems, Marin Tire Sealant 250ml, Squeeze Top with Valve Core Removal Tool Cap

Specifications, pricing, and availability are subject to change without notice.
