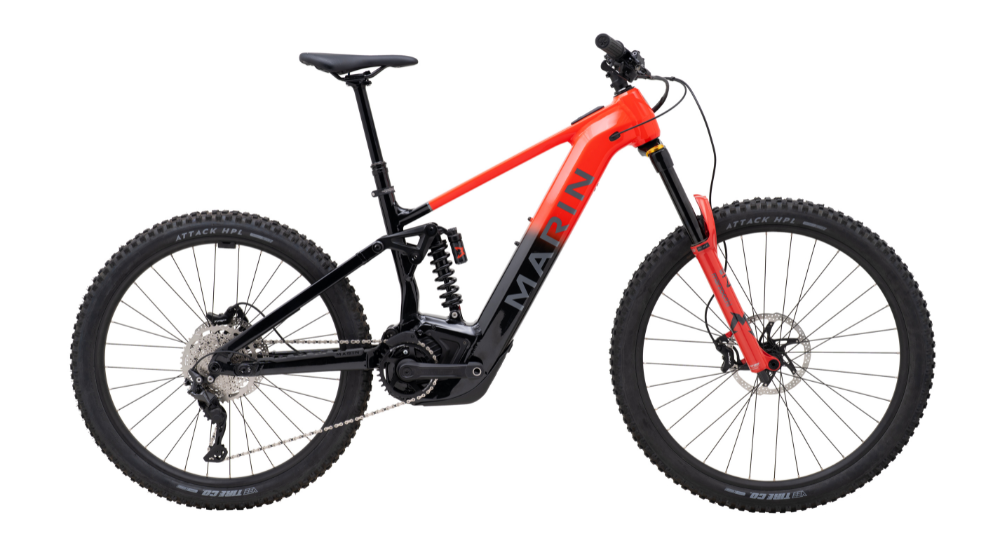

Marin Alpine Trail E1 Bosch 29 - Red-Black - 2025
Marin Alpine Trail E1 Bosch 29 - Red-Black - 2025
Product ID: GM091525-03
Shop all Marin | Shop all Electric Mountain Bikes
View full detailsDescription
Marin Alpine Trail E1 Bosch 29
The Alpine Trail E (Bosch) is our biggest, baddest beast of a bike family. Moving one step beyond in capability from the Alpine Trail E models, the new Alpine Trial E Bosch eMTBs are constructed with all-new Series 4 aluminum MultiTrac 2 LT frames that feature significant upgrades for riders who challenge themselves with the steepest, most technical terrain, as well as those who require the maximum in range.
We've increased the travel by 10mm at both ends, now standing at 170mm (f) and 160mm (r), and relocated the pivots to the chainstays to deliver the suspension performance and tunability demanded by the longer travel. Riders have the ability to alter the head tube angle by +/- .75° by repositioning the lower headset cup while the bottom bracket height/chainstay length can be changed by the means of seatstay flip chips.
Bosch's Performance Line CX drive units twist out 85Nm of torque and are backed by large capacity 750Wh PowerTube batteries, nestled safely in the frame's downtube, giving you the largest battery in the Marin range for the biggest adventures.
The Alpine Trail E1 Bosch is smartly spec'd with choice Marzocchi suspension with a coil shock out back, Shimano's innovative CUES 10-speed drivetrain and Tektro's Slate EVO 4-piston brakes with 203mm x 2.3mm rotors for when you need to reel in the party.
Key Details:
Specifications:
| Category | Details |
|---|---|
| FRAME | All New, Series 4 Alloy, 6061 MutiTrac Suspension LDT, Adjustable Headset & CS Length/Height, Integrated Battery/Charging Port, 148mm Rear Thru-Axle |
| FRONT SUSPENSION | Marzocchi 270 T, 170mm, 29", 110x15 Kabob, Thru Axle, 44mm Offset |
| REAR SUSPENSION | Marzocchi CR Coil, 205x65mm, Trunnion Upper Mount, 30x80mm Lower Hardware, Custom Tune, M Spring Rate = 450lb, L Spring Rate = 500lb, XL Spring Rate = 550lb |
| RIM | Front: Marin Aluminum Double Wall, 29" Diameter, 32mm Inner Rim Width, Pinned Joint, Disc Specific, Tubeless Compatible; Rear: Marin Aluminum Double Wall, 27.5" Diameter, 32mm Inner Rim Width, Pinned Joint, Disc Specific, Tubeless Compatible |
| HUB, REAR | Shimano HB-T500C, 148x12mm, Centerlock, Standard Freehub Body |
| HUB, FRONT | Shimano FH-TC500, 110x15mm, Centerlock, 32H |
| SPOKES | 14g Black Stainless Steel |
| TIRES | Vee Tire Co. Maxx Cross Attack HPL, E-Control Compound, Front 29x2.25", Rear 27.5x2.5 |
| DERAILLEUR REAR | Shimano CUES RD-U6000 GS, 10-Speed |
| DERAILLEUR FRONT | Shimano CUES FD-U6000 GS, 10-Speed |
| DERAILEUR FRONT | Shimano CUES FD-U6000 GS, 10-Speed |
| CRANKSET | Shimano FC-U6000, 48-32T, 170mm, 50mm Chainline, 104mm BCD |
| BOTTOM BRACKET | Sealed Cartridge Bearings |
| CHAIN | KMC X10-10 |
| CASSETTE | Shimano CS-HG700, 11-46T |
| BRAKE, FRONT | Shimano MT201 Hydraulic Disc, 160mm Rotor |
| BRAKE, REAR | Shimano MT201 Hydraulic Disc, 160mm Rotor |
| GRIPS | Marin Grizzly Lock-On |
| HEADSET | FSA No 57E, Semi-Sealed Cartridge Bearings, 1 1/8" x 1 1/2" |
| SEATPOST | Marin Alloy, 30.9mm |
| SADDLE | Marin DJ Saddle |
| PEDALS | Alloy Platform |
| EXTRAS | e*thirteen e*spec Chainguide |
| RANGE, CHARGING TIME | 31-78 miles (Based on Rider Weight, Terrain, Climate and Level of Assist Used), 11 Hours (estimated, under ideal conditions) |
Sizing & Geometry:
