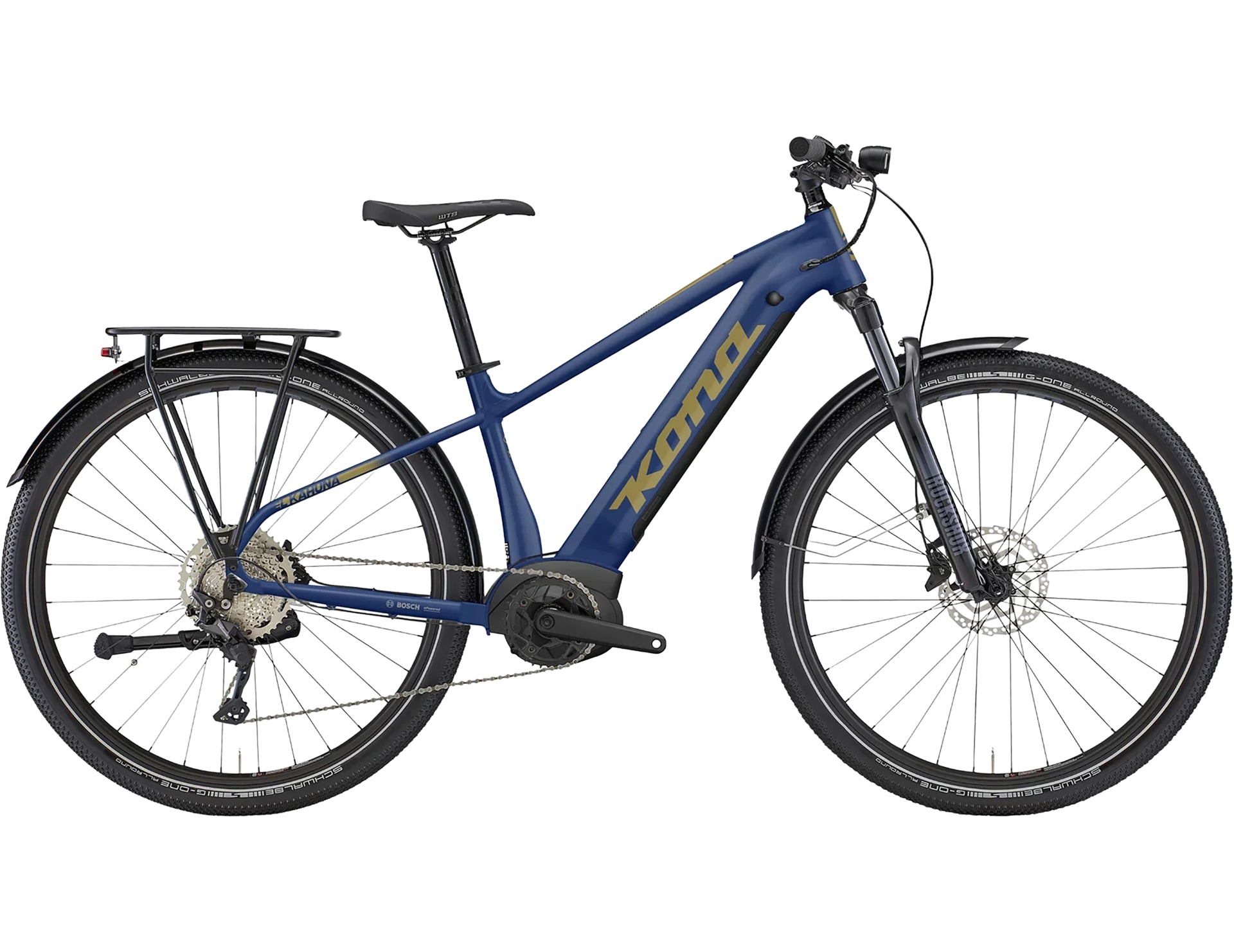

Kona El Kahuna 29 - Bosch Sport 625wH

The El Kahuna iS your go-anywhere, do-everything, multipurpose hardtail-with a quiet boost. Kona have updated Kona's best-selling e-MTB with the smooth, responsive Bosch Performance Line motor, delivering confidence on climbs and calm on commutes.

An internal 625Wh battery keeps the lines clean, while a 100mm fork and 29" wheels roll easily between campgrounds, gravel, and everyday errands. Whether you're chasing bike paths or hauling groceries, the El Kahuna is the perfect all-rounder.

The Bosch Performance Line DU (Drive Unit) is a versatile, high-torque motor (up to 75-85 Nm) commonly used for trekking, touring, and e-MTB (CX version). The Performance Line Sport DU (US only) is specifically a Class 3 motor, optimized for speed pedelecs (up to 28 mph) and commuting, with 90 Nm torque

• Bosch 625Wh removeable internal battery
• Bosch PowerMore250 range extender included (EU only)
• All frames sizes fit Bosch PowerMore250 range extender
• Bosch Performance Line DU / Performance Line Sport DU (US only)
• Bosch System Controller w/ mini remote
• Bosch Connect Module
• 12 x 148mm thru-axle rear hub with UDH dropouts
• RockShox Recon Gold RL 100mm Fork
• MicroShift Advent X 10 Speed Drivetrain
• Tektro Gemini hydraulic disc brakes
• Schwalbe G-One DD, Raceguard tyres
• Lezyne front & rear lights
• Full wrap fenders with rear rack
• Kickstand & Abus battery lock

Specification

Frame and Forks

• Frame: Kona 6061 Aluminium Butted
• Forks: RockShox Recon Gold RL 100mm Tapered 110 Spacing
• Headset: Feimin No.10

Drivetrain

• Crankset: ProWheel Narrow-Wide For E-Bike
• Chainrings: 36 Tooth
• Rear Derailleur: MicroShift Advent X 10 Speed
• Cassette: MicroShift Advent X 11-48 Tooth 10 Speed
• Chain: KMC E10t 10 Speed

Braking/Shifting

• Shifters: MicroShift Advent X 10 Speed
• Brakes: Tektro Gemini M530 4-Piston
• Front Rotor: Tektro TR 180mm
• Rear Rotor: Tektro TR 180mm
• Brake Levers: Tektro Gemini

Wheels

• Rims: WTB KOM Team I27 TCS 2.0
• Front Hub: Formula 110 x 15mm
• Rear Hub: Formula 148 x 12mm
• Spokes: Stainless 14 Gauge
• Front Tyre: Schwalbe G-One 29 x 2.25"
• Rear Tyre: Schwalbe G-One 29 x 2.25"

Finishing Kit

• Handlebars: Kona XC/BC Riser
• Grips: Kona Key Grip
• Stem: Kona XC
• Seatpost: TranzX Dropper 100mm (Small), 120mm (Medium), 150mm (Large - X-Large)
• Seat Clamp: Kona Clamp
• Saddle: WTB Volt
• Pedals: Not Included

Electric Power

• Motor: Bosch Performance Line Sport (28kmh / 20mph) with with 90 Nm torque
• Battery: Bosch PowerTube 625wh
• Battery Lock: Abus
• Charger: Bosch Charger + Power Cable 2A (230V)
• Display: Bosch Intuvia 100 With Bosch System Controller And Mini Remote

Extras

• Includes: Rear Rack, Fenders, Lezyne Front & Rear Light, Kickstand

Sizing:
