Intense Tracer S 279 - Red - 2023

Intense Tracer S 279 - Red - 2023

Regular price $5,449.00
Sale price $5,449.00
Intense Logo

FREE SHIPPING ON ALL SALE BIKES
Color
Size

Product ID: GM030923-13

Earn rewards points on this item / Join Now
Out of stock


Shop all Intense   |   Shop all Full Suspension

View full details

Description

Intense Tracer S 279 - Red - 2023



The "S" model designation is given to a build/model that pushes the limits of that segment. The new Tracer S model pushes the boundaries of Enduro/Freeride with a top-spec Ohlins suspension platform, DH casing tires, and powerful Magura MT7 Pro brakes.

Borrowing design inspiration and technology from our M29 downhill bike, utilizing its bottom link driven rear shock and suspension design, we have created a mountain bike with plush travel for the roughest of descents and a firm pedal platform when needed. We’ve positioned the rear shock low down and centered in the frame, allowing the Tracer to descend and handle terrain impeccably.

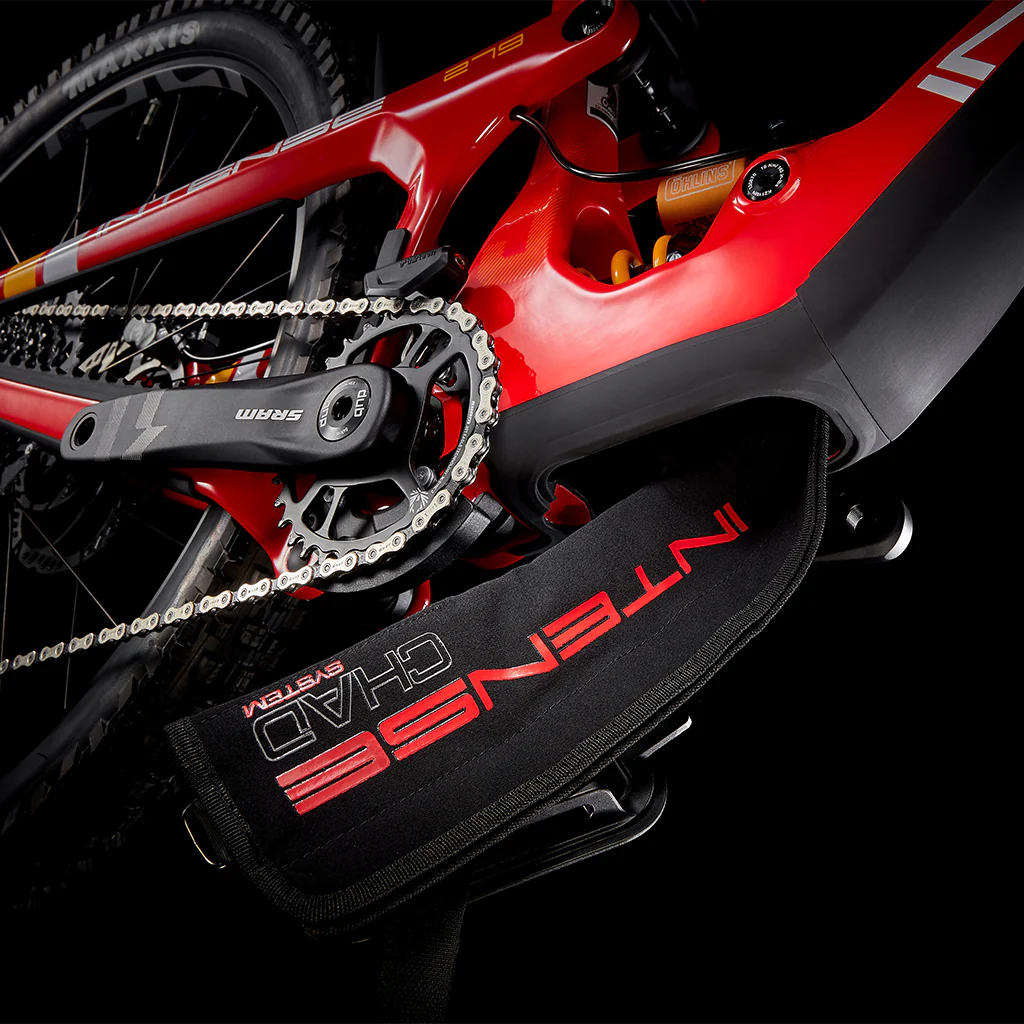

CHAD STORAGE SYSTEM
The Chad Storage system is an on-bike storage solution that is being introduced on the Tracer. This system is not one individual part but a concept for storage solutions that will continue to evolve. Keep all your on-trail bike maintenance tools in your bike and leave your phany at home.

FLIP CHIP ADJUSTMENT
The Tracer S has a 'Flip Ship' feature which allows you to alter your bike's geometry between two positions. The High setting is best in technical terrain, while the Low is more suitable for flow and bike park style riding.

STAGGERED WHEELS
The Tracer S has been designed around a staggered wheelset, which we've found an outstanding balance of agility and stability. The tracer is ready when the trails get tight, or you're looking to shave time off of race stages.

THE JS TUNED ENDURO LINK
We talk about JS Suspension a lot here at INTENSE. JS stands for Jeff Steber (our founder and CEO); simply put, it is a sophisticated suspension system that uses two counter-rotating links to connect the front and rear triangles of the bike. The links are precisely placed to separate the pedaling and braking forces from the suspension performance. Every model in our range has its own personal and specific JS tune.

COMPLIMENTARY TOOL BOX
Every INTENSE bike comes with it’s own complimentary toolbox(sent separately), which includes all the tools you will need to build and maintain your bike – a 3-way Y-Wrench Multi-Hex/Allen tool, high pressure shock pump, torque wrench and a selection of Philips, Hex/Allen and Torx drivers/bits. We also supply sealant and valves to convert your tires to a tubeless setup.

Specifications

  • BUILD: S
  • WEIGHT: 37 lbs // 16.78 kg
  • FRAME: Full carbon fiber front and rear triangle utilizing an optimized carbon layup for the ENDURO category. Features fully guided internal cable routing, carbon top link, titanium hardware, ISCG-05 tabs, threaded BB an updated molded frame protection and shuttle guard. Concentric bottom link with integrated flip chip to adjust GEO. Integrated flip chip to adjust GEO. Integrated CHAD Storage system with the 'tube bag' included. 170mm of rear wheel travel. Quick release rear axle (148mm boost hub spacing).
  • FORK: Öhlins RXF 38, 170mm, dual air spring, compression and rebound adjustment, solid front axle with pinch bolt (110mm boost spacing) 44mm offset.
  • SHOCK: Öhlins TTX22M Coil, 170mm of travel, 3 position high speed compression, low speed compression and rebound adjustment Shock size/Stroke: 205mm x 65mm upper Trunnion mount, Lower Mounting Hardware: 8mm x 20mm.
  • COIL/SPRING: 365 lbs (S Size for 54 - 64 kg rider weight) / 457 lbs (M Size for 64 - 73 kg rider weight) / 502 lbs (L Size for 73 - 80 kg rider weight) / 548 lbs (XL Size for 80 - 84 kgs rider weight).
  • WHEELS: e*Thirteen LG1 Enduro 30mm Alloy Rim / e*Thirteen hub/boost
  • HUBS: Front updated e*Thirteen race hub 28h 6-bolt rotor 110mm x 15mm boost front / rear updated e*Thirteen race hub 28h 6-bolt rotor XG driver body, 148mm x 12mm boost
  • RIMS: e*Thirteen LG1 Enduro 30mm alloy rim 28h
  • SPOKES: Hive triple-butted black steel spokes
  • TIRES: Front: MAXXIS Assegai WT Maxx Terra 3C MaxxGrip DH 29" X 2.50" / Rear: MAXXIS Assegai WT Maxx Terra 3C MaxxGrip DH 27.5" X 2.50"
  • SHIFTERS: SRAM GX Eagle 12SP
  • REAR DERAILLEUR: SRAM X01 Eagle 12SP
  • CRANK: SRAM X1 Eagle Alloy 12SP / DUB / 30t / 170mm / Boost / 52mm Chainline
  • CASSETTE: SRAM XG 1275 Eagle 12SP. 10-52t
  • CHAIN: SRAM GX Eagle 12SP 118 links
  • CHAIN GUIDE: e*Thirteen Vario top guide w/mini slider
  • BOTTOM BRACKET: SRAM DUB Threaded
  • SADDLE: SDG Radar LUX-Alloy Rails
  • SEATPOST: e*Thirteen Infinite Dropper I-Spec, 150mm SM / 180mm MD-LG / 210mm XL
  • HANDLEBAR: Renthal Fatbar Alloy 35mm, 30mm rise / 800mm
  • STEM: INTENSE Recon 35mm / 40mm length
  • HEADSET: Cane Creek 40 Top ZS49/28.6mm, Bottom ZS56/40
  • BRAKESET: Magura MT7 Pro, 4-Piston caliper - Front Rotor Magura Storm HC - 203mm 6-Bolt / Rear Rotor Magura Storm HC - 203mm 6-Bolt
  • GRIPS: INTENSE Logo Lock-on

SIZE SM MD LG XL
SEATTUBE LENGTH 385mm / 15.5" 418mm / 16.5" 440mm / 17.3" 465mm / 18.3"
EFFECTIVE TOPTUBE 557mm / 22.7" 589mm / 23.2" 617mm / 24.3" 644mm / 25.4"
STACK 618mm / 24.3" 627mm / 24.7" 636mm / 25" 645mm / 25.4"
REACH 425mm / 16.7" 455mm / 17.9" 480mm / 18.9" 505mm / 19.9"
BB HEIGHT 349mm / 13.75"

349mm / 13.75"
349mm / 13.75" 349mm / 13.75"
BB DROP

5mm / 0.2"

5mm / 0.2"

5mm / 0.2"

5mm / 0.2"
HEADTUBE LENGTH

90mm / 3.54"

100mm / 3.94"
110mm / 4.33" 120mm / 4.7"
HEADTUBE ANGLE

64.5°

64.5°

64.5°

64.5°
SEATUBE ANGLE (EFFECTIVE)

77.9°

77.9°
77.9°

77.9°
STANDOVER HEIGHT 803mm / 31.6" 807mm / 31.8"

807mm / 31.8"

807mm / 31.8"
CHAINSTAY LENGTH 437mm / 17.2"


437mm / 17.2"

437mm / 17.2"

437mm / 17.2"
WHEELBASE 1193mm / 47" 1228mm / 48.3" 1257mm / 49.5" 1286mm / 51"
LOW SETTING SM MD LG XL
SEATTUBE LENGTH 385mm / 15.2" 418mm / 16.5" 440mm / 17.3" 465mm / 18.3"
EFFECTIVE TOPTUBE 559mm / 22.1"

591mm / 23.3"

619mm / 24.4" 646mm / 25.5"
STACK 622mm / 24.5" 631mm / 24.9" 640mm / 25.2" 649mm / 25.6"
REACH 420mm / 16.5" 450mm / 17.7" 475mm / 18.7" 500mm / 19.7"
BB HEIGHT 342mm / 13.5" 342mm / 13.5" 342mm / 13.5" 342mm / 13.5"
BB DROP 12mm / 0.5" 12mm / 0.5"

12mm / 0.5"

12mm / 0.5"
HEADTUBE LENGTH 90mm / 3.54" 100mm / 3.94" 110mm / 4.33" 120mm / 4.7"
HEADTUBE ANGLE 64.0°

64.0°

64.0°

64.0°
SEATTUBE ANGLE (EFFECTIVE)

77.4°

77.4°

77.4°

77.4°
STANDOVER HEIGHT 798mm / 31.2" 802mm / 31.6"

802mm / 31.6"

802mm / 31.6"
CHAINSTAY LENGTH 439mm / 17.3" 439mm / 17.3" 439mm / 17.3"

439mm / 17.3"
WHEELBASE 1195mm / 47" 1229mm / 48.4" 1258mm / 49.5" 1287mm / 51"
