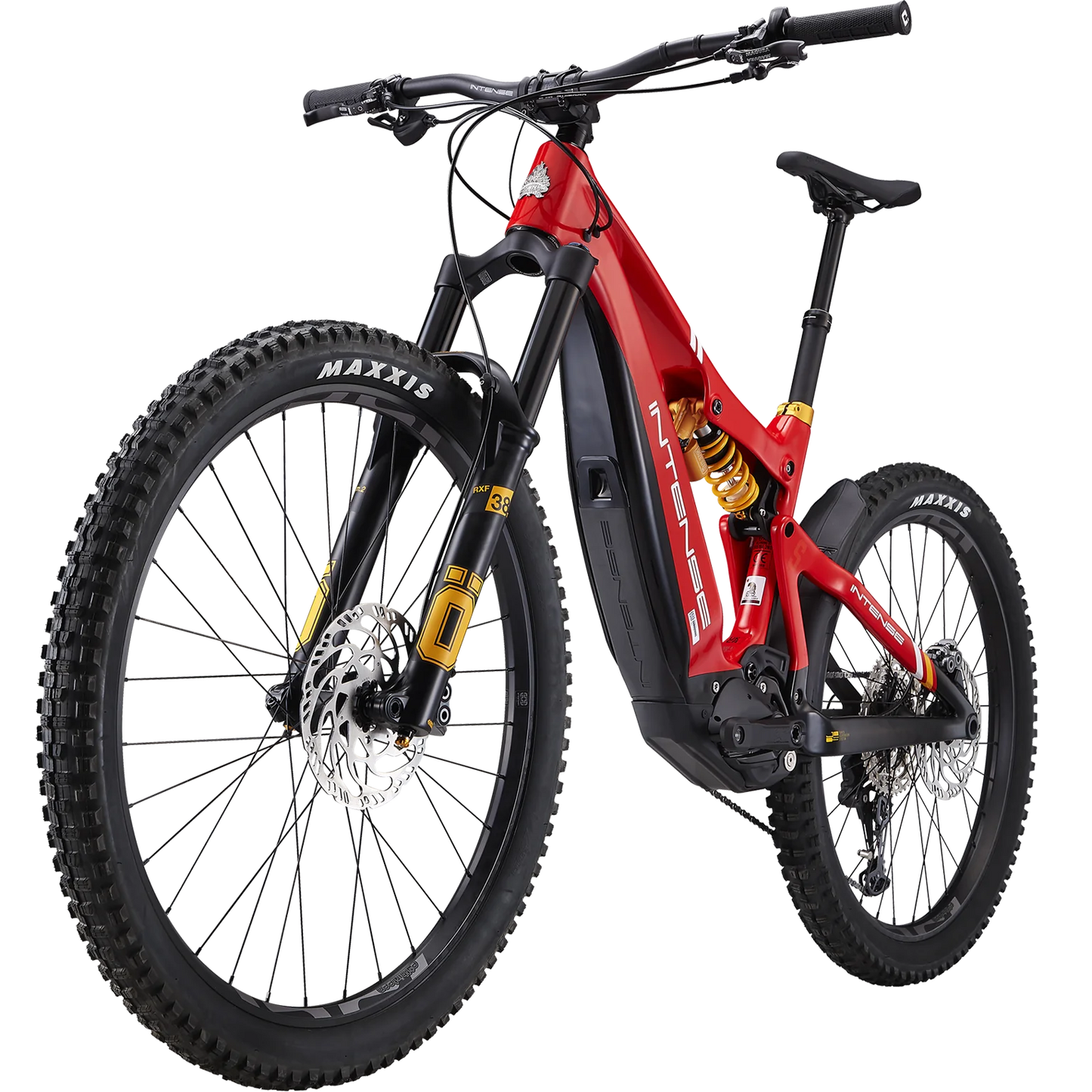

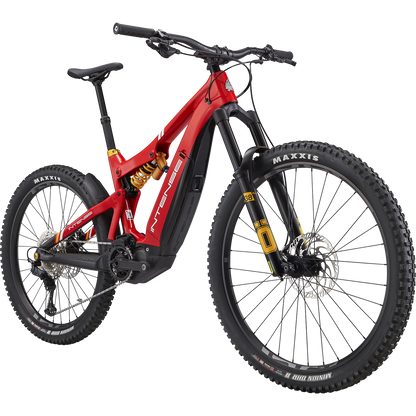

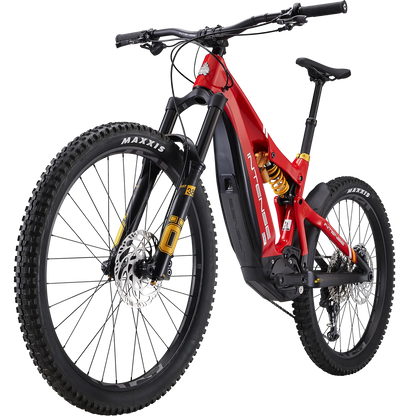

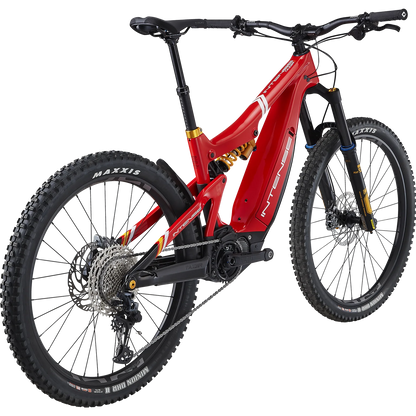

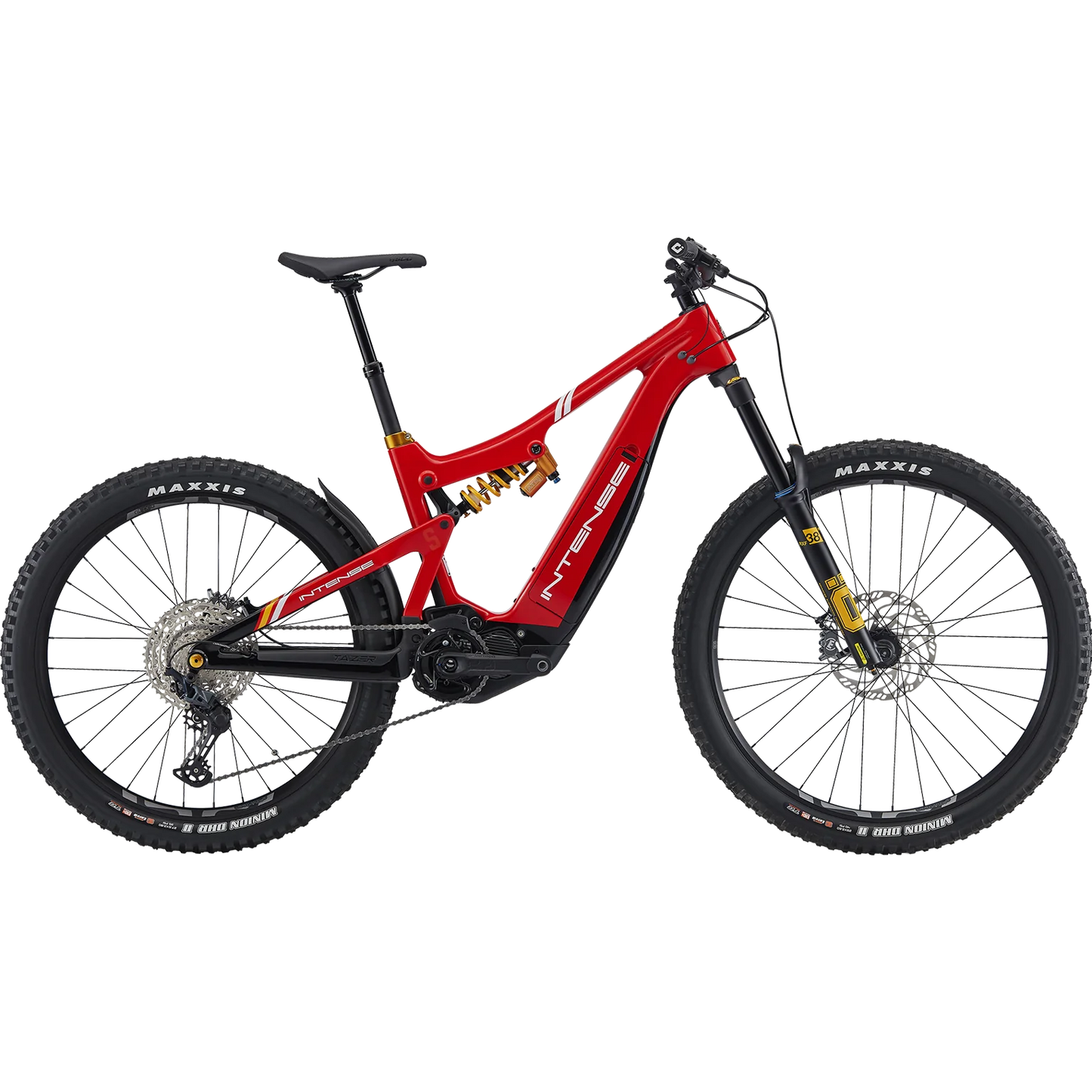

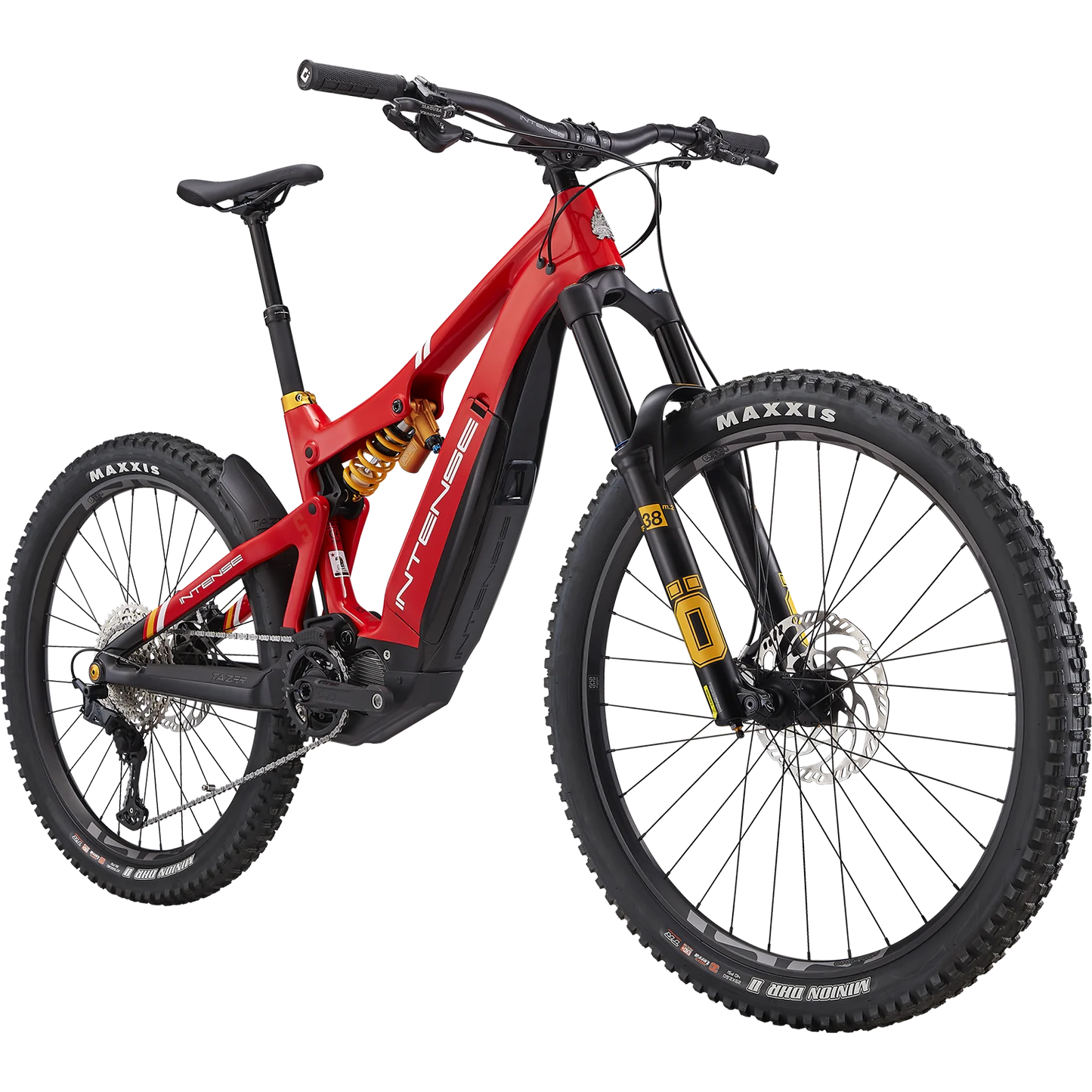

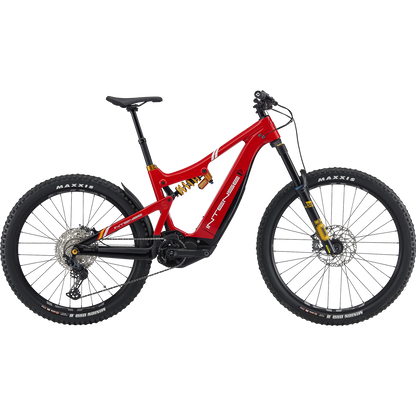

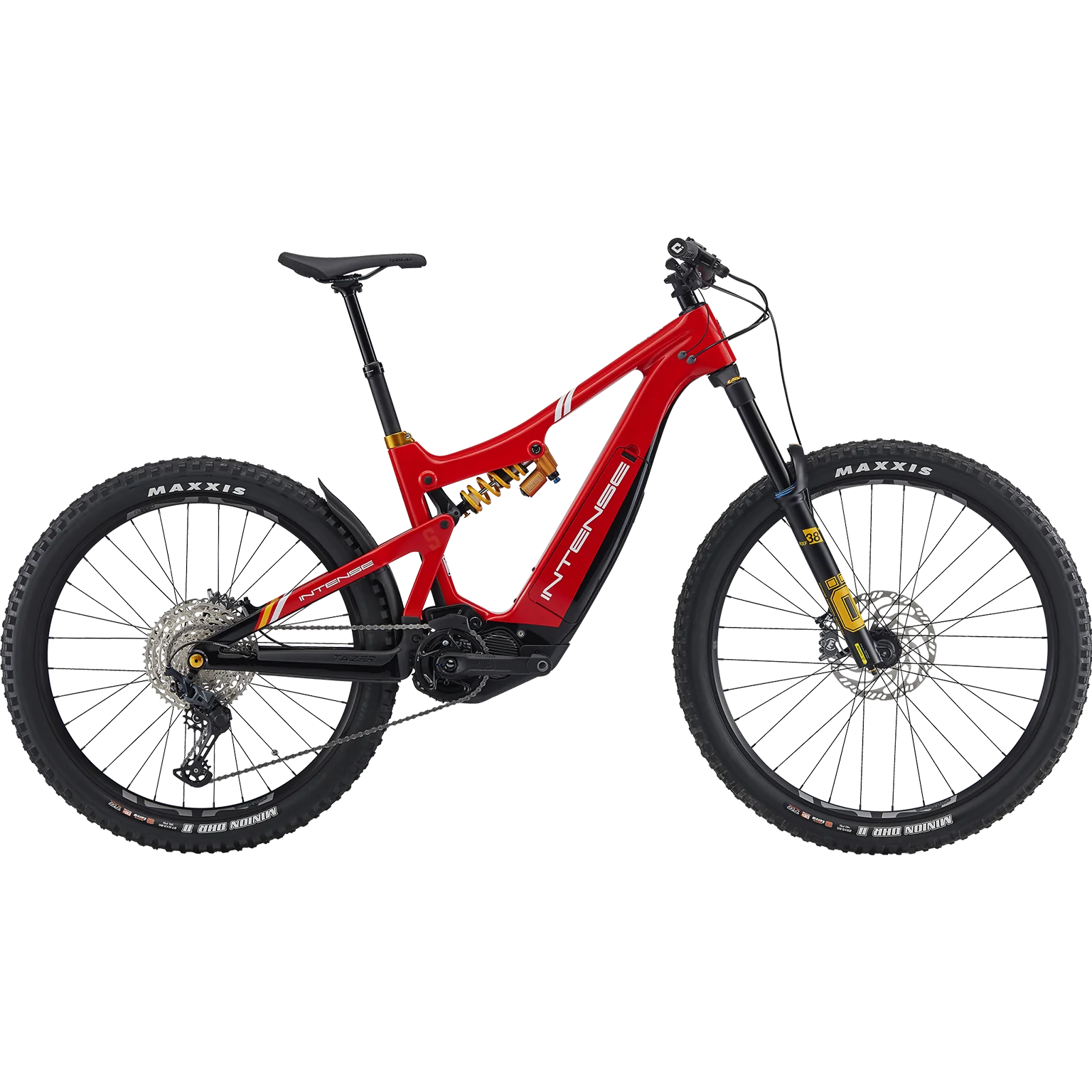

Intense Tazer S 279 - Red - 2023



Our full-carbon, mixed wheel (279), 170/155mm travel Tazer S eBike is all about getting out there and enjoying the mountain bike experience… even more than before. The Tazer opens up new opportunities – you will climb faster, ride further and do more of the ‘good stuff’. And with our S model you get a very ‘special’ component package.

With 170mm/155mm of front/rear wheel travel and Shimano's powerful STEPS EP800 motor system, the Tazer S is our high-performance Enduro eBike. With a bump eating 29" wheel up front and a traction seeking 27.5+ in the rear, you get excellent handling, fantastic grip, and trail ride excellence. With our Tazer, you'll never look at mountain biking the same way.

RIDE FARTHER. RIDE FASTER.
With 170/155mm of front/rear wheel travel and Shimano's powerful STEPS motor system EP800, the Tazer is our high-performance Enduro eBike. With a bump-eating 29" wheel up front and traction-seeking 27.5+ on the back.

EXPLORE NEW TERRITORY
Our Tazer opens up a new world and style of riding, where the ups are almost as much fun as the downs. What once might have been a tedious slog or just a means to an end can now be a technical challenge or a quick spin to get you to the top and all the fun bits again.

ENJOY THE ASCENTS, CRUSH THE DESCENTS
You will eat up laps at your local trail loops, maximizing your time on your bike. You can do three or four times the amount of riding you do on a non-eBike, maximizing your skills on the descents. The beauty of the Tazer S is that you can go as hard or as easy as you like.

THE JS TUNED ENDURO LINK
We talk a lot about JS Tuned here at INTENSE. JS stands for Jeff Steber (our founder and CEO), and simply put, it is a system that focuses on all of the individual parts that make up one of our bikes: from suspension, geometry, wheel size, materials, and component spec.

keyboard_arrow_right Specifications

  • BUILD S

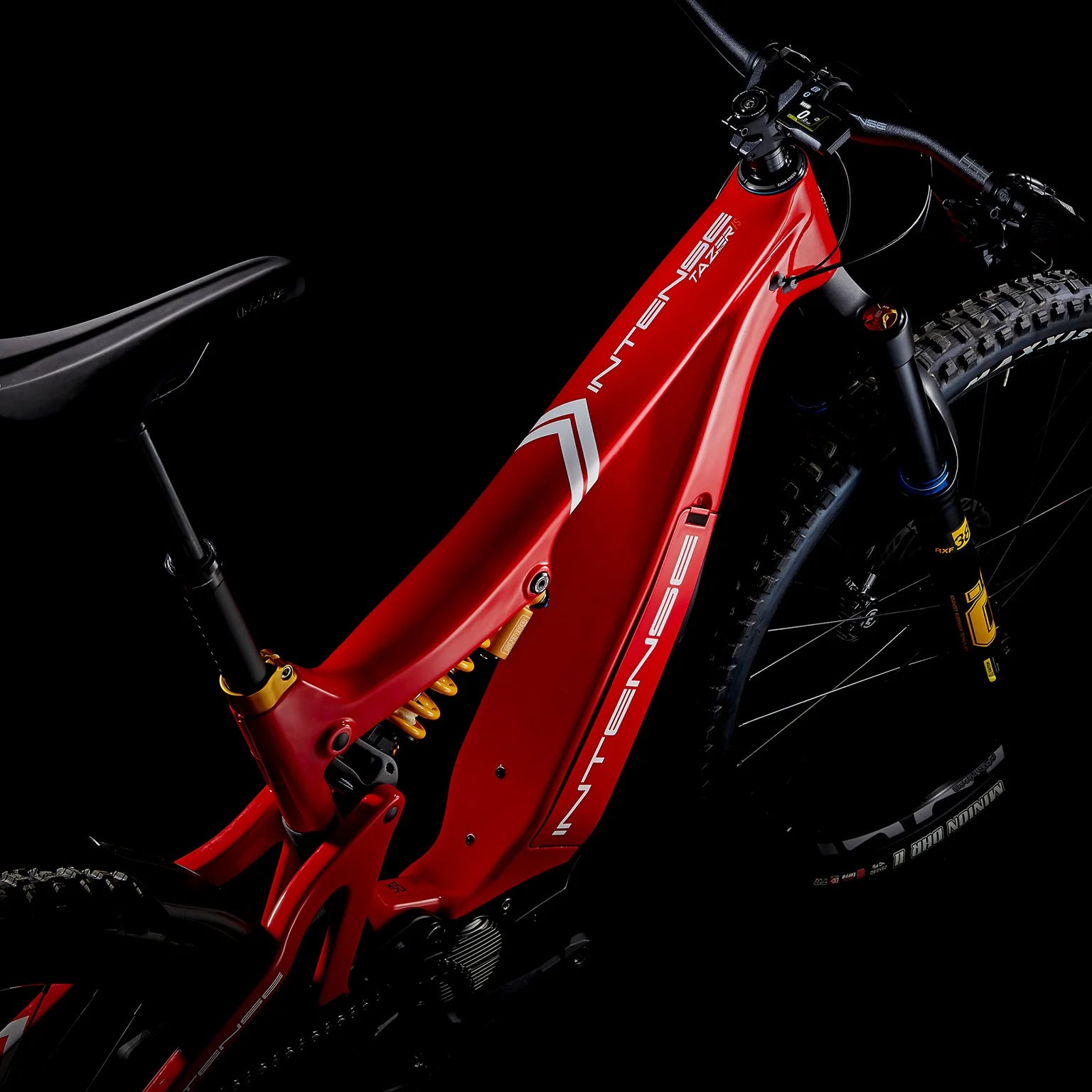

  • FRAME: Tazer Performance E Monocoque carbon frame. Optimized layup carbon fiber. Alloy top link, internal shift, Dropper Post, Brake, Display unit routing, E*Spec Chainguide mount pattern, Flak guard armor, Integrated mud guard, 155mm Travel.
  • MOTOR: Shimano Steps EP800 25KM/H 85Nm Torque
  • BATTERY: BT-E8010, FOR STEPS, 504Wh. Battery lock w/2 keys

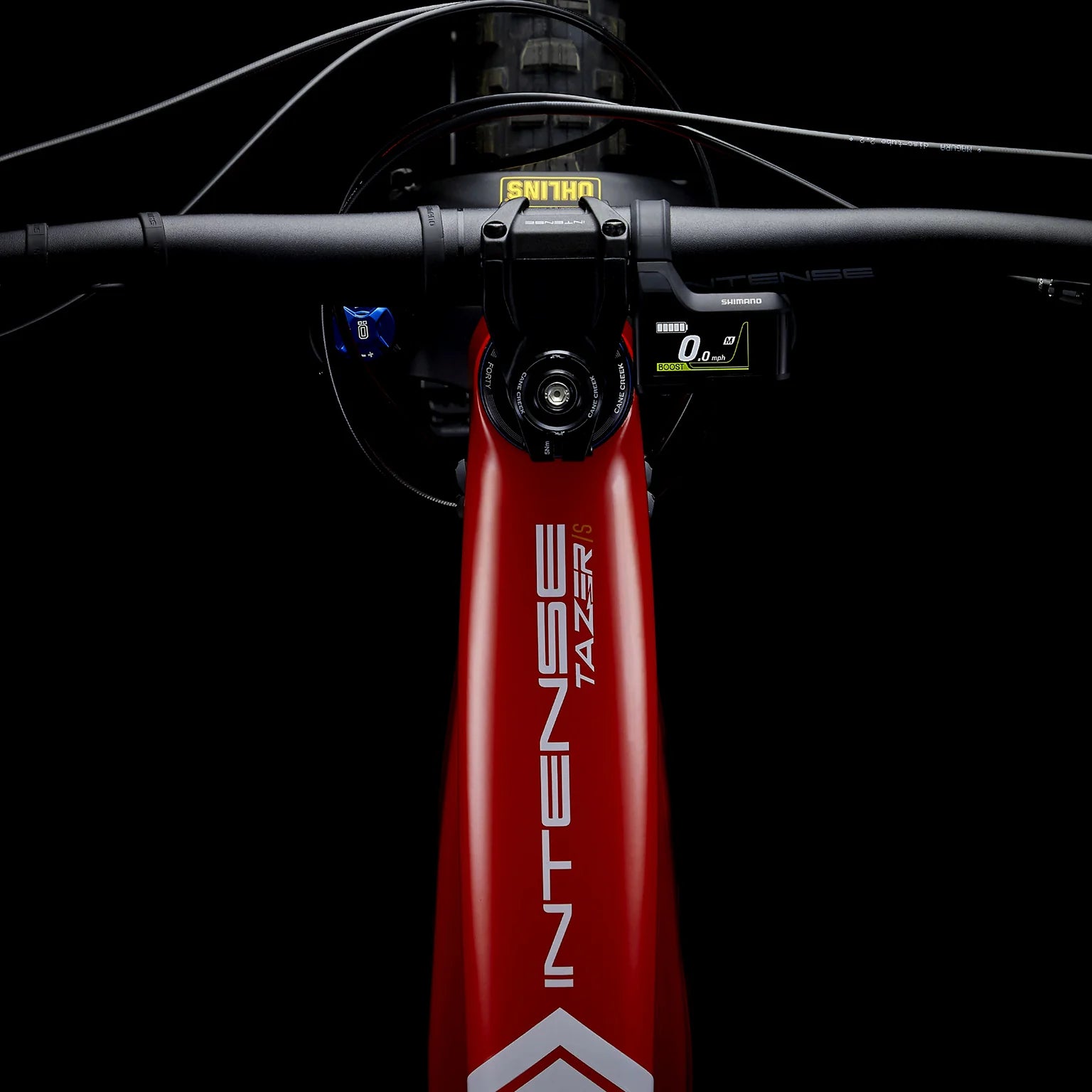

  • DISPLAY UNIT: Shimano Steps SC-EM800 Display/Cycle Computer, 35mm Clamp Band Diameter

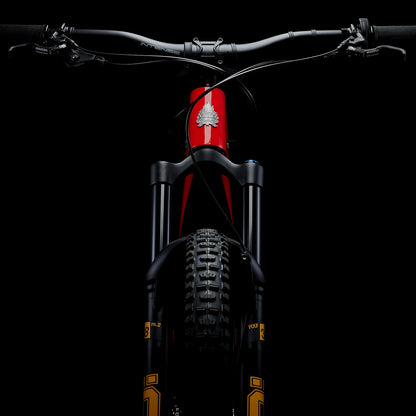

  • FORK: Öhlins RXF 38 M.2 Air TTX28 29"/44, 170mm of Travel

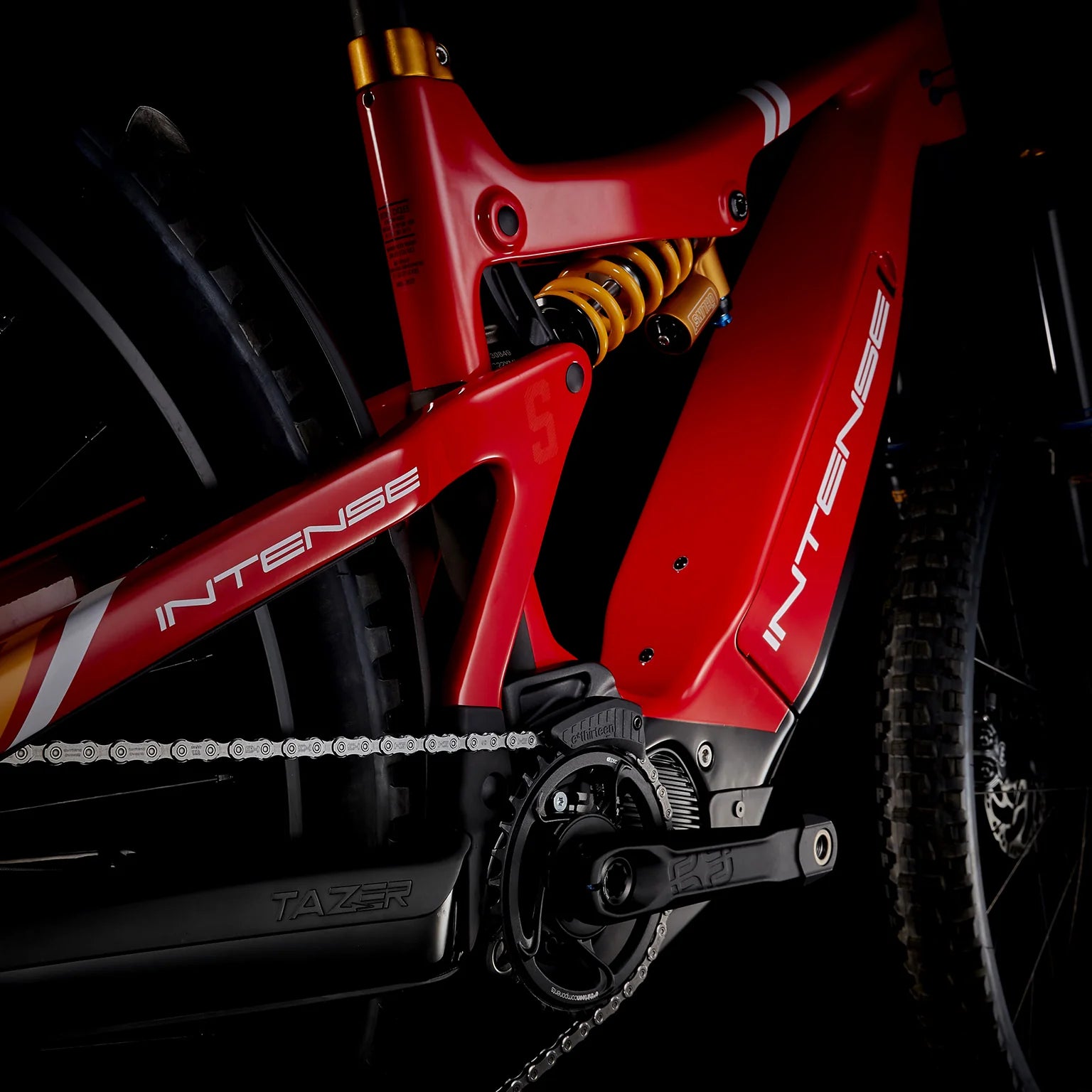

  • SHOCK: Öhlins TTX22M Coil / 185mm x 55mm / 20mm x 8mm / 480 lbs (SM/MD) / 548 lbs (LG/XL)
  • WHEELSET: e*Thirteen E*Spec Alloy Rim 30mm Rim Width x 29" Front / 35mm Rim Width x 27.5" Rear
  • HUBS: INTENSE E-Specific Alloy Hubs
  • TIRES: MAXXIS Minion DHR II MAXX Terra 3C Exo + - 29" x 2.60" Front, 27.5" x 2.80" Rear
  • SHIFTER: Shimano SLX 12SP, I-SPEC
  • DERAILLEUR: Shimano SLX 12SP
  • CRANK: e*Thirteen e*Spec, 34 Tooth Chainring 165mm length
  • CASSETTE: Shimano Deore 12SP, 10-51T
  • CHAIN: Shimano Deore 12SP
  • SADDLE: SDG BEL-AIR V3
  • SEATPOST: INTENSE Recon Dropper (S/M 125mm, L/XL 150mm)
  • HANDLEBAR: INTENSE Recon 35mm. 30mm Rise
  • STEM: INTENSE 35mm, 45mm length
  • BRAKESET: Magura MT7 Pro, 4-Piston caliper - Front Rotor Magura Storm HC - 203mm 6-Bolt / Rear Rotor Magura Storm HC - 203mm 6-Bolt
  • GRIPS: ODI Elite Flow
SIZE SM/MD LG/XL
WHEELBASE 1233mm / 48.5" 1285mm / 50.6"
TOPTUBE LENGTH 609mm / 24" 664mm / 26"
CHAINSTAY LENGTH 450mm / 17.7" 450mm / 17.7"
HEADTUBE LENGTH 115mm /  4.5" 125mm / 4.9"
HEADTUBE ANGLE 64° 64°
REACH 435mm / 17.1" 481mm / 18.9"
STACK 634mm / 24.9" 646mm / 25.4"
BB HEIGHT 348mm / 13.7" 348mm / 13.7"
BB DROP 17mm / 0.65" 17mm / 0.65"
SEATTUBE ANGLE (EFFECTIVE) 74.5° 74.5°
SEATTUBE ANGLE (ACTUAL) 72.2° 72.2°
SEATTUBE LENGTH 420mm / 16.5" 470mm / 18.5"
STANDOVER HEIGHT 816mm / 32" 836mm / 32.9"
FORK AXLE TO CROWN 583mm / 23" 583mm / 23"
LOWER HEADSET STACK HEIGHT 4mm / 0.16" 4mm / 0.16"
FORK OFFSET 44mm / 1.7" 44mm / 1.7"
FORK TRAVEL 170mm / 6.7" 170mm / 6.7"
REAR TRAVEL 155mm / 6.1" 155mm / 6.1"
REAR SHOCK SIZE 185 x 55 185 x 55
FRONT CENTER 782mm / 30.8" 835mm / 32.9
BB HEIGHT BASED ON FRONT TIRE 750mm / 29.5" 750mm / 29.5"
BB HEIGHT BASED ON REAR TIRE 730mm / 29" 730mm / 29"
