Intense M1 279 - Expert - Silver - 2024
Intense M1 279 - Expert - Silver - 2024
Product ID: GM103023-05
Shop all Intense | Shop all Full Suspension
View full detailsDescription

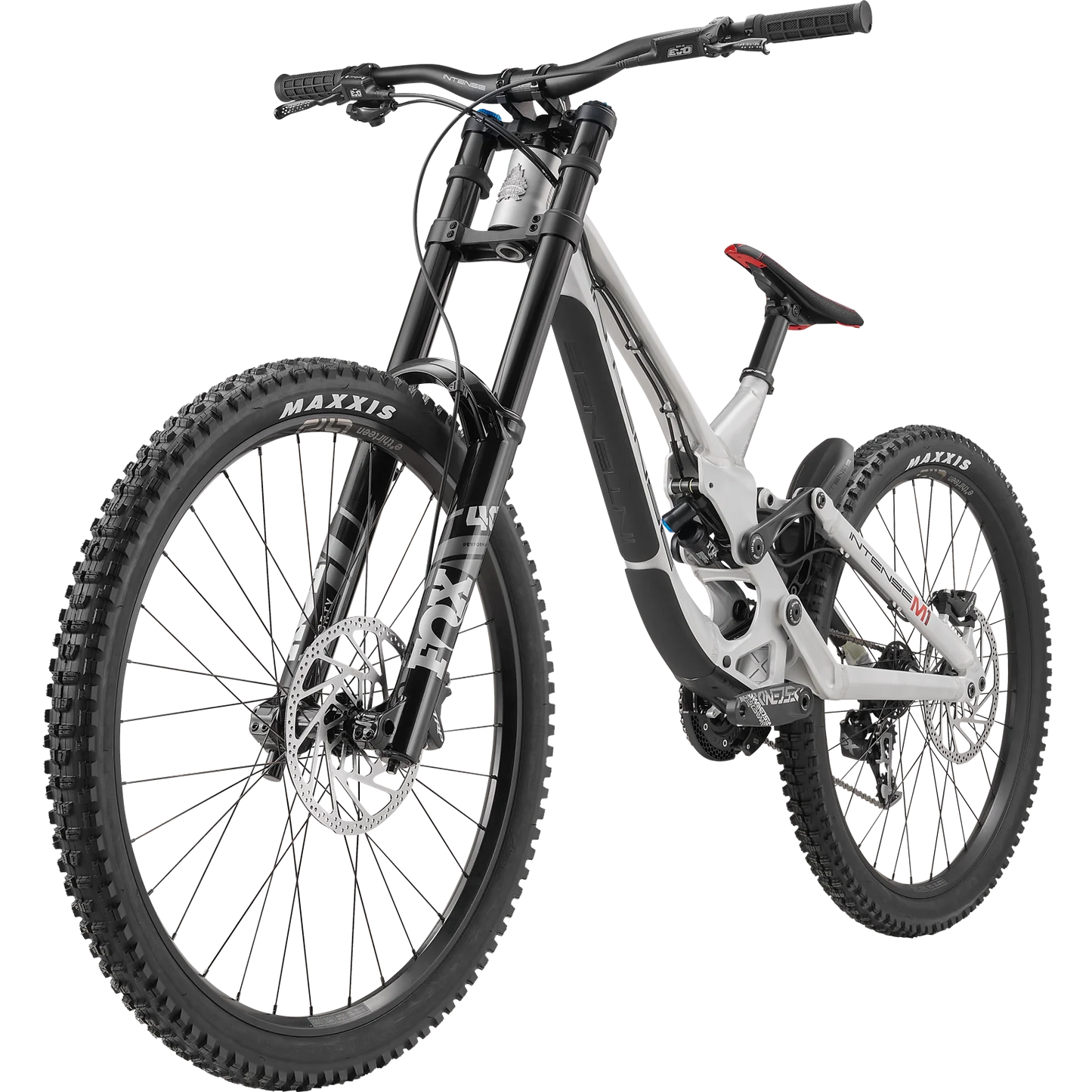

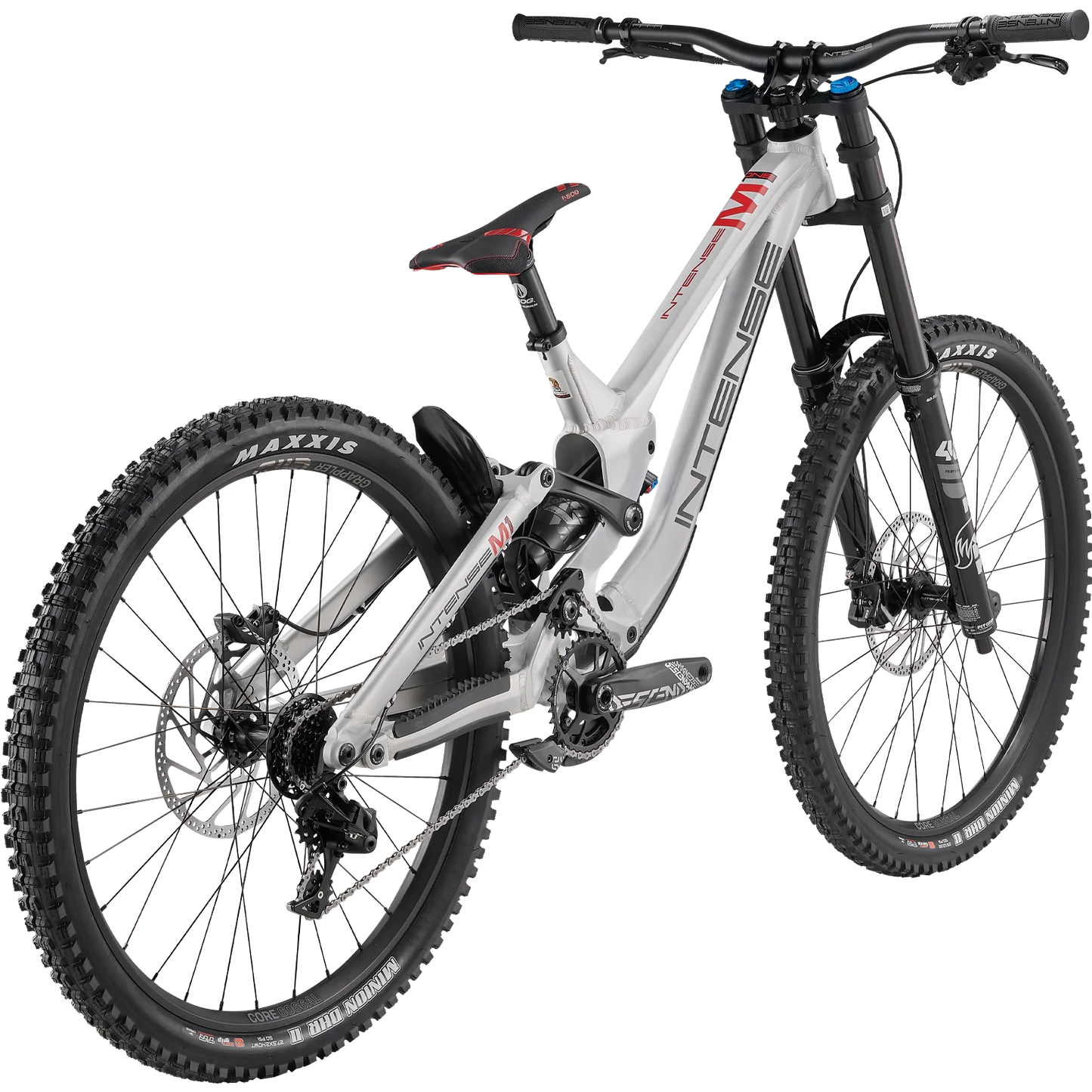

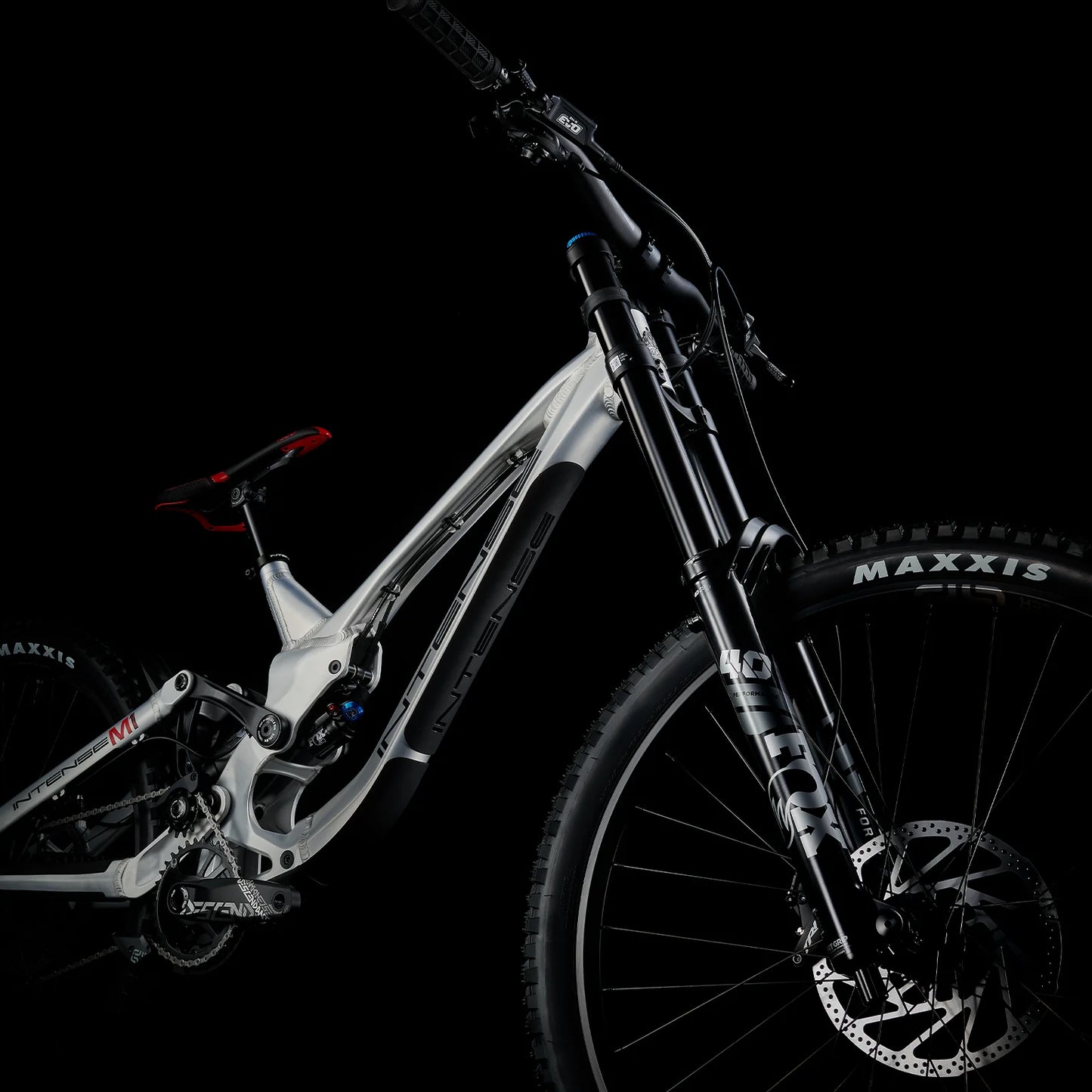

The new INTENSE M1 has 202mm (linear) / 212mm (progressive) of rear travel, 279 mixed wheels, and is built around a 6-link, high-pivot, 6061-T6 aluminum frame.
The M1 is a race-proven winner. Designed, developed, and perfected by our engineers and the INTENSE Factory Racing team on the World Cup circuit to be the fastest downhill bike. The M1 Expert features Fox Performance suspension for smooth handling on rough terrains, TRP DH-R EVO brakes for reliable stopping power, and the SRAM GX drivetrain ensures seamless and efficient gear changes.
During the initial development stages, the 6-link high pivot design allowed us to isolate, adjust and customize every element of the M1’s ride characteristics. Our goal was to design a bike that would excel in all DH conditions, on any track, and honor the name and racing pedigree of our original M1 frames that we produced in the 1990s. With the new M1 we’ve created a bike that can smash through the roughest terrain, generate speed, accelerate efficiently when pedaling and stay active under braking.
HIGH PIVOT
High-pivot bikes, especially in downhill applications, have proven to provide amazing performance and muster great race results. The rearward axle path of the M1 moves the rear wheel out of the way of trail obstacles, helping the bike maintain momentum and control. The position of the idler pulley reduces the effects of chain growth, eliminating pedal kickback, and further enhancing suspension and pedaling performance.
ULTIMATE SET-UP

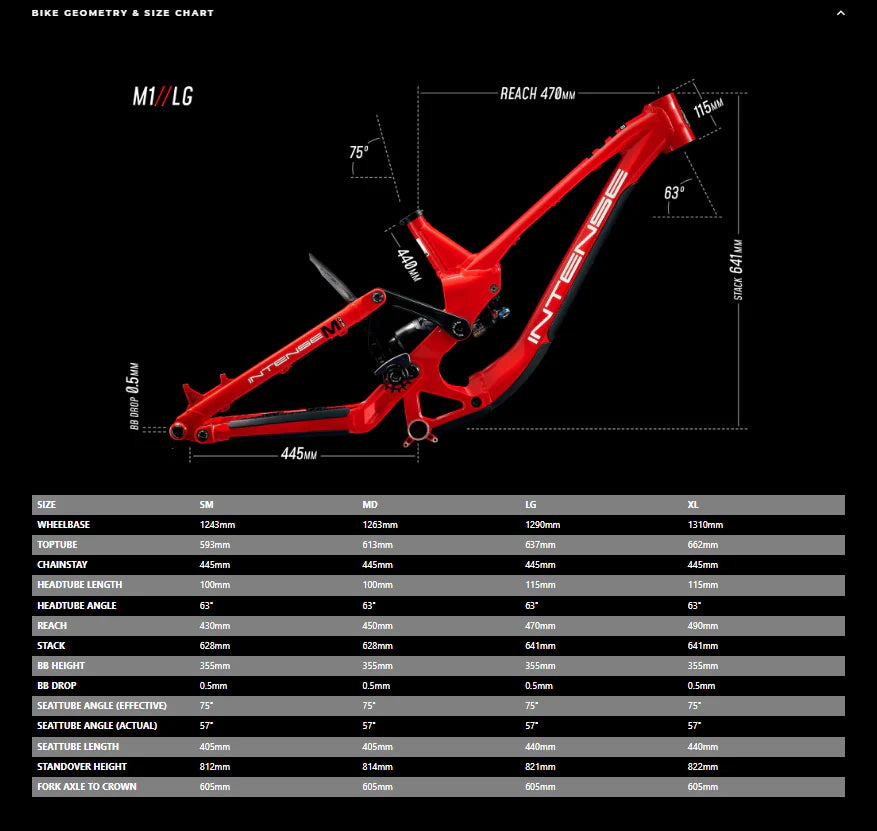

The M1’s 6-Link suspension design comes with two shock mount positions, allowing you to choose between a Linear (202mm travel) or Progressive (212mm travel) setting. The full size 56/56 headtube, with a 63º head angle, allows you to run a 0-10mm reach adjustment headset. These adjustments mean that you can set the bike up to suit your riding style, personal preferences and track conditions.
SRAM GX DH-7 DRIVE TRAIN
The SRAM GX DH 7-speed features a streamlined design optimized for downhill racing, its robust construction ensures that it can withstand the rigors of intense riding. Offering consistent performance over time with the X-ACTUATION™ technology and easy maintenance, providing the rider with precision, durability, and ease of use.
EASY TO WORK ON, A MECHANIC’S DREAM

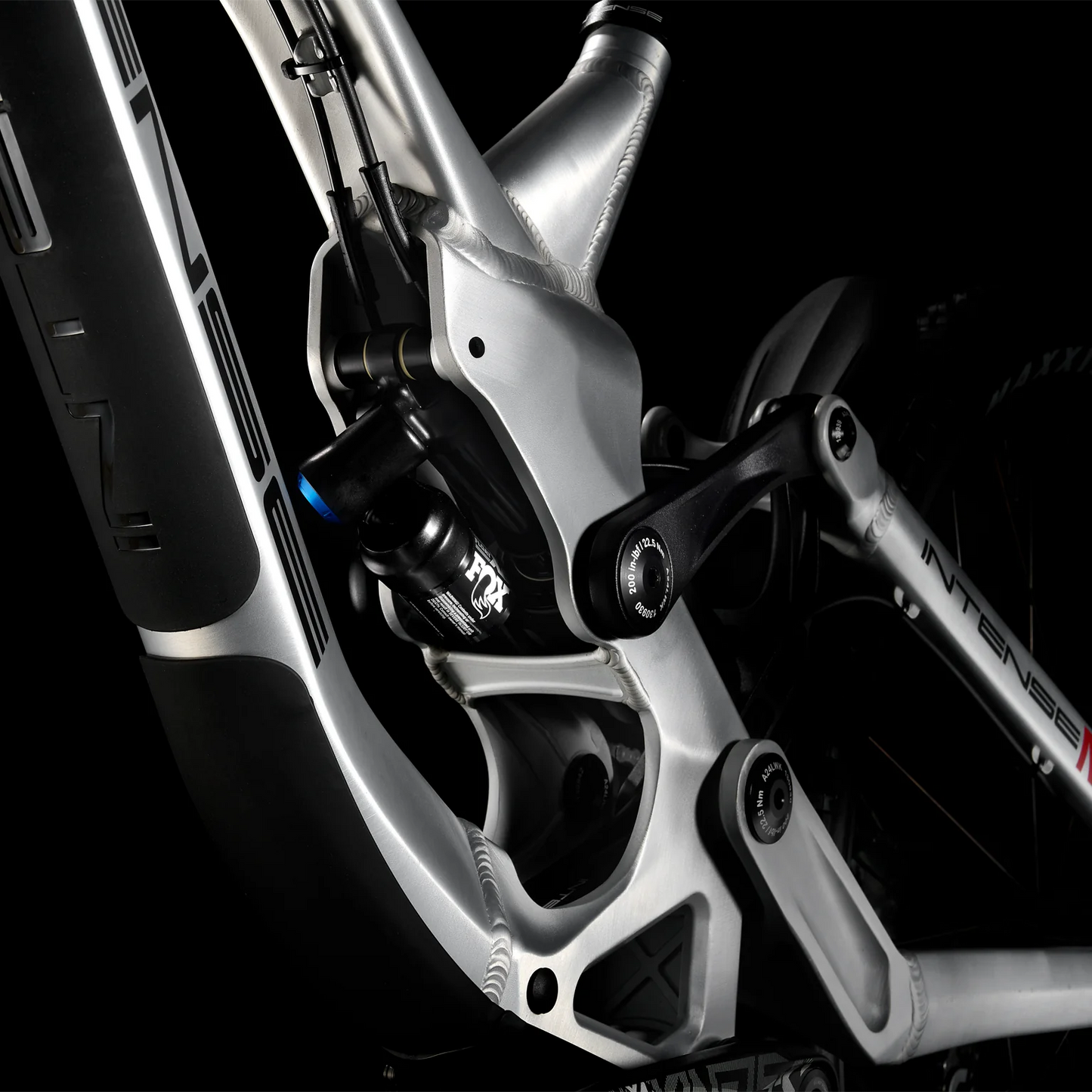

In response to the feedback from our race mechanics, we prioritized ease of maintenance when designing the M1. Notable features include externally routed cables for convenient access and standardized 6mm Hex wrench compatibility for all hardware except one collet bolt. There are three 'captured' washers in the linkage hardware, meaning they stay in place and don't fall to the ground when re-installing that pivot bolt after a muddy rebuild. The M1 uses high-end Enduro bearings in all links and features an easy-to-maintain and durable threaded BB.
SPECIFICATIONS
- BUILD: EXPERT
- FRAME: M1 Performance Alloy Frame. Alloy linkage, external cable mounts, ZS56/ZS56 headtube, full downtube flak guard armor, integrated mud guard, 203mm (linear) 212mm (progressive) rear travel.

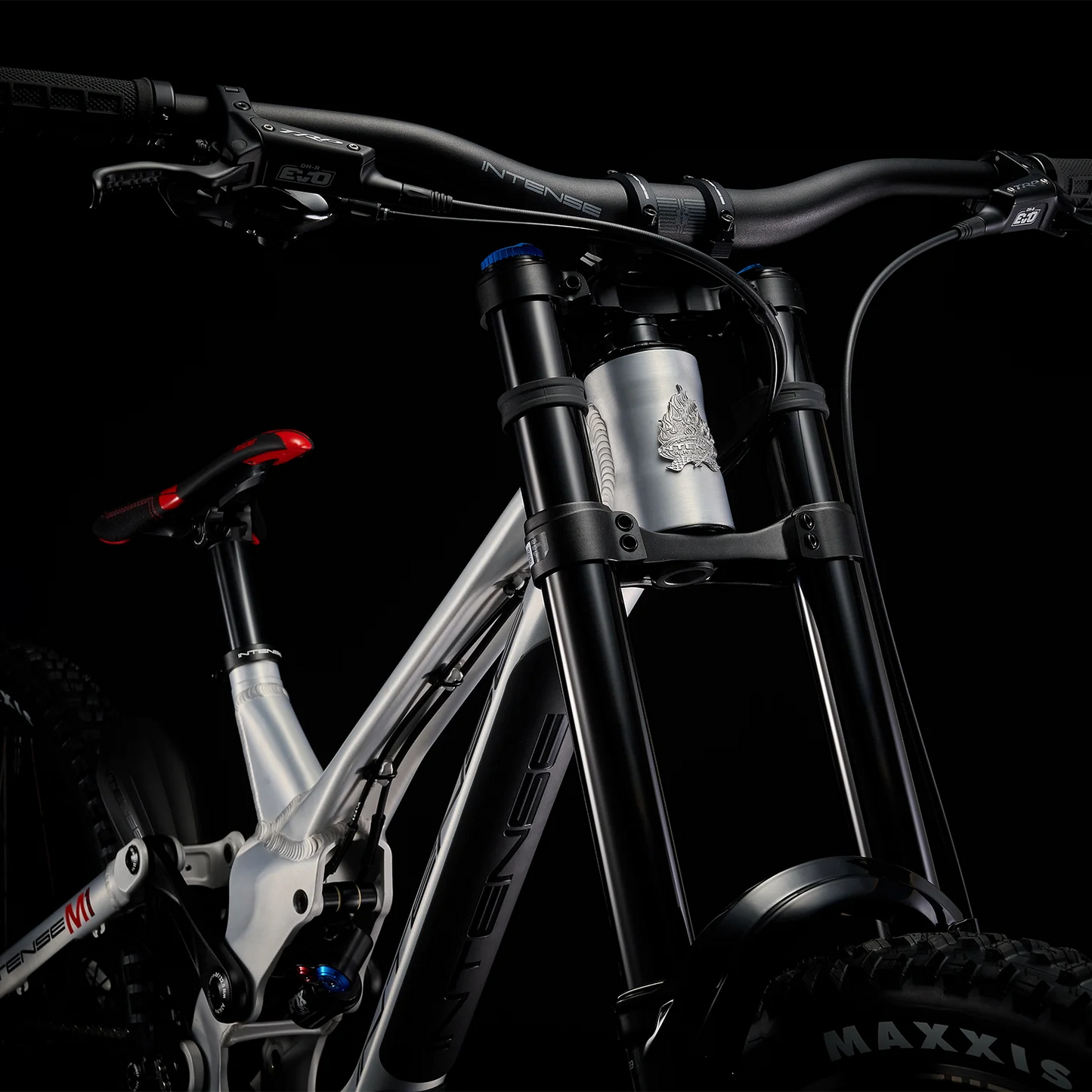

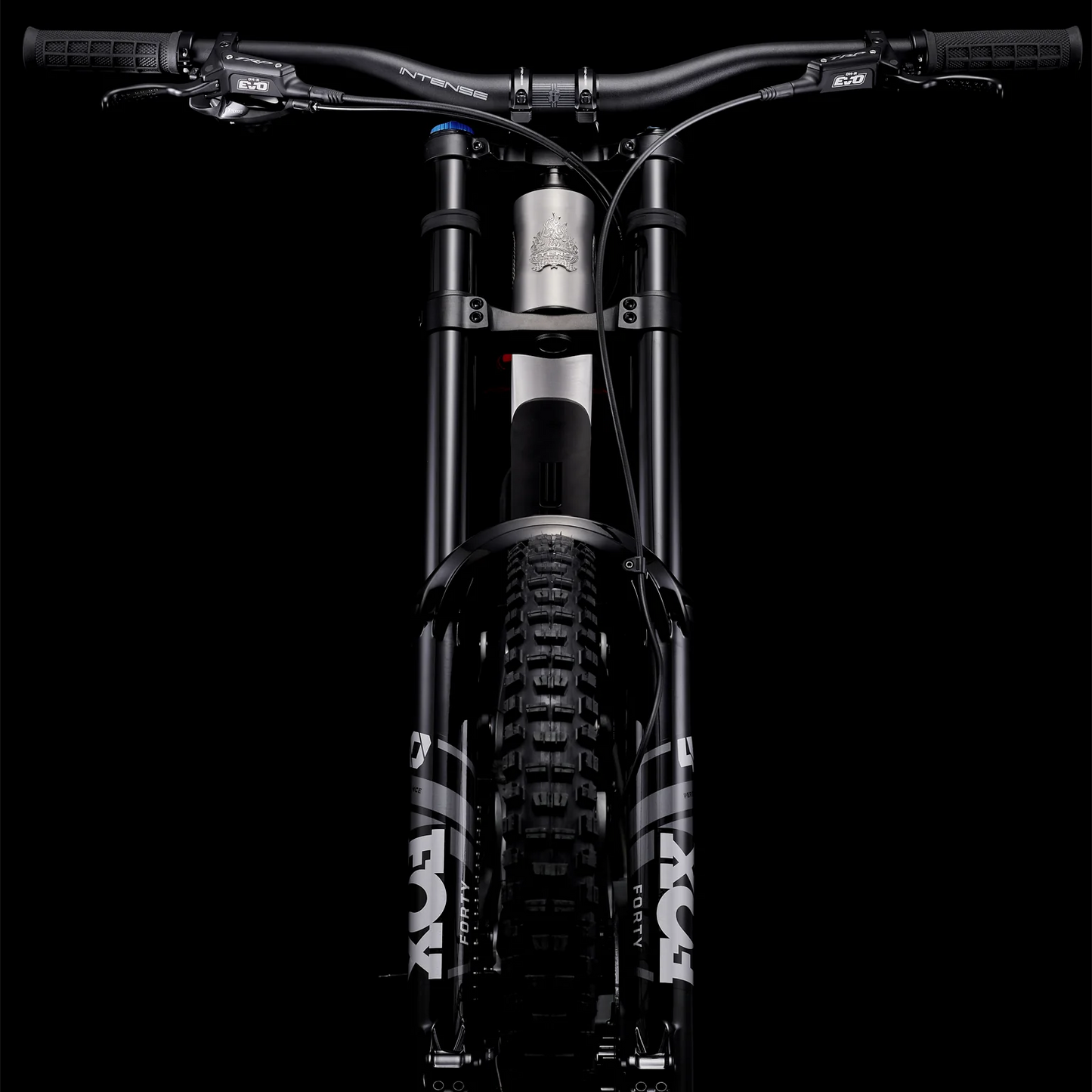

- FORK: FOX 40 Float Performance, 29", 203mm, Grip, 20x110 Axle, 52mm Offset
- SHOCK: FOX Float X2 Performance, low speed compression and low speed rebound only, 250mm x 75mm, front shock hardware is 8mm x 40mm and rear shock hardware is 8mm x 20mm.
- HUBS: INTENSE DH BOOST / 110x20mm Front / 157x12mm HG Rear
- RIMS: e*thirteen Grappler Core Alloy DH 29" , 30mm Front / 27.5", 30mm Rear
- SPOKES: DT Champion

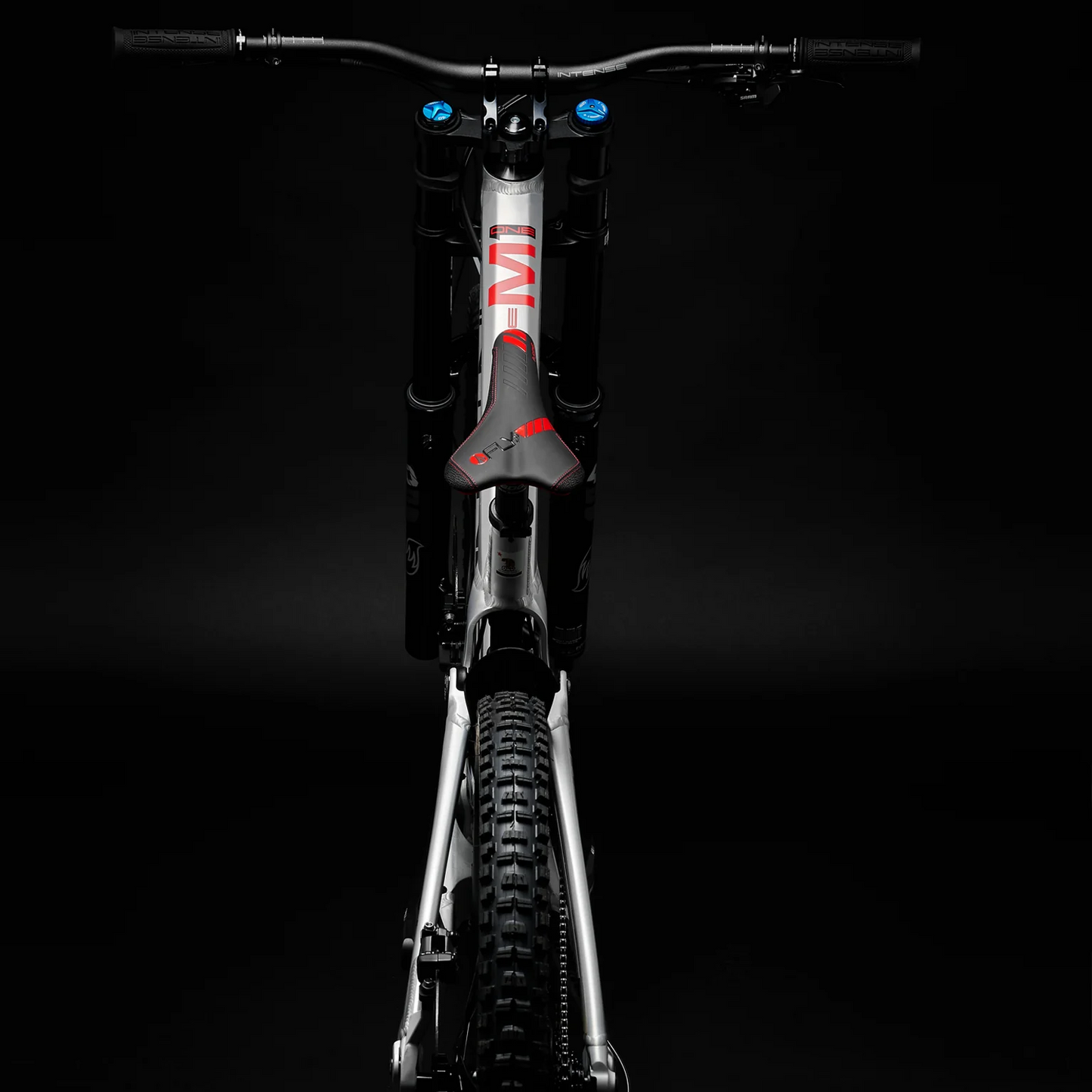

- TIRES: MAXXIS Minion DHR II, MaxxTerra, 3C, DH, Tubeless-ready 29" x 2.50" Front / MAXXIS Minion DHR II, MaxxGrip, 3C, DH Tubeless-ready 27.5" x 2.40" Rear
- SHIFTER: SRAM GX DH 7-speed
- DERAILLEUR: SRAM GX DH 7-speed

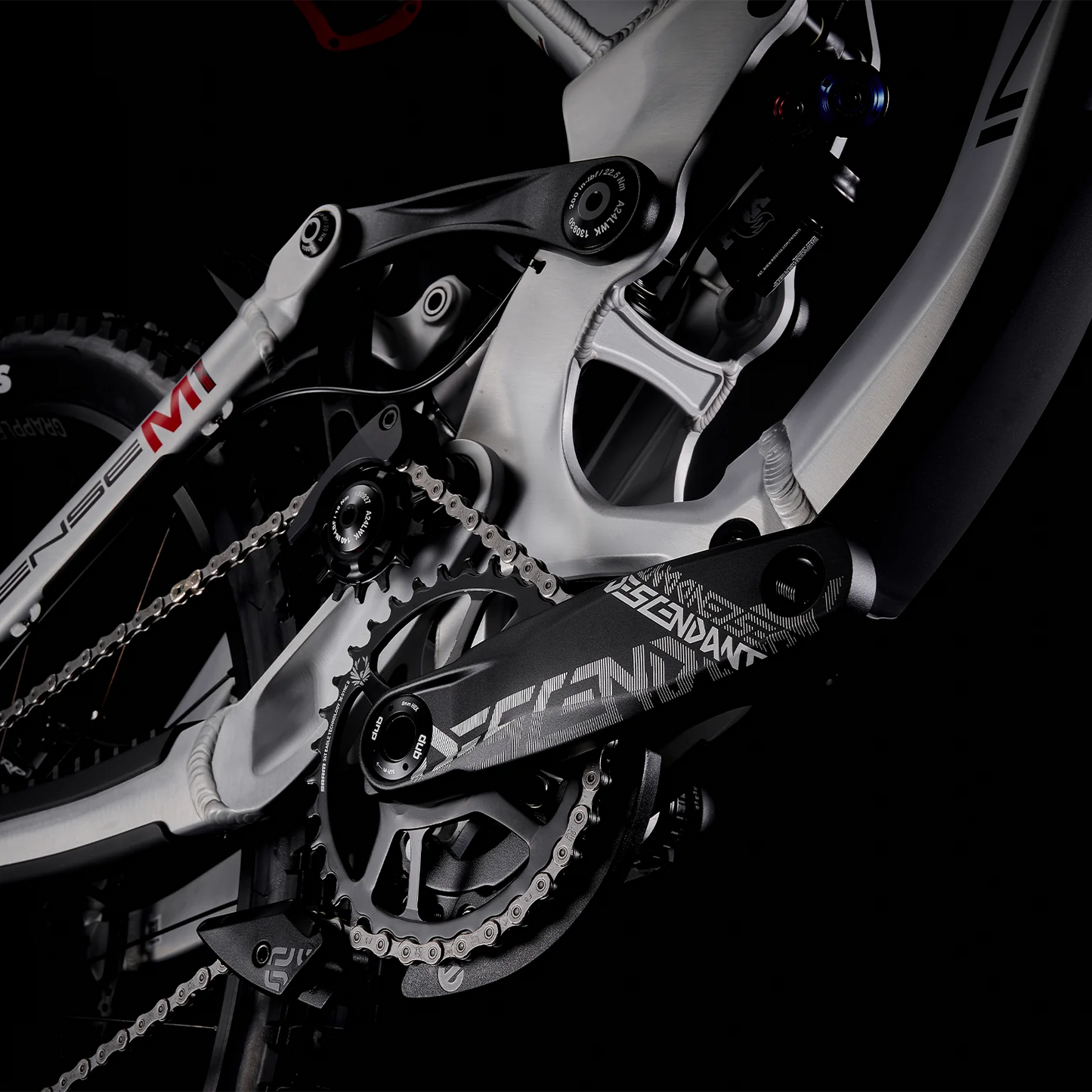

- CRANK: SRAM Descendant / 34t / 165mm
- BOTTOM BRACKET: SRAM DUB BSA 83mm
- CASSETTE: SRAM, GX DH PG-720 7-speed / 11-25t
- CHAIN: SRAM PC-1110 7-speed
- CHAINGUIDE: e*thirteen Vario DH
- BRAKESET: TRP DH-R EVO, HD-M846 / 223mm Rotors 2.3mm thick
- SEATPOST: SDG Micro I-Beam 31.6mm
- SADDLE: SDG I-FLY I-Beam
- HANDLEBAR: INTENSE DH Alloy 35 / 800mm Length, 30mm Rise (SM,MD), 40mm Rise (LG-XL)
- STEM: INTENSE DH Direct Mount 35 / Adjustable to 45mm or 50mm
- HEADSET: INTENSE ZS56/ZS56
- GRIPS: INTENSE Lock-on
