Ibis Mojo 4 27.5 - XT/S35 Carbon Wheels - Dirty White Board - 2022

With playful 27.5in wheels and a sporty 130mm of rear travel, we use the Mojo 4 XT Mountain Bike to turn sandstone trails into an endless maze of side hits and rock gaps. The Mojo benefits from the magical platform of DW-Link rear suspension, providing industry-leading rear wheel traction for tricky climbs and pinning corners on technical trails that would likely out-pace other 130mm-travel bikes. When you factor in the reactive, climbing-friendly geo provided by the 65.4-degree head tube angle and 76.6-degree seat tube angle, the result is an ultra-responsive trail bike that’s well-suited for riders who still dig the 27.5in wheels.

This XT Build makes the most of Shimano’s workhorse XT drivetrain and braking components for crisp shifting at a moment’s notice and instant stopping power. The Fox Float Factory DPS shock with EVOL provides the most adjustment in the Fox line, while the Pike Ultimate RC2 fork provides the latest tech from RockShox as their best-in-class trail fork. Hand-picked components include a carbon bar from Ibis, and their in-house aluminum wheels that find the perfect balance between weight and durability.

• Ibis's trail smashing mid-travel bike built for fun
• Carbon frame is strong, lightweight, and trail damping
• Geometry and wheel size is specced to create a fun and nimble bike
• Ibis DW-link allows for pedaling efficiency and a bottomless feel
• 27.5in wheels are nimble and pick their way through the chunder
• Standard boost spacing makes it easy to find replacement parts
• Size-specific components such as bars, seat post, and stem

• Frame Model: Ibis Mojo 4
• Frame Size: Medium
• Frame Color: Dirty White Board
• Frame Year: 2022

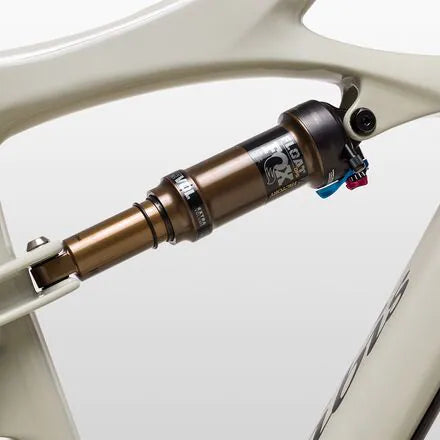

• Rear Shock: "Fox Float Factory Series, DPS with EVOL, 210 x 50 S/M: Light Tune"
• Headset: Cane Creek Forty
• Spacers: (yes/no / xxmm) yes( 5 x 5mm)

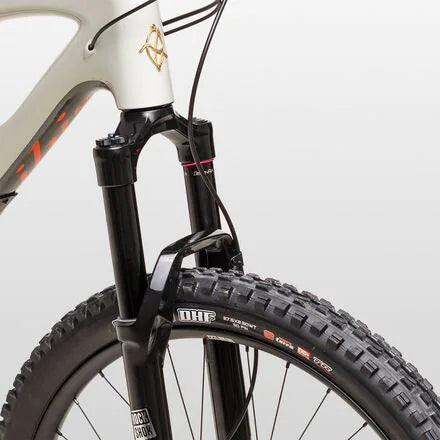

• Fork Model: Rock Shox Pike Ultimate RC2 140mm, 37mm offset, 27.5”, 110x15
• Fork Travel: 140mm
• Front Axle: 15mm
• Front Axle Spacing: 110mm Boost
• Front Wheel Diameter: 27.5"
• Front Hub: Ibis Logo
• Spoke Holes: 32
• Front Spokes: Sapim Black
• Front Nipples: Sapim Black
• Front Rim: Ibis S35 Carbon
• Front Tire: Maxxis Minion DHF 27.5 x 2.5WT Dual Compound EXO TR
• Front Tube: Tubeless

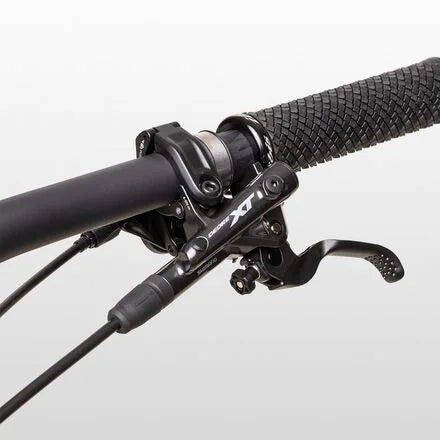

• Front Brake Model: Shimano XT BL-M8100/BR-M8120 4-Piston
• Disc Rotor Interface: 6-Bolt
• Disc Rotor Model: Shimano SM-RT86
• Disc Rotor Diameter: 180mm

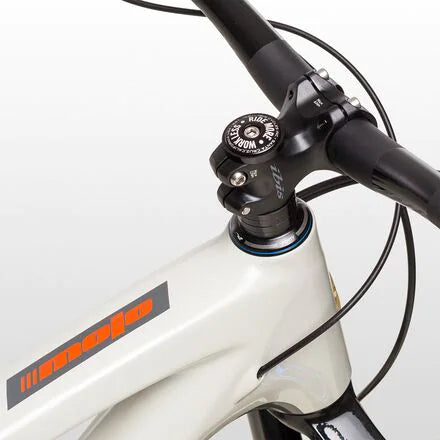

• Stem Model: Ibis BFD Black
• Stem Length: 50mm
• Stem Steer Tube Diameter: 1 1/8"
• Stem Bar Clamp Diameter: 31.8mm
• Handlebar: Ibis 800mm Carbon; Lo-Fi (S–M) 10mm rise, 9º back sweep, 5º up sweep
• Shifters: Shimano XT SL-M8100 12sp
• Brake Levers: Shimano XT BL-M8100
• Grips: Lizard Skin Charger Black w/Ibis Logo clamps
• Brake Cables: Hydraulic
• Shift Cables: Jagwire
• Seatpost: Bike Yoke Revive Dropper 160mm
• Dropper Routing: Internal
• Saddle: WTB Silverado Medium Cromoly
• Bottom Bracket: Shimano SM-BB52

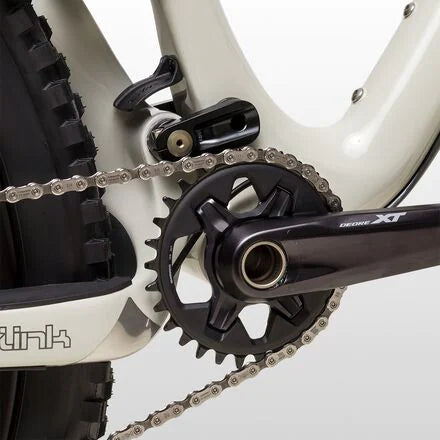

• Crankset: Shimano XT FcCM8100 170mm 24mm spindle
• Chainrings: Shimano 30T Black
• Pedals: Not Included
• Chain: Shimano XT CN-M8100 12sp
• Cassette: Shimano XT CS-M8100, 10-51T
• Rear Derailleur: Shimano XT M8100 Shadow Plus
• Derailleur Mount Type: Standard
• Rear Axle: 12mm through axle
• Rear Axle Spacing: 148mm
• Rear Wheel Diameter: 27.5"
• Rear Hub: Ibis Logo Microspline
• Spoke Holes: 32
• Rear Spokes: Sapim Black
• Rear Nipples: Sapim Black
• Rear Rim: Ibis S35 Carbon
• Rear Tire: Maxxis Minion DHF 27.5 x 2.5WT Dual Compound EXO TR
• Rear Tube: Tubeless

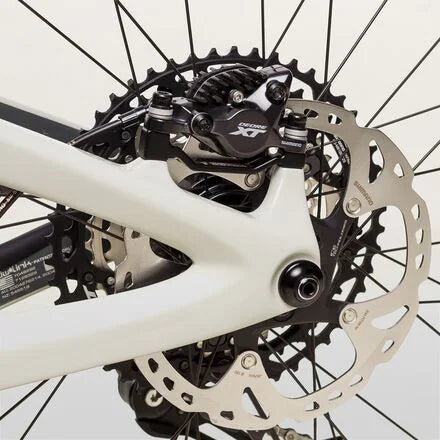

• Rear Brake Model: Shimano BL-M8100/BR-M8120 4-Piston
• Disc Rotor Interface: 6-Bolt
• Disc Rotor Model: Shimano SM-RT86
• Disc Rotor Diameter: 180mm
