Ibis HD6 MX - GX AXS/AL Wheels - Traffic Cone Orange
Ibis HD6 MX - GX AXS/AL Wheels - Traffic Cone Orange
☆☆ EXTRA 10% OFF CLEARANCE ☆☆
(Limited Time Only)
Product ID: GM010924-21
Only 1 Items Left
Shop all Ibis | Shop all Full Suspension
View full detailsDescription
The HD6 is the evolution of one of the most successful enduro bikes in history.
Designed with input from our Enduro World Cup team and building upon our award-winning Ripmo and HD lines, the HD6 features increased travel, a completely redesigned suspension layout, and mixed wheels.

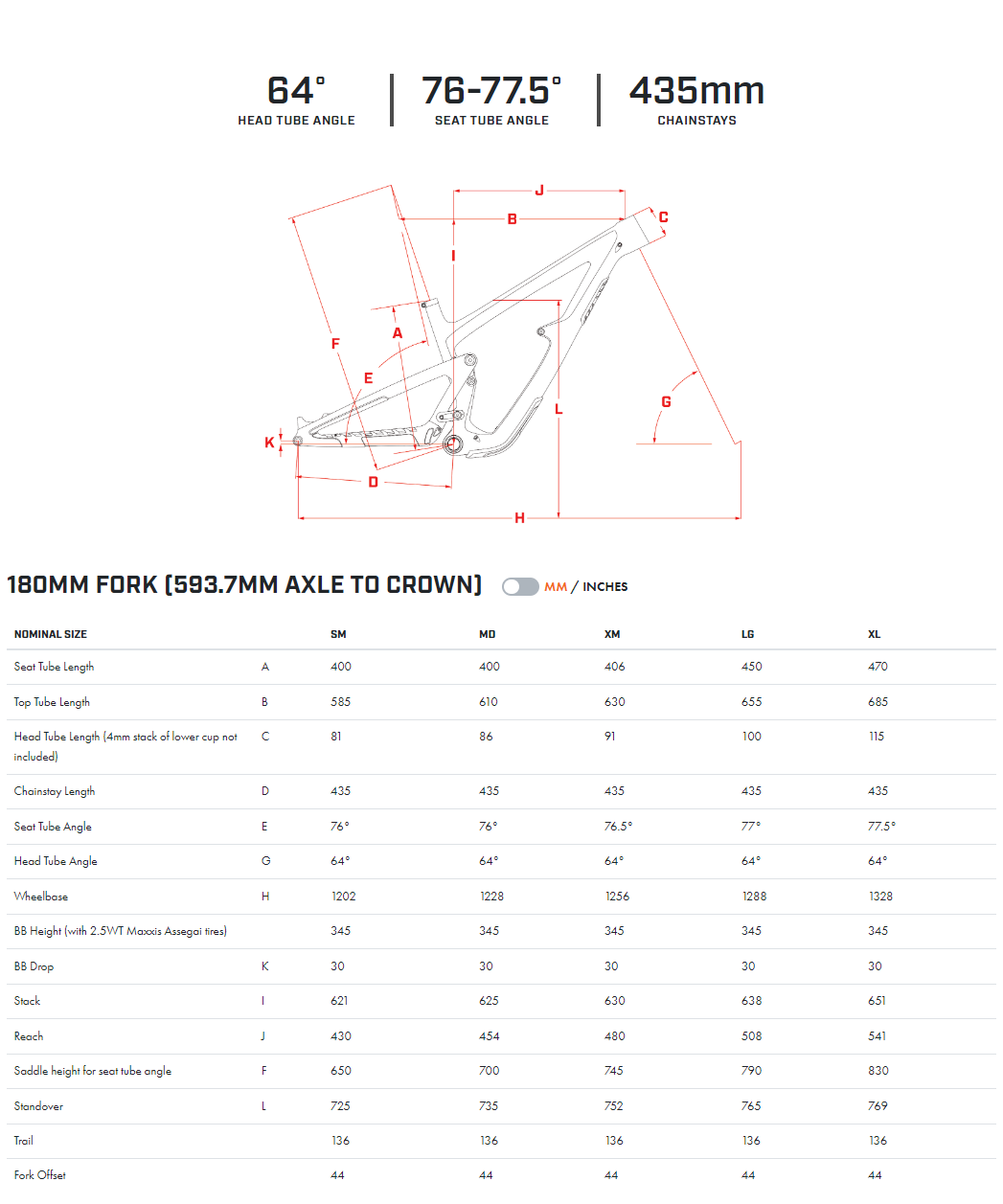

GEOMETRY
The 29″ front wheel, bolstered by 180mm of travel, assures stability, whereas the 27.5″ rear wheel allows for additional maneuverability. The 165mm of travel skillfully manages any fallout. With a 64 degree head tube angle (one degree slacker than the current Ripmo), a BB height similar to Mojo HD5, and chainstay length identical to the current Ripmo (despite the 27.5″ rear wheel), the bike maintains an equilibrium between agility and stability.

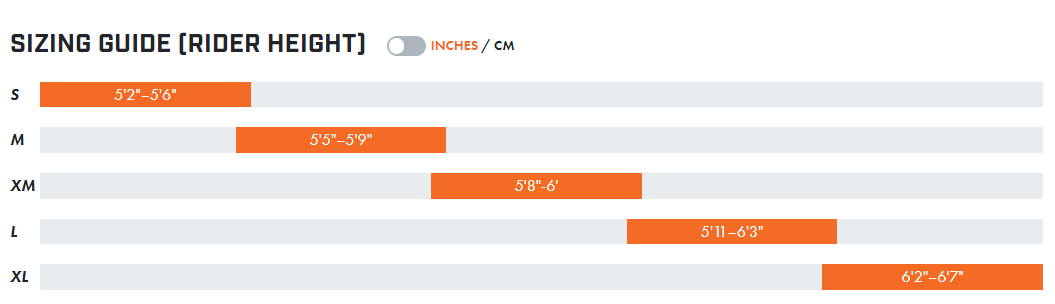

FIVE SIZES
In order to place every size rider in the same position over the rear wheel, the HD’s seat tube angles get steeper as frame size increases. With four sizes, this would have resulted in larger jumps in reach, so we added a fifth size. The smaller increments across five sizes means that you can find just the right size. We encourage riders to choose their bike size based on their desired reach and top tube measurements.
COIL COMPATIBLE
Our upper link suspension layout is progressive enough to be sensitive off the top, yet supportive enough for the biggest hits. It is also compatible with all coil shocks, for those longer race stages that can tax air shock performance.
DW-LINK
The suspension layout may be new, but it’s still DW-Link. The inherent efficiency means you don’t need an overdamped shock to climb well. Less shock damping allows the wheels to stay planted on the ground, providing more traction and that hover-bike feel that our frames are known for. The HD6 climbs with a finesse that defies its enduro race pedigree.
TRACTION TUNE
Our custom tuned front and rear suspension feature extra light high speed compression and rebound damping to deliver unparalleled traction. This allows the wheels to flutter through rough terrain like a trophy truck storming through a set of whoops.
BUSHINGS
Tired of buying bearings each season? So were we. That’s why we’ve strategically employed bushings where they’re most effective and bearings elsewhere. The IGUS bushings in our lower link are not only lighter and stiffer, they’re virtually maintenance-free. We believe so strongly in them, we back them with free lifetime replacement.
LIGHTWEIGHT PREMIUM CARBON
All our bikes are built from the highest grade materials and optimized for the best strength, weight, stiffness, and ride performance — no matter how much you spend. The HD6 frame is sub 6 lbs without shock and our complete Enduro ready builds weigh as little as 32 lbs.
INTERNAL CABLE ROUTING
Bikes that look pretty on the outside should look pretty on the inside. We use carbon fiber tubes molded within each frame. Push the cable in, watch it pop out — a beautiful moment indeed.
PROTECT YOUR INVESTMENT
A thick rubber downtube protector deflects debris, while our chainstay protector features thick raised sections to help dampen chain slap noise. And our simple-yet-elegant linkage protectors stop mud and rocks thrown by the tire, keeping your beautiful bike beautiful.
LIFETIME WARRANTY
If it’s our fault, we’ll fix it. Simple as that.
SPECIFICATIONS
- Frame: Model Ibis HD6
- Frame Size: Large
- Frame Color: Traffic Cone Orange
- Frame Year: 2023
- Rear Shock: 2024, FLOAT X2, F-S, K, 2pos-Adj, Ibis, HD6, 230, 65, 0.3 Spacer x1, CX001, ECR012, Rezi BX001, Neutral, Neutral Logo, OE
- Headset: Cane Creek 40 Series ZS44/28.6 - ZS56/40 - Tapered, Steerer Diameter:1.5
- Spacers (yes/no / xxmm): yes( 5 x 5mm)
- Fork Model: 2024, 38, K, FLOAT, 29in, F-S, 180, Grip 2, HSC, LSC, HSR, LSR, LNT, Light Reb, Matte Blk, PMS 172/PMS 446 Logo, Kabolt-X 110, BLK, 1.5 T, 58HT, 44mm Rake, N/M OE
- Fork Travel: 180mm
- Front Axle: 15mm
- Front Axle Spacing: 110mm Boost
- Front Wheel Diameter: 29"
- Front Hub: Ibis Logo Black
- Spoke Holes: 32
- Front Spokes: Sapim D-Light J-bend Black
- Front Nipples: Sapim double square nipple Black
- Front Rim: Ibis BlackBird Send 1 Aluminum Black
- Front Tire: Maxxis Assegai 3C MaxGrip EXO+ TR 29 x 2.5WT
- Front Tube: Tubeless
- Front Brake Model: SRAM Code RSC
- Disc Rotor Interface: 6-Bolt
- Disc Rotor Model: SRAM Centerline
- Disc Rotor Diameter: 200mm
- Stem Model: Industry Nine A318
- Stem Length: 50mm
- Stem Steer Tube Diameter: 1 1/8"
- Stem Bar Clamp Diameter: 31.8mm
- Handlebar: Ibis 800mm Carbon Hi Fi Bar
- Shifters: SRAM Eagle AXS Pod Controller
- Brake Levers: SRAM Code RSC
- Grips: Lizard Skins Charger Lock-on Black with Ibis clamps Black
- Brake Cables: SRAM
- Shift Cables: SRAM
- Seatpost Bike Yoke: 34.9 x 185mm
- Dropper Routing: Internal
- Saddle: WTB Silverado Medium CrMo
- Front Derailleur: Not included
- Bottom Bracket: SRAM DUB BSA
- Crankset: SRAM GX DUB Wide T-Type 170mm CL55
- Chainrings: SRAM T-Type 32T 12 Speed
- Pedals: Not Included
- Chain: SRAM GX T-Type
- Cassette: SRAM XG-1275 10-52T 12 Speed
- Rear Derailleur: SRAM GX AXS T-Type 12-Speed
- Derailleur Mount Type: SRAM UDH
- Rear Axle: 12mm through axle
- Rear Axle Spacing: 148mm
- Rear Wheel Diameter: 27.5"
- Rear Hub: Ibis Logo with SRAM XD freehub
- Spoke Holes: 32
- Rear Spokes: Sapim D-Light J-bend Black
- Rear Nipples: Sapim double square nipple Black
- Rear Rim: Ibis BlackBird Send 2 Aluminum Black
- Rear Tire: Maxxis Minion DHR II 3C MaxxGrip Double Down TR 27.5" x 2.4WT
- Rear Tube: Tubeless
- Rear Brake Model: SRAM Code RSC
- Disc Rotor Interface: 6-Bolt
- Disc Rotor Model: SRAM Centerline
- Disc Rotor Diameter: 200mm
- Extras Included: Stans Sealant, MRP AMg SE Chainguide
