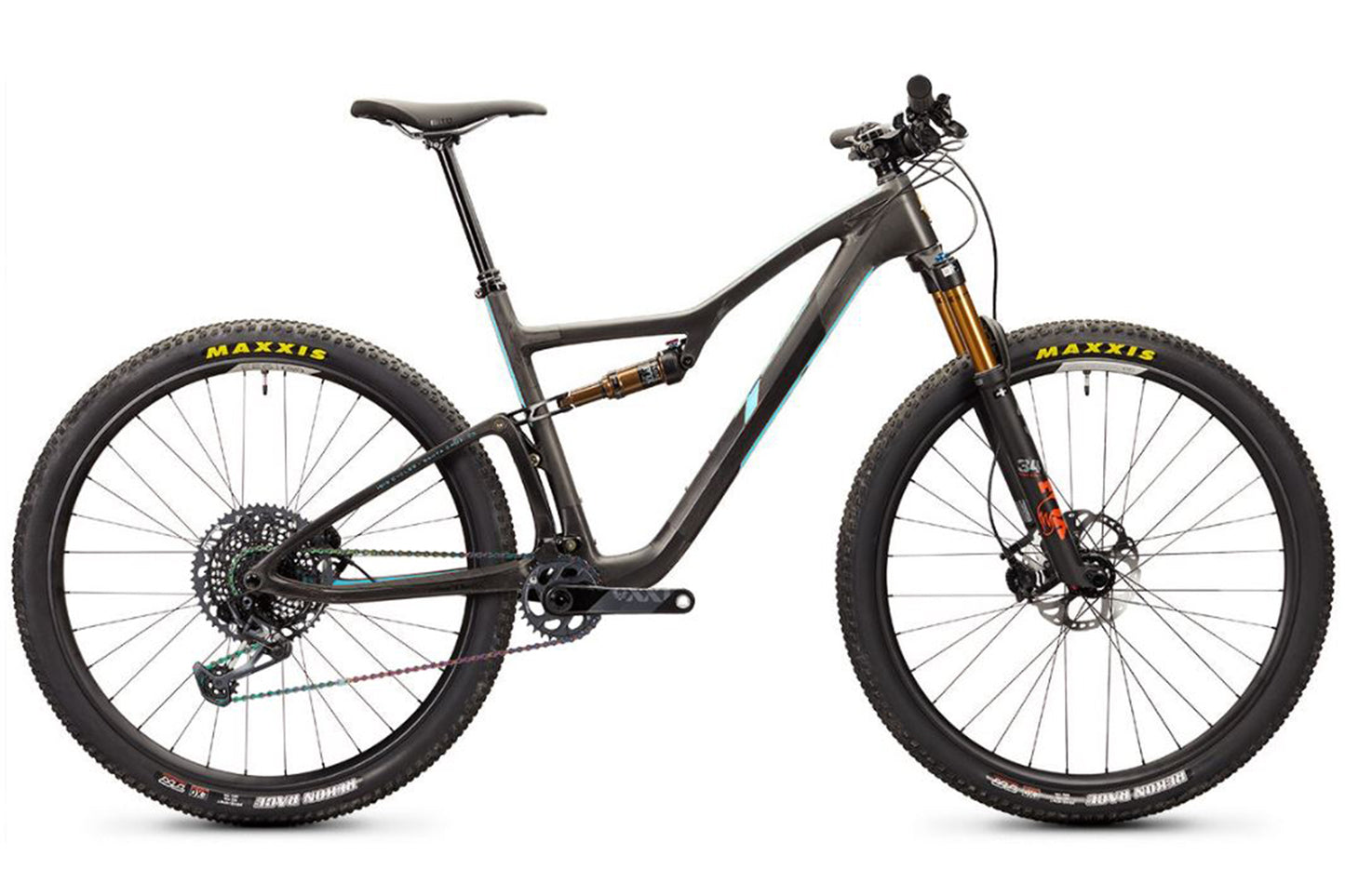

Ibis Exie 29 - X01 - Bug Zapper Blue

The Exie is a World-Cup capable cross-country race bike that flat out shreds. With a sub 2,000g frame weight and dw-link suspension, it offers a stunning combination of pedaling efficiency and downhill performance. Ibis designed, built, and test­ed it in their Santa Cruz factory, which is pow­ered by the warm Cal­i­for­nia sunshine.

BUILT BY IBIS
IBIS builds each Exie at their North­ern Cal­i­for­nia fac­to­ry. This gives IBIS the utmost con­trol, which enables them to hit remark­able frame strength, stiff­ness, and weight tar­gets for this frame.

SIZE SPECIFIC SEAT ANGLES

Whether you’re rac­ing short track or on a mul­ti day epic, the Exie’s seat tube angles allows you to har­ness your strongest mus­cles, while reduc­ing any poten­tial knee or wrist strain. Ibis also steep­ened the seat tube angles as the frames get larg­er, to allow rid­ers with dif­fer­ent inseams to achieve the same rid­ing positions.

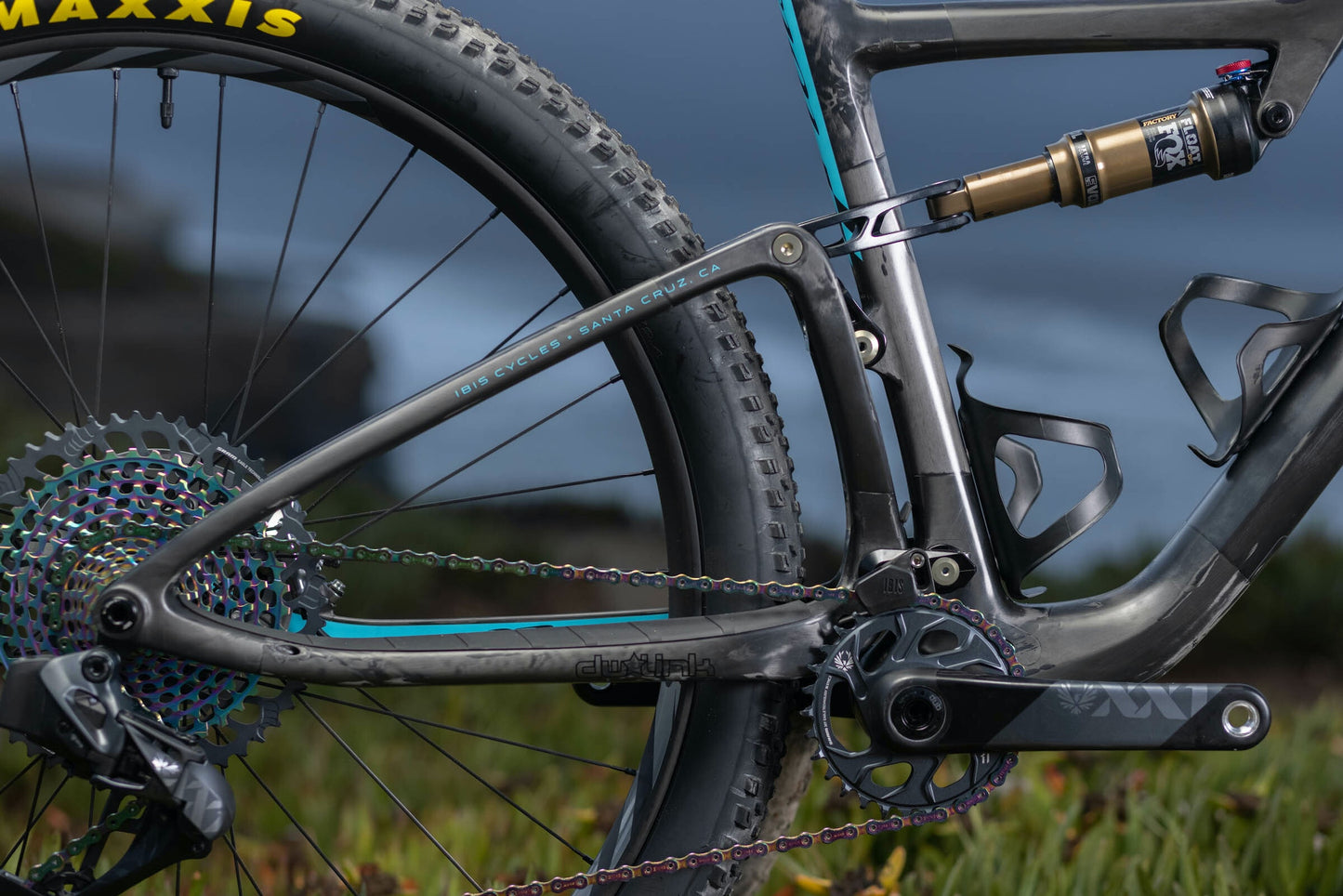

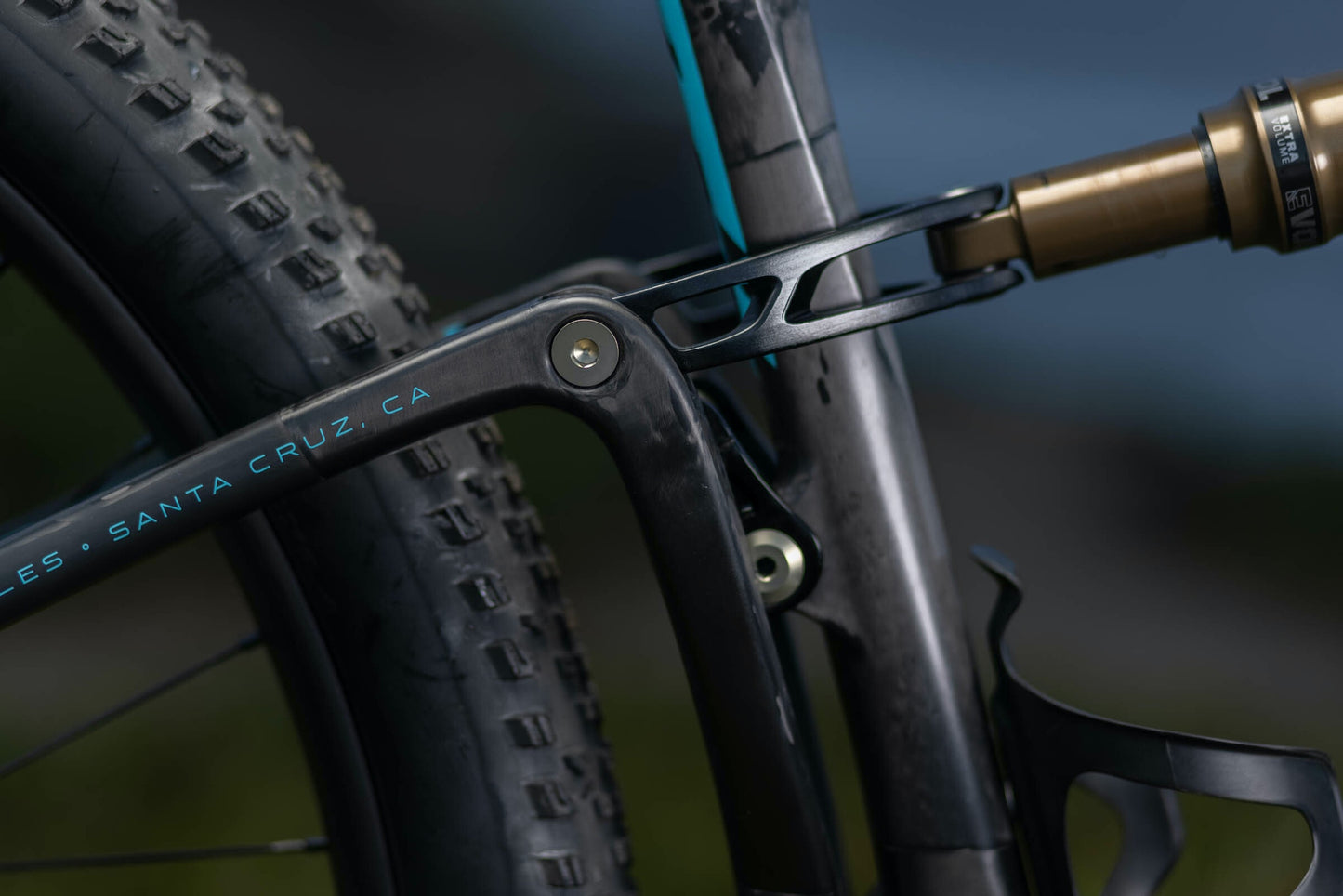

DW-LINK SUSPENSION

Don’t squan­der a sin­gle watt. The dw-link sus­pen­sion plat­form offers incred­i­ble climb­ing effi­cien­cy and trac­tion along with plush, down­hill-crush­ing goodness.

RIDE MORE, WRENCH LESS

They use bush­ings where it makes sense and bear­ings where it doesn’t. The IGUS bush­ings in our low­er link are lighter, stiffer, and vir­tu­al­ly main­te­nance free. They also added fea­tures like a thread­ed bot­tom brack­et to help make any future main­te­nance easy.

INTERNAL CABLE ROUTING

Inter­nal cable rout­ing doesn’t have to be a pain. With added inter­nal tubes to their tubes, no pick­sets, flash­lights, or swear words required.

2.4” TIRE CLEARANCE

You can run over­built, chunky tires; you can run light, big vol­ume fast tires, but what­ev­er you run, you’re not lim­it­ed by width.

2X BOTTLE CLEARANCE

The Exie has clear­ance for two water bot­tles inside the front tri­an­gle on every size frame.

• Frame Material: Carbon Fiber (Manufactured at Ibis facility in California).

• Frame Weight: (size L) 4.4 lbs w/ shock
• Wheel Size: 29” / up to 2.4" tires
• Front Travel: 120mm forks
• Rear Travel: 100mm (4 inches)
• Boost Axles: 148mm rear / 110mm front
• Seatpost: Diameter 31.6mm
• Rear Brake: 160mm post mount / 180mm max
• Derailleur Hanger: Universal Derailleur Hanger (UDH) SRAM part number AC-DRHG-MTB-A1
• Bottom Bracket: Threaded (73mm English threaded)
• Chainline: 52mm chainline, 168mm Q Factor

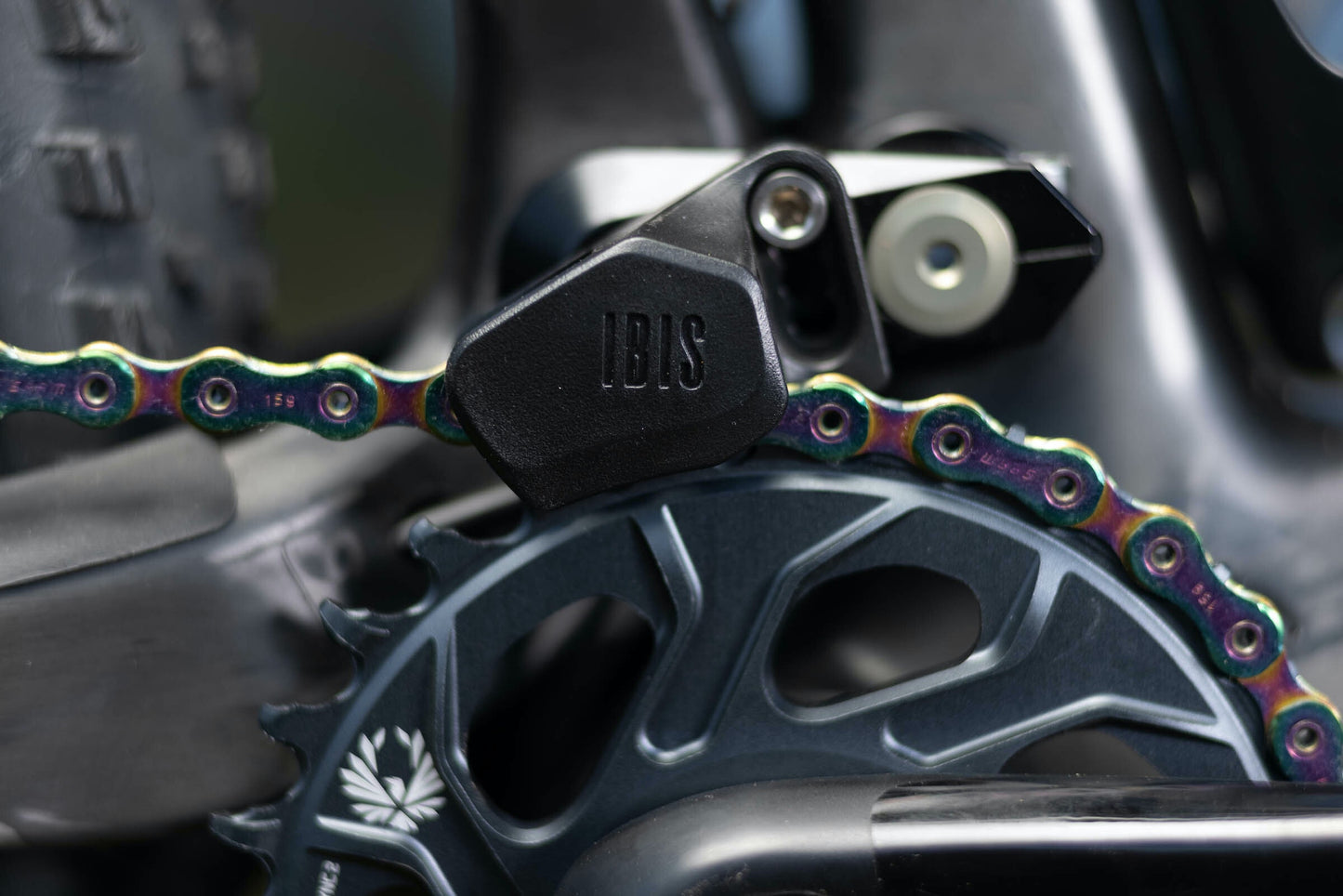

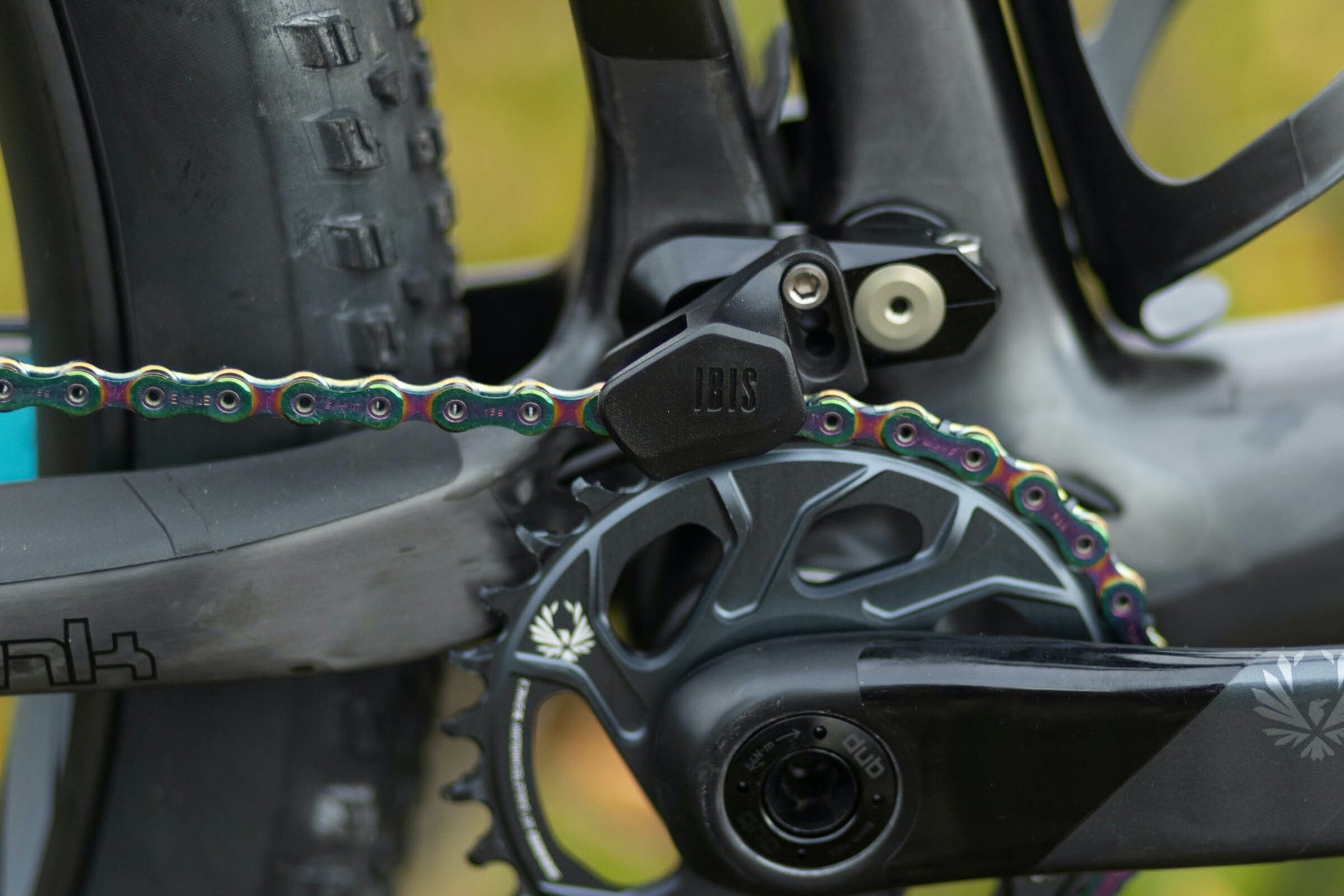

• ISCG 05 Compatible: Integrated Upper Chain Guide
• Headset: IS 41/28.6 upper, IS 52/40 lower
• Sizes: S / M / L / XL
• Frame: Warranty 7 years

Build Kit:

• Fork: Fox 34 SC Fit 4 Remote 120mm, 44mm rake, Kabolt
• Shock: Fox Float DPS Remote w/ adjust, 190 x 45, light rebound and compression
• Wheels: Ibis 933 Aluminum Rims, Ibis Hubs
• Tires: Maxxis Recon Race 29" x 2.4" Exo/TR WT
• Brakes: Shimano XT M8100, 2 Piston
• Brake Rotors: Shimano SM-RT86 180/160
• Cranks: Shimano XT M8100, 30t Alloy Ring S/M: 170mm, L/XL: 175mm
• Bottom Bracket: Shimano XT MT800
• Rear Derailleur: Shimano XT M8100 Shadow Plus 12 speed
• Shift Levers: Shimano XT M8100 12 speed
• Cassette: Shimano XT 10-51
• Chain: Shimano XT M8100 12 speed
• Headset: Cane Creek 40: IS 41/28.6 upper, IS 52/40 lower
• Grips: Lizard Skin Charger

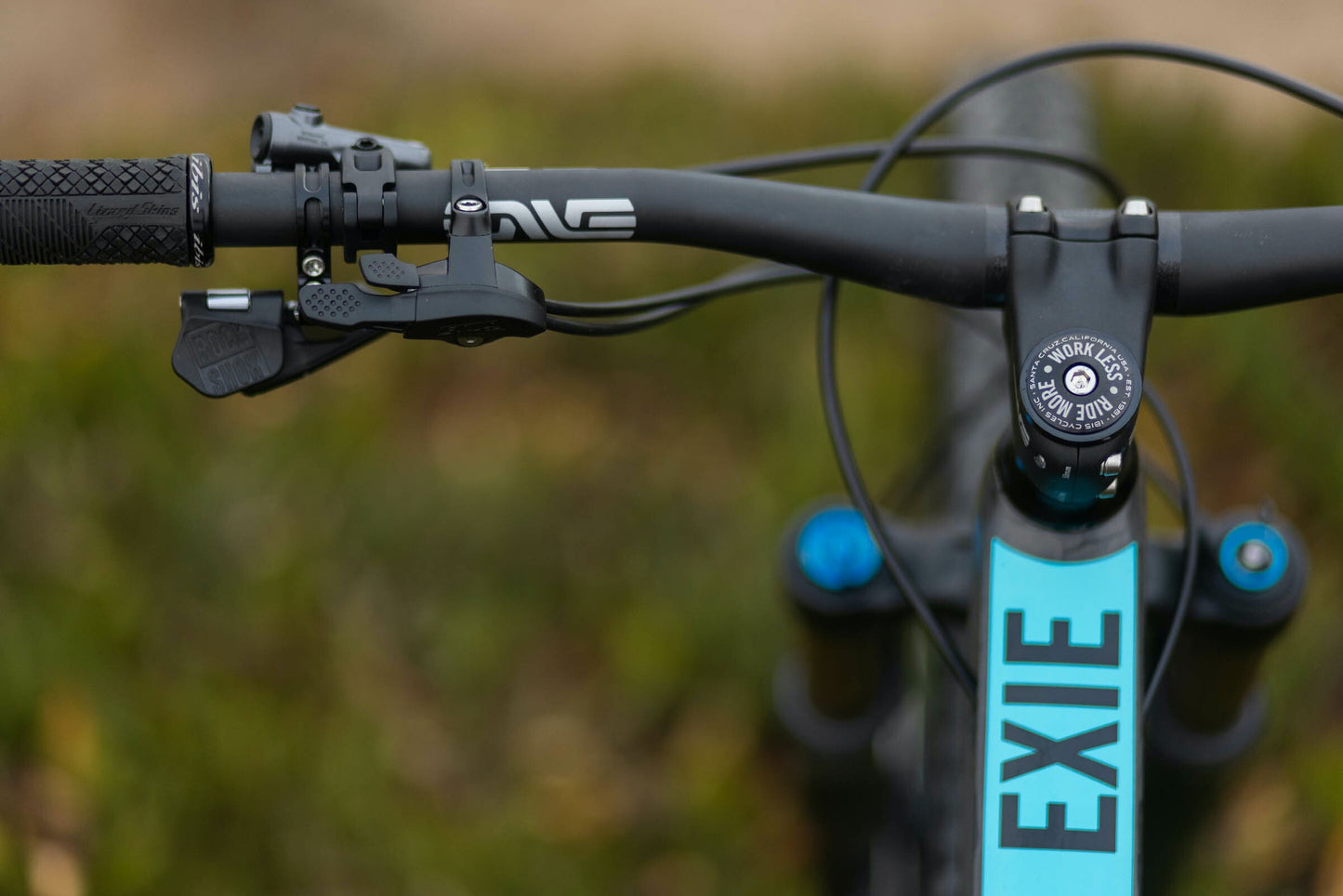

• Handlebar: Ibis 800mm Hi Fi Bar
• Stem: Industry Nine A318 S/M: 40mm, L/XL: 50mm S/M 40mm, L/XL 50mm
• Seatpost: Bike Yoke Revive Dropper S: 125mm, M: 160mm, L/XL: 185mm. Note there is a 250lb rider weight limit on this post.
• Saddle: WTB Silverado 142
