Haro
Haro Skwad 2 I/O - Matte Black
Haro Skwad 2 I/O - Matte Black
Regular price
$1,999.99
Sale price
$1,999.99
Unit price
/
per
Product ID: GM071425-290
Earn
Out of stock
Shop all Haro | Shop all Electric Commuter&Leisure Bikes
View full detailsDescription

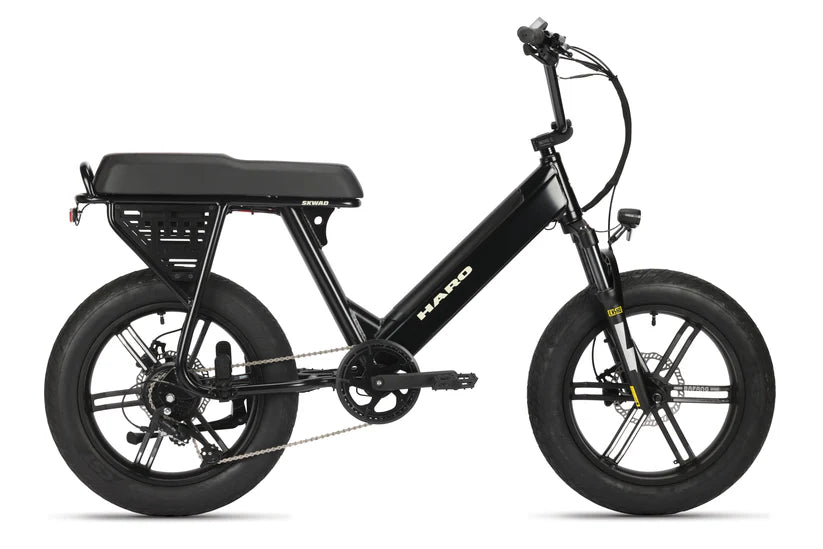

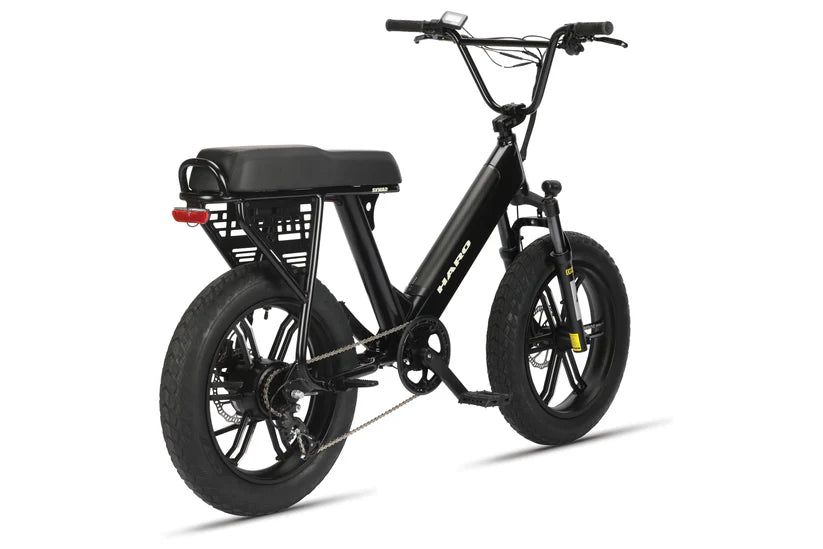

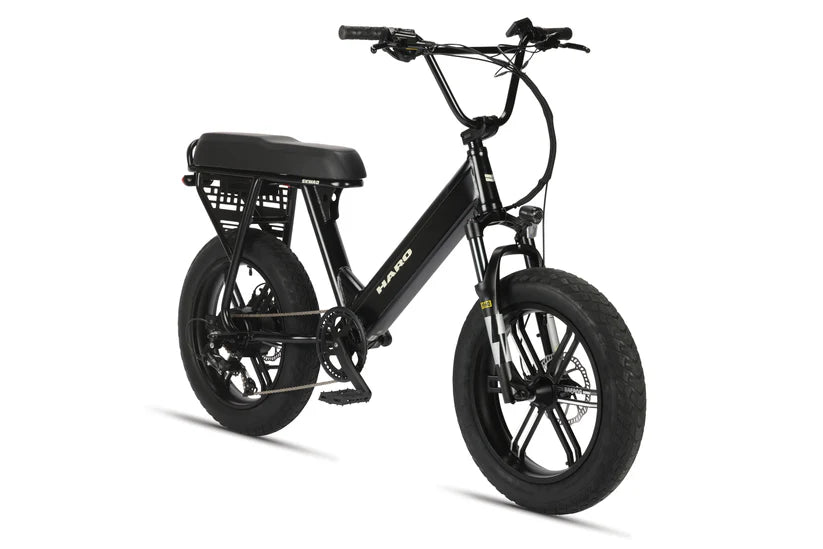

Haro Skwad 2 I/O
All fun, all the time. Built off our tried & true Skwad E-bike platform, the Skwad 2 features the same great aluminum frame, 48V battery, 6-spoke mag wheels and 7-speed drive train, but with a 500W motor and a lighter single-crown suspension fork. Five levels of pedal assist to keep your cadence on-point. Easy to handle on the road, easy to store/transport and easier on the wallet, too.
Features:
- 6061 T6 Aluminum frame. Tapered head tube, internal downtube battery and built-in grid mounting plate
- Bafang 500W drive unit
- 48v, 13.2AH internal downtube battery, UL certified
- 40+ mile range
- Dual-piston hydraulic disc brakes with 180mm rotors, front & rear

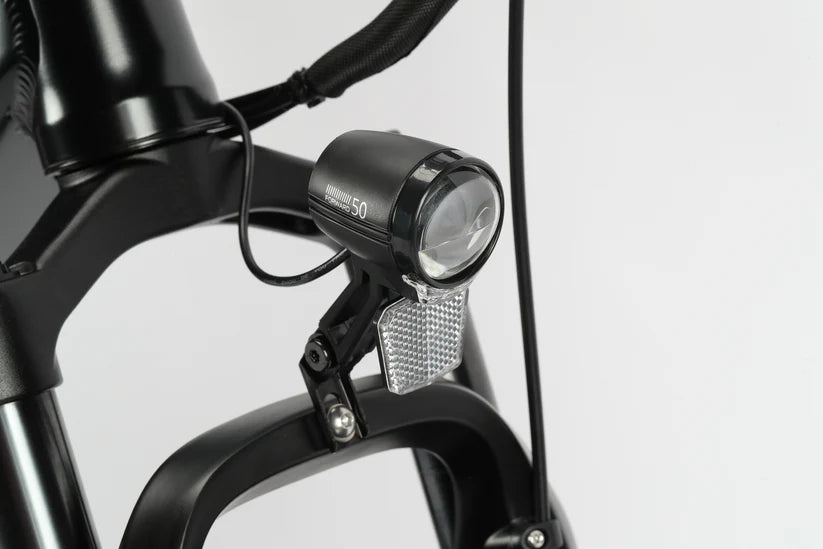

- LED front headlight and rear brake alert light
- Left-side thumb throttle, five levels of pedal assist

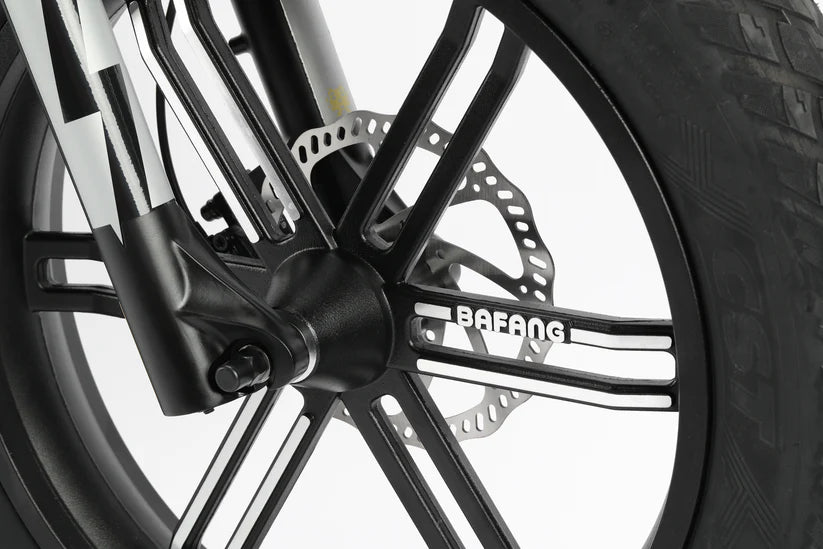

- Alloy 6-spoke mag wheels with 20 x 4" Kenda tires
- Single-crown suspension fork, 100mm travel
- E-bike classification: Class 2, 500W/20MPH
Specifications:
| Frame | 6061 T6 Aluminium; tapered head tube and internal battery. Built-in grid mounting plate |
|---|---|
| Fork | 100mm travel I Single crown I 32mm Aluminum stanchions |
| Colors | Matte Black |
| DRIVETRAIN | |
| Cranks | Forged aluminum | 170MM |
| Pedals | 9/16" chromoly axle, alloy body |
| Chain | KMC Z7 | 7SPD |
| Bottom Bracket | Square Taper | 73mm | 148mm Spindle I Cadence Sensor |
| Front Derailleur | |

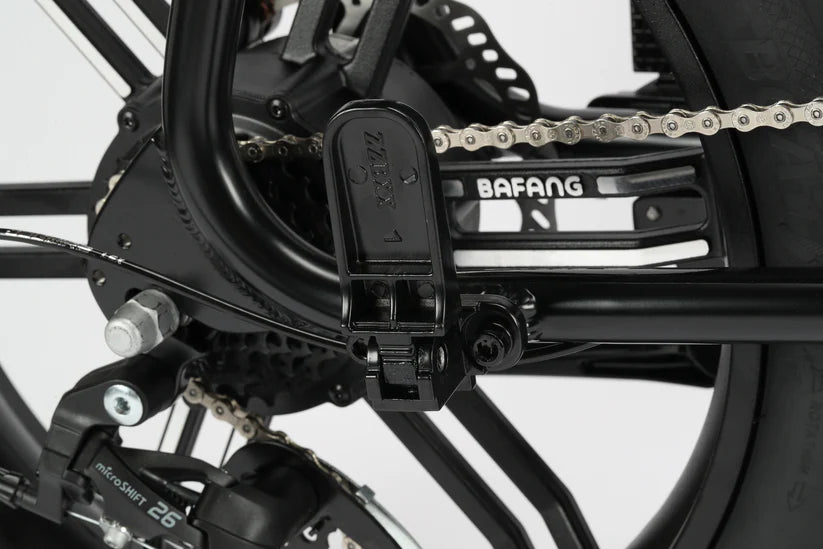

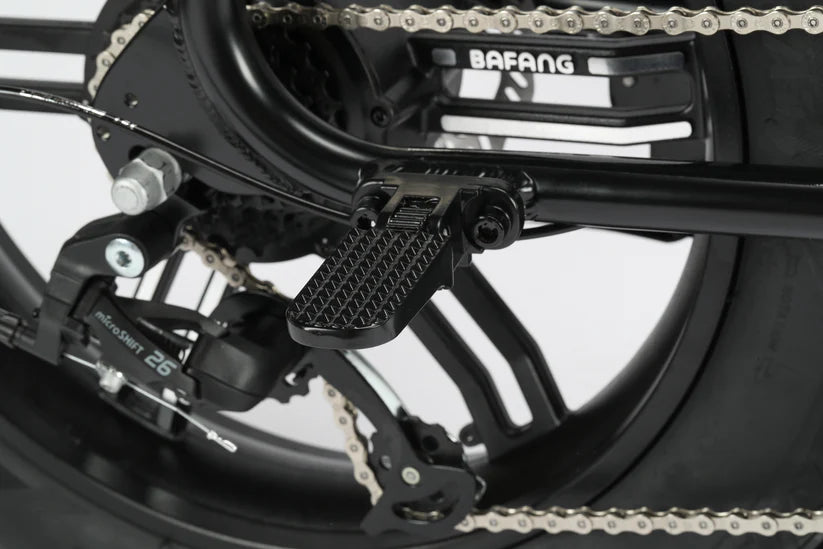

| Rear Derailleur | Microshift RD-M26L |
| Derailleur Shifter | Microshift TS39-7 |
| Freewheel/Cassette | Shimano mf-TZ500-7SPD 14-28T |
| Drive Unit | Bafang 500W. Class 2, 500W/20MPH, five levels of pedal assist |
| Battery | Bafang 48V 13.2Hh 576WH, 13S4P, EVE 2900 cells, UL certified |
| WHEELS | |
| Tires | Kenda Krusade 20"X4" |
| Wheels/Rims | Bafang Alloy 6 Spoke Mag Wheel |
| BRAKING SYSTEM | |
| Brakes | Rush Dual Piston | Open System | 180mm Rotors | STD Mount |
| Brake Levers | Radius 2.5 Finger | Sensor Control Cut Off | Reach Adjustment |
| OTHER COMPONENTS | |
| Grips/Tape | Dual locking 135mm Velo Grips |

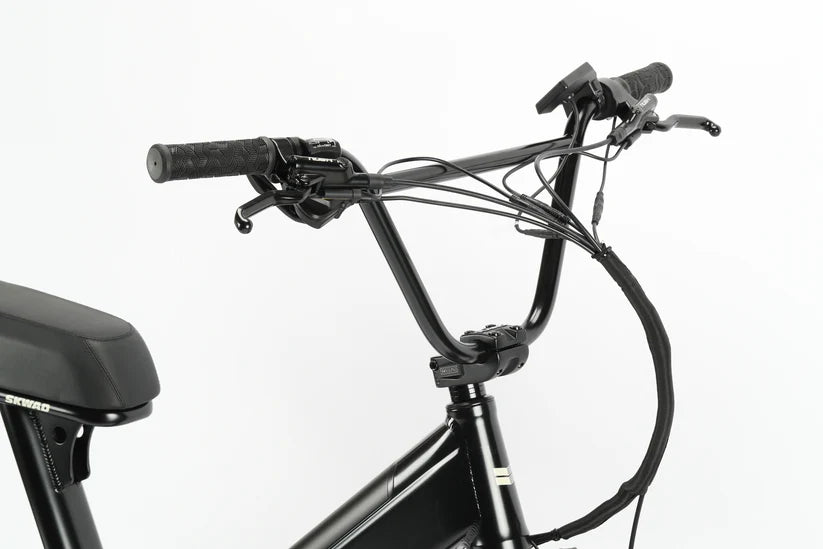

| Handlebar | Haro Baseline 2-piece 9.5" |

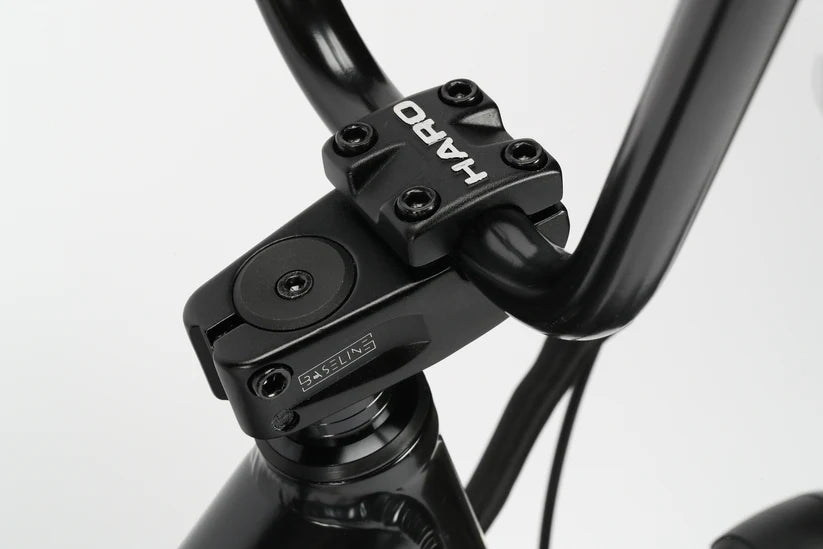

| Stem | Haro Baseline 48mm reach |
| Headset | 1-1/8" - 1-1/5" tapered internal headset |

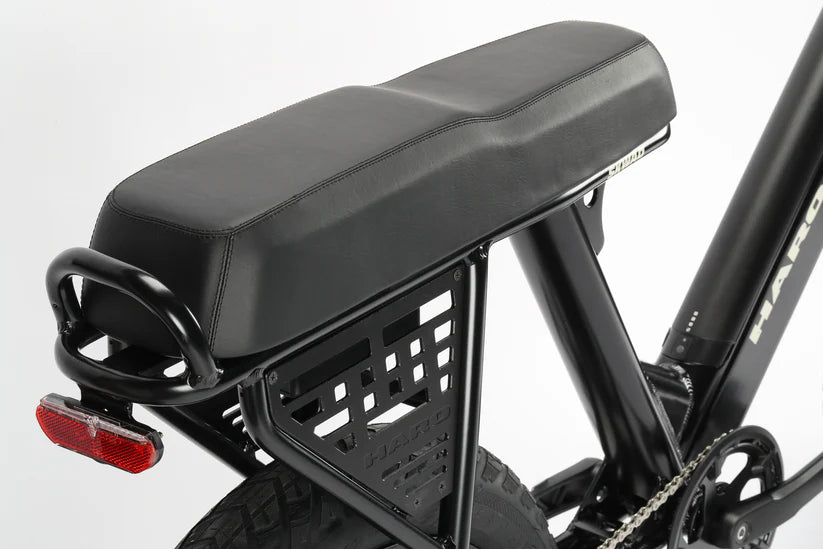

| Saddle | Haro Cafe |
| Seat Post | |
| Extras | Rear brake light. LED headlight. Left thumb throttle |
Geometry:
| SIZE | 20 |
|---|---|
| A. Top Tube (Effective) | 668mm (26.30") |
| B. Seat Tube (C-T) | 460mm (18.1") |
| C. Standover Height | mm (") |
| D. Head Tube Length | mm (") |
| E. Head Angle | 71° |
| F. Seat Angle | ° |
| G. Wheelbase | |
| H. Chainstay | 466mm (18.3") |
