Haro
Haro Double Peak 3 29" - Gloss Tan-Lava
Haro Double Peak 3 29" - Gloss Tan-Lava
Product ID: GM071425-37
Earn
Out of stock
Shop all Haro | Shop all Hardtail
View full detailsDescription
Haro Double Peak 3 29"
The most affordable bike in the Double Peak range, the Double Peak 3 is built on the same great heat-treated alloy frame with a butted tubing and a tapered head tube as the 1 and 2, loaded up with a parts set makes the grade without costing you too much. A 120mm travel SR Suntour fork leads the charge, with a Shimano Cues 9-speed drivetrain to run it hot on any incline, up or down. Beefy Kenda Regolith tires and hydraulic Shimano disc brakes keep it all under control. Ready for MTB adventure, right out the door, with burrito money left over.
Features:
- Hydroformed, heat-treated 6061-T6 aluminum hardtail frame. Tapered head tube with double-butted top and down tubes. Quick-release dropouts.

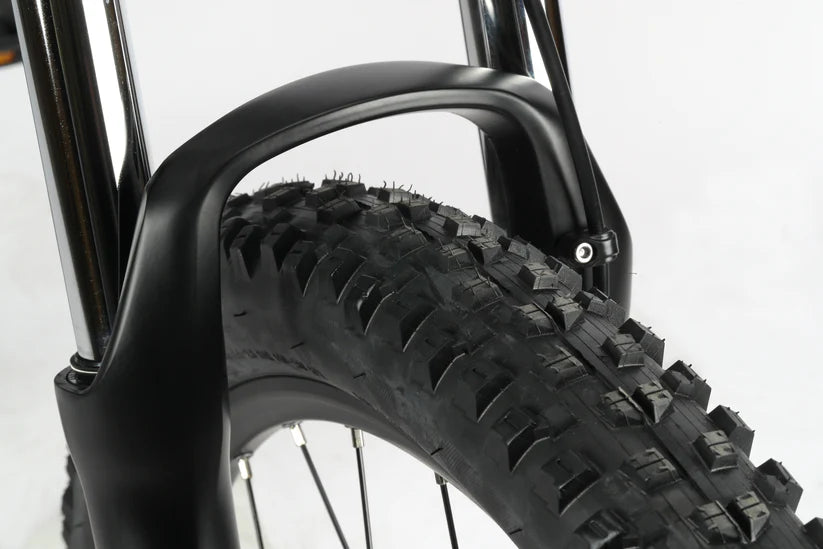

- SR Suntour XCM32-Boost fork with 120mm travel
- Shimano Cues 9-speed drivetrain with 11-41T gearing
- Double-wall 32H alloy rims with Shimano TC500 center-lock hubs, 15mm front, quick-release rear
- Kenda Regolith 29 x 2.4" front and rear
- Shimano MT200 Hydraulic 2-piston disc brake with 180/160mm rotors
Specifications:

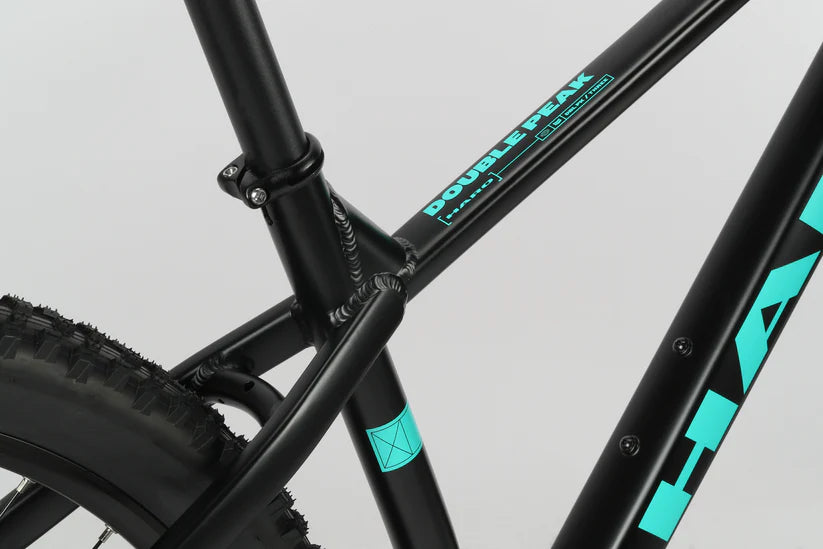

| Frame | Hydroformed, heat-treated 6061-T6 aluminum hardtail frame. Tapered head tube with double-butted top and down tubes. 135mm axle spacing with quick-release dropouts. Internal cable routing. UDH derailleur hanger. |
|---|---|
| Fork | SR Suntour XCM32-Boost 120mm travel; coil with preload; 1.5" tapered, 15x110 thru-axle |
| Colors | Matte Black / Teal, Gloss Tan / Lava |
| DRIVETRAIN | |

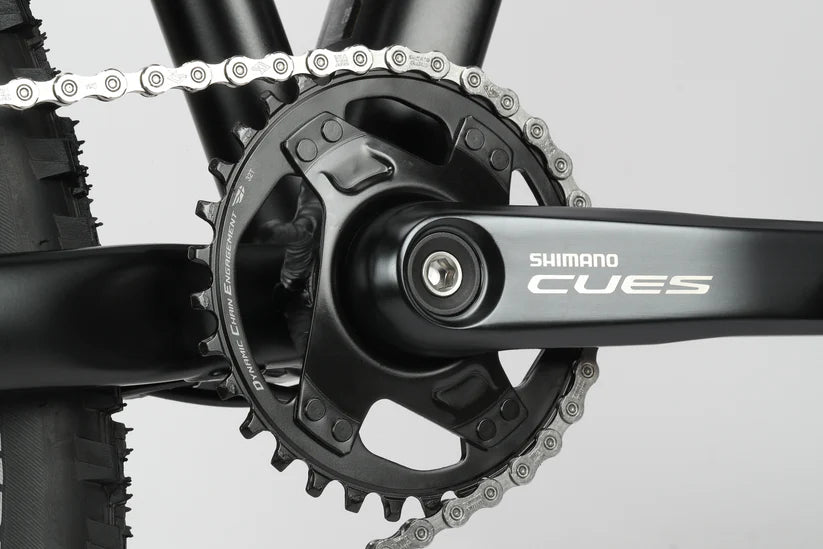

| Cranks | Shimano Cues 2-piece, FC-U4000-1, 170mm, 32T chainring |
| Pedals | FPD PC |
| Chain | Shimano Linkglide CN-LG500 |
| Bottom Bracket | Shimano Cues BSA 73mm, BB-UN101 |
| Front Derailleur | |
| Rear Derailleur | Shimano Cues 9-speedd RD-U4000 Shadow |
| Derailleur Shifter | Shimano Cues SL-U4000-9R 9-speed with optical window |
| Freewheel/Cassette | Shimano Cues 11-41T CS-LG500 |
| WHEELS | |
| Tires | Kenda Regolith 29 x 2.4" front and rear |
| Wheels/Rims | Alloy double-wall, pinned seams, 32h w/eyelets |

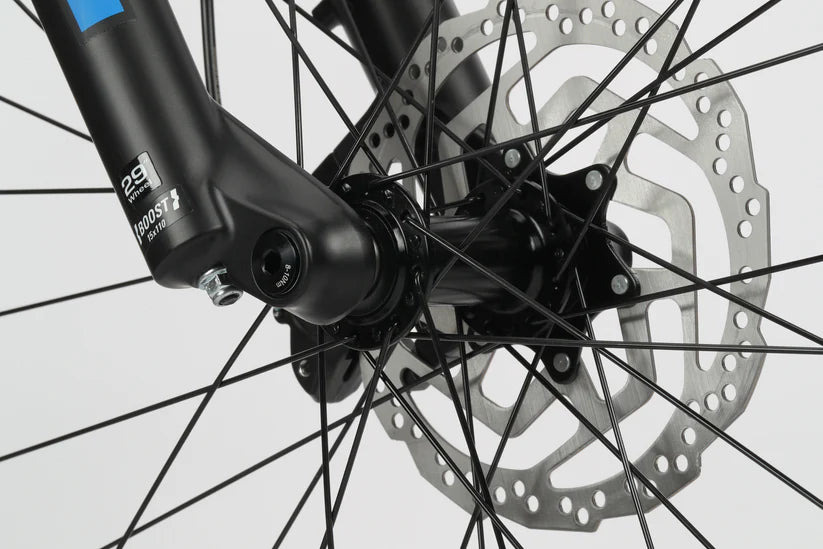

| Front Hub | Shimano HB-TC500 Center Lock 32h, 15mm thru-axle |
| Rear Hub | Shimano FH-TC500, Center lock, 32h, quick release |
| BRAKING SYSTEM | |
| Brakes | Shimano MT200 Hydraulic 2-piston disc brake with 180mm rotor front and 160mm rotor rear |
| OTHER COMPONENTS | |
| Grips/Tape | WTB WeirWolf |

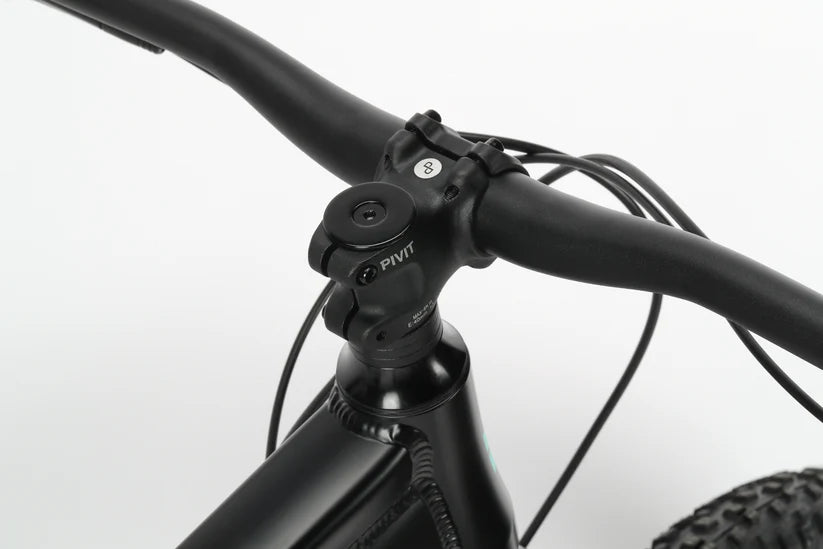

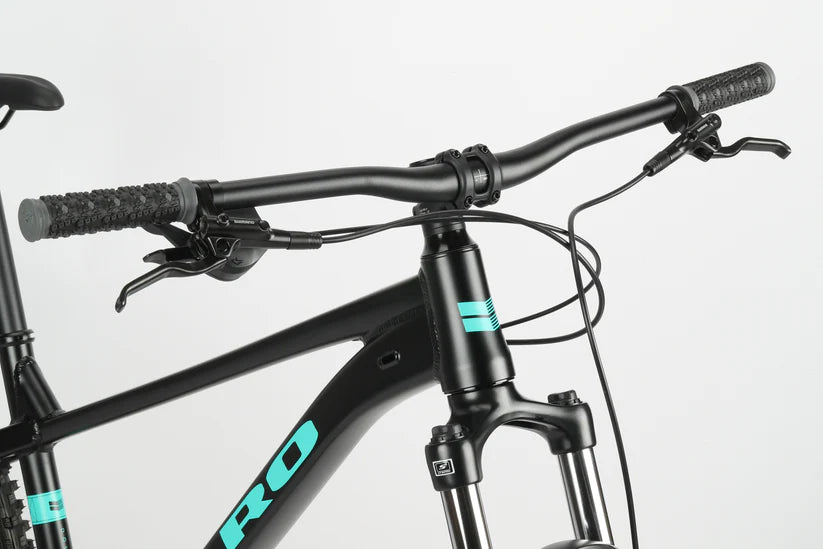

| Handlebar | Haro Alloy 6061 Pivot MTB riser bar, 780 wide, 20mm rise |

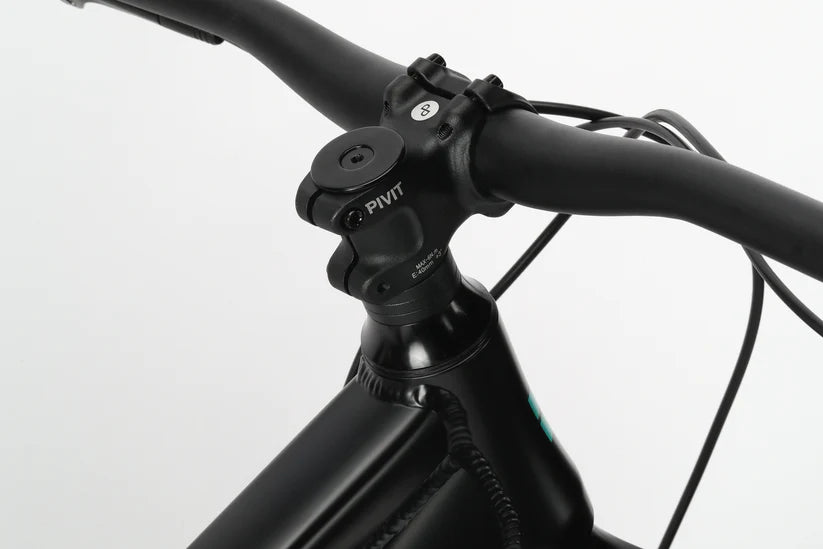

| Stem | Alloy 6061 Forged 40mm reach |
| Headset | FPD DOZER tapered 1-1/8" - 1-1/5" FSA (44/56mm) |

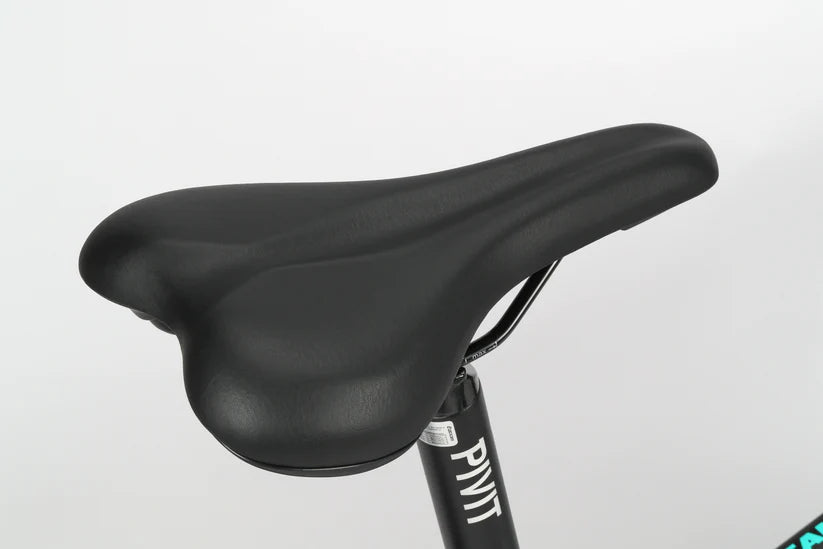

| Saddle | DDK-250V PHU Leather |
| Seat Post | Forged alloy micro-adjust pivot seat post |
| Seat Clamp | Forged Alloy 6061 |
Geometry:
| SIZE | S | M | L | XL |
|---|---|---|---|---|
| Seat Tube (C-T) | 406mm | 457mm | 508mm | 559mm |
| Top Tube (Effective) | 595mm | 610mm | 635mm | 645mm |
| Head Tube Angle | 69° | 69° | 69° | 69° |
| Seat Tube Angle | 72.5° | 72.5° | 72.5° | 72.5° |
| Chainstay Length | 450mm | 450mm | 450mm | 450mm |
| BB Drop | 64mm | 64mm | 64mm | 64mm |
| Wheelbase | 1105.98mm | 1136mm | 1146.64mm | 1157.3mm |
| Head Tube Length | 100mm | 100mm | 110mm | 120mm |
| Standover | 721mm | 740mm | 773.7mm | 799mm |
| Stack Height | ||||
| Reach | 394mm | 425mm | 435mm | |
| Axle to Crown | 515mm | 515mm | 515mm | 515mm |
| Fork Offset | 44mm | 44mm | 44mm | 44mm |
Size Guide:
| Size | Inches | CM |
|---|---|---|
| S | 5'4" - 5'8" | 162.5 - 172.5 |
| M | 5'7" - 6' | 170 - 182.5 |
| L | 5'11" - 6'2" | 180 - 187.5 |
| XL | 6'1" - 6'5" | 185 - 195 |
