Giant Defy Advanced 1 700c - Orion Nebula- 2023
Giant Defy Advanced 1 700c - Orion Nebula- 2023
☆☆ EXTRA 10% OFF CLEARANCE ☆☆
(Limited Time Only)
Product ID: GM101322-03
Only 1 Items Left
STORE COLLECTION PRODUCT
Please Note:
This item can be purchased online and collected instore.
This item is not eligible for shipping.
Available Collection Points:
Cambria Bike SLO Store
1239 Monterey Street, San Luis Obispo, CA 93401
(See on Map)
Cambria Bike Paso Robles
1645 Commerce Way,Paso Robles, CA 93446
(See on Map)
Shop all Giant | Shop all Road Bikes
View full detailsDescription
Giant Defy Advanced 1 700c - Orion Nebula- 2023
CHOOSE THE LONGER ROUTE. CLIMB HIGHER MOUNTAINS. THIS SMOOTH-RIDING ENDURANCE ROAD BIKE IS MADE FOR LONG-DISTANCE RIDES ON ALL TYPES OF ROADS.
TECHS & FEATURES
- Advanced Composite Technology
- D-Fuse Technology
- OverDrive
- Compact Road Design
- Tubeless System
KEY PERFORMANCE FACTORS
Engineered compliance
Advanced Composite frame is engineered for endurance road riding. The D-Fuse seatpost and handlebar absorb road shocks and vibrations, and its smooth ride quality means you’ll feel less fatigue on long rides.
Total control
Seamless disc brake integration including flat mounts and 12mm front and rear thru-axles produces more consistent braking power for better control, even in wet weather and on rough roads.
Versatility
Endurance road geometry, plenty of tire clearance (up to 35mm), and disc-brake integration allow you to tackle a variety of roads and conditions, from smooth pavement to rugged mountain passes.
Specifications
- Frame: Advanced-Grade Composite, disc
- Fork: Advanced-Grade Composite, full-composite OverDrive steerer, disc
- Handlebar: Giant Contact SL D-Fuse XS:40cm, S:40cm, M:42cm, M/L:42cm, L:44cm, XL:44cm
- Grips: Stratus Lite 3.0
- Stem: Giant Contact XS:80mm, S:90mm, M:100mm, M/L:100mm, L:110mm, XL:110mm
- Seatpost: Giant D-Fuse, composite, 14mm offset
- Saddle: Giant Approach
- Shifters: Shimano 105 Di2
- Front Derailleur: Shimano 105 Di2
- Rear Derailleur: Shimano 105 Di2
- Brakes: Shimano 105 Di2 hydraulic, Giant MPH rotors [F]160mm, [R]140mm
- Brake Levers: Shimano 105 Di2
- Cassette: Shimano 105, 12-speed, 11x34
- Chain: KMC X12
- Crankset: Shimano FC-RS520, 34/50 XS:170mm, S:170mm, M:172.5mm, M/L:172.5mm, L:175mm, XL:175mm
- Bottom Bracket: Shimano, press fit
- Rims: Giant P-R2 Disc wheelset, alloy
- Hubs: Giant alloy, 12mm thru-axle
- Spokes: Sapim
- Tires: Giant Gavia Fondo 1, tubeless, 700x32c (33.5mm), folding
- Extras: fender mount, tubeless prepared, 35mm max tire size
- Weight: The most accurate way to determine any bike’s weight is to have your local dealer weigh it for you. Many brands strive to list the lowest possible weight, but in reality, weight can vary based on size, finish hardware, and accessories. All our bikes are designed for best-in-class weight and ride quality.

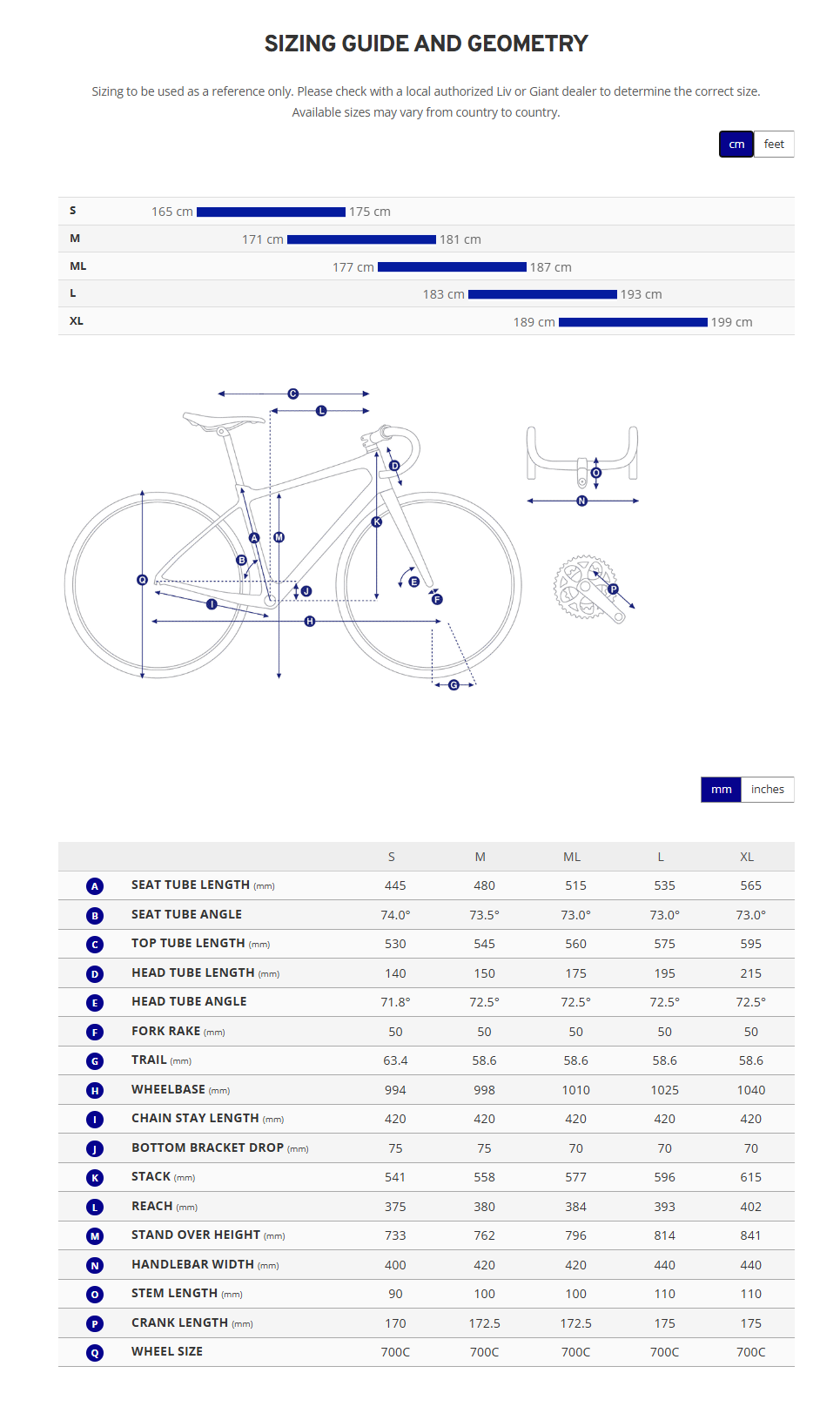

GEOMETRY
![bike diagram with measurements referenced in table that follows](https://static.giant-bicycles.com/Images/Giant/GlobalFrames/giant-onroad-geo.png)
XS | S | M | ML | L | XL | ||
---|---|---|---|---|---|---|---|
A | SEAT TUBE LENGTH (mm) | 410 | 445 | 480 | 515 | 535 | 565 |
B | SEAT TUBE ANGLE | 74,5° | 74,0° | 73,5° | 73,0° | 73,0° | 72,5° |
C | TOP TUBE LENGTH (mm) | 515 | 530 | 545 | 560 | 575 | 595 |
D | HEAD TUBE LENGTH (mm) | 120 | 140 | 160 | 185 | 205 | 225 |
E | HEAD TUBE ANGLE | 70,5° | 71,8° | 72,5° | 72,5° | 72,5° | 72,5° |
F | FORK RAKE (mm) | 50 | 50 | 50 | 50 | 50 | 50 |
G | TRAIL (mm) | 71,3 | 63,1 | 58,2 | 58,2 | 58,2 | 58 |
H | WHEELBASE (mm) | 995 | 995 | 998 | 1010 | 1025 | 1040 |
I | CHAIN STAY LENGTH (mm) | 420 | 420 | 420 | 420 | 420 | 420 |
J | BOTTOM BRACKET DROP (mm) | 75 | 75 | 75 | 70 | 70 | 70 |
K | STACK (mm) | 522 | 546 | 567 | 586 | 605 | 624 |
L | REACH (mm) | 370 | 374 | 377 | 381 | 390 | 398 |
M | STAND OVER HEIGHT (mm) | 731 | 760 | 786 | 816 | 835 | 856 |
N | HANDLEBAR WIDTH (mm) | 400 | 400 | 420 | 420 | 440 | 440 |
O | STEM LENGTH (mm) | 80 | 90 | 100 | 100 | 110 | 110 |
P | CRANK LENGTH (mm) | 170 | 170 | 172,5 | 172,5 | 175 | 175 |
Q | WHEEL SIZE | 700C | 700C | 700C | 700C | 700C | 700C |
