Description

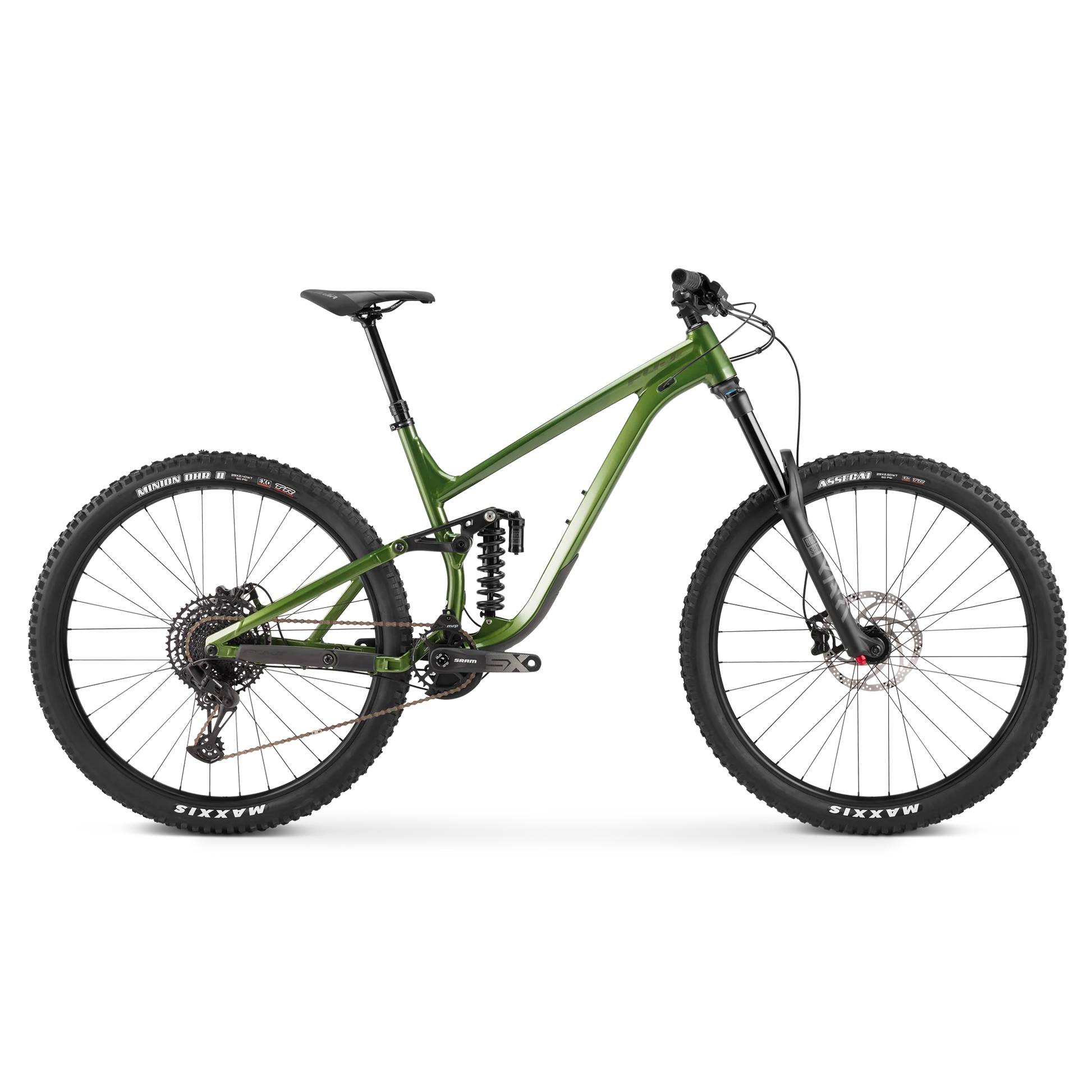

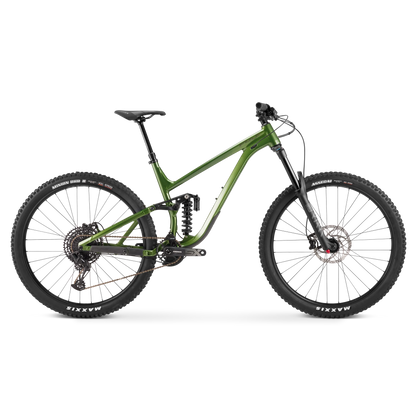

Fuji Rakan 29 LT 1.5

We took one of the most efficient trail bikes on the market and cranked up the travel to help riders tackle tougher trails with more confidence and comfort. The Rakan LT offers a 160mm travel fork and is coupled with 150mm of travel in the rear with Fuji’s MLink® Suspension Design technology that offers small bump sensitivity, while handling the bigger bumps on the trail with ease. Boost 148 rear spacing increases the stiffness, ensuring maximum power transfer and cornering precision - making this the perfect all mountain and enduro bike.

Key Details

Superlight Super-butted Alloy Frame

Our lightest and strongest aluminum frame material that has multiple butting profiles in the frame tubes and reduces material in low stress areas which creates a lighter frame without sacrificing frame stiffness and durability.

MLink® Suspension Design

MLink® is a four-bar suspension system, with the chainstay pivot positioned in the middle of the chainstay. This balanced design provides a smooth and efficient system with less flex, less binding, and less bearing and pivot stress.

UDH

The Universal Derailleur Hanger is designed to optimize shift performance across all bikes as well as create a sensible solution for replacing damaged hangers.

Dropper Seat Post

Dropper post adjusts your riding height allowing you to always be in the most stable riding position, whether climbing or descending.

Metric Shock Sizing

A new shock sizing standard that simplifies rear shock sizing and fitment while also providing improved shock performance.  Increased bearing overlap improves the interface between the piston and shock body, which essentially eliminates binding in the rear shock creating a smoother, more compliant shock.

Bike Specifications

Category Details
Sizes S, M, L, XL
Color(s) Metallic Moss Green
Frame Fuji A6-SL super-butted alloy front and rear triangle, Enduro Max sealed cartridge bearings, MLink patented suspension system, Boost 148x12mm, 150mm
Fork RockShox Yari RC 29 DebonAir, tapered alloy steerer, Boost 110x15mm, 170mm
Rear Shock RockShox Super Deluxe Coil Select
Crankset SRAM SX Eagle, 32T
Bottom Bracket SRAM DUB, threaded
Rear Derailleur SRAM SX Eagle
Shifters SRAM SX Eagle, 1 x 12-speed
Cassette SRAM PG-1210, 11-50T
Chain SRAM SX Eagle
Wheelset WTB ST i30 TCS 2.0 32H, Formula DC-711 front hub, DC-3248 rear hub, DT Swiss Industry stainless spokes
Tires Maxxis Assegai, 29" x 2.50" WT, 60tpi, EXO, Tubeless Ready, folding; Maxxis Minion DHR II, 29" x 2.40" WT, 60tpi, EXO, Tubeless Ready, folding
Brakeset TRP Slate EVO, 203/180mm rotors
Brake Levers TRP Slate EVO
Headset FSA 1 1/8" - 1.5", sealed cartridge bearings
Handlebar TranzX Riser Bar, alloy, 20mm rise, 780mm
Stem TranzX, alloy, +0 degree rise
Grips WTB Waffel, Lock on
Saddle Selle Italia X3 Boost
Seatpost TranzX JD-YSP18P, 31.6mm, 15" - 130mm travel; 17, 19, 21" - 150mm travel, PLQ Lever
Accessories MRP AMg V1 Chainguide
Weight TBD

*Specifications are subject to change without notice
