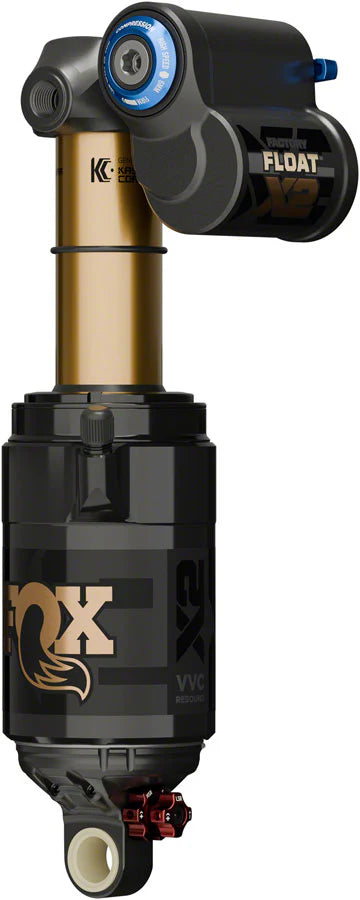

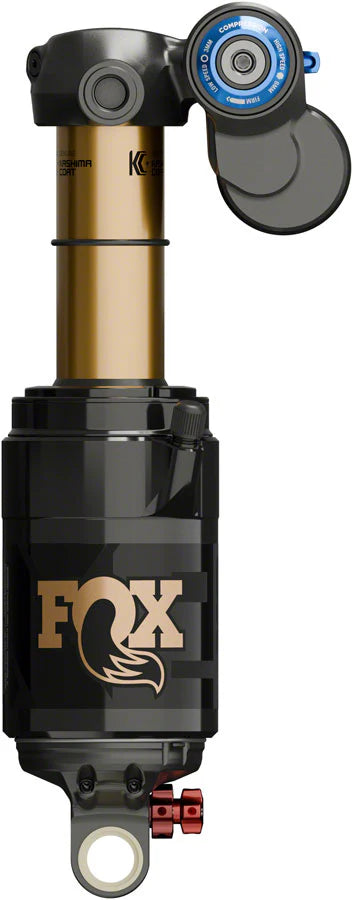

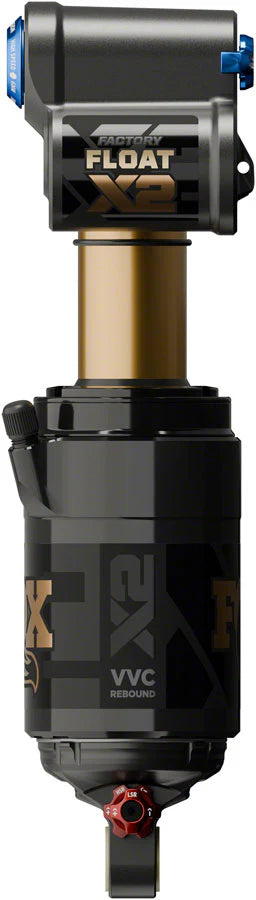

Fox Suspension Float X2 Factory - Trunnion - 2026

Revised. Refreshed. Reinforced.

The FLOAT X2 Factory is FOX’s most tunable and feature-rich air shock, optimized for Downhill and Enduro racing. With its ultra-plush, coil-like feel, wide tuning range, and Kashima-coated air sleeve and body, the 2026 X2 delivers the control and performance needed to dominate technical descents and punishing terrain.

Designed around a Trunnion mount, this updated version benefits from a larger diameter shaft, a pressure-balanced base valve with more individual valves for better support without harshness, and reduced-friction internals that improve responsiveness and durability.

Key Features

• 4-Way Independent Adjustment:

  • High-Speed Compression

  • Low-Speed Compression

  • High-Speed Rebound (with Variable Valve Control - VVC)

  • Low-Speed Rebound

• Trunnion Mount Compatibility: For modern frame integration and increased stiffness.

• New Larger Base Valve: Offers improved support with less harshness.

• Larger Diameter Shaft: Increased strength and long-term durability.

• Reduced-Friction Air Seal Package: Improves sensitivity and consistency.

• Air Volume Tuning: 1cc volume spacers enable fine control of the spring curve.

• Kashima Coat: Genuine Kashima Coating on the air sleeve and body ensures a buttery smooth stroke and long-lasting durability.

• Shock-Mounted Firm Mode Switch: Instant lockout for climbing or transfers.

Specifications

• Mount Style: Trunnion

• Eyelet Diameter: 12.7mm

• Spring: FLOAT Air

• Metric Compatible: Yes

• External Adjustments:

  • High-Speed Compression

  • Low-Speed Compression

  • High-Speed Rebound (VVC)

  • Low-Speed Rebound

• Lockout Switch: Shock-mounted firm mode

• Sizes:

  • Eye-to-Eye Lengths: 185mm, 205mm

  • Stroke Options: 55mm, 60mm, 65mm

Whether you’re racing between the tape or chasing KOMs in the backcountry, the 2026 FLOAT X2 Factory Trunnion gives you precision damping, rugged reliability, and elite-level performance—all in one ultimate air shock.
