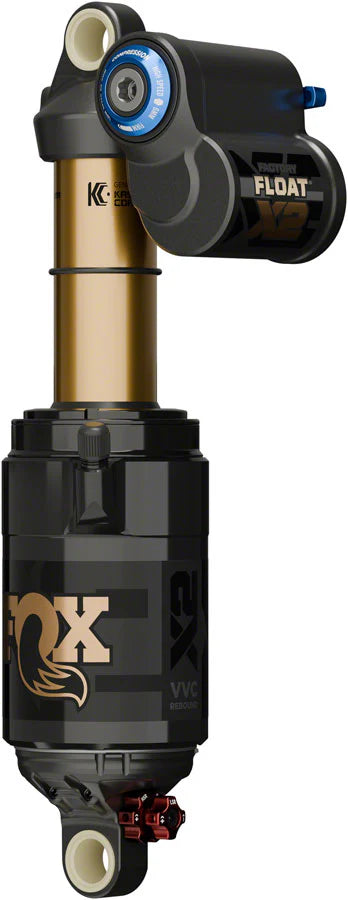

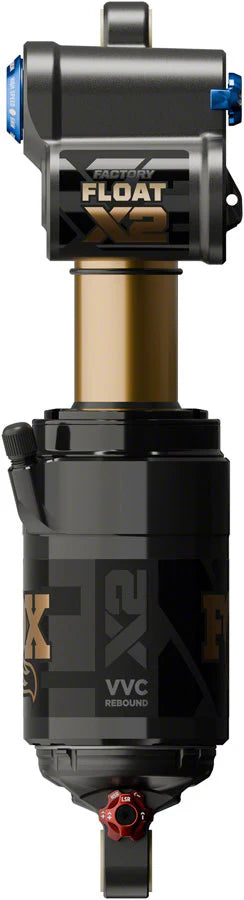

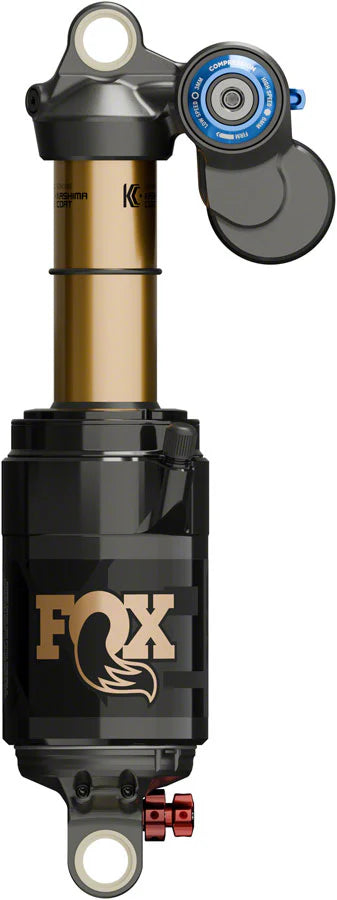

Fox Suspension Float X2 Factory - Metric - 2026

Revised. Refreshed. Reinforced.

The award-winning FLOAT X2 Factory sets the benchmark for downhill and enduro rear shocks. With its ultra-plush, coil-like feel and incredible adjustability, it offers an unrivaled balance of comfort, control, and fine-tuning capability. Whether you're pushing the limits in a race or on a rugged backcountry line, the X2 is built to perform.

Now reengineered with updated internals, enhanced architecture, and new seal technologies, the 2026 FLOAT X2 brings increased strength, better pressure balance, and even more usable tuning range. Its 4-way independent adjustability allows precise control of high- and low-speed compression and rebound. Combined with Variable Valve Control (VVC) and the Kashima-coated air sleeve and body, this is FOX’s most advanced air shock ever.

Key Features

• New Larger Base Valve: More support without harshness, delivering better sensitivity and control.

• Increased Shaft Diameter: Improved strength and durability for aggressive terrain.

• 4-Way Adjustability:

  • High- & Low-Speed Compression

  • High- & Low-Speed Rebound (VVC on high-speed rebound)

• Advanced Air Seal Package: Reduces friction for smoother small-bump performance.

• 1cc Incremental Volume Spacers: Enables ultra-precise spring curve tuning.

• Kashima Coat: Genuine Kashima coating on air sleeve and body for buttery smooth performance and long-lasting durability.

• Metric Sizing: Fully compatible with modern frame standards.

• Shock-Mounted Lockout Switch: Easy-to-access firm mode when needed.

Item Specifications

• Spring Type: FLOAT Air

• Metric: Yes

• Eyelet Diameter: 12.7mm

• Lockout: Shock-mounted firm mode switch

• Coating: Kashima (air sleeve and body)

• Adjustments:

  • High-Speed Compression

  • Low-Speed Compression

  • High-Speed Rebound (with VVC)

  • Low-Speed Rebound

Available Sizes

• Eye-to-Eye (mm): 210, 230

• Stroke (mm): 50, 52.5, 55, 60, 62.5, 65

Engineered for elite-level riders who demand precision, durability, and dominance, the 2026 Fox Float X2 Factory delivers where it matters most—when the trail gets wild.
