Fox Suspension 40 Factory 27.5" 20TAx110 - Black-Orange Logo - 2024

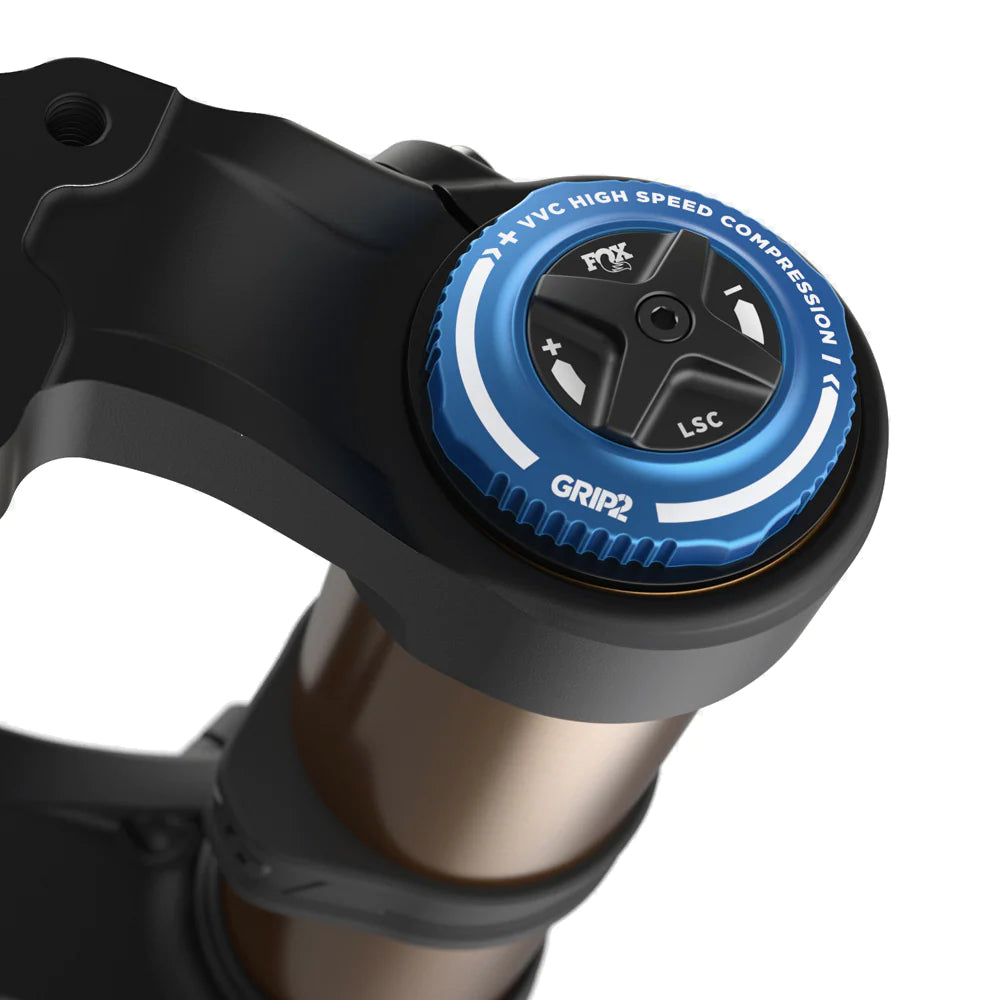

The 40's GRIP2 damper delivers ultimate performance and control when the going gets rough. Equipped with the Variable Valve Control (VVC) high- and low-speed rebound adjuster, improved compression damping and less friction overall, the 40 is just as comfortable in the bike park as it is racing the World Cup circuit.

• Genuine Kashima Coating on upper tubes
• Variable Valve Control (VVC)
• Low friction seals for improved performance
• FIT GRIP2 damper and FLOAT EVOL air spring
• 27.5": 755mm peak tire diameter

Specifications:

• Stanchion Finish: Kashima
• Chassis: Standard
• Wheel Size: 27.5"
• Series: Factory
• Travel: 203mm
• Damper: Grip2
• Adjustment: HSC, LSC, HSR, LSR
• Color: Shiny Blk
• Decal: Orange/Gloss Blk
• Axle: 20TAx110
• Steerer: 1.125
• Crown: Flat
• Rake: 48mm
• Upper Tube Finish: Kashima Coat

• Air Channels: Yes

• Bleeders: Yes

• Floating Axle: Yes

• Rotor Size: 203 direct Post Mount, Up to 230 compatible

• Mud Guard Mount: Optional FOX 40 Mud Guard with sturdy 4-point direct-mount attachment

• Air Spring: FLOAT EVOL

• Steerer: 1.125 Straight

• Starting Weight: 2816 g
