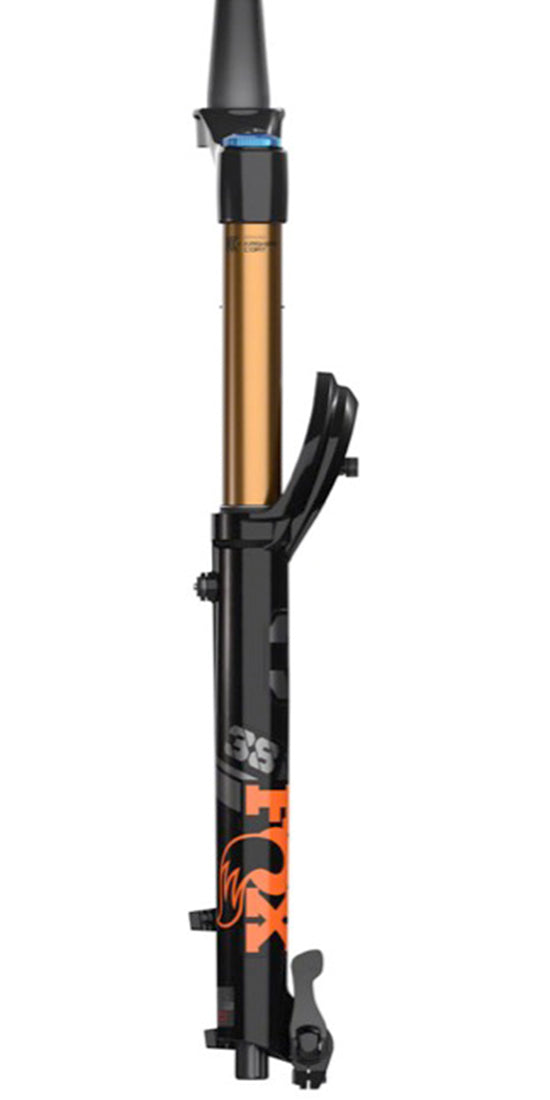

Fox Suspension 38 Float 170 Factory 29" 15QRx110 - Shiny Black-Orange-Gloss Black Logo - 2022

The hard-hitting, long-travel enduro specialist - optimized for 160-180mm of travel and packing the same revolutionary feature set as the new 36, the category defining 38 is ready for the big time

• New GRIP2 Damper - The benchmark for unparalleled ride quality and ultra-precise on-the-fly adjustability. Fox has taken GRIP2 to the next level by adding their patented VVC technology to the high-speed compression circuit

• Lower Leg Channels - Dramatically increasing air volume within the lower legs and thereby reducing the amount of additional unintended pressure ramping. Another benefit of these channels is that lower leg bath oil is circulated to the upper reaches of the lower legs, continuously lubricating the foam rings and bushings as the fork compresses and extends through its travel

• Bleeders - Lower leg bleeders allow for atmospheric pressure equalization at the simple press of a button. Pressure build-up in the lower legs dramatically decreases fork performance, preventing full travel from being achieved, and diminishing small bump sensitivity and responsiveness

• Floating Axles - They might look similar to other axles, but in fact they offer a distinct performance advantage due to their unique ability to match the exact width of the fork’s wheel mounting surface precisely to the front hub flange spacing, thus creating perfect chassis alignment and eliminating unwanted friction between the upper and lower fork legs

• Lower Leg Arch - All-new lower leg design pulls out all the stops, shaving every possible gram while making sure not to compromise stiffness or strength requirements of modern enduro and gravity style riding

• Elliptical Steerer - The 38’s elliptical steer tube is one of many ways Fox further optimized stiffness-to-weight, placing more material only where it is needed, and eliminating every ounce of it where it’s not


• Choose; Tool-free quick-release Thru Axle, or Kabolt X Bolt-On Thru Axle

• Available optionally is the new Kabolt-X, a lightweight bolt-on floating axle that not only shaves grams but also increases torsional stiffness via its sleeveless, single-sided pinch bolt design

• Optional Fox 36/38 Mud Guard with sturdy 4-point direct-mount attachment (sold separately)

• Wheel Size: 29"

• Travel: 170mm

• Air Spring: FLOAT EVOL, with increased negative air spring volume, optimizing small bump sensitivity

• Damper: FIT GRIP2

• Axle/Spacing: 15QR Thru Axle for tool-free front wheel removal

• Disc Mount: 74mm Post Mount (180mm direct mount)

• Upper Tube Finish: Kashima Coat

• Adjustments: Low Speed Compression Damping, High Speed Compression Damping, Low Speed Rebound Damping, High Speed Rebound Damping, and adjustable air spring pressure

• Steerer Tube Length: 263mm

• Axle-to-Crown: 583.7mm (170mm travel)

• Rake: 44mm

• Steerer: 1.5" Tapered

• Maximum Tire Width: Tire size is limited to 29 x 2.6", any 29" tire greater than 2.4" must be checked according to Fox Tech User Specifications

• Weight: 2,180g.
