Fox Suspension 36 Float SL 130 Factory 29 Kabolt SL110 - Orange - 2026

Big Fork Performance. Trail Bike Weight.
The Fox 36 Float SL Factory is the ultimate short-travel trail fork built for aggressive riders who demand the best of both worlds—unmatched stiffness without a weight penalty. Ideal for modern downcountry and trail bikes, the 36 SL balances cutting-edge engineering with lightweight performance, delivering precision control on descents and efficiency on the climbs.

With the GRIP X damper at its core, the 36 SL offers buttery smooth action with refined compression and rebound damping, plus an easy-access firm mode for those long pedal-heavy sections. The Kashima-coated stanchions and newly optimized air spring ensure silky responsiveness and maximum durability, while the updated chassis shaves grams and boosts torsional stiffness by 20% over the 34.

KEY FEATURES

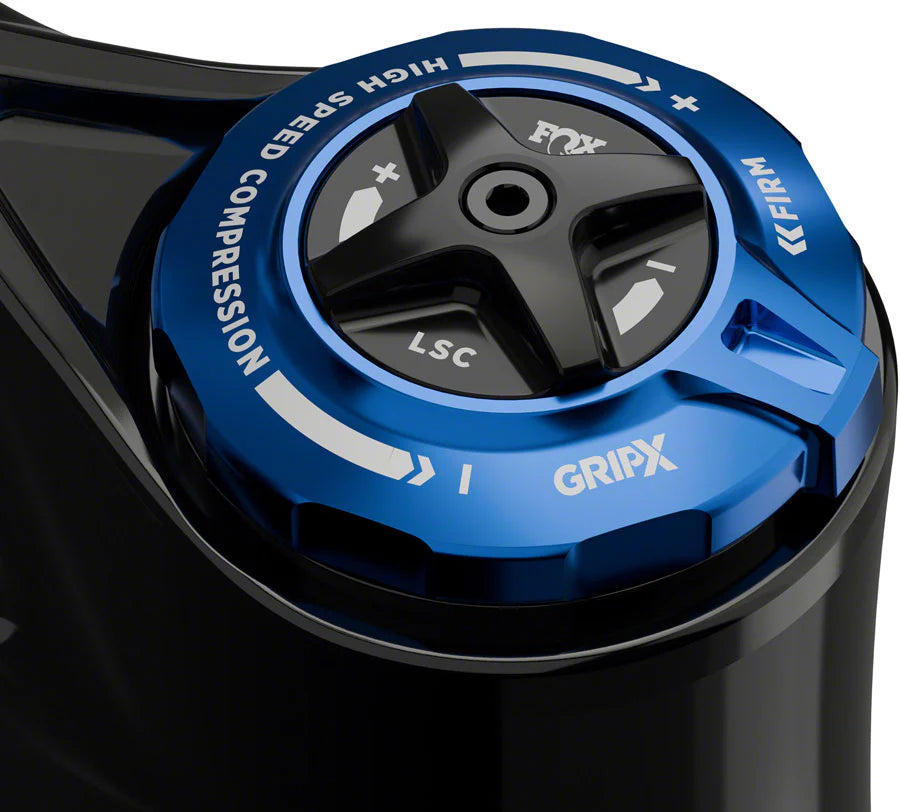

• GRIP X Damper: Trail-tuned for premium descending control, lighter overall weight, and easy setup with an accessible firm pedaling mode.

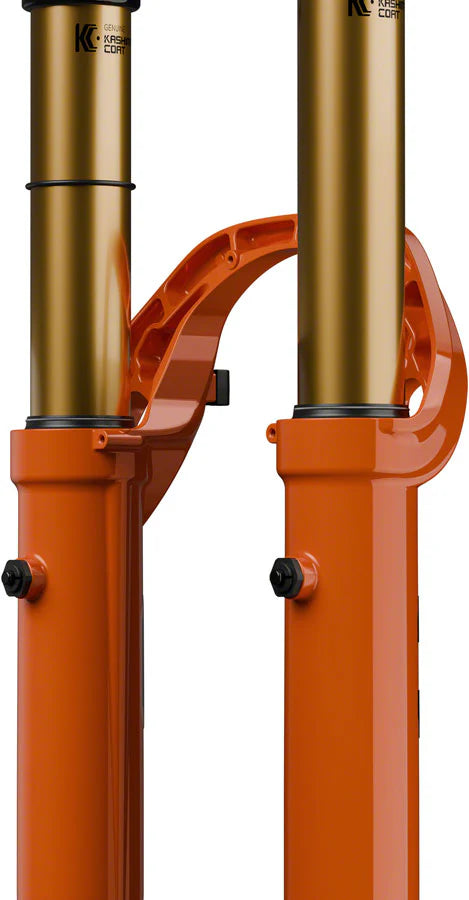

• Kashima Coating: Premium gold finish enhances durability and reduces friction for smoother, longer-lasting performance.
• Optimized 36 SL Chassis: 20% stiffer than the 34, with weight-saving cuts to support aggressive riding without over-forking.
• Refined Air Spring: Updated internals reduce friction and improve sensitivity for small bumps and big hits alike.
• Lightweight Details: Includes double-butted damper-side stanchions, redesigned low-profile bleeders, and inboard Bypass Channels for better performance and bushing support.

SPECIFICATIONS

• Travel: 130mm

• Wheel Size: 29"

• Axle: 15mm Thru x 110mm Boost (Kabolt SL)

• Offset: 44mm

• Damper: GRIP X (High/Low-Speed Compression, Rebound)

• Spring: FLOAT EVOL Air

• Lockout: Crown-mounted

• Brake Mount: Post Mount 180

• Max Tire Width: 63.5mm

• Axle to Crown: 556mm

• Steerer: Tapered, 28.6mm clamp diameter

• Crown Race: 40mm

• Stanchion Diameter: 36mm

• Color: Shiny Orange

For riders who charge hard but don’t want the weight of a full enduro fork, the Fox 36 SL Factory 130 is your all-mountain solution—stiff where it counts, light where it matters, and sleek in its signature Shiny Orange finish.
