Fox Suspension 36 Float 150 Factory 29 Kabolt X 110 - Black - 2026

All-Mountain Muscle Meets Factory Precision

The Fox 36 Float 150 Factory fork is built to answer the call of aggressive all-mountain and enduro riders seeking peak performance on demanding terrain. Backed by a pedigree of downhill dominance and engineered for precision, the latest generation of the 36 features a refined chassis, advanced damping, and class-leading adjustability.

Equipped with the GRIP X damper, this fork offers exceptional descent control with reduced weight, simplified setup, and an easy-access firm mode for efficient pedaling. The redesigned FLOAT EVOL air spring improves suppleness while reducing friction, and the Kashima-coated stanchions ensure smooth, durable performance.

From steep technical chutes to all-day backcountry laps, the 36 Factory is your go-to for uncompromising trail performance.

Key Features

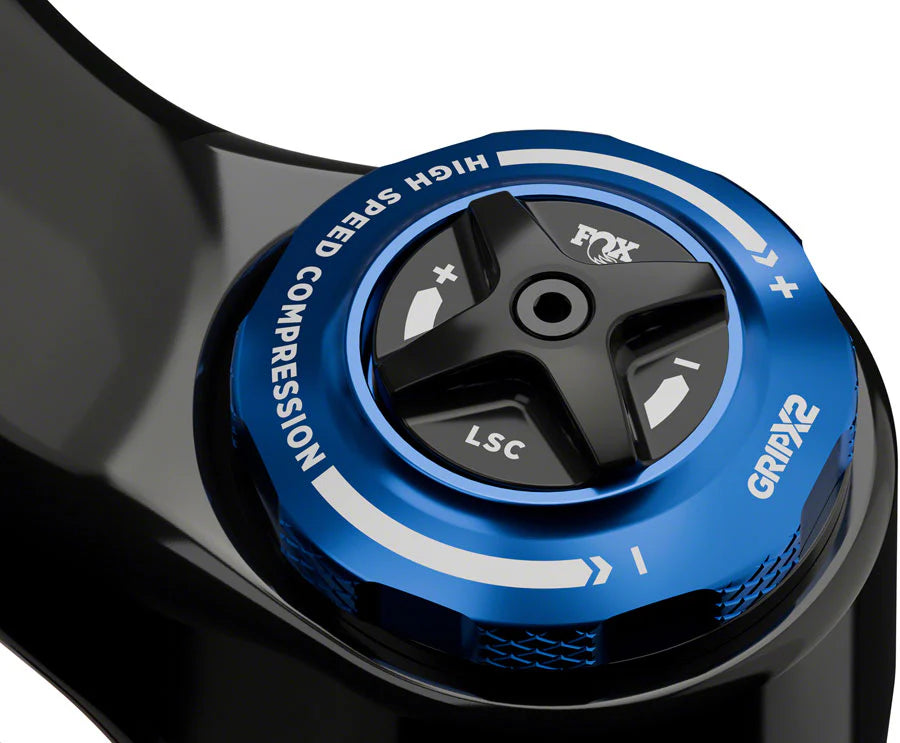

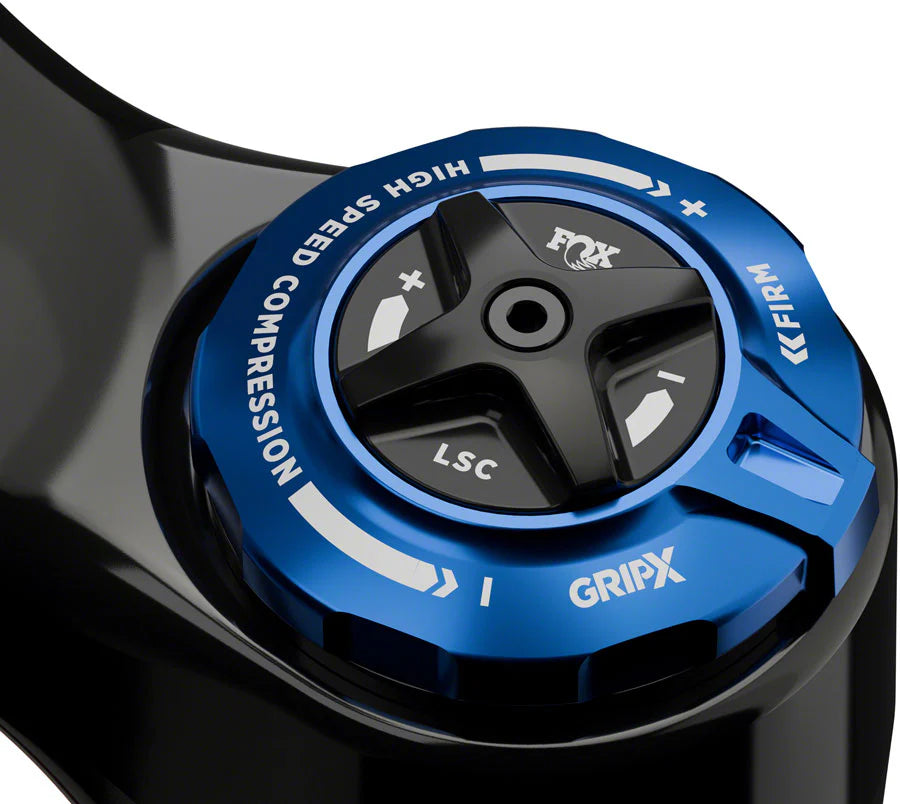

• GRIP X Damper: Optimized for aggressive trail riding, with high-speed and low-speed compression and rebound adjustments, plus an efficient firm mode or GRIP X2 the most tunable, supportive and smoothest descent-focused damper FOX has created so riders reap the benefits of sitting higher in the travel while tires stay glued to the ground, cornering with increased traction and experience reduced fatigue.

• FLOAT EVOL Air Spring: Redesigned for reduced friction under load and better small-bump sensitivity.

• New Arch & Crown Design: Generatively engineered to boost torsional stiffness by 20% while shedding unnecessary material.

• Extended Bushing Overlap: 30mm more overlap than the previous model enhances stiffness and reduces friction under load.

• Bypass Channels Relocated Inboard: Improves bushing load distribution and lowers dynamic friction.

• Double-Butted Damper Side Stanchion: Shaves weight while maintaining stiffness.

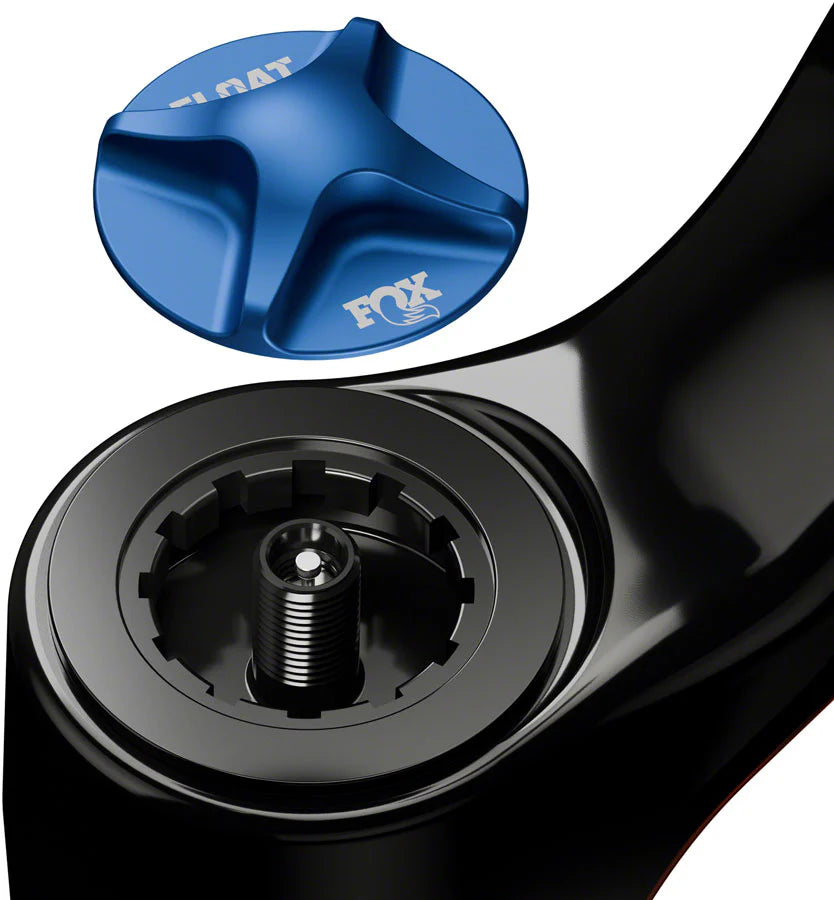

• Tool-Free Volume Adjustment: New top cap compatible with a standard cassette tool for easy volume tuning.

• Kabolt X Axle: Lightweight, high-stiffness axle with single-sided pinch bolt design.

• Factory Series Kashima Coating: The signature gold standard for durability and plush performance.

Specifications

• Travel: 150mm

• Wheel Size: 29"

• Axle: 15x110mm Boost (Kabolt X)

• Offset: 44mm

• Damper: GRIP X – High/Low-Speed Compression & Rebound

• Spring: FLOAT EVOL Air

• Stanchions: 36mm, Kashima-coated

• Axle to Crown: 576mm

• Max Tire Width: 66mm

• Brake Mount: Post Mount 200

• Color: Shiny Black

• Steerer: Tapered, 264mm length

• Steerer Clamp Diameter: 28.6mm

Ready to crush the climbs and conquer the descents? The 36 Float 150 Factory is your all-mountain ally—fully loaded, ultra-refined, and race-proven.
