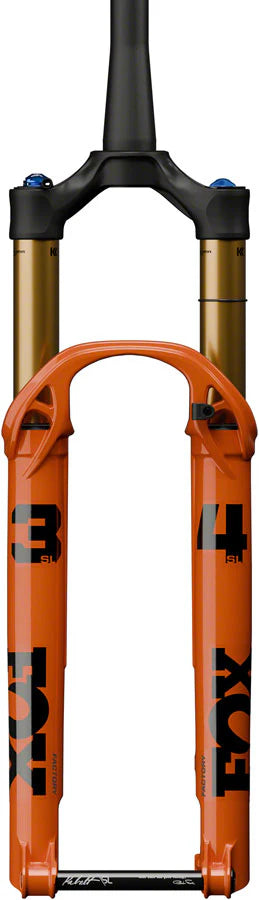

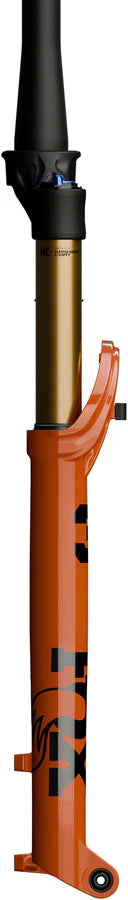

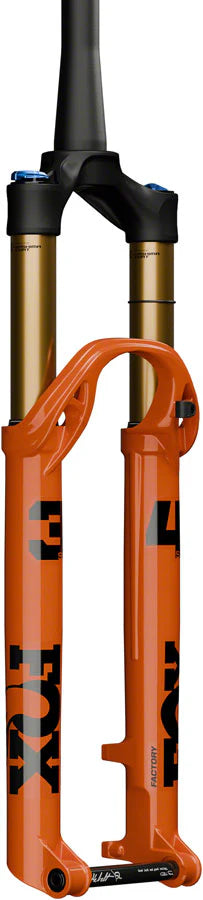

Fox Suspension 34 Float SL 130 Factory 29 Kabolt SL110 - Orange - 2026

Built for modern XC and downcountry performance, the Fox 34 Float SL Factory 130 delivers featherlight weight, increased travel, and aggressive trail capability in a bold Shiny Orange finish. With Kashima-coated upper tubes, a stiff full-width chassis, and the all-new GRIP SL and GRIP X damper technology, this fork is the ultimate upgrade for riders who want it all: speed, control, and long-day reliability.

KEY FEATURES

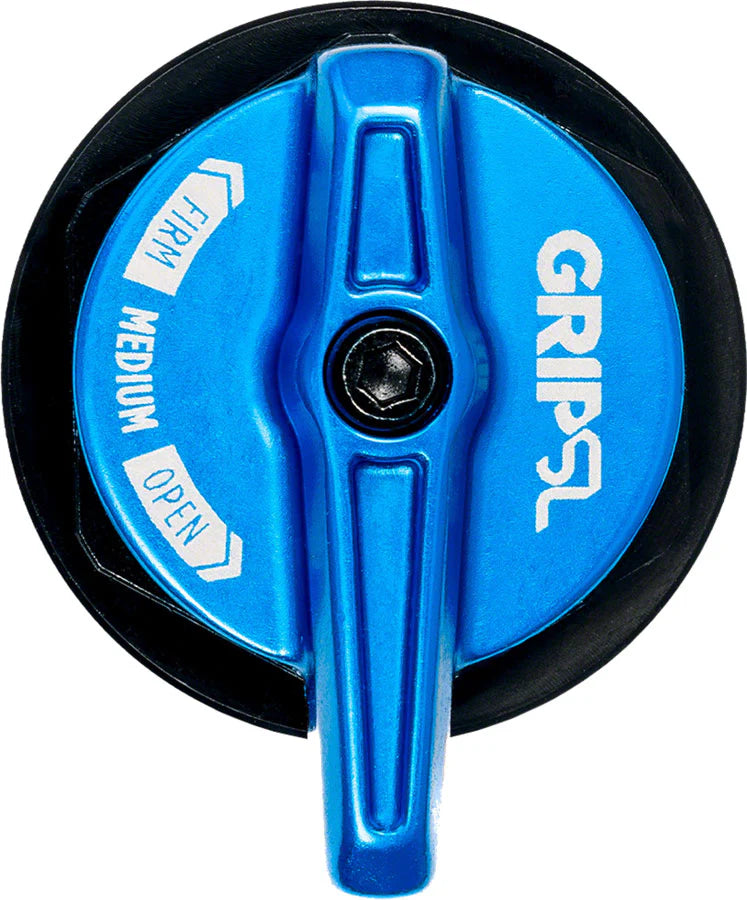

• GRIP SL + GRIP X Dampers:

• GRIP SL is Fox’s lightest short-travel damper, tuned for supple stroke and minimal weight.

• GRIP X enhances downhill performance with a smoother feel, easier setup, and a quick-access firm mode for efficient climbing.
  • Kashima Coating: Provides ultra-low friction and premium durability for long-lasting performance.
  • Aggressive 34mm Chassis: Offers a 17% stiffness increase over the 34 SC with only 3% more weight.
  • Optimized Air Spring: Mimics the plushness of the 34 LT with longer spring travel and a larger negative volume for smoother early stroke and strong mid-to-end support.
  • Lower Leg Bypass Channels: Repositioned 90° inboard for reduced dynamic friction and better bushing support.

SPECIFICATIONS

• AXLE TO CROWN LENGTH: 540.5mm
• TRAVEL: 130mm
• WHEEL SIZE: 29"
• FRONT AXLE: 15mm Thru x 110mm (Kabolt SL)
• LOCKOUT SWITCH: Crown
• DAMPERS: GRIP SL + GRIP X
• EXTERNAL ADJUSTMENTS:

• High-Speed Compression

• Low-Speed Compression

• Rebound

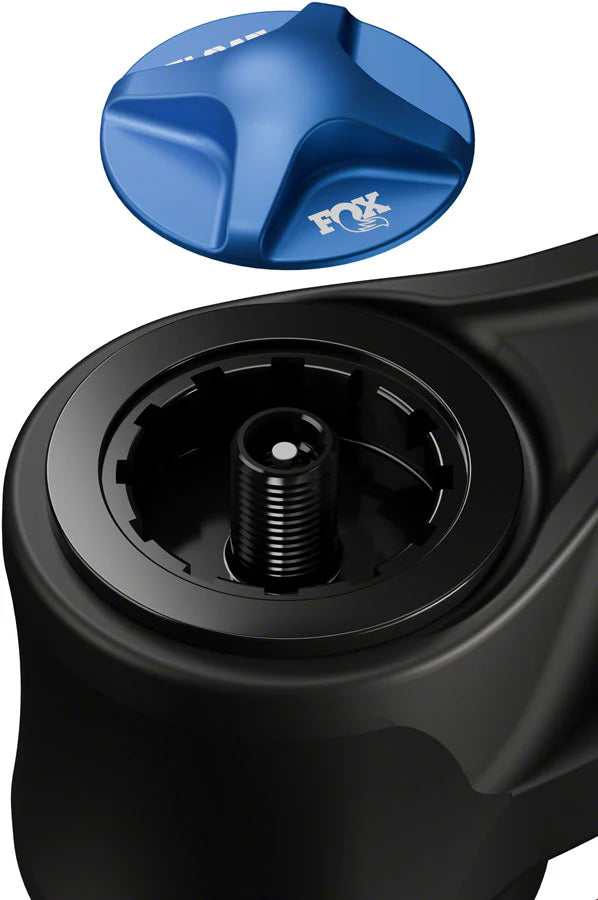

  • NEGATIVE/SPRING TYPE: Air (FLOAT EVOL)
  • OFFSET: 44mm
  • BRAKE TYPE: Post Mount 180
  • STANCHIONS: 34mm, Kashima-coated
  • STEERER: Tapered
  • MAX TIRE WIDTH: 63.5mm
  • COLOR: Shiny Orange

A perfect match for today’s fast, long-travel XC bikes, the Fox 34 Float SL 130 Factory fork with GRIP X damper is your ticket to faster laps, confident descents, and razor-sharp responsiveness.
