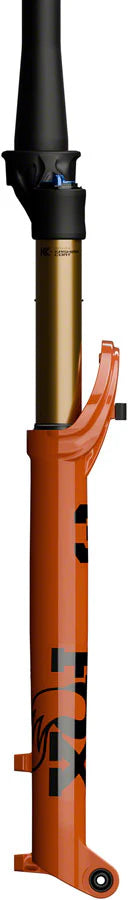

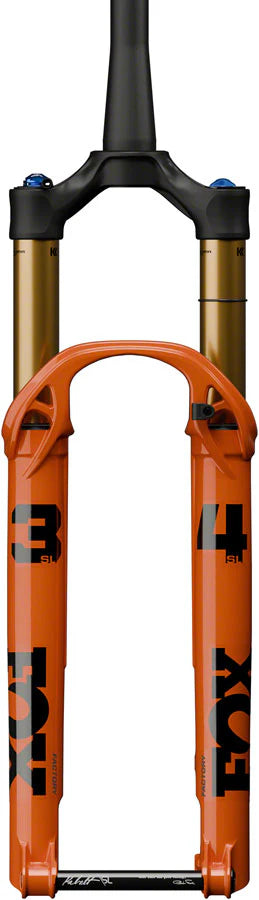

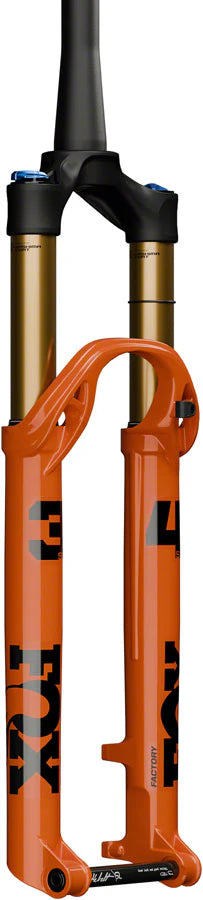

Fox Suspension 34 Float SL 120 Factory 29 Kabolt SL110 - Orange - 2026

The Fox 34 Float SL Factory 120mm Fork is a trailblazing suspension fork designed for modern XC and downcountry bikes, combining race-level performance with rugged trail capabilities. Built with a lightweight 34mm chassis and optimized with the short-travel specific GRIP SL Damper, this fork offers precise control, impressive stiffness, and plush compliance. Whether you're chasing podiums or carving technical terrain, the 34 SL Factory delivers responsive performance in a sub-1500g package.

KEY FEATURES

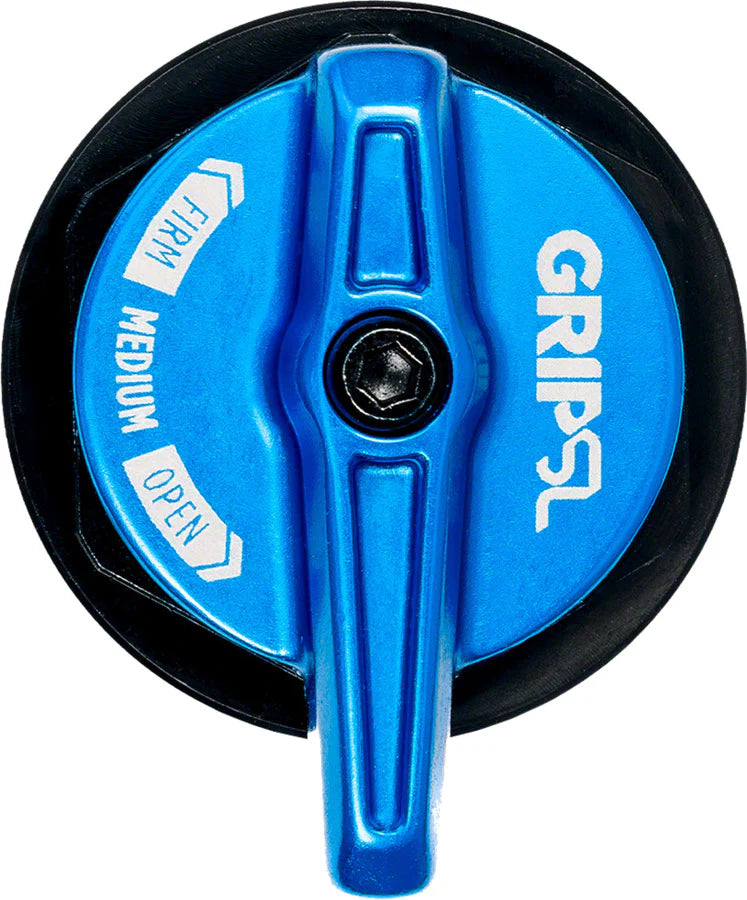

• GRIP SL Damper: Ultra-lightweight, short-travel damper with Open, Medium, and Firm compression modes for adaptive terrain response.
• Kashima Coating: Reduces friction and boosts durability on upper tubes for consistent performance in demanding conditions.
• Aggressive Chassis Design: Full-width 34mm crown and arch increase stiffness by 17% while keeping weight minimal.
• Extended Bushing Overlap: 20mm overlap improves stiffness and reduces friction without increasing axle-to-crown height.

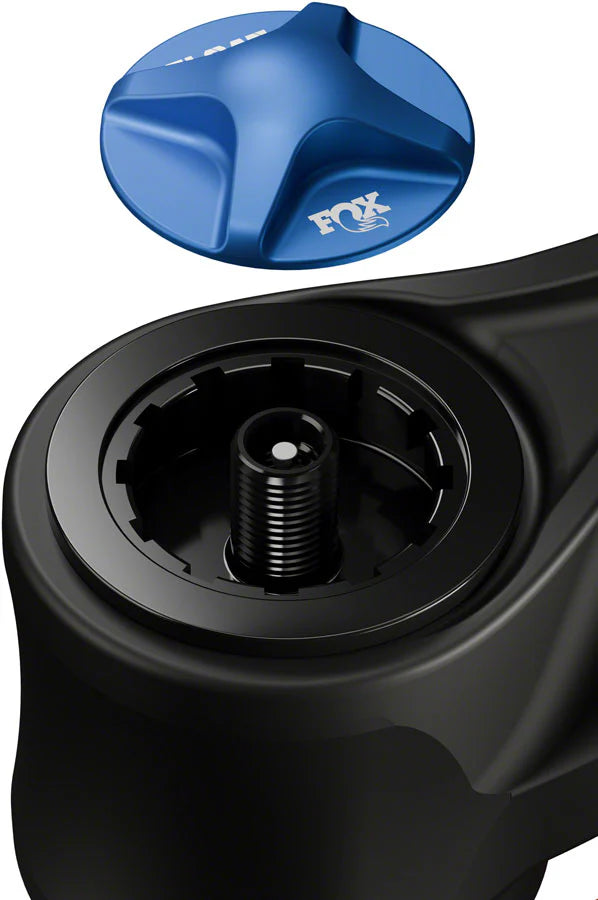

• Air Spring Tuning: Top cap accepts a cassette tool for quick volume spacer adjustments to fine-tune progression.

SPECIFICATIONS

• MATERIAL: Premium aluminum chassis, Kashima-coated stanchions
• WHEEL SIZE: 29"
• TRAVEL: 120mm
• AXLE: 15mm Thru x 110mm Boost (Kabolt SL)
• STEERER: Tapered, 28.6mm stem clamp
• OFFSET: 44mm
• AXLE TO CROWN: 540.5mm
• BRAKE TYPE: Post Mount 180
• MAX TIRE WIDTH: 63.5mm
• STANCHION DIAMETER: 34mm
• CROWN RACE: 40mm
• LOCKOUT: Crown
• EXTERNAL ADJUSTMENTS:

• High-Speed Compression Damping

• Low-Speed Compression Damping

• Rebound Damping
  • COLOR: Shiny Orange

A must-have for aggressive XC racers and progressive trail riders alike, the Fox 34 Float SL Factory in striking Orange delivers uncompromised performance, featherlight efficiency, and confidence-inspiring control—ride light, ride fast, and ride far.
