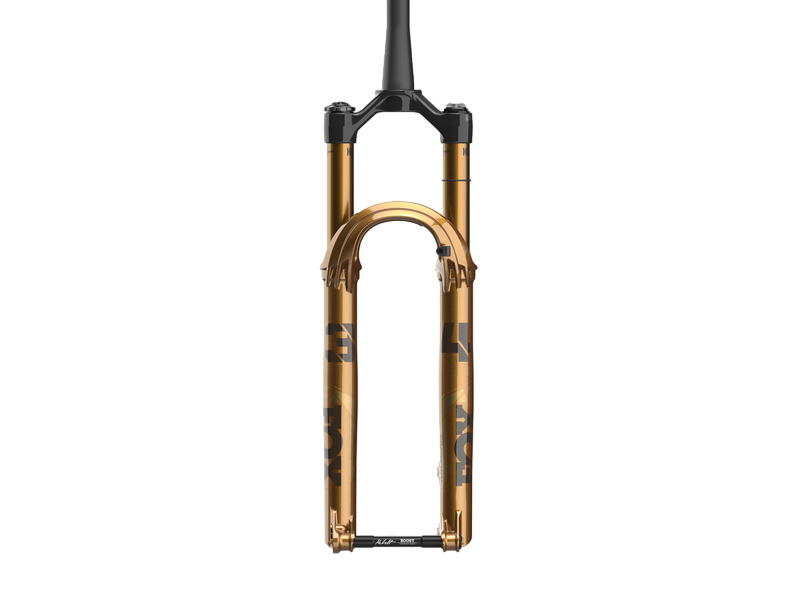

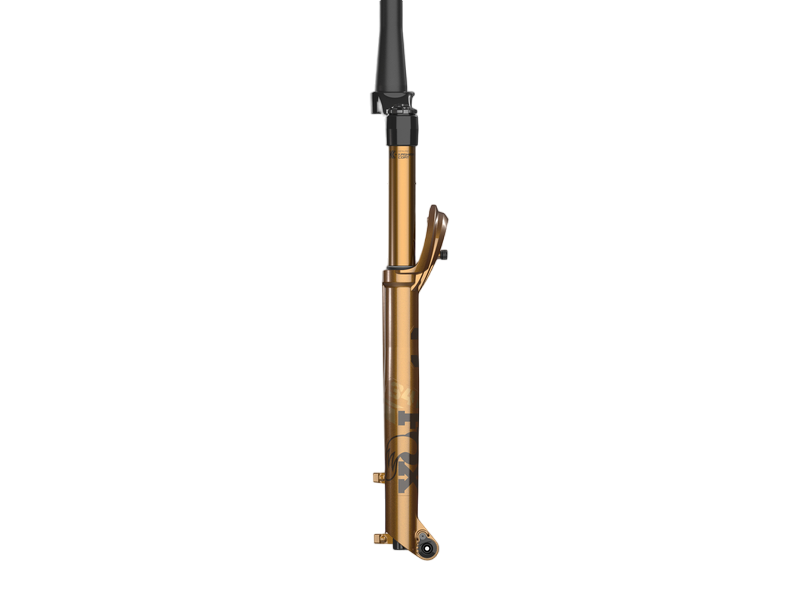

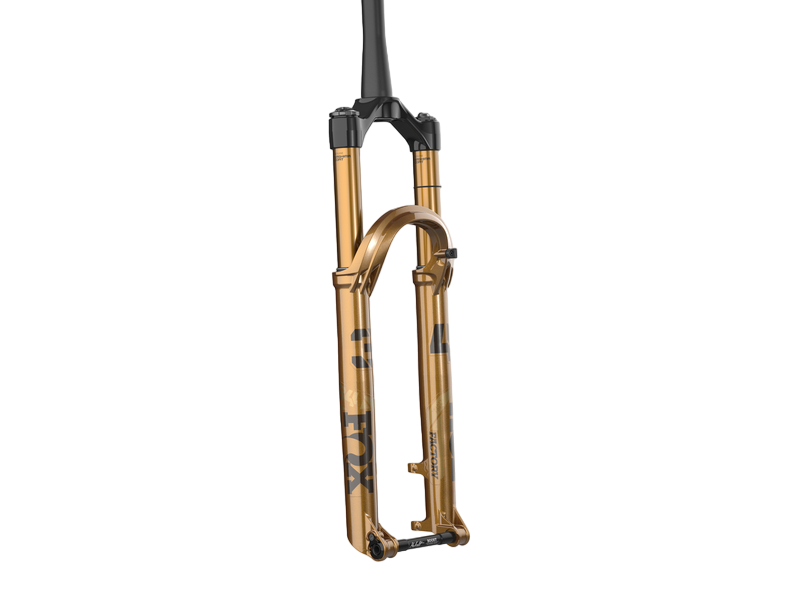

Fox Suspension 34 Float 140 Factory 29 Kabolt 110 - Podium Gold - Limited Ed

Fox Suspension 34 Float 140 Factory 29 Kabolt 110 - Podium Gold - Limited Ed

Regular price $1,049.00
Sale price $1,049.00
Fox Suspension Logo
Color
Option
Size

Product ID: GM032124-117

Earn rewards points on this item / Join Now
Out of stock


Shop all Fox Suspension   |   Shop all Suspension Forks

View full details

Description

Limited edition 50th Anniversary fork in podium gold finish. Each will come with a numbered certificate of authenticity featuring Bob Fox’s signature, plus matching gold rear shock decal sheet for all current shock models.

The hard charging, do-it-all trail fork. Not to be underestimated, the venerable 34 is more capable than ever before. With damping optimized for trail, the 34 excels at all-mountain descending while keeping the weight low

  • GRIP X Damper - Trail riders no longer need to choose between a descent-focused damper or a lightweight endurance damper. GRIP X exudes exemplary descent performance, refined for less weight, easier set up and an easy access firm mode for pedaling efficiency

  • Firm Mode - When it’s time to climb, simply rotate the high-speed compression adjuster clockwise until you feel the final distinct click. At that point, GRIP X simultaneously closes both high and low-speed compression, allowing a firm platform for efficient power transfer to the pedals

  • Lower Leg Arch - The arch design is pairs perfectly with modern trail bikes, where head tube profiles have grown larger and fork offsets shorter. The 34’s arch juts forward to provide ample headtube clearance at full compression. Countless engineering hours created an organic lower leg shape that optimizes stiffness with the absolute minimal amount of material

  • Lower Leg Bypass Channels - As a fork compresses, air pressure increases which can impede the fork reaching its full travel. Our lower leg channels help alleviate this issue by dramatically increasing air volume within the lower legs and reducing unintended pressure ramping. Lower leg bath oil is also circulated to the upper reaches of the lower legs, continuously lubricating inner seals and bushings

SPECIFICATIONS

  • New GRIP X Damper with HSC, LSC, HSR, LSR, and Firm mode for efficient pedaling platform
  • Factory Series forks feature slippery smooth, ultra-durable Genuine Kashima Coat
  • FLOAT EVOL air spring adds plushness
  • Axle: Kabolt Lightweight bolt-on Thru Axle
  • Wheel Size: 29"
  • Travel: choose; 130mm, or 140mm
  • Air Spring: FLOAT EVOL
  • Damper: FIT GRIP X (Descent-focused with Firm mode)
  • Axle/Spacing: 15x110mm "Boost" Thru Axle
  • Disc Mount: 74mm Post Mount, 160mm direct mount (up to 203mm compatible)
  • Upper Tube Finish: Kashima Coat
  • Adjustments: Low Speed Compression Damping, High Speed Compression Damping, Low Speed Rebound Damping, High Speed Rebound Damping, Firm Mode, and adjustable air spring pressure
  • Rake: 44mm
  • Steerer: 1.5" Tapered
  • Weight: 1,686g.
