Gravel Tuned. Smoother. Faster. More Confident.

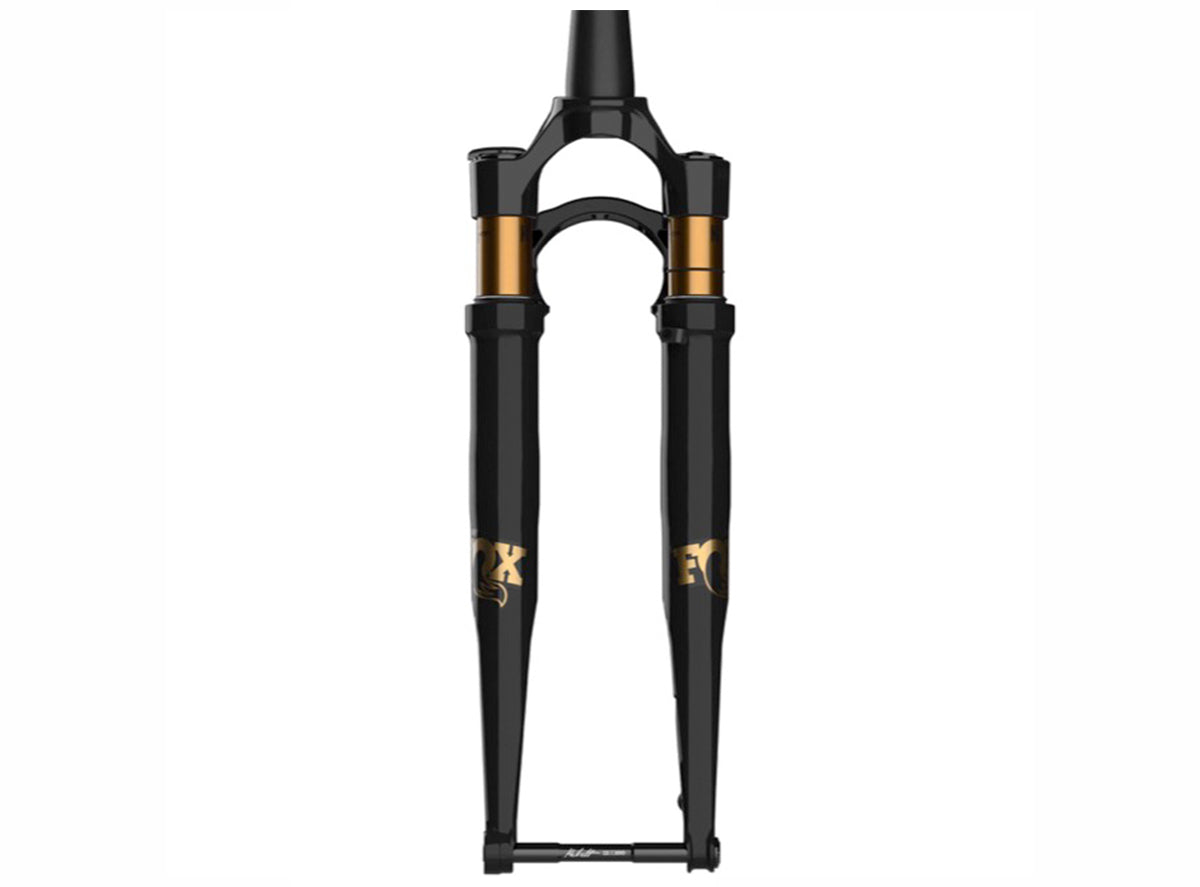

The Fox 32 Float Taper-Cast Factory Fork redefines what’s possible on gravel terrain. As the lightest suspension fork Fox has ever built, it’s tailored to enhance rider experience, control, and confidence. Its purpose-built design for gravel riding delivers a smoother, more efficient ride, reducing fatigue and expanding the range of terrain you can conquer.

Key Features

GRIP SL Damper
The GRIP SL Damper is a short-travel-specific marvel, offering unmatched ride quality. It delivers a supple stroke in the early travel stages, optimized pedal-to-bump efficiency, and smooth blowoff force in lockout mode to reduce rider fatigue during extended rides.

Purpose-Built for Gravel

• Sleek drop crown profile and knob shapes provide excellent downtube clearance, fitting a variety of frame styles and sizes.
• Reverse arch design enhances aerodynamics and stiffness while decreasing frontal area.

Kabolt Thru-Axle
The lightweight Kabolt thru-axle, paired with tapered lowers, makes the 32 Taper-Cast the lightest fork in Fox’s lineup. Despite its minimal weight, it retains functionality with integrated fender mounts and compatibility with 160mm and 180mm flat mount brakes.

Technical Specifications

• Travel Options: 40mm or 50mm
• Wheel Size: 700c (not compatible with 650b)
• Chassis: Lightweight 32mm Taper-Cast chassis
• Damper: GRIP SL 3-position lever with adjust
• Air Spring: FLOAT EVOL (short travel-specific)
• Stanchions: Kashima-coated 7000 series aluminum
• Axle/Spacing: 12x100mm Kabolt thru-axle
• Steerer: 1.5" tapered
• Axle-to-Crown: 435mm (40mm travel)
• Brake Compatibility: 160mm flat mount (max rotor size: 180mm)
• Max Tire Size: 700x50mm (without fender); 700x45mm (with fender)
• Offset Options: 45mm or 50mm
• Max Rider/System Weight: 121kg (including bike, rider, gear, and cargo)
• Weight: 1,161g
• Color Options: Shiny Black

Why Choose the Fox 32 Float TC Factory Fork?
Designed specifically for gravel, this fork provides the ideal balance of lightweight performance, durability, and control. With its aerodynamic design, plush suspension, and unmatched adjustability, the Fox 32 Float TC Factory Fork is the ultimate upgrade for serious gravel riders looking to push their boundaries.

Take the edge off gravel rides and expand your terrain—choose the Fox 32 Float TC Factory Fork.
