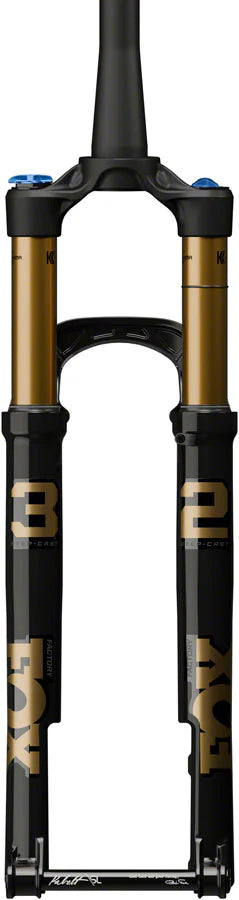

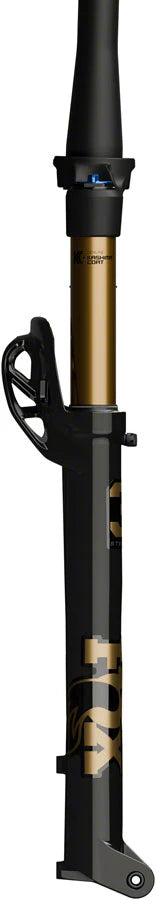

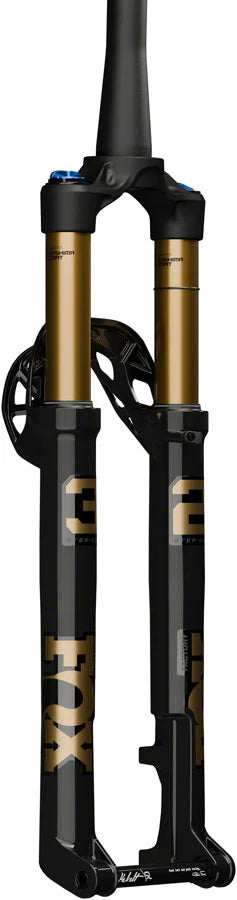

Fox Suspension 32 Float SC 100 Factory 29 Kabolt SL110 - Black - 2026

The Fox 32 Float Step-Cast Factory SC 100 is a lightweight XC and marathon racing fork crafted for riders who demand elite-level speed and performance. Weighing in at under 1300g, this 29” fork combines a weight-saving GRIP SL damper with a stiffer chassis and ultra-efficient design. Engineered with a reverse arch and 7000 Series aluminum crown, the 32 SC delivers exceptional stiffness-to-weight and trail-tuned compliance for maximum power and control.

KEY FEATURES

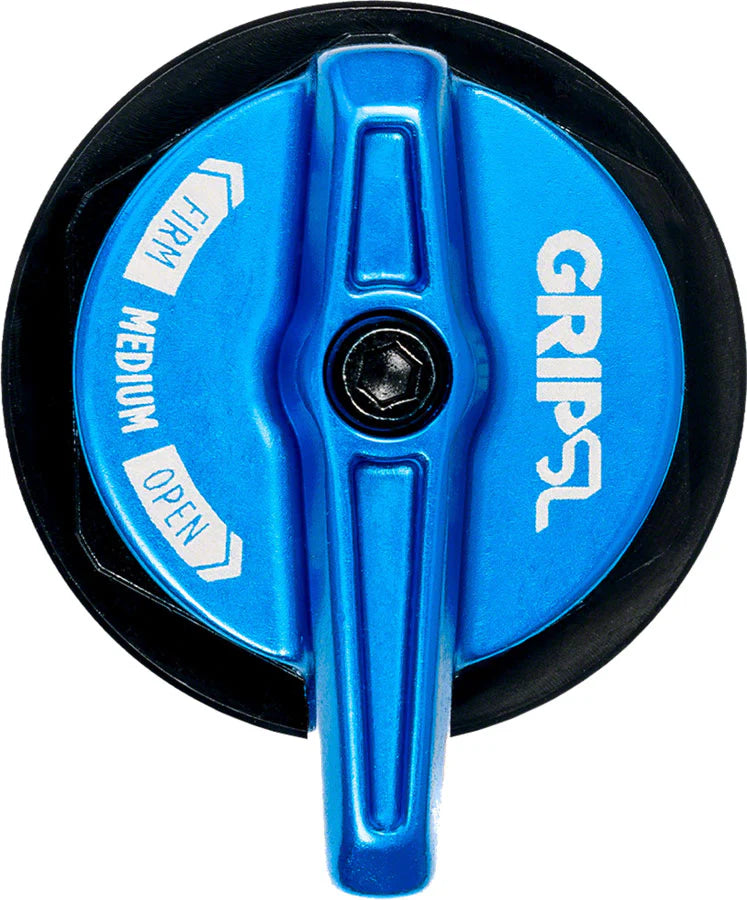

• GRIP SL Damper: Short travel-specific damper optimized for XC racing, combining featherlight construction with precise compression control.
• Reverse Arch Design: Generatively designed rear arch increases stiffness by 40% while minimizing weight penalty.
• FLOAT EVOL Air Spring: Provides supple small bump sensitivity and consistent support through the travel.
• Kabolt SL Axle: Superlight axle shaves 12g over the standard Kabolt by eliminating the nut and using a smaller flange diameter.
• Kashima Coated Stanchions: Ultra-slick and highly durable finish for reduced friction and long-lasting performance.

SPECIFICATIONS

• MATERIAL: 7000 Series aluminum crown, Kashima-coated aluminum stanchions
• WHEEL SIZE: 29"
• TRAVEL: 100mm
• AXLE: 15mm Thru x 110mm (Kabolt SL)
• STEERER: 1.5" to 1 1/8" Tapered, 264mm length
• OFFSET: 44mm
• BRAKE TYPE: Post Mount 160
• COLOR: Shiny Black
• STANCHION DIAMETER: 32mm
• MAX TIRE WIDTH: 58mm
• ADJUSTMENTS:

• High-speed compression

• Low-speed compression

• Rebound damping

• Lockout (Crown-mounted switch)
  • AXLE TO CROWN LENGTH: 503.7mm
  • CROWN RACE: 40mm
  • WEIGHT: ~1290g

A must-have for marathon racers and elite XC riders, the Fox 32 Float SC Factory offers cutting-edge weight savings, superior stiffness, and top-tier ride feel—everything you need to stay fast and fresh from start to finish.
