Eastern Traildigger 20" BMX - Black
Eastern Traildigger 20" BMX - Black
Product ID: GM061021-29
Shop all Eastern | Shop all BMX Bikes
View full detailsDescription
Eastern Traildigger 20" BMX - Black

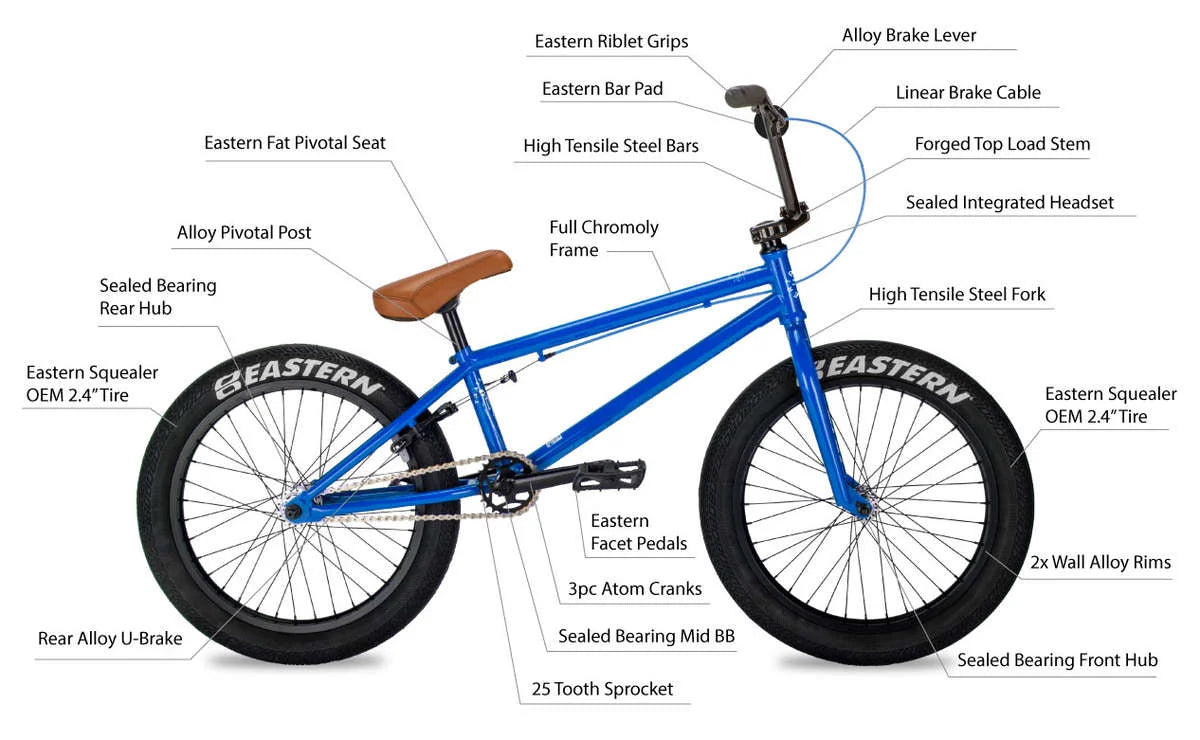

The Eastern Traildigger is back with a newly upgraded full chromo frame and our Facet pedals! Designed for beginners looking to upgrade from a steel frame. This awesome dirt jumper features: sealed bearing integrated headset, sealed front and rear hubs, a 3-piece chromoly cranks, Eastern grips, sprocket and double-wall rims. Specs & Pricing Subject to Change
- NOW with Full Chromoly Frame
- Chromoly Steerer Tube
- Sealed Front and Rear Hubs
- 3 Piece Cranks
- Mid BB
- Integrated Headset
- Eastern Riblet Grips
- Eastern Facet Pedals
- Eastern Sprocket
- Double Wall Rims
- 2.4" Eastern Squealer OEM Tires
Specifications
Traildigger 20", Full Chromoly
Top Tube Size: 20.75"
BB: Mid
Headtube: Integrated
Chainstay Length: 13.38"
Clamp: Integrated with Frame
BARS
Hi-Ten 8.75"
Upsweep/Backsweep 12°/1_x0081_°
FORK
Traildigger 20"_x009d_, Chromoly Steerer with Hi-Tensile Steel Legs
Fork Rake: 28mm
HEADSET Integrated 45°X45° Sealed Cartridge Bearing
STEM Forged Alloy Top Load Stem
GRIP Eastern Riblet Grips
CRANK 3-Piece, Tubular Heat-Treated Chromoly, Pinch Bolt with 8-Splined Spindle, 170mm 31.8mm Square Tapered Arm
BOTTOM BRACKET Sealed Bearing Mid
CHAINWHEEL Eastern Phorcys, Cold Hard Steel, 25T
CHAIN KMC Z510 1/2 x 1/8
PEDAL New Eastern Facet Plastic Pedal with 9/16" Axle
FRONT BRAKE N/A
FRONT LEVER N/A
REAR BRAKE U-Brake, Forged Alloy, Wide Body, Clear Brake Pads
REAR LEVER Forged Alloy Lever
BRAKE CABLE [S] LINEAR
SADDLE Medium Width Pivotal Seat
POST Pivotal 200mm
FRONT HUB Sealed Bearings, Forged Alloy Shell, Drilled for 36 Spokes, 3/8" Chromoly Axle
REAR HUB 5 Sealed Bearings, Forged Alloy Shell Drilled for 36 Spokes, 14mm Chromoly Axle
FREEWHEEL 9 Tooth Driver with Hub
FRONT RIM
Alloy, Double Wall, Drilled for 36 Spokes
REAR RIM
Alloy, Double Wall, Drilled for 36 Spokes
SPOKES 14 Gauge with Brass Nipples
FRONT TIRE
2.4" Eastern Squealer OEM Tires
REAR TIRE
2.4" Eastern Squealer OEM Tires
PEG none
