Embarking on a new adventure takes you to a new place. In such unpredictable conditions, reliable gear makes all the difference.

The XMC 1501 SPLINE ONE is the ideal partner for epic adventures to the highest peaks. The light weight of the carbon rim allows you to save energy on the climbs and then brave the long and varied descents where grip is paramount.

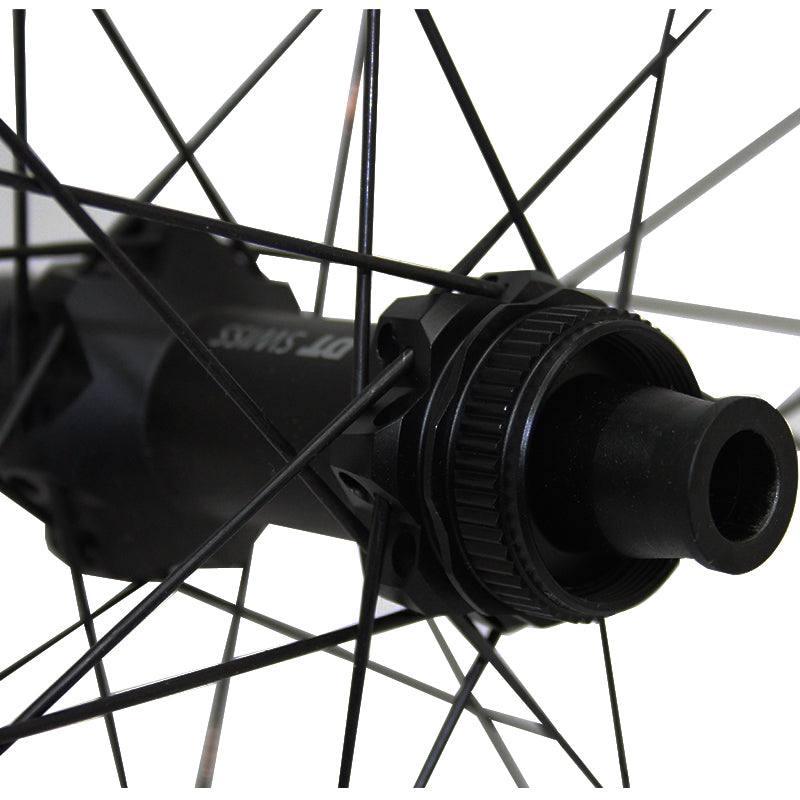

The 240 hubs have proven themselves time and time again to be extremely reliable and transfer your pedaling power to the ground. Choose between the lightweight DT Swiss Ratchet EXP freehub system or the patent-pending DT Swiss Ratchet DEG with its finer engagement angle.

Double-butted DT Competition spokes and premium wheel construction complete the XMC 1501 SPLINE ONE wheels.

• HUB TYPE: 240 with Ratchet DEG 90, Ratchet EXP 36

• RIM: Carbon, hookless tubeless TSS

• INNER WIDTH: 30 mm

• SPOKE: DT competition® race straight

SPECIFICATION

• NET WEIGHT: 827 g

• RECOMMENDED MAXIMUM SYSTEM WEIGHT: 120 kg

• ASTM CLASSIFICATION: Four

• RECOMMENDED FOR E-BIKES

• MATERIAL: Carbon

• TIRE INTERFACE: Hookless tubeless TSS

• VALVE HOLE: Presta

• RIM DIAMETER: 27.5" / 650B

• RIM HEIGHT: 25 mm

• INNER WIDTH: 30 mm

• OUTER WIDTH: 36 mm

• HUB TYPE: 240

• AXLE SYSTEM: 12 mm  Thru Axle

• INSTALLATION DIMENSIONS: 148 mmBoost

• BRAKE INTERFACE: Disc Center Lock

• CASSETTE INTERFACE: Sram XD

• FREEHUB BODY: SRAM XD MTB (ASRAM) (Already installed)

• FREEHUB SYSTEM: Ratchet EXP 36

• SPOKE, LEFT: DT competition® racestraightp

• SPOKE, RIGHT: DT competition® racestraightp

• SPOKE PATTERN: Three-cross (1:1)

• NIPPLE: DT Pro Lock Squorx Pro Head alu
