Dahon

Dahon Launch EX - Rust Brown

Name: Dahon Launch EX - Rust Brown
Brand: Dahon
SKU: GM043026-27
Availability: OutOfStock

Color Rust Brown

Product variants

Product ID: GM043026-27

Earn

Out of stock

Shop all Dahon | Shop all Folding Bikes

View full details

Description

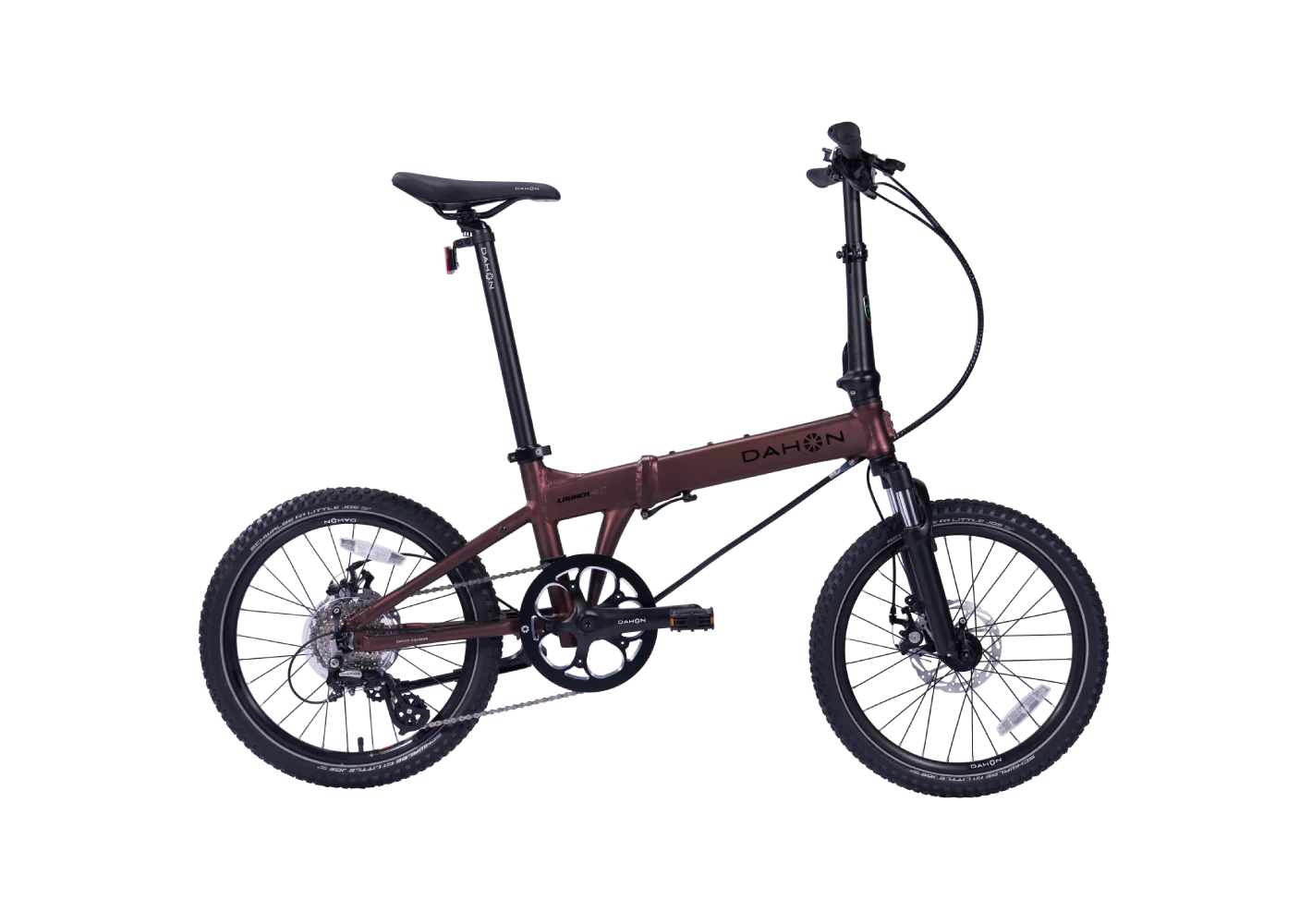

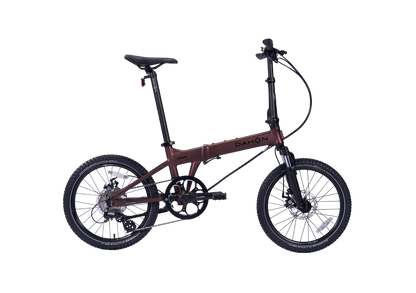

Dahon Launch EX

An all-rounder bike with "DAHON-V" technology and fork suspension, for urban life and countryside leisure.

Your Adventure Unfolds on Launch EX

Create your unforgettable long-distance off-road trip!

Seamlessly transitions from city streets to countryside routes on a single bike. Equipped with suspension and all-terrain tires, it will conquer forest paths and service roads with ease.

Multi-Terrain Tire

The anti-slip and puncture-resistant Schwalbe little Joe tires provide superior traction on mud, sand and rough terrain. The all-weather, shock-absorbing design offers stable and smooth rides on uneven surfaces.

Hydraulic suspension fork

Absorbs the shock from difficult terrains and provides more comfortable offroad rides.

Deltech

15% increase in frame rigidity - 5-10% speed boost
DAHON’s patented DELTECH adds a diagonal support cable that increases frame rigidity, reduces frame stress, and improves power transfer. Ride with more stability and confidence—especially at higher speeds or on uneven roads. STRONGER. SAFER.

Super Downtube

At the junction where the center line meets the downtube, the tube is flattened and aimed to increase frame longitudinal rigidity and strength. This increases stability, making is easier to ride.

Loading Capacity

Designed for easy cargo handling, offering practical storage solutions for your essential items

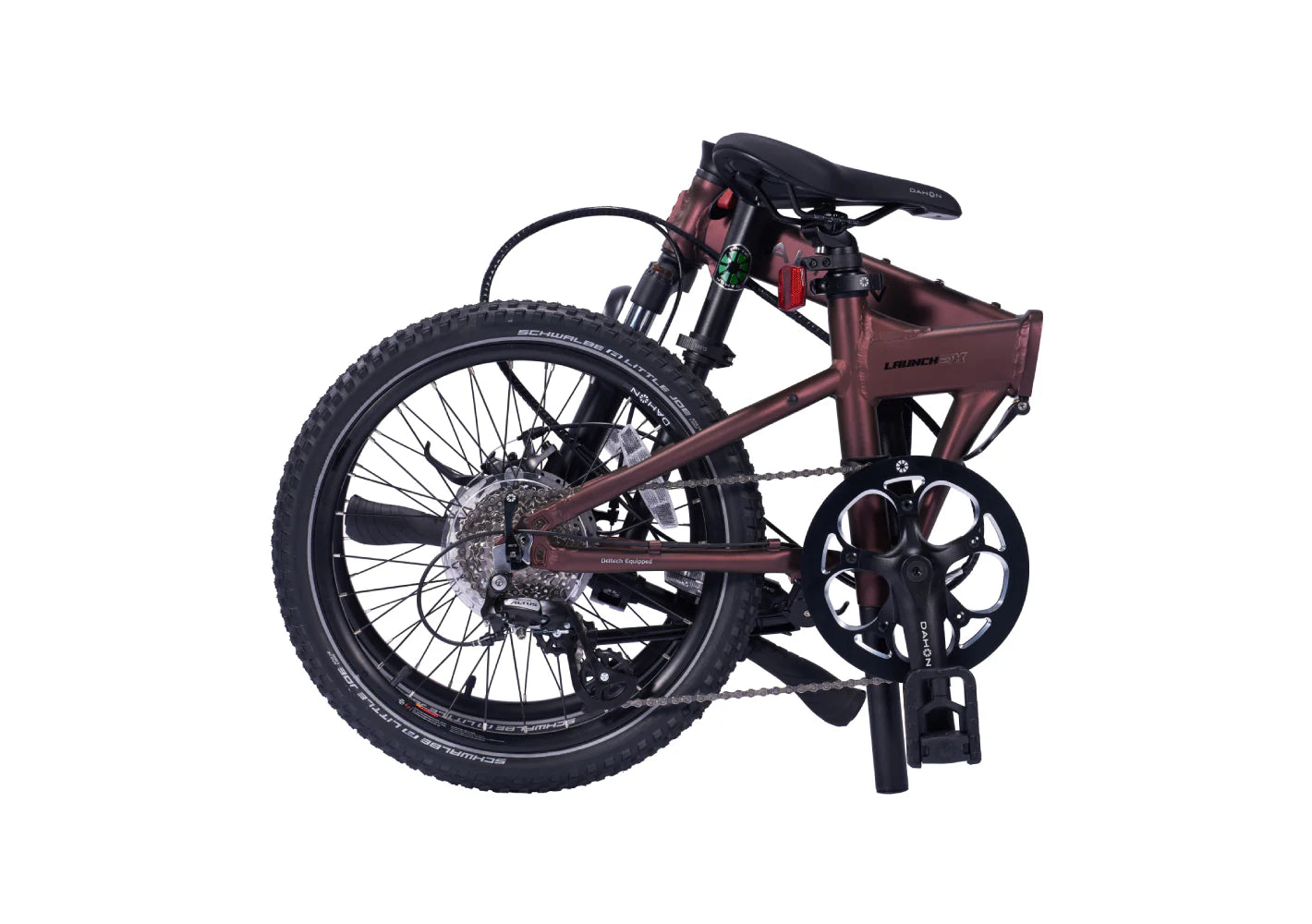

About (DFS) Dahon 3 Step Folding System

Invented over 30 years ago by Dahon, has been adopted by many folding bikes on the market. Easy, even lighter, and more compact in 3 steps. By keeping improving the basics of the system, DAHON was able to establish its current position in the market of folding bicycle.

Key Details

Shimano 8-SpeedPerfect for outdoor exploration

Folding DesignCompact for space saving

Weighs Only 27.1 lbsLike a small suitcase

Enhanced by DAHON-VGuaranteed high speed

Optimized Disc BrakesPerfect for urban streets

Specifications:

Product Name: Launch EX

Model Name: KBA083

Frame: 20" Aluminum

Handlebar: Dahon XJ-AL-110 580mm

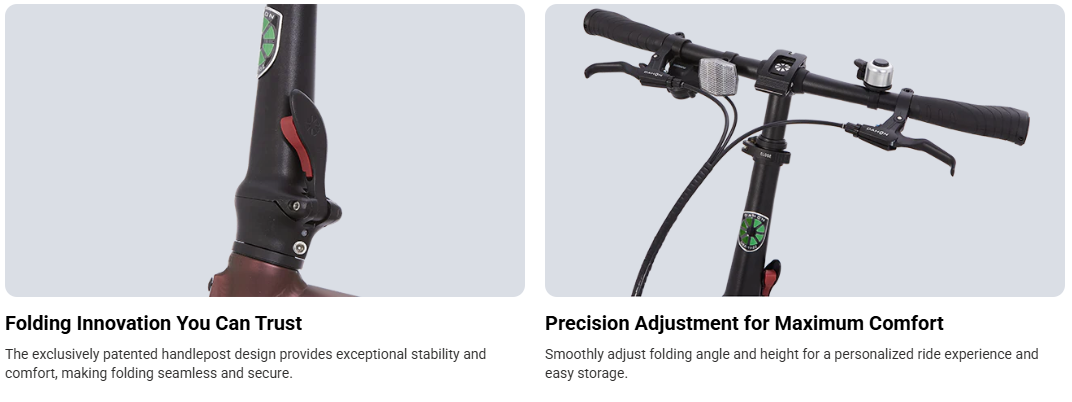

Handlepost: Dahon Forged handlepost

Rims: XCD16 double wall 20"*406mm*14G*28H

Front Hub: Solon DH901F

Rear Hub: Solon DH901R

Tires: Schwalbe little Joe 20*2.15 FV

Chainring: DAHON 1-253A 53T 170mm

Cassette: Sunrace 8 Speed, 11-32T

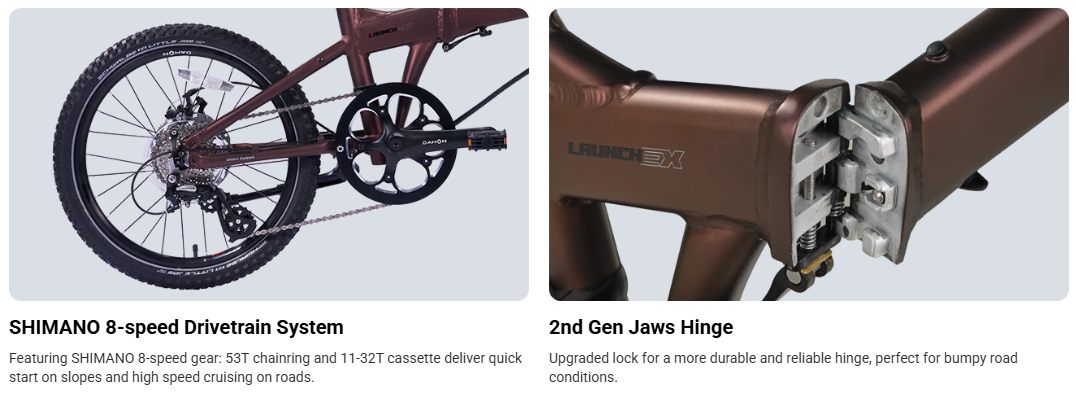

Rear Derailleur: Shimano Atlus 8S

Shifters: Shimano RAPIDFIRE PLUS 8S

Grips: Dahon XH-G156BL

Brakes: TEKTRO MD-M300

Brake Levers: Winzip WL-218D

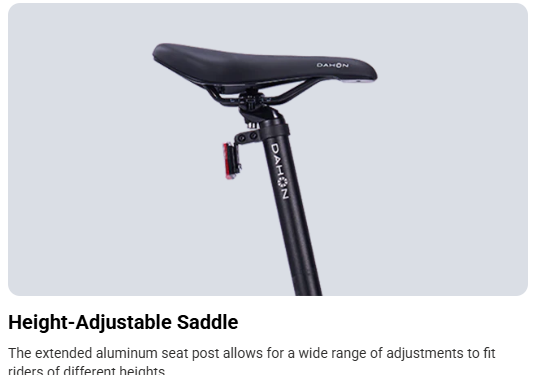

Saddle: Dahon 12110-03#

Seatpost: Dahon JB-SP-312 φ33.9*580mm

Pedals: VP-F55 Foldable

Fender&Rack: optional

Weight: 30.2 lbs

Max Load: 231 lbs

Rider Height Range: 4'7″ - 6'2″

Folded Size: 32.7x15.0x24.8in
