CBO

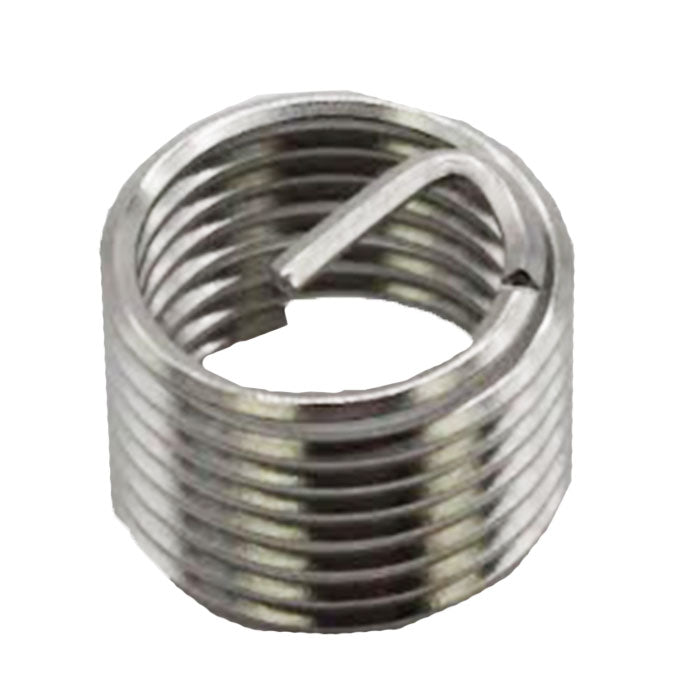

CBO Helecoil Insert
CBO Helecoil Insert
Product ID: GM020226-20
Only 4 Items Left
Description
CBO Helecoil Insert -
Helicoil Size - 10mm x 1 - Sold Seperately
Thread insert is precision formed screw thread coils worked into a diamond shape. The resultant surface finish is a mirror-like 8-16 micro inches. This wire is then wound into a spiral coil which when installed into Heli-Coil tapped holes, provides permanent conventional 60° internal screw threads. This assembled insert accommodates any standard bolt or screw (MIL-S-7742) and MIL-S8879 (UNJ controlled radius root) male threaded members. Heli-Coil inserts are larger in diameter before installation than the tapped hole. During installation the inserting tool applies torque to the tang reducing the diameter of the leading coil permitting it to enter the tapped thread. After installation each high tensile stainless steel coil of the insert expands outward with a spring like action permanently anchoring the insert.
Features & Benefits:
• No thread wear
• Corrosion resistance
• Design flexibility
• Eliminate stress
• Minimize space and eight
• Minimize total cost
• True clamping torque
• Wide temperature range
• Quality and reliability
• High production
• Universal acceptance
• Total design service
• Heli-Coil standard inserts which provides a smooth free-running thread
• 304 stainless steel standard general purpose material
• Ideal for original equipment applications repair and overhaul
