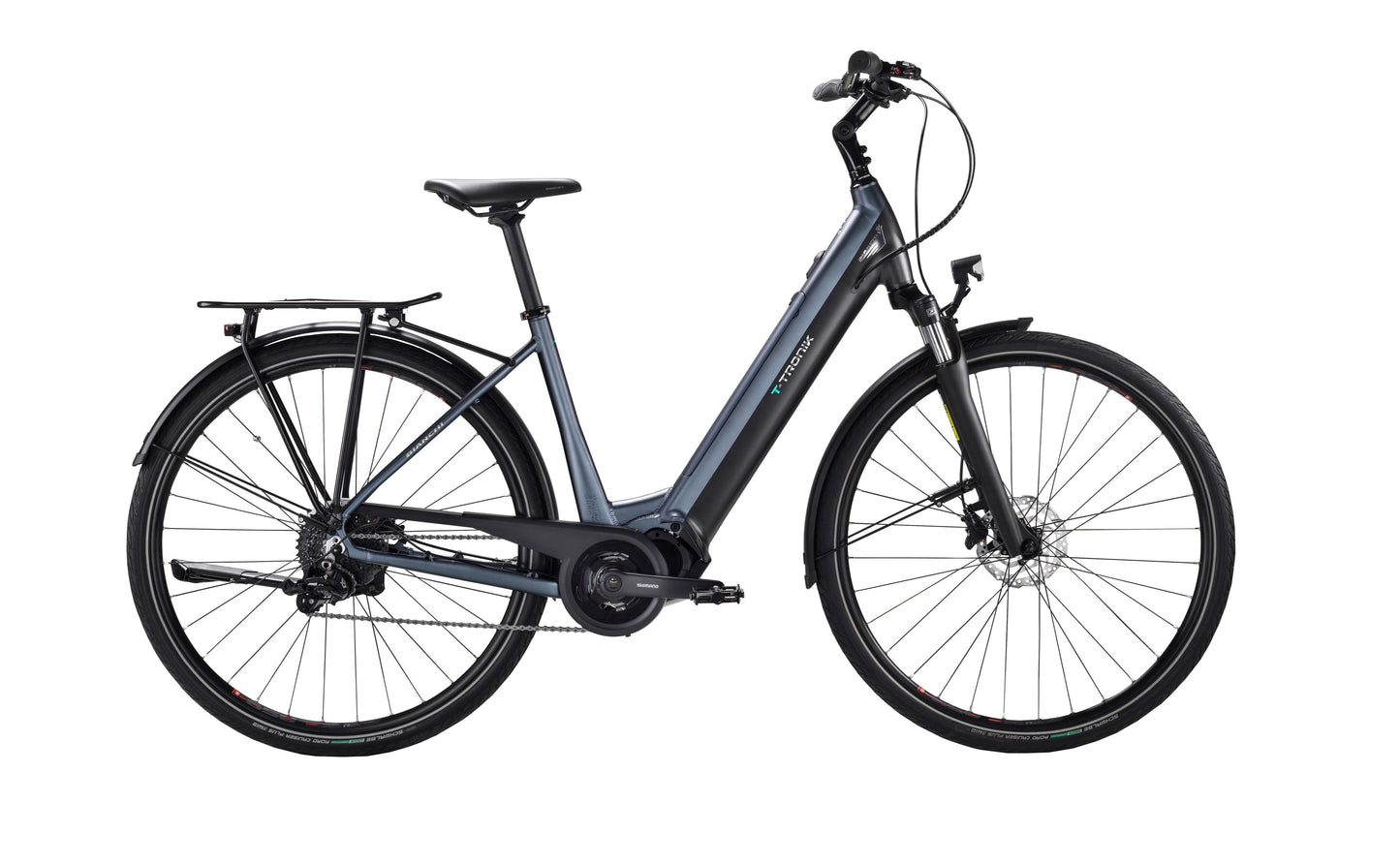

Bianchi T-Tronik C-Type Ebike - 9 Spd 417wh - Blu Stone-Dark Graphite Matt

Shop all Bianchi   |   Shop all Electric Bikes


  • Hassle free
    365 Day Returns
  • Safe and Secure
    for peace of mind
  • Pay by Card, PayPal, Apple Pay & Google Pay

keyboard_arrow_right Description

DESIGNED TO MEET YOUR NEEDS

Make everything simpler and feel the happiness grow inside. The useful, adaptable electric assistance of the T-Tronik makes your daily travel effortlessly easy, so you can focus on all the things that make you smile.

It’s time to embrace easy.

URBAN EXCITEMENT
The T-TRONIK C-TYPE is an exciting urban bike with a frame designed around accessibility. From city commutes to leisure rides, this bike is the perfect ride partner for urban surroundings.

Ride around the city easily with the step-through frame, making riding achievable without sacrificing style.

INCREASING ACCESSIBILITY WITH THE STEP-THROUGH FRAME
On C-Type it is easy to get on and off your bike even in regular day-to-day apparel. The minimalist design encourages all types of riders to enjoy cycling in and out of the city.

ADJUSTABLE HANDLEBAR
The adjustability of the stem allows you to find the perfect riding position for ultimate comfort in the saddle.

BE SEEN WITH BUILT-IN LIGHTS
A 100-lumen front light drastically improves visibility on the roads, with the light visible up to 400 metres away. The rear light is visible up to 500 metres away for safety.

LONG-LASTING BATTERY TO POWER YOUR RIDES
The T-TRONIK range uses a premium Shimano STEPS E6100 motor, and a 250W Phylion 417Wh battery for an impressive range up to 95km. Powerful torque of up to 60Nm provides more than enough assistance for hills or setting off at junctions.

TRANSPORT YOUR LUGGAGE EASILY
The rear carrier on the T-TRONIK bikes has a load capacity of up to 25kg, which is more than plenty for groceries or items needed for work.

TECH SPECS

MOTOR UNIT

  • MOTOR: Shimano E6100, 250W, 60Nm
  • BATTERY: 417Wh integrated battery

FRAMESET

  • FRAME: T-Tronik C-Type ALU sizes: 43, 47 - 9x135 mm quick release dropouts - Post mount 160 disc brake type
  • FORK: Suntour NEX-E25 DS 700C, 63mm travel, 1-1/8" HT,w/out 9x100 QR , minimum 160mm rotor, maximum 180mm rotor, 30mm stanchions
  • HEADSET: FSA HST STbk 1-1/8" 44H-N10P

DRIVETRAIN

  • SHIFTERS: Sram X5, 9sp
  • REAR DERAILLEUR: Sram X7, 9sp, max. 36T
  • CRANKSET: Shimano CHAINRING, SM-CRE61, 38T FSA SMN E-Bike Forged Crankset - SMN / 170mm
  • BOTTOM BRACKET: included in the motor
  • CHAIN: KMC e9S NPBK

BRAKES

  • BRAKES: Promax, DSK-925
  • ROTOR: Promax DSK-925, 160mm, center lock

WHEELS

  • WHEELS: EBIKE 650 TR 28" - ETRTO 622 x 23C, 32hole, height 18mm
  • REAR HUB: Shimano, FH-TX505-8, 32H 8/9/10/11-SPEED,OLD:135MM,AXLE:146MM,QR:170MM
  • FRONT HUB: Shimano, HB-TX505,32H OLD:100MM AXLE:108MM, QR:133MM
  • TIRE: Chaoyang E-Liner City 700x45C, 60tpi

COCKPIT

  • STEM: Velomann, 28,6 mm steerer ID Clamp, 31,8 mm
  • HANDLEBAR: Velomann 31.8/680mm, RISE 20MM, SWEEP 15°
  • GRIPS: Herrmans GRIPset Oxy

SADDLE

  • SEATPOST: Velomann, length 350mm for SM size and 400mm for MD, diam.31,6mm, 0mm seatback
  • SADDLE: Selle Royal

ACCESSORIES

  • PEDALS: VP black aluminum, axle 7mm, 113,5x110,5mm
  • MUDGUARDS: SKS PET Mudguards A60 S /28"
  • KICKSTAND: Ursus, load 35kg
  • REARCARRIER: Racktime, 28", Max load 25Kg
  • FRONTLIGHT: Herrmans Mr GO e-bike 6/12 V
  • REARLIGHT: Axa Juno e-bike 6/12 V

*Based on component availability, Bianchi reserves the right to make changes on specifications without notice.
