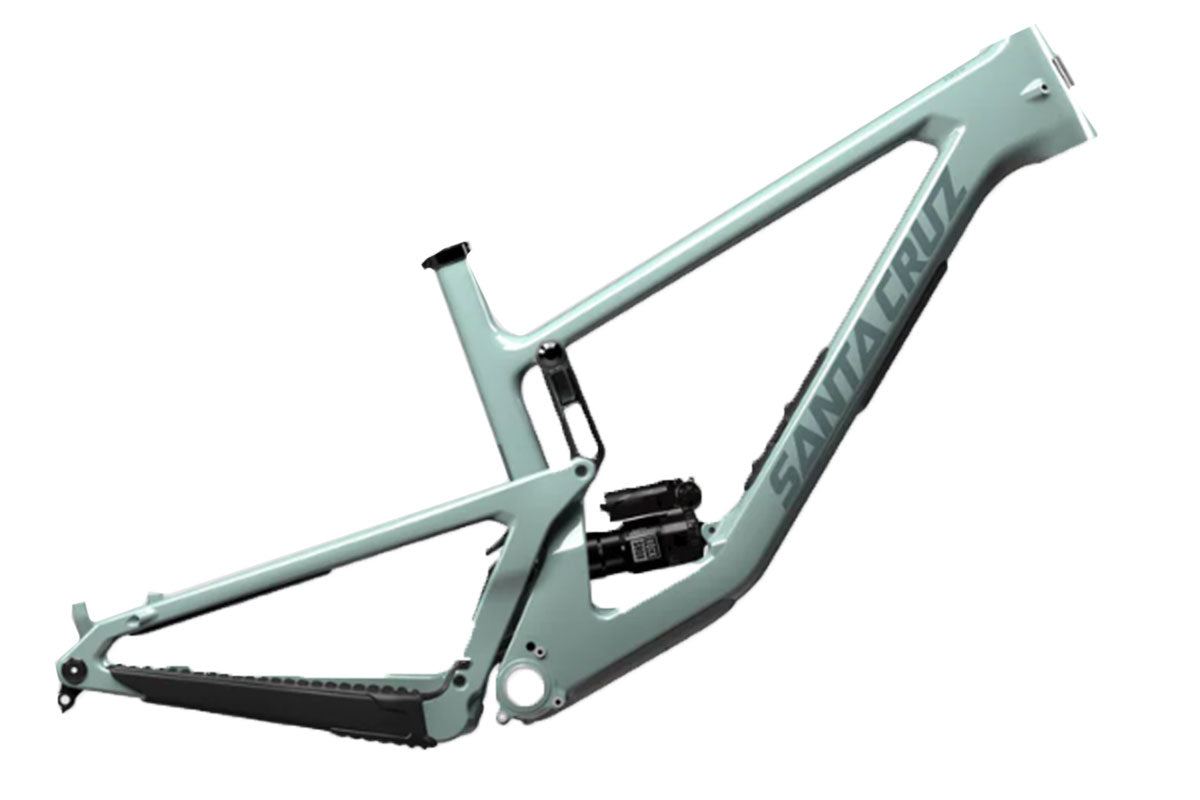

Santa Cruz 5010 5 CC Full Suspension Frame - Gloss Light Blue - 2025
Santa Cruz 5010 5 CC Full Suspension Frame - Gloss Light Blue - 2025
Product ID: GM091725-07
Earn
Out of stock
Shop all Santa Cruz | Shop all Full Suspension Frames
View full detailsDescription
Santa Cruz 5010 5 CC Full Suspension Frame
The 5010 is not just "the little bike" of our range. It makes even the most mundane trails feel like they're loaded with features to hop, skip and jump over. It's like having super-skills at your fingertips. The 5010 has always been more capable than many expected but with the traction-gaining 29-inch wheel up front and even more refined suspension the 5010 gives you a deft touch on the trails.
Key Details:
| Frame | |
|---|---|
| Material | Carbon CC |
| Travel | 130mm |
| Weight | 6.51 lbs / 2.95 kg |
| Wheel Size | MX |
| Suspension | |
| Shock | RockShox Super Deluxe Ultimate, 210x50 |
| Specifications | |
| Bottom Bracket Shell | 73mm Threaded |
| Rear Brake Mount | PM 180mm |
| Shock Length | 210mm |
| Fork Compatibility | 140mm |
| Fork Offset | 44mm |
| Headset | Integrated (IS41/52) |
| Max Chainring Size | 34t |
| Max Tire Clearance | 2.5" |
| Seat Clamp Diameter | 36.4mm |
| Seat Post Diameter | 31.6mm |
| Shock Bushing Size Front | 30x8 |
| Shock Bushing Size Rear | 30x8 (bearing compatible) |
| Shock Stroke | 50mm |
| Suspension System | VPP |
| Water Bottle Mounts | 1 |
