Haro
Haro Flightline 20" Plus Disc Kids Bike - Cool Gray
Haro Flightline 20" Plus Disc Kids Bike - Cool Gray
Product ID: GM071425-03
Shop all Haro | Shop all Kids Bikes
View full detailsDescription

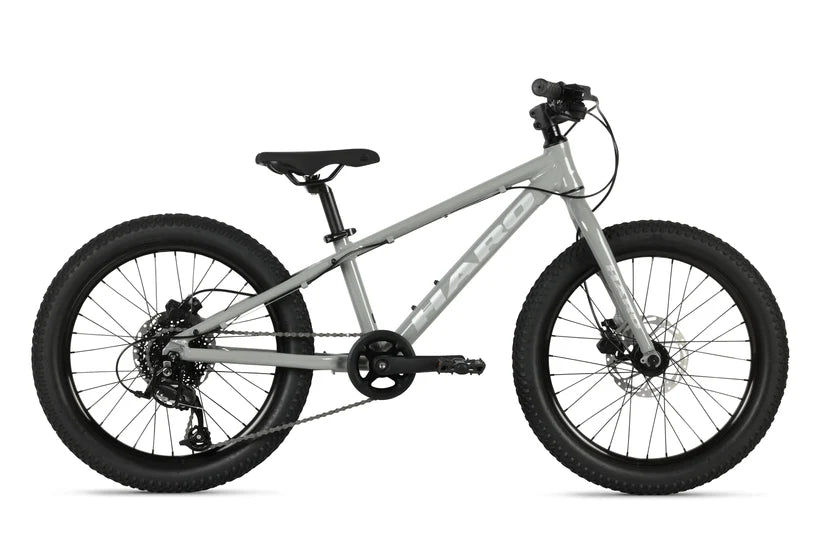

Haro Flightline 20" Plus Disc Kids Bike
The Haro Flightline 20 Plus Disc Mountain Bike is perfect for adventurous youngsters who love to ride. The FL 20 features Haro's low profile X6 alloy frame with a ton of stand-over clearance. Bumps don't stand a chance thanks to its suspension fork with 35 mm of travel. The FL 20 features a new 1x7-speed drive-train with a single chainring and Revo shifter to make it easier to switch gears.
Thanks to its lower stand-over height frame and 20" wheelset, the Flightline 20 Plus Disc is ideal for kids that are intrepid but aren't quite ready for the larger 24" or 26" wheel-sizes yet.
Features:
- FL 20" Plus X6 Series frame, new chainstays
- 6000 Series aluminum 1-1/8" fork
- Aluminum 3-pc 28T crankset w/ double chainguard
- Shimano Altus 8-SPD, Rear Derailleur
- Chao Yang H5183 20"x2.60"
- Tektro HD-J285 Hydraulic disc brakes with 160mm rotors and short reach levers
- Alloy Riser Bar, 620mmW, 9° back sweep, 25mm Rise, ø31.8
Specifications:
| Frame | FL 20" Plus X6 Series frame, new chainstays |
|---|---|
| Fork | 6000 Series aluminum 1-1/8" fork |
| Colors | Cool Grey |
| DRIVETRAIN | |

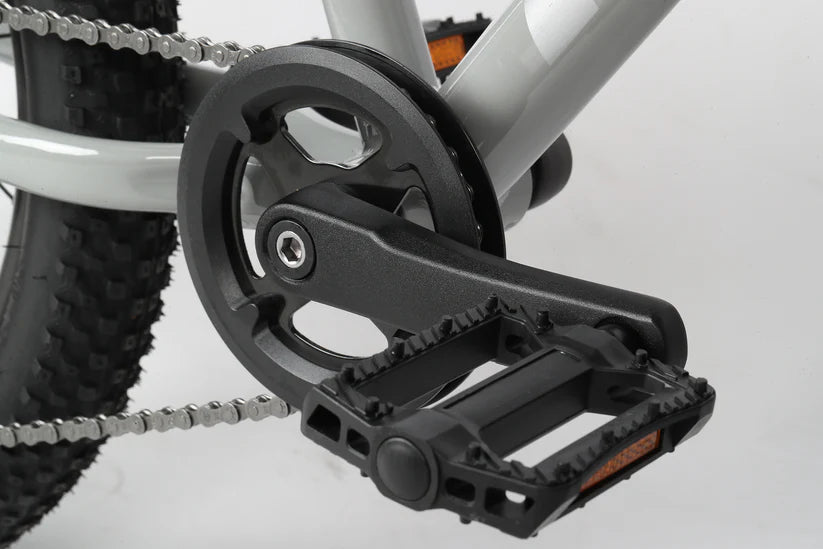

| Cranks | Aluminum 3-pc 28T crankset w/ double chainguard |
| Pedals | MTB nylon body 9/16" |
| Chain | KMC Z8 8.3, 1/2"x3/32", 92L, GYGY |
| Bottom Bracket | Cartridge Bearing 73mmX122.5mm |
| Front Derailleur | N/A |

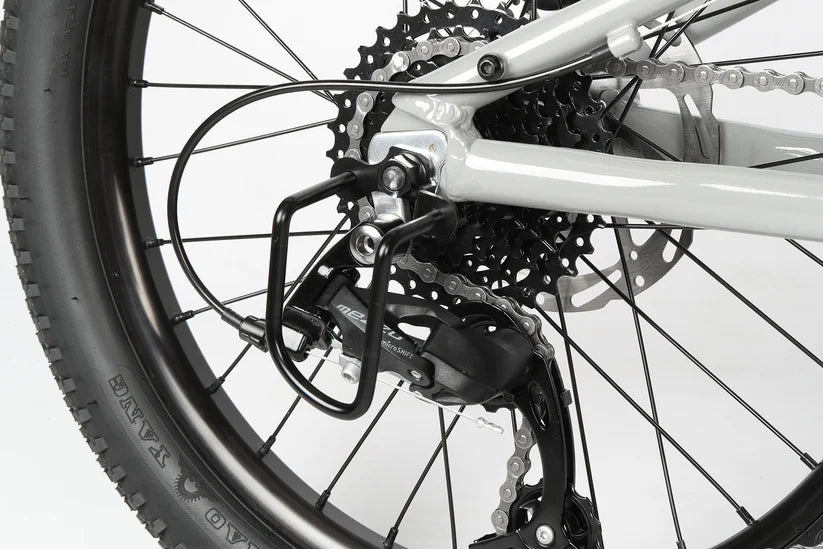

| Rear Derailleur | Shimano Altus 8-SPD, RD-M310-L |

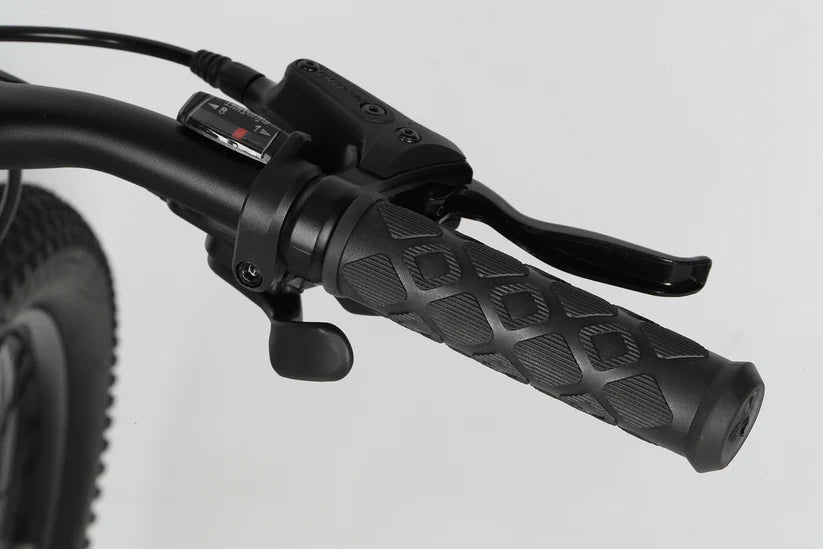

| Derailleur Shifter | Shimano SL-m315-r rapid fire 8spd |
| Freewheel/Cassette | Shimano cs-hg200-8 12-32T |
| WHEELS | |
| Tires | Chao Yang H5183 20"x2.60" |
| Wheels/Rims | Aluminum single wall 20" 31mm wide |
| Front Hub | Steel 6 bolt rotor compatible |
| Rear Hub | Steel 6 bolt rotor compatible |
| BRAKING SYSTEM | |

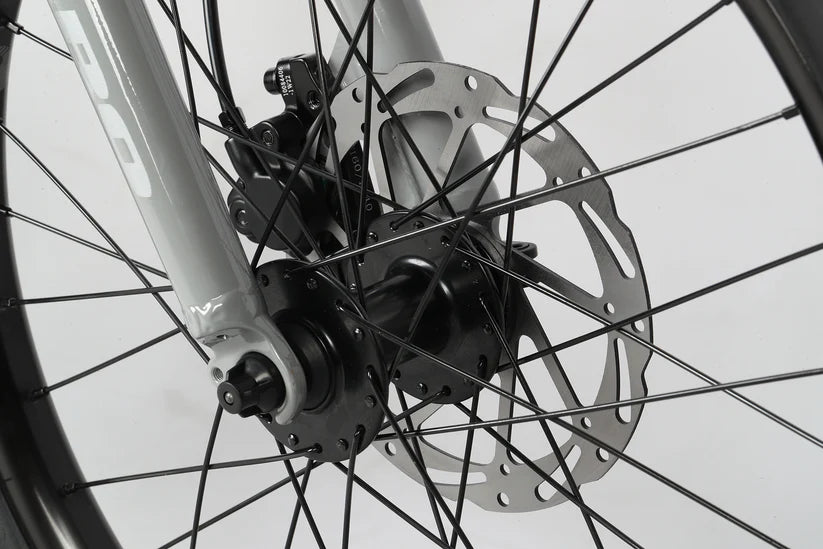

| Brakes | Tektro HD-J285 Hydraulic disc brakes with 160mm rotors |
| Brake Levers | Kids specific Tektro HD-J285 brake levers |
| OTHER COMPONENTS | |
| Grips/Tape | Krayton rubber 127mmL |

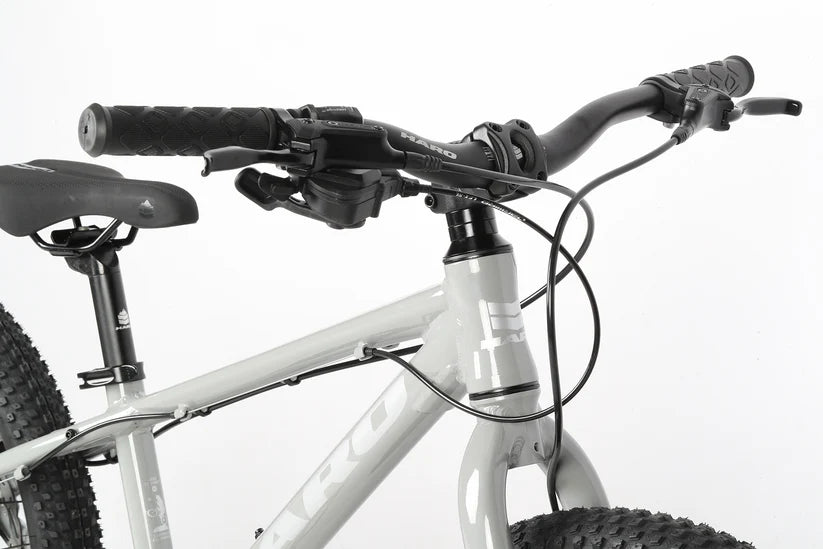

| Handlebar | Alloy Riser Bar, 620mmW, 9° back sweep, 25mm Rise, ø31.8 |
| Stem | Alloy 1-1/8", ø31.8 bar bore, 45mmL, 7° Rise |
| Headset | 1-1/8" Threadless |

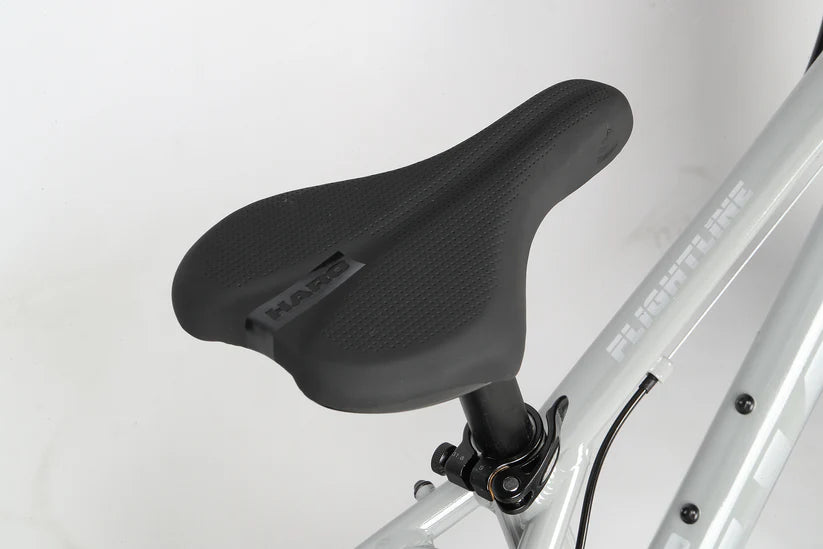

| Saddle | Haro Flightline Jr |
| Seat Post | Alloy micro adjust ø27.2 |
| Seat Clamp | Alloy ø31.8 quick release |
Geometry:
| SIZE | 20 |
|---|---|
| Seat Tube (C-T) | 260mm (10.2") |
| Top Tube (Effective) | 469mm (18.5") |
| Head Tube Angle | 69° |
| Seat Tube Angle | 71° |
| Chainstay Length | 372mm (14.6") |
| BB Drop | 15mm (0.6") |
| Wheelbase | 890mm (35") |
| Head Tube Length | 100mm (3.9") |
| Standover | 554mm (21.8") |
| Stack Height | 432mm (17") |
| Reach | 320mm (12.6") |
| Axle to Crown | 351mm (13.8") |
| Fork Offset | 35mm (1.4") |
| Stem Length | 45mm |
| Bar Width | 620mm |
| Crank Length | 127mm |
| Wheel Size | 20 |
Sizing Guide:
| Size | Inches | CM |
|---|---|---|
| 20 | 3'6 - 4'1" | 107 - 125 |
