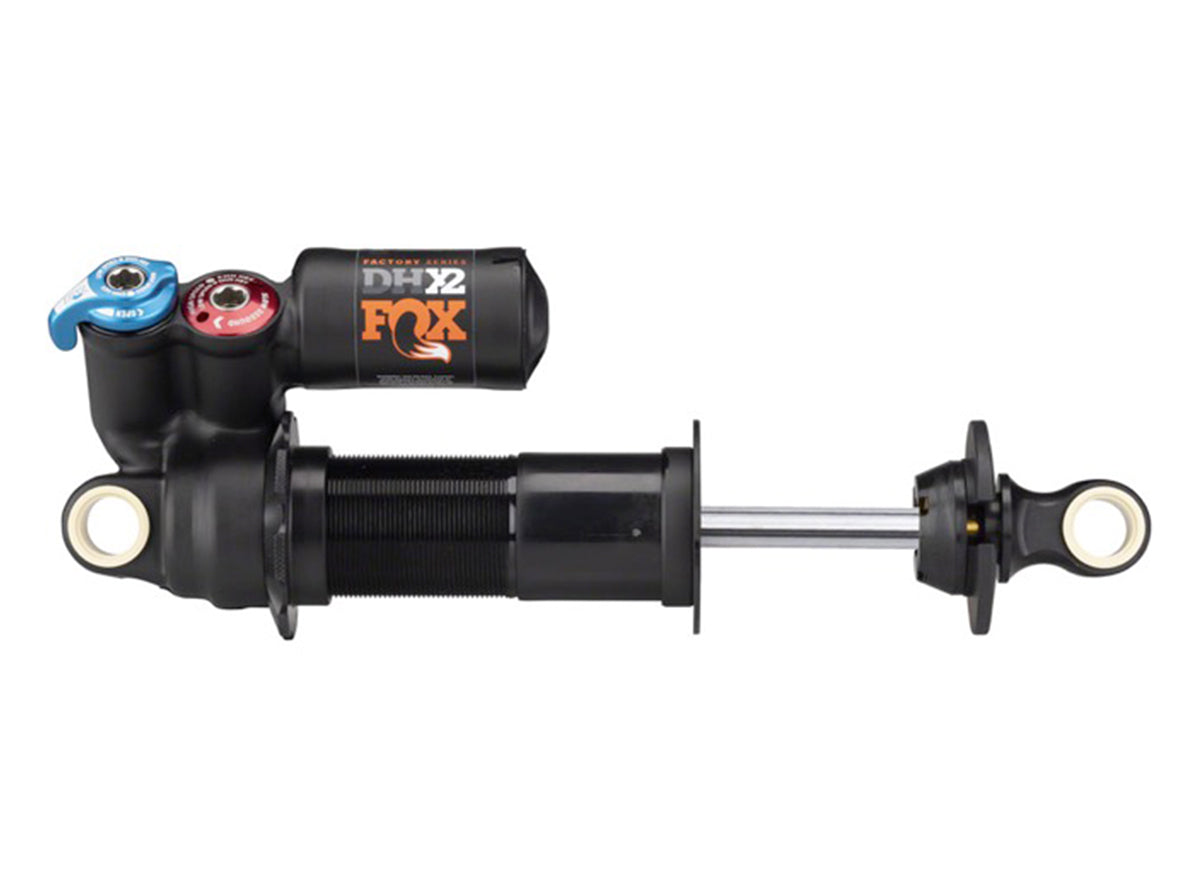

Fox Suspension DHX2 Factory 2 Pos Adj - Orange Logo - 2022
Answering the call of riders seeking the ultimate in plush suspension, the new DHX brings coil-sprung, magic-carpet, trail smoothing performance in a wide range of configurations to the trails and beyond
ALL-NEW chassis and damper
High-flow main piston
Numbered Tool-free 12 position single-turn LSC (Low Speed Compression) adjuster
Independent firm mode circuit – 2 position adjuster
Optimized reservoir lengths per shock size
Hydraulic top out feature
Reduced damper noise
MCU bottom out bumper
Single-turn rebound adjuster with a variety of access modes (Tool-free, 3mm hex (direct access), 2mm hex or similar (side access)
Spring preload collar with detents and max / min number of clicks and direction arrow
Full diameter spring retainer with wire ring (like DHX2)
Spring scuff guard on body (like DHX2)
Factory Series model
SLS spring option provides titanium weight savings at affordable price (coil spring sold separately)
Adjustments: 2-position Open/Firm lever (retains high and low speed compression adjustment), Low-speed compression, High-speed compression, Low-speed Rebound, High-speed Rebound, and Coil spring preload (new detents on spring collar)
