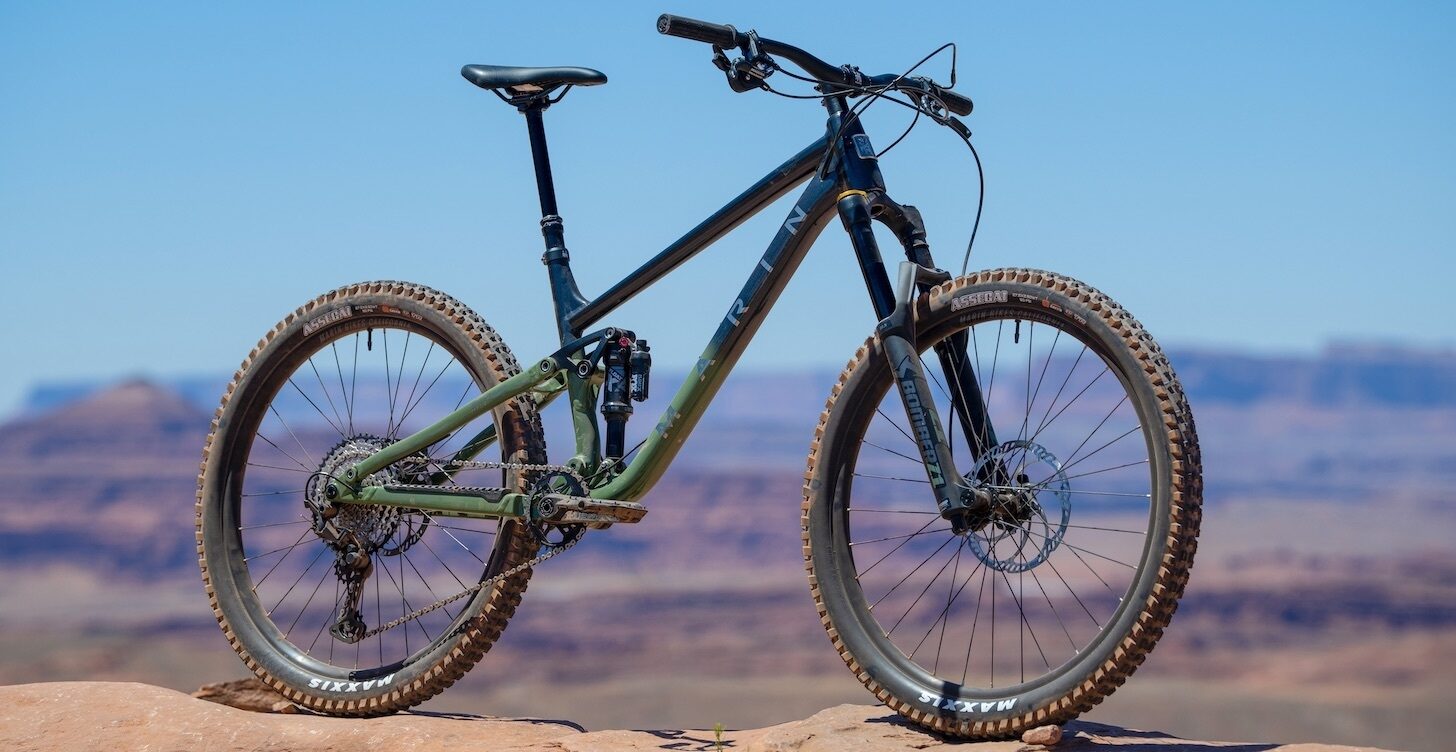

Marin Rift Zone XR 27.5" - Green - 2023



Feel the Rifty Love! Our take on the ultimate do-it-all trail bike, the Marin Rift Zone is made to party, whatever your jam might be. Your ideal partner for everything from all-day epics, to local shred laps to big mountain adventures, the Rifty is Made For Fun.

The Rift Zone 27.5" brings together super fun and super shreddy 27.5" wheels, 130mm of rear travel, a lightweight aluminum frame and our super-plush MultiTrac suspension platform for endless good times on the trails.

XR means Extra Rad. The Marin Rift Zone XR is our hard-charging special edition, made for riders that want the raddest, baddest Rifty in the range. Marzocchi Bomber Z1 fork, Fox Float X shock, Maxxis Assegai tires, X-Fusion Manic dropper, loads of Shimano, loads of Marin fine details.

Key upgrades from Rift Zone 27.5 2:

  • Marzocchi Bomber Z1/Fox Float X suspension
  • Shimano SLX/XT drivetrain
  • Shimano M420 4-piston brakes w/203mm (F) & 180mm (R) rotors
  • Maxxis Assegai 2.5" tires

TECHNOLOGY

UNIDIRECTIONAL CARBON FIBER FRAME
The Rift Zone Carbon 29 1 and 2 models feature high modulus carbon fiber and monocoque construction to deliver the lightest, most capable, Rift Zone that Marin has ever made.

SERIES 3 ALUMINUM FRAME
Rift Zone 29 1, 2, and 3 models feature Series 3 aluminum frames, with detailed forgings, highly manipulated tubes, and full internal cable routing, giving the rider a high feature and high-performing upgrade-worthy platform.

MULTITRAC SUSPENSION TECHNOLOGY
MultiTrac is an acclaimed suspension system, fine-tuned to have a balanced ride capable of absorbing big hits with an efficient pedaling platform. The rocker link provides a progressive leverage ratio for the rear shock for small bump sensitivity and the feeling of a long travel system on large drops and rocks.

INTERNAL ROUTING
Both carbon and alloy frames sport full internal cable routing in the front triangle with Marin’s all-new internal cable routing grommets, providing a clean and rattle free cable set up.

keyboard_arrow_right Specifications

  • Frame Series 3 6061 Aluminum Frame, 29" Wheels, 125mm Travel, MultiTrac Suspension Platform, 148x12mm Boost Thru-Axle, 73mm Threaded BB w/ ISCG05 Tabs
  • Front Suspension Marzocchi Bomber Z2 29", Rail Damper with Sweep Adjustment, 130mm Travel, Kabolt Bolt-On Axle, 44mm Offset
  • Rear Suspension Fox Float DPS, Performance Series, EVOL Air Spring, 3 Position Compression Adjustment, Rebound Adjustment, Custom Tune, 210x50mm, M8x25mm Hardware Top and Bottom
  • Rim Marin Aluminum Double Wall, 29mm Inner, Sleeved Joint, Disc Specific, Tubeless Compatible
  • Hub Rear Forged Alloy, 148x12mm, Quad Sealed Bearings, Centerlock Disc, 32H, Standard Freehub Body
  • Hub Front Forged Alloy, 110x15mm, Centerlock Disc, 32H
  • Spokes 14g Black Stainless Steel
  • Tires Vee Tire Co, Flow Snap, 27.5x2.35, Tackee Compound, 72 TPI, Tubeless Compatible
  • Derailleur Rear Shimano SLX SGS, Direct Attachment, 12-Speed
  • Shift Lever Shimano SLX, 12-Speed, SL-7100R
  • Crankset FSA GRID, Modular 1x, 32T Direct Mount Chainring, MegaTooth Technology, Mego EXO Spindle, Boost Spacing
  • Bottom Bracket Mego EXO 73mm BSA
  • Chain KMC X-12 Silver and Black
  • Cassette SunRace, 12-Speed, 11-51T, ED Black
  • Brakes Front Shimano MT420, 4-Piston Hydraulic Disc Brake, 203mm Rotor
  • Brakes Rear Shimano MT420, 4-Piston Hydraulic Disc Brake, 180mm Rotor
  • Brake Levers Shimano MT401 Hydraulic Lever
  • Handlebar Marin Mini-Riser, 6061 Double Butted Aluminum, 780mm Width, 28mm Rise, 5º Up, 9º Back
  • Stem Marin 3D Forged Alloy, 35mm
  • Grips Marin Single Clamp Locking
  • Headset FSA No 57E, Semi-Sealed Cartridge Bearings, 1 1/8" x 1 1/2"
  • Seatpost X-Fusion Manic, 1x Composite Remote, Size S 125mm Travel, Size M and L 150mm Travel, Size XL 175mm Travel, 30.9mm
  • Saddle Marin Speed Concept
  • Pedals - Not included
  • Extras Bolt-On Thru-Axle
