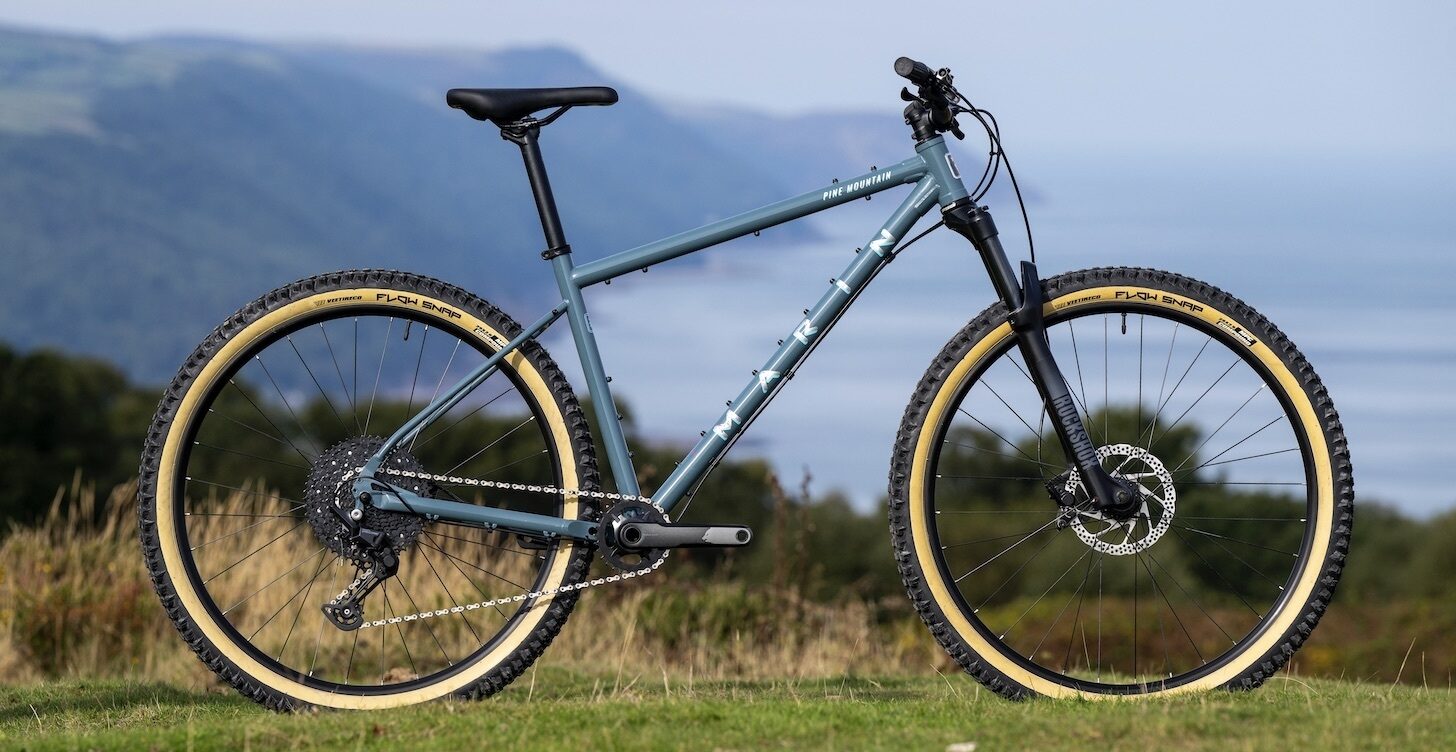

The Pine Mountain is a classic steel hardtail with modern trail capabilities for hardtail purists pushing the limits and seeking adventure.

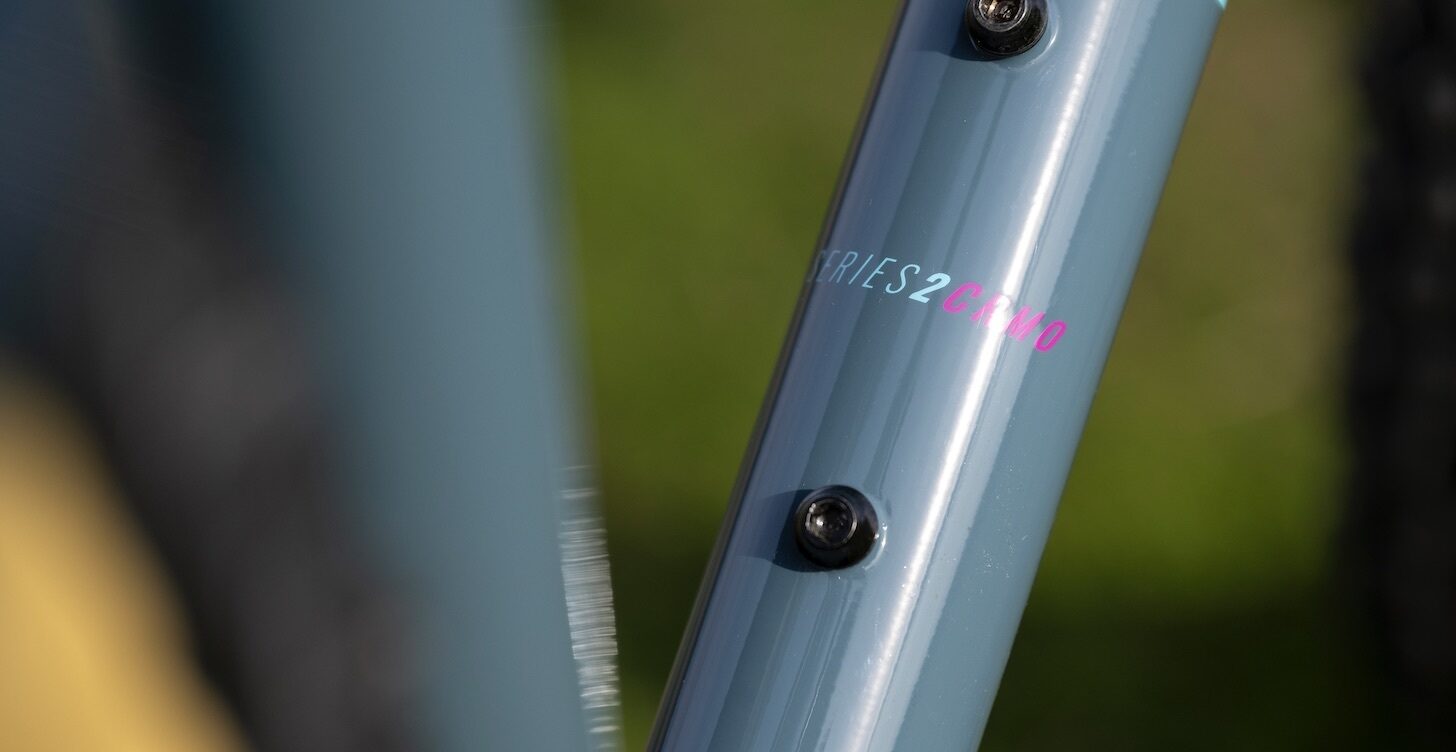

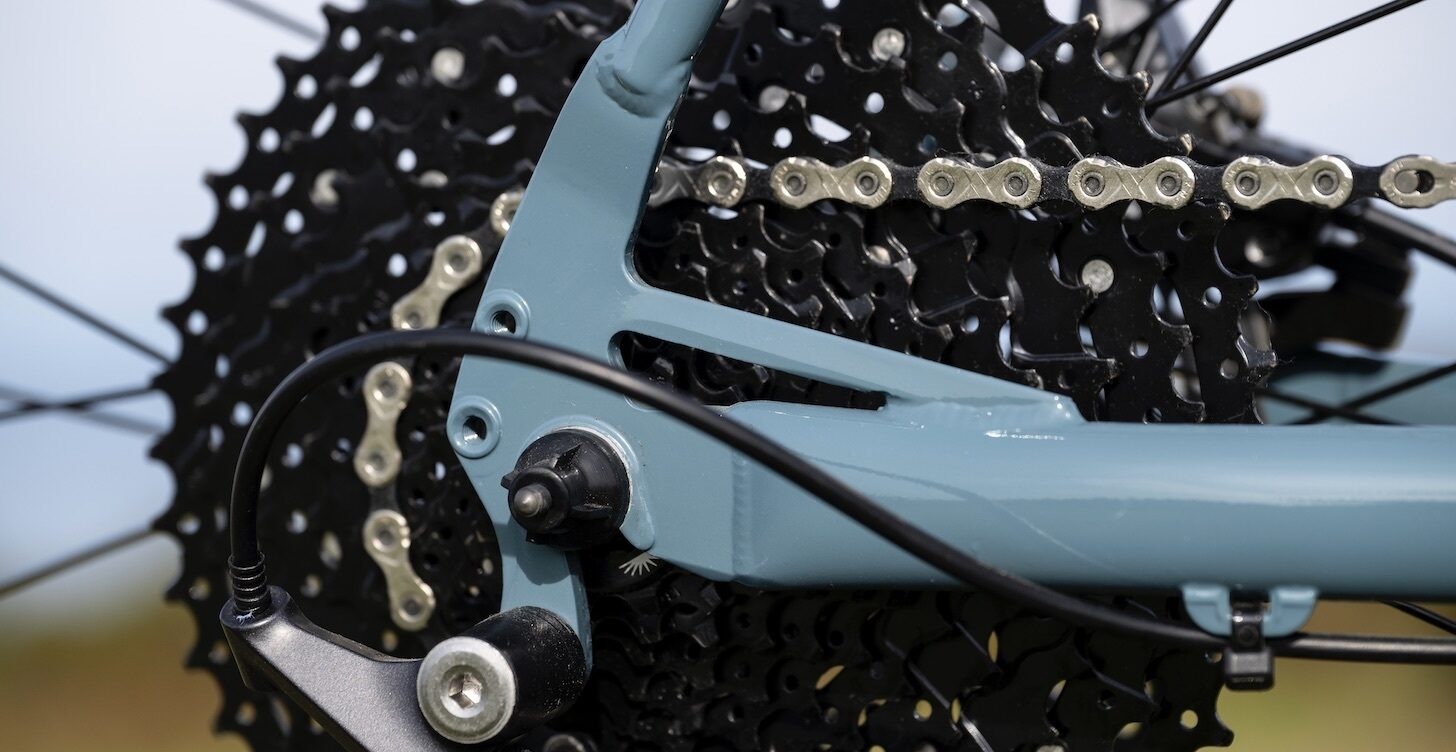

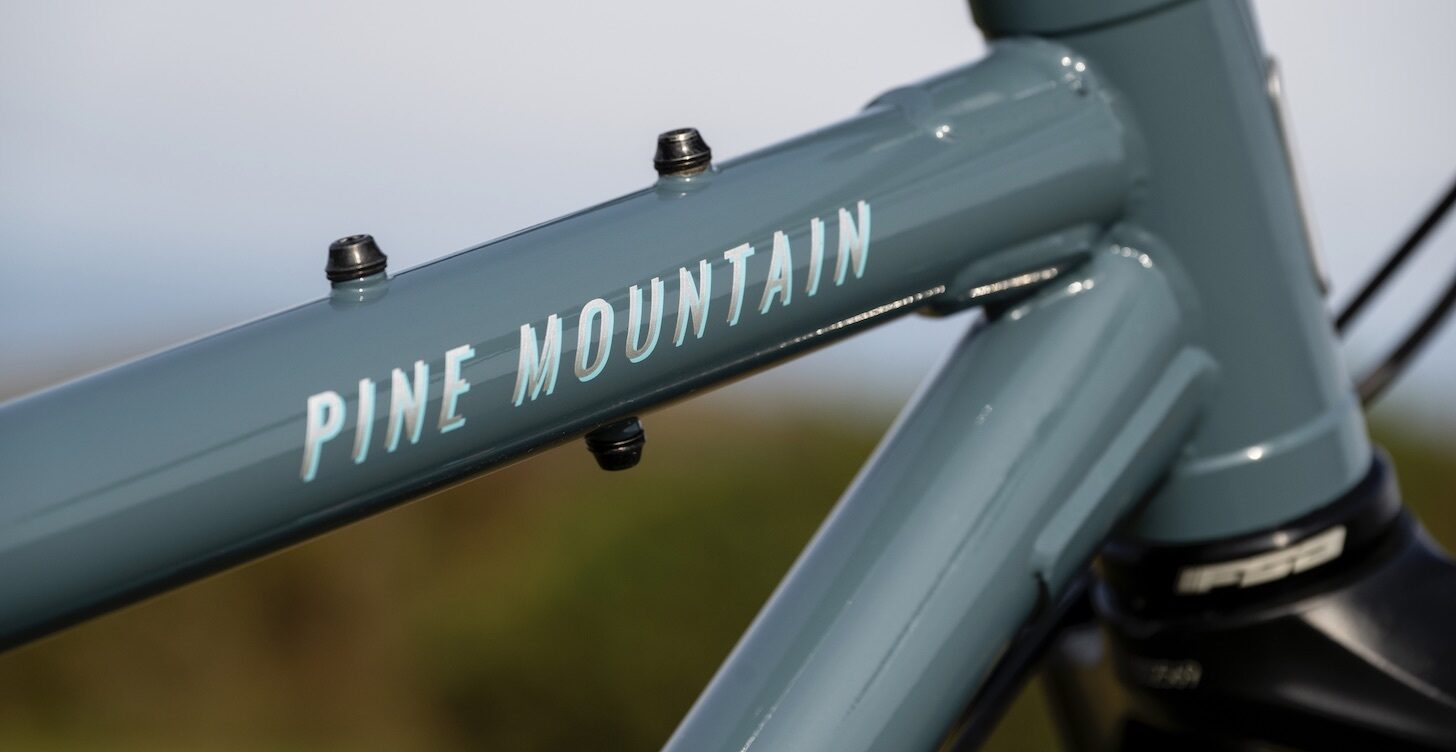

STEEL IS REAL The Pine Mountain 1 uses a butted and formed Series 2 4130 CrMo frame with Boost 141mm dropouts, full fender and rack mounts, and tons of bosses for a wide variety of gear mounting options. Step up to Series 3 tubing and cast thru-axle dropouts with the Pine Mountain 2. Both Pine Mountain models feature internal dropper post routing.

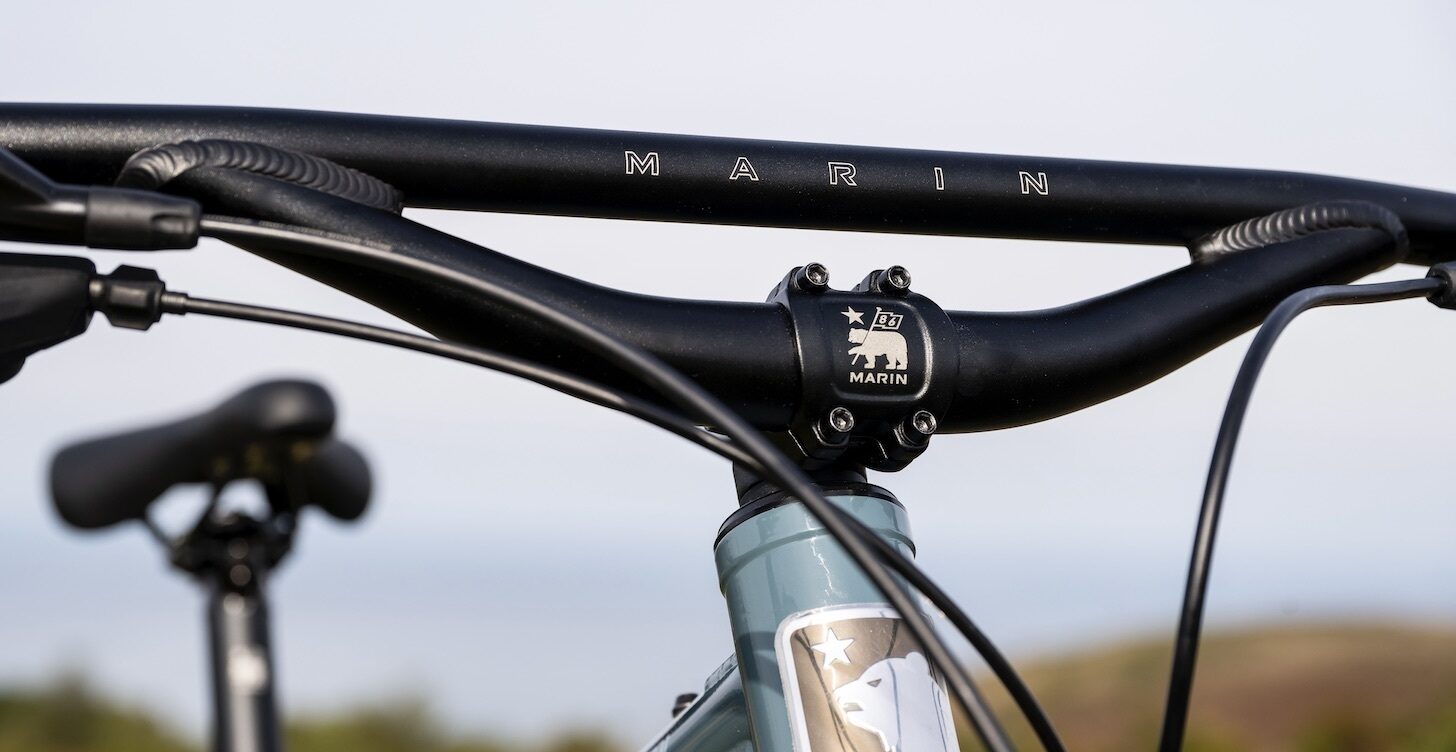

BIKEPACKING ABILITIES The Pine Mountain features brazed-in cargo attachment points throughout the front triangle for carrying all of the water and gear one needs for a proper adventure. The Marin-designed Bedroll Bar features a 50mm rise and a long, straight top bar for cleanly mounting handlebar packs away from cables and controls, and also mounting, lights, phones, cycle computers, or whatever else catches your fancy.
TRAIL GEOMETRY The Pine Mountain Trail Geometry is a mix between agility for trail riding, and all day comfort for bikepacking. Short chainstays keep a shorter wheelbase for that active ride, while a 66.5 degree head angle makes for confident steering with or without the weight of gear.
TUBELESS READY 29” Tubeless-ready 32mm internal dimension rims and 2.6” tires give the Pine Mountain a comfortable ride with huge traction and ability to roll up and over large obstacles, while still being light enough to pedal and fast enough to rip singletrack.
FRAME: Series 2 Double Butted CrMo, 29" Wheels, Boost 141x9mm Open Dropout, 73mm Threaded BB, Plentiful Gear Mounts
FRONT SUSPENSION: RockShox Recon RL, 120mm Travel, Compression and Rebound Adjustment, Alloy Tapered Steerer, Solo Air Spring, 110x15mm Boost Spacing, Maxle Stealth, 51mm Offset
