BIG ALL-MOUNTAIN DAYS WHERE TRAVEL AND GEOMETRY MATTER MOST
BUILT FOR ABUSE AND ROWDY RIDING
ENDURO-STYLE RIDING AND RACING
BIG BIKE, BIG WHEELS, BIG FUN

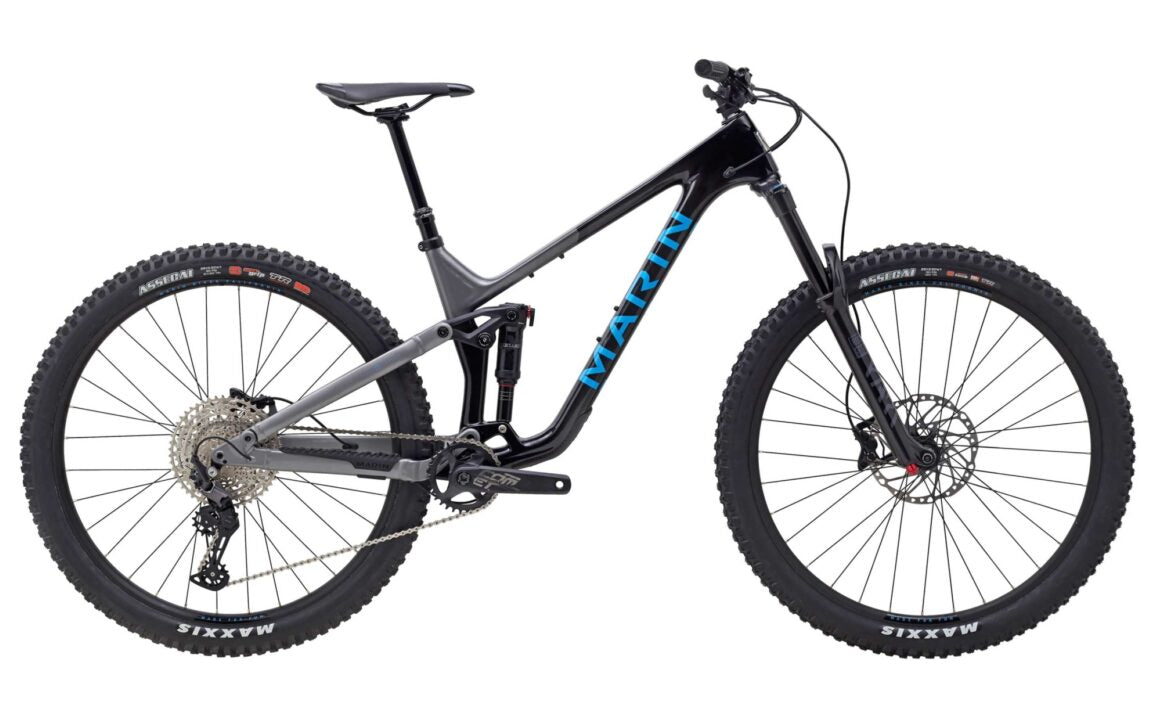

The Alpine Trail is a 29” wheeled full suspension bike built for the all day enduro rider that earns their downhill fun.
Key upgrade from Alpine Trail XR:
All-new unidirectional carbon fiber front triangle
TECHNOLOGY:
UNIDIRECTIONAL CARBON FIBER FRAME Alpine Trail Carbon 1 and 2 models feature high modulus carbon fiber and monocoque construction to deliver the strongest and stiffest Alpine Trail to date.
SERIES 4 ALUMINUM FRAME Alpine Trail models feature Series 4 aluminum frames, with detailed forgings, highly manipulated tubes, and full internal cable routing, giving the rider the highest-end alloy frame that Marin offers.
ONE PIECE FORGED ROCKER The heart of the Alpine Trail’s MultiTrac suspension is the forged one-piece rocker link. The strength and stiffness of the rocker keeps the rear of the bike tracking straight, providing smooth suspension operation under the most demanding conditions.
BRIDGELESS SEATSTAY The stiffness of the one-piece rocker link allows for a bridgeless seatstay design, offering zero compromises on stiffness while at the same time allowing for maximum tire clearance and short chainstays.
MODERN ANGLES The Alpine Trail has a slack 63.5º head tube angle paired with a steep 78º seat tube angle and long reach to provide the best modern trail bike experience. The bike lets you climb better than ever before, while giving you even more confidence when descending.
keyboard_arrow_right
Specifications
FRAME: Unidirectional Carbon Fiber Front Triangle, Series 4 Alloy Rear End, 29” Wheels, 150mm Travel MultiTrac Suspension Platform, Internal Dropper Post and Rear Derailleur Housing, Chainstay Mounted Post Mount Disc Brake, 148x12mm Boost Thru- Axle, 73mm Threaded BB w/ ISCG05 Tabs
FORK: RockShox Yari RC, 29”, 160mm of Travel, Air Sprung, Debonair, Rebound and Compression Adjust, Fast Black Stanchions, 110x15mm Maxle Stealth, 42mm Offset
REAR SHOCK: Rock Shox Deluxe Select + RT, Debonair Air Spring, 2 Position Compression Adjustment, Rebound Adjustment, 205x65mm, Trunnion Upper Mount, M8x25mm Lower Mount
