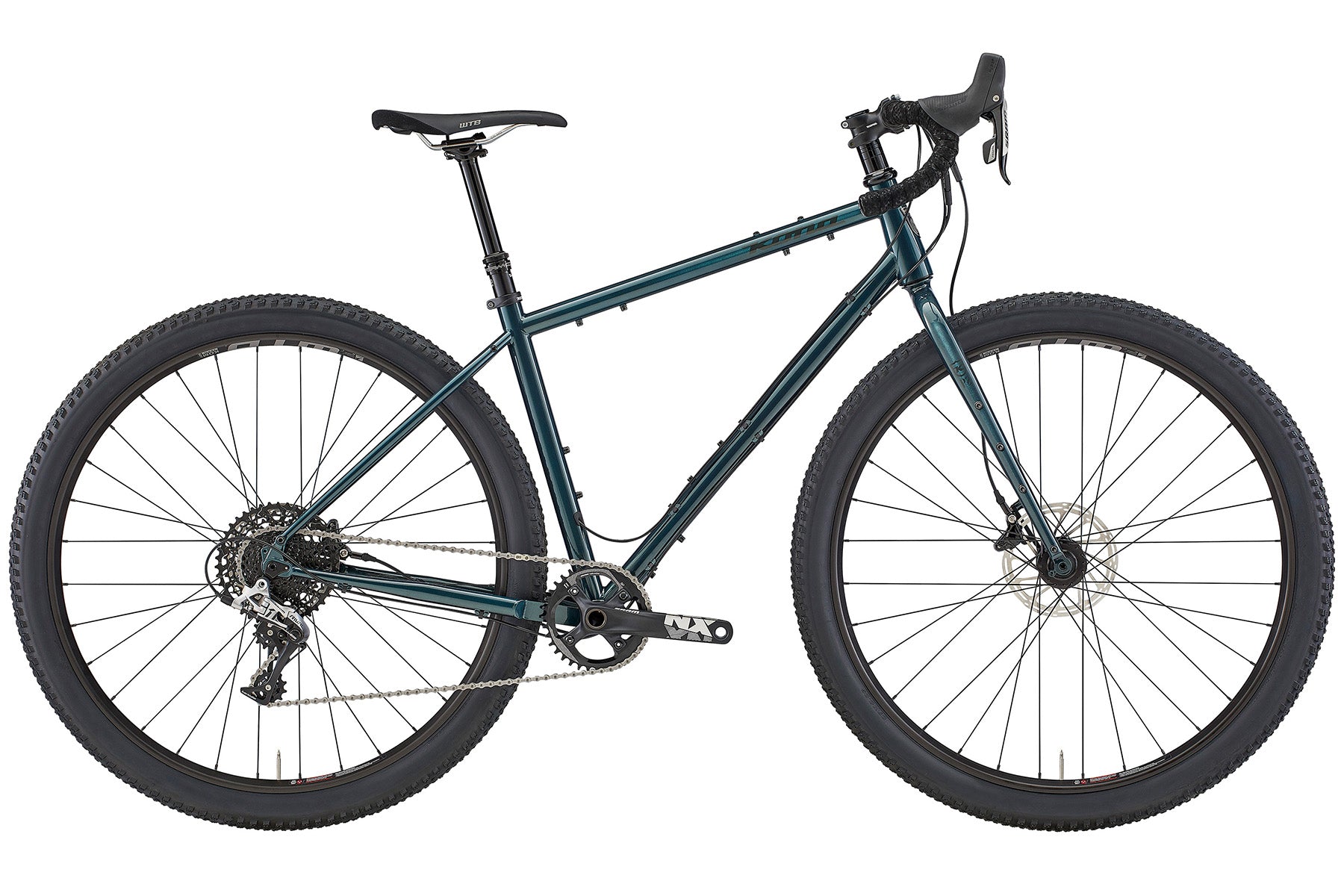

The Sutra LTD is one of those bikes that just changes everything. You thought you were a mountain biker, but you find yourself sneaking off on adventures and enjoying the drop bars on the LTD. You thought you were a roadie but find yourself absolutely destroying singletrack when no one else is looking and suddenly it’s all you wanna do! That’s the best part about the Sutra LTD—it broke the mold of what a bike has to be. It’s got bigger tires, burlier construction, and enough mounts to hold a horse. But who needs a horse when this is your horse?
KONA CROMOLY Very few materials offer as much shock absorption, durability and supple-ride characteristics as steel. We’ve never strayed from cycling’s original material and have worked tirelessly to adapt, refine and innovate Kona Cromoly framesets as rider demands continue to evolve.
TAPERED HEAD TUBE More girth at the bottom of the head tube better distributes shock force, prolonging the bearing life of the headset itself and eliminating brake shudder, while providing confident steering performance. The inherent strength of its triangular design also means a stronger steering position and improved balance, giving the rider more control in rough terrain. A zero-stack, tapered head tube also puts strength where the load is going—into the lower headset cup—maximizing bearing durability where it’s needed.
TUBELESS COMPATIBLE RIMS Tubeless rims allow for tires with more puncture resistance; the ability to run lower tire pressure, which provides better tire grip on the trail; lower rolling resistance; and weight savings over traditional tube and tire systems.
12x142mm AXLE 12x142mm, 12x148 and 12x157 rear axle standards provide two major advantages to the Kona rider: the 12mm diameter of the rear axle provides the rear hub and frame with a stiff interface, while the 142/148/157mm outer diameter of the hub allows the wheel to be quickly and properly positioned in the frame before the rear axle is inserted. For 2017, you’ll see the 12x148 Boost standard in the mix. Boost spacing provides more tire clearance at the chainstay yoke, while the rear wheel is stiffer and more durable relative to a 12x142 thru-axle.
FRAME MATERIAL Kona Cromoly Butted
SIZES 48, 50, 52, 54, 56, 58
REAR SHOCK n/a
FORK Kona Project Two Cromoly Disc Touring fork
CRANKARMS SRAM NX
CHAINRINGS 36t X-Sync
B/B SRAM GXP 73mm
CHAIN SRAM PC1110
FREEWHEEL SRAM PG1130 11-42t 11spd
R/D SRAM Rival 1
SHIFTERS SRAM Rival 1 w/ Integrated Dropper Lever

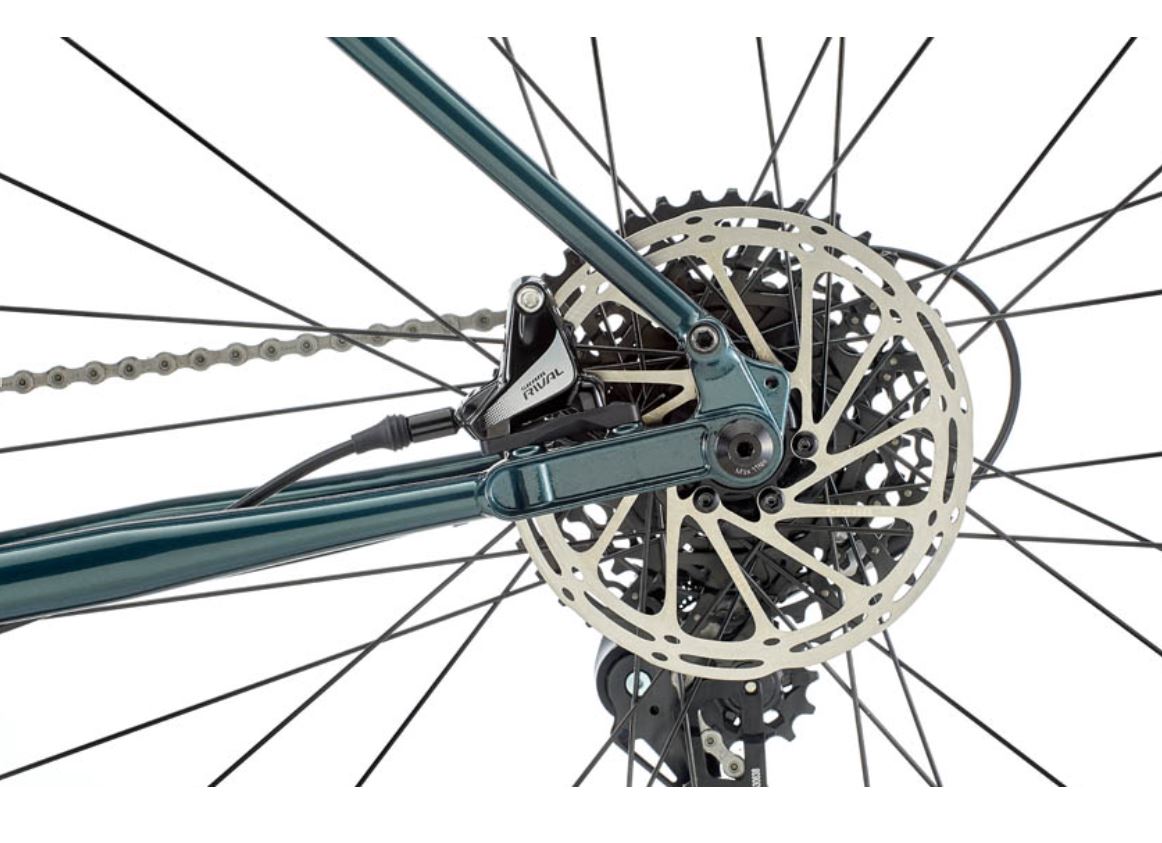

BRAKE CALIPERS SRAM Rival 1 Flat mount
FRONT BRAKE ROTOR SRAM Centerline 180mm
REAR BRAKE ROTOR SRAM Centerline 180mm
BRAKE LEVERS SRAM Rival 1
HEADSET FSA No.1/No.10
HANDLEBAR Kona Road
STEM Kona Road Deluxe
SEATPOST TranzX Dropper +RAD Internal 31.6mm
SEAT CLAMP Kona Clamp
GRIPS Kona Cork Tape
SADDLE WTB Volt
FRONT HUB Formula 100x12mm
REAR HUB Formula 142x12mm
SPOKES Stainless Black 14g
RIMS WTB KOM Team i27 TCS 2.0
FRONT TIRE Maxxis Recon Race EXO TR 29x2.25"
REAR TIRE Maxxis Recon Race EXO TR 29x2.25"
PAINT COLOR Gloss Metallic Dragonfly w/ Charcoal & Nimbus Decals
