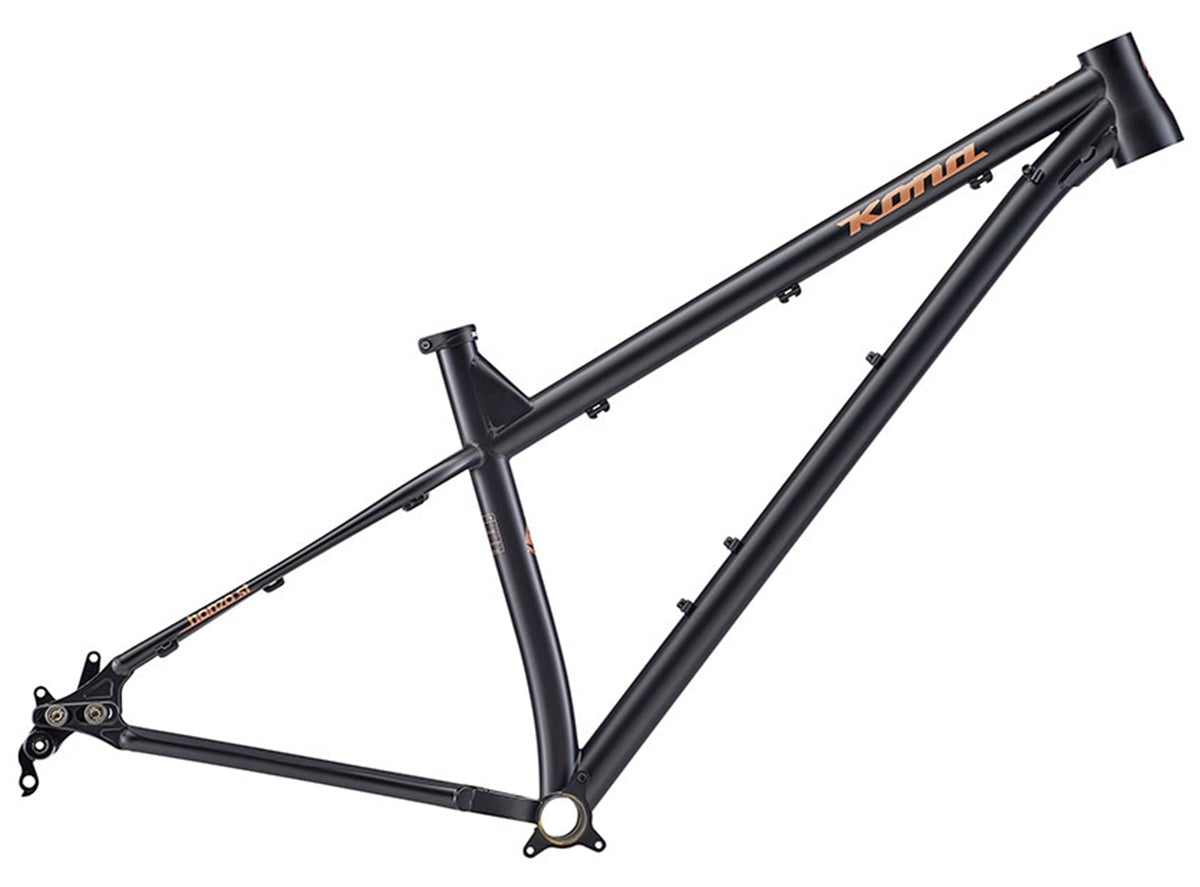

Kona Honzo ST Hardtail Frame - Satin Black - 2022

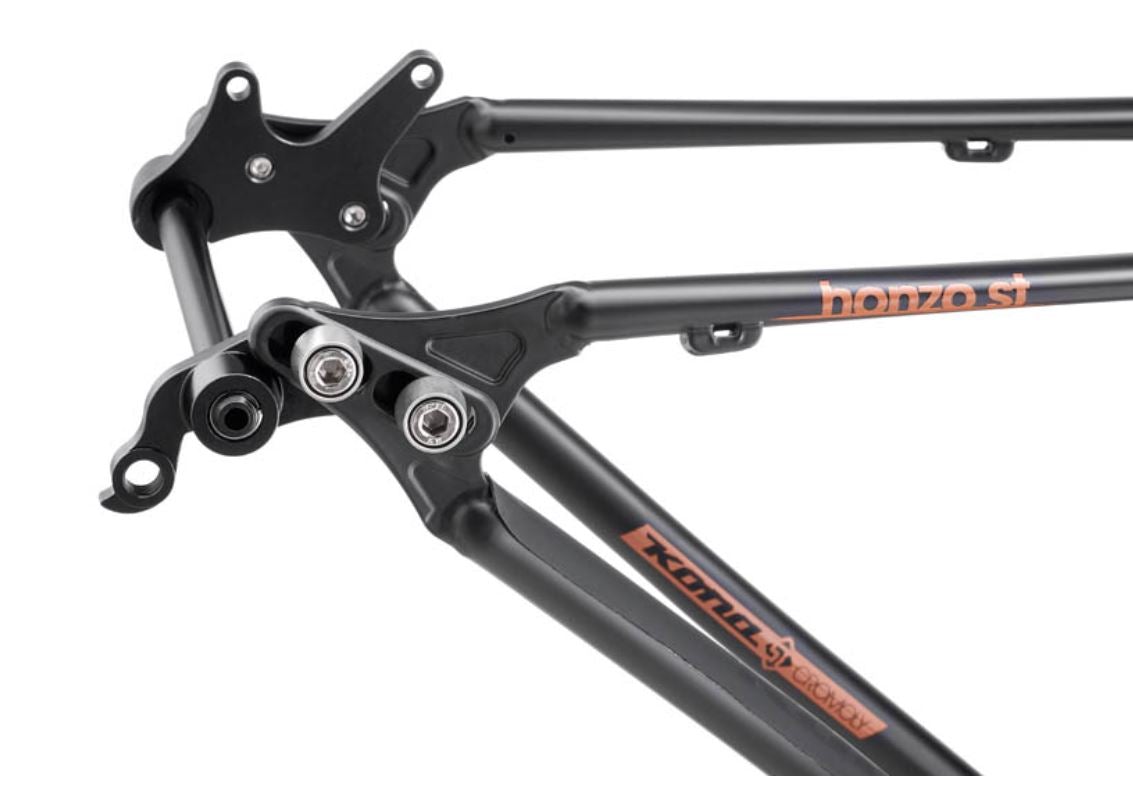

The cult favorite continues. The Honzo ST frame is the bike you’ll find under a messenger, under that old-school soul ripper, or under the rider who really wants to build something beautiful and custom. A 66-degree headtube is ideal for all kinds of tricky, steep terrain, and the short seat tube allows for longer dropper posts. As always, the Honzo ST frame features adjustable dropouts so you can run your favorite drivetrain without any issues.


KONA CROMOLY
Very few materials offer as much shock absorption, durability and supple-ride characteristics as steel. We’ve never strayed from cycling’s original material and have worked tirelessly to adapt, refine and innovate Kona Cromoly framesets as rider demands continue to evolve.

INTERNAL HEADSET
Bearing cups are actually pressed into the frame and are easily removable. An internal headset also reduces stack height, so the height of the stem and bars are more adjustable, giving the rider the best fit possible.

TAPERED HEAD TUBE
More girth at the bottom of the head tube better distributes shock force, prolonging the bearing life of the headset itself and eliminating brake shudder, while providing confident steering performance. The inherent strength of its triangular design also means a stronger steering position and improved balance, giving the rider more control in rough terrain. A zero-stack, tapered head tube also puts strength where the load is going—into the lower headset cup—maximizing bearing durability where it’s needed.

12x148mm AXLE
12x142mm, 12x148 and 12x157 rear axle standards provide two major advantages to the Kona rider: the 12mm diameter of the rear axle provides the rear hub and frame with a stiff interface, while the 142/148/157mm outer diameter of the hub allows the wheel to be quickly and properly positioned in the frame before the rear axle is inserted. For 2017, you’ll see the 12x148 Boost standard in the mix. Boost spacing provides more tire clearance at the chainstay yoke, while the rear wheel is stiffer and more durable relative to a 12x142 thru-axle.

GEOMETRYmminches

SIZE S M L XL
1 ST LENGTH 385 410 450 485
2 TT LENGTH 582 609 637 674
3 REACH 425 450 475 510
4 STACK 630 639 648 657
5 STANDOVER 713 711 710 708
6 HT ANGLE 66 66 66 66
7 HT LENGTH 90 100 110 120
8 ST ANGLE 76 76 76 76
9 CS LENGTH 417 417 417 417
10 BB DROP 62.5 62.5 62.5 62.5
11 BB HEIGHT 310 310 310 310
12 WHEELBASE 1146 1175 1204 1243
13 FRONT CENTER 736 765 794 833
14 FORK LENGTH 551 551 551 551
15 FORK OFFSET 51 51 51 51
