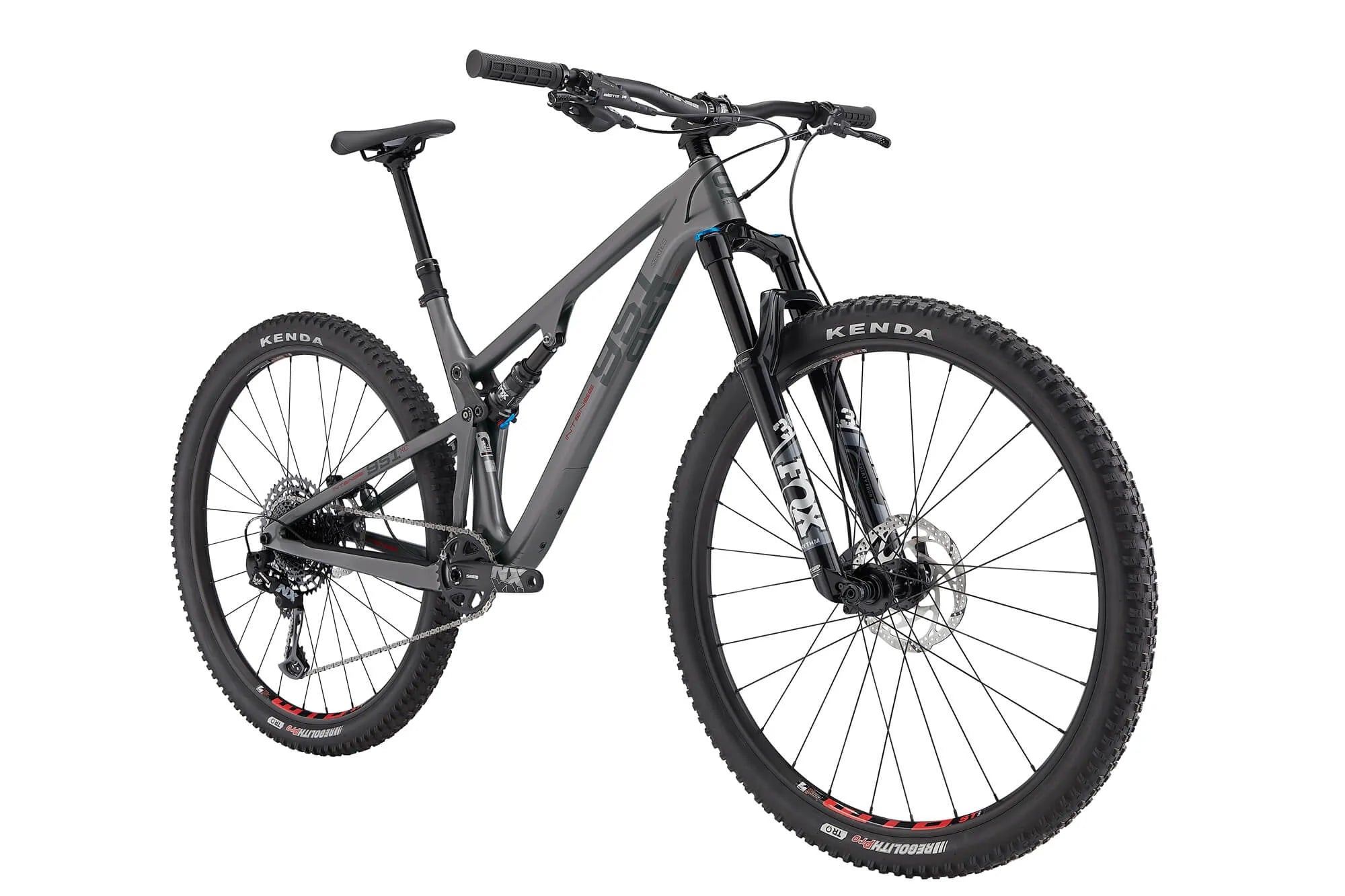

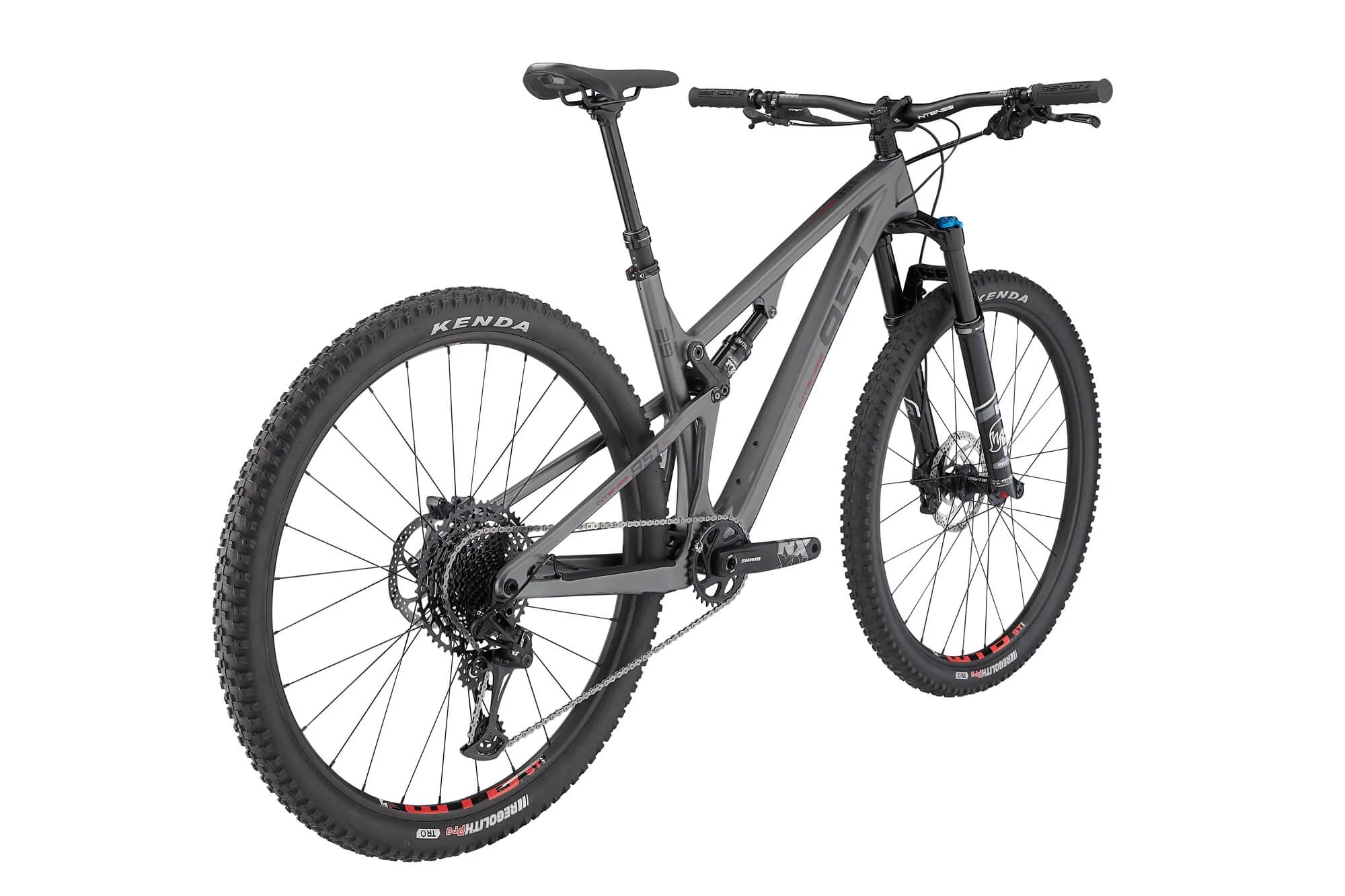

Intense 951 Series XC 29 - El Cap Slate Gray - 2022

WHETHER YOU WANT TO GO ON A QUICK LOOP OF YOUR LOCAL TRAILS OR AN EPIC ALL DAY ADVENTURE, THE 951 XC IS UP FOR IT. IT’S EVERYTHING YOU COULD WANT IN A MODERN DAY CROSS-COUNTRY BIKE.

QUICK STANDOUTS

• TRAVEL (FRONT/REAR): 120mm/120mm
• WHEEL SIZE: 29"
• TOTAL WEIGHT: 28 lbs 4oz Size Medium (With Tubes)
• ADJUSTABLE GEOMETRY: N/A
• HEADTUBE ANGLE: 66.4 °
• REACH: 409mm or 16.1" Small / 433mm or 17.1" Medium / 457mm or 18" Large / 479mm or 18.9" X-Large

CONFIDENCE THROUGH ANY TERRAIN
The core of our 951 Series calls upon our +25 years of knowledge and experience in designing new and ground-breaking products. Our continued world class development means that we create mountain bikes with confidence-inspiring handling and smooth riding characteristics all in an affordable package. Our high-quality foundational build kits give great functionality, and most importantly, great reliability for riders of all levels.

CARRY SPEED
The 951 XC was developed to carry speed with its lightweight full carbon frame rolling on 29" wheels. Whether you are climbing, descending or just cruising along the 951 XC does it all with efficient ease.

COMPONENTS THAT COMPLIMENT
The 951 XC comes standard with components that have been tested and vetted by our global team of ambassadors and athletes. From the Fox Performance level suspension to the 12-speed SRAM drivetrain, all components are backed by world class manufacturers.

• FRAME: INTENSE 951 XC 29” Carbon Fiber Front and Rear Triangle 120mm Travel.

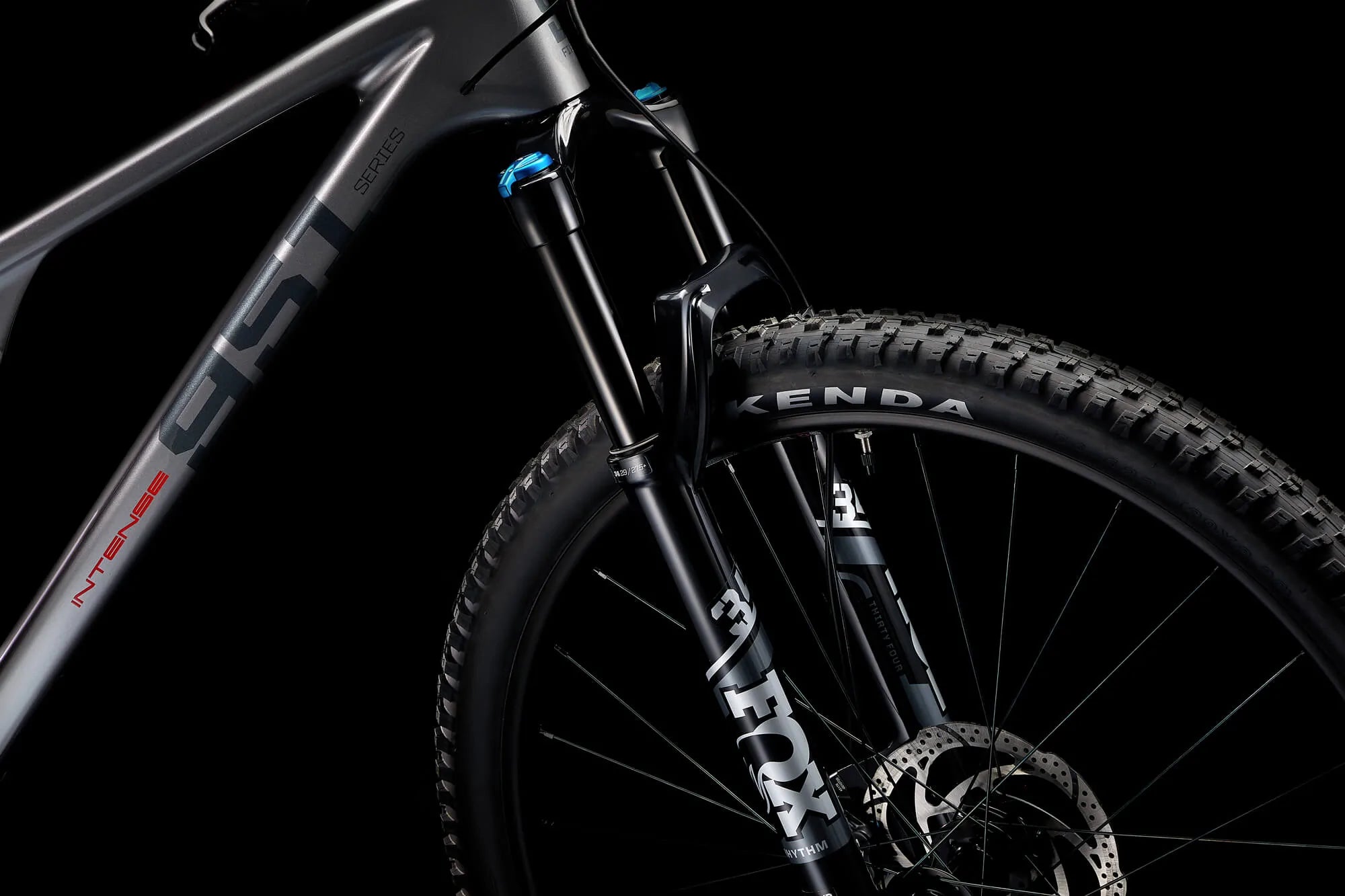

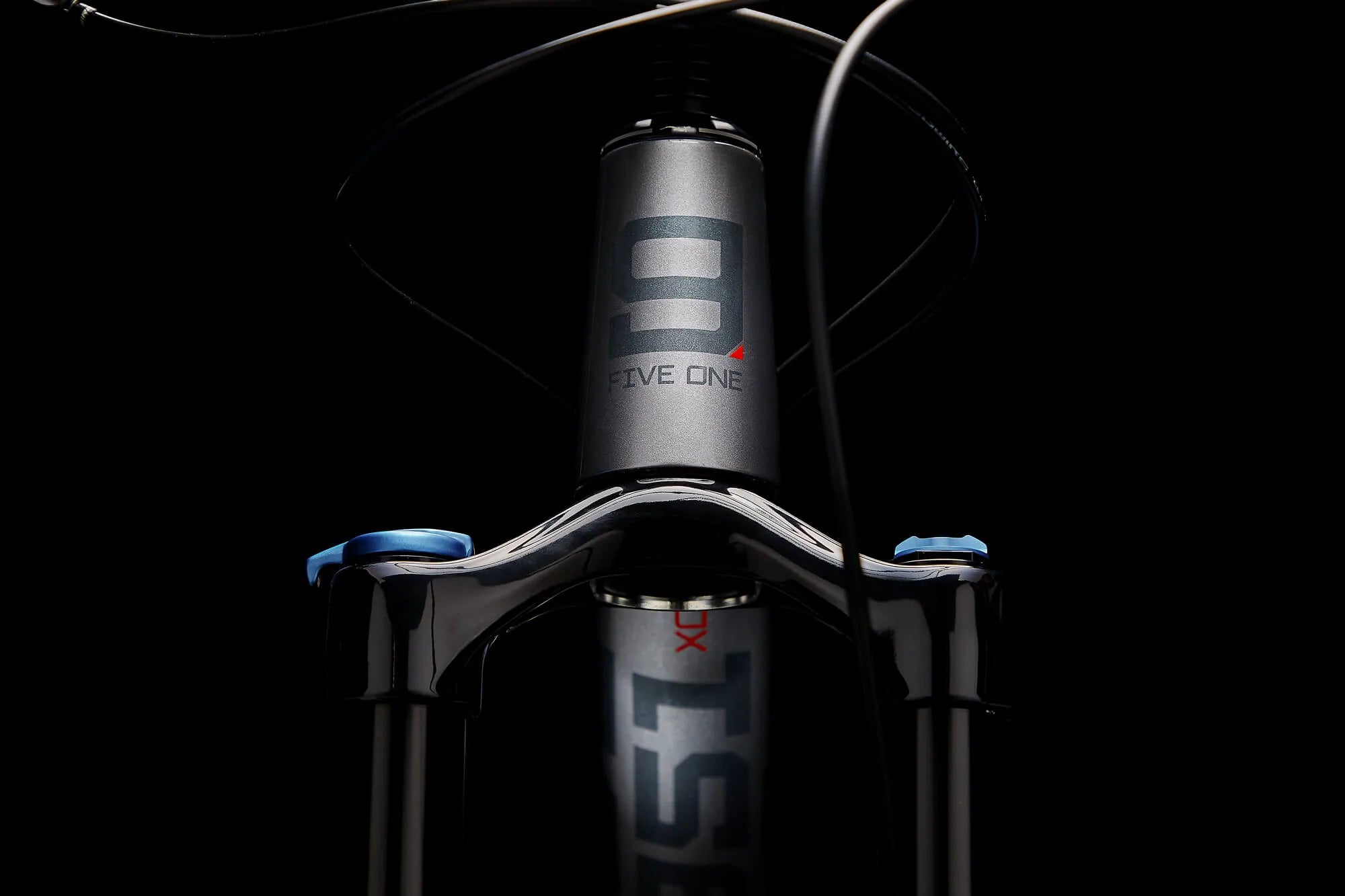

• FORK: FOX Rhythm 34 Float. 120mm Travel. Grip Damper - Sweep Adj

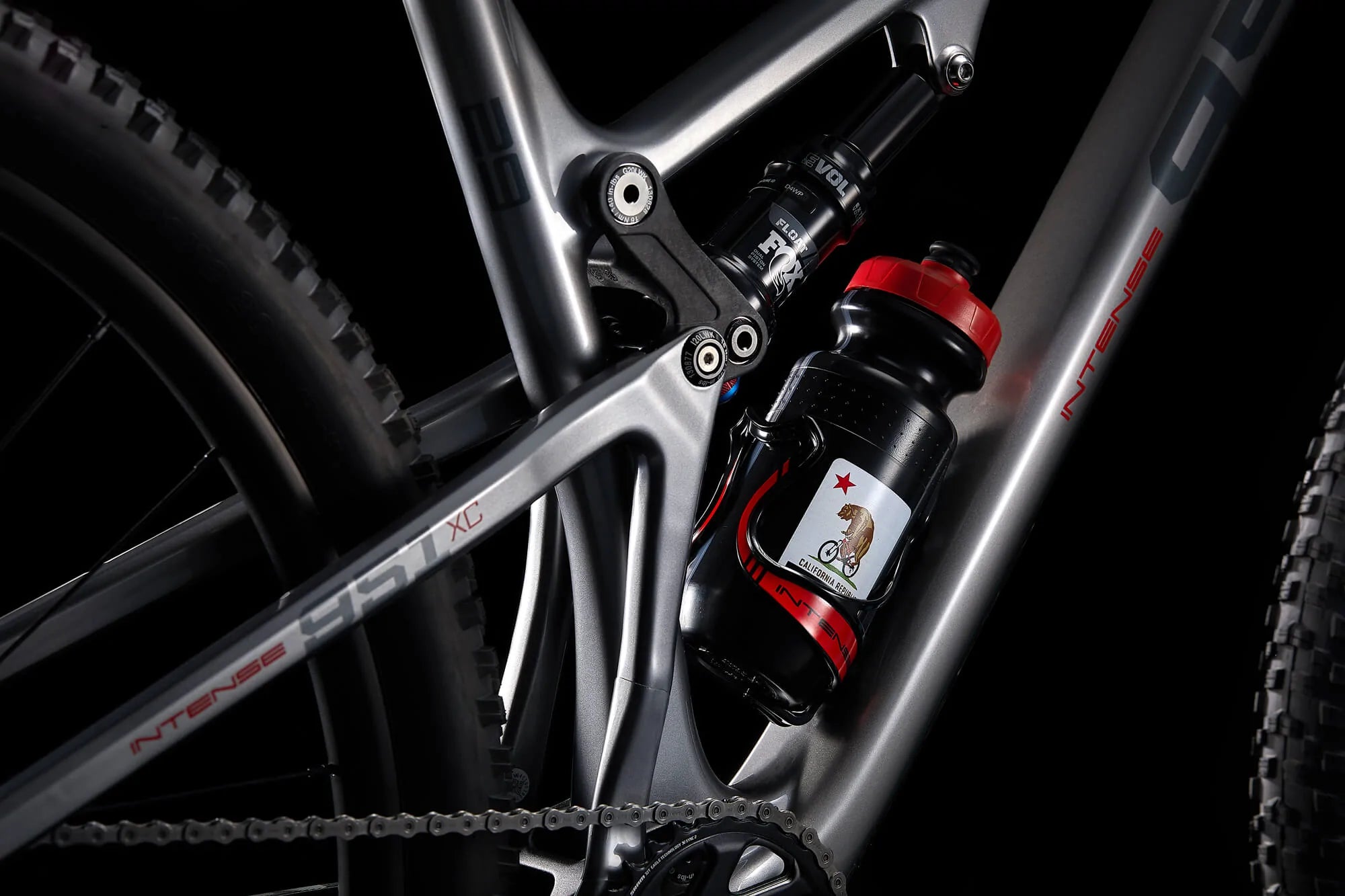

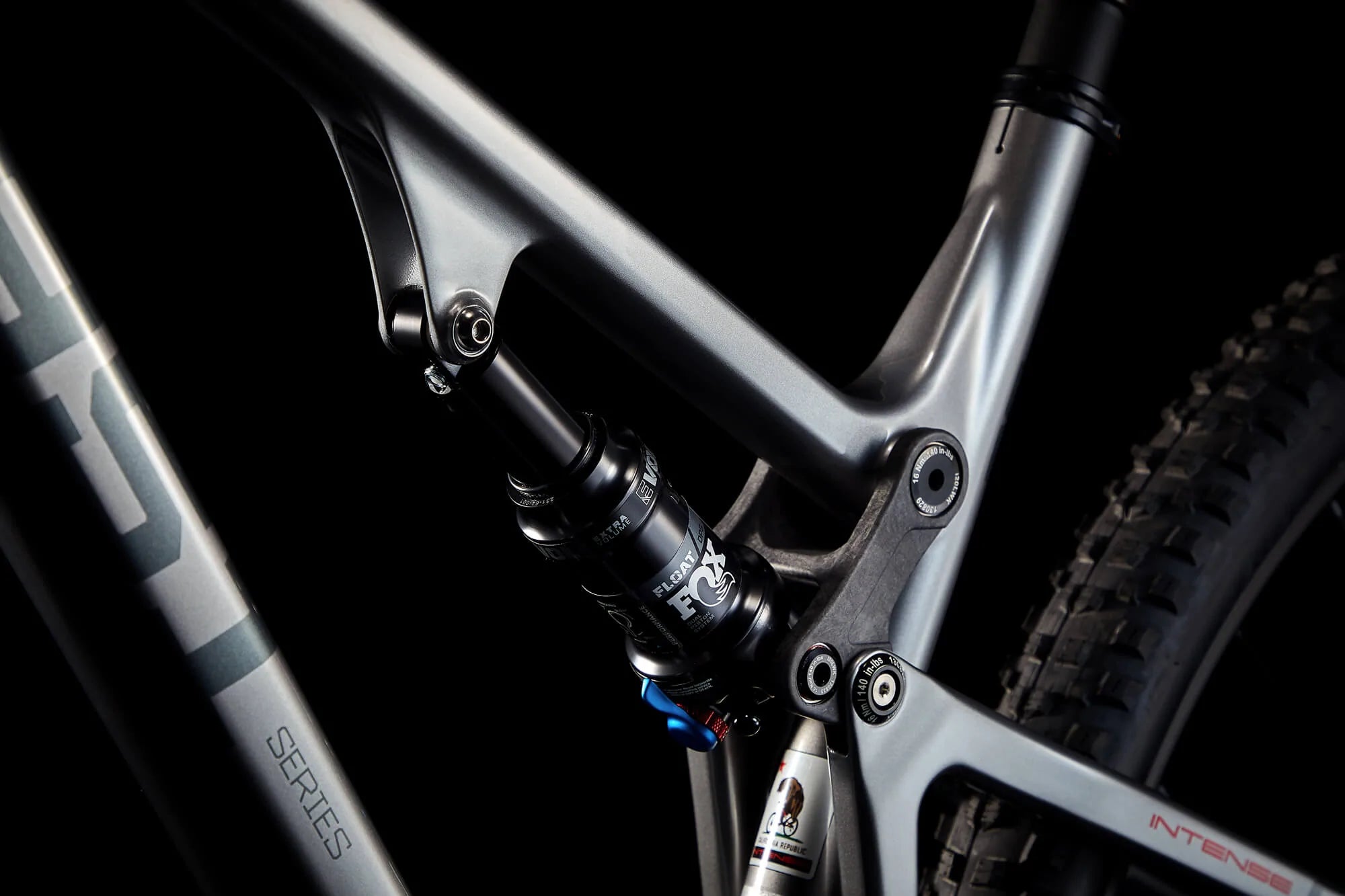

• REAR SHOCK: FOX Performance Float DPS. 3-position (Open, Trail, Lock-out)
• HEADSET: TANGE SEIKI Integrated IS41-IS52/40
• STEM: INTENSE Recon 45mm

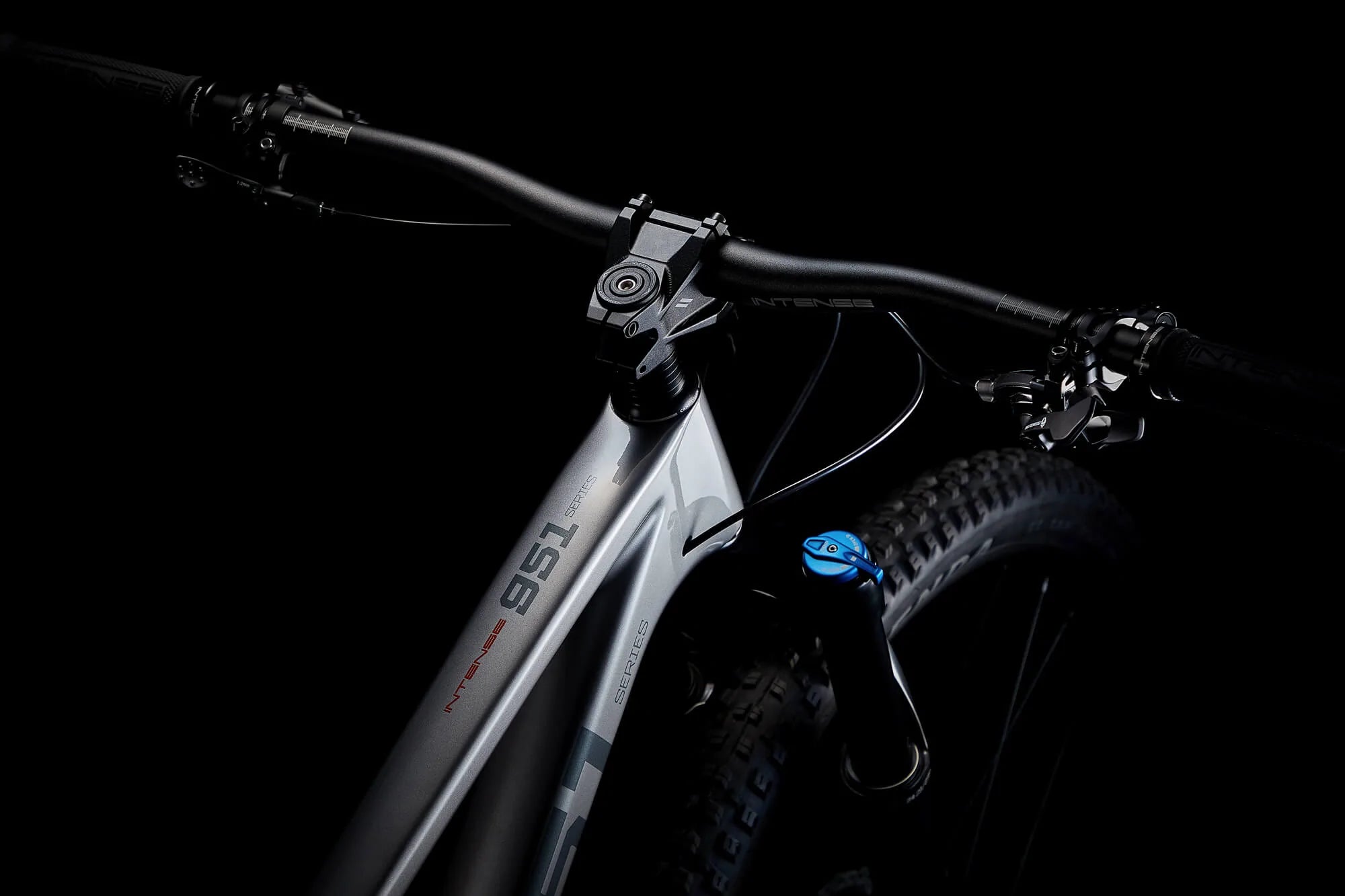

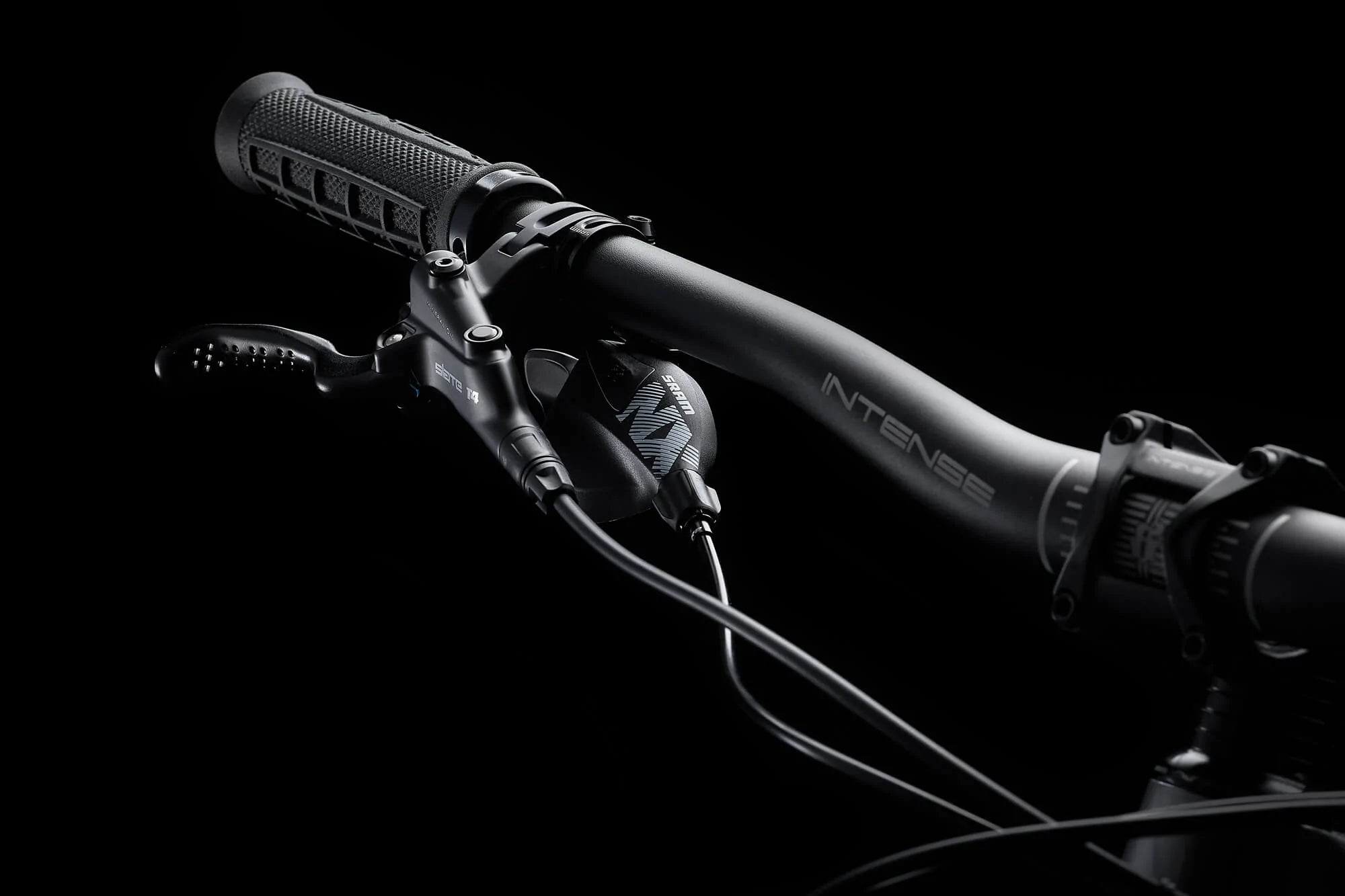

• HANDLEBARS: INTENSE Recon 760mm width

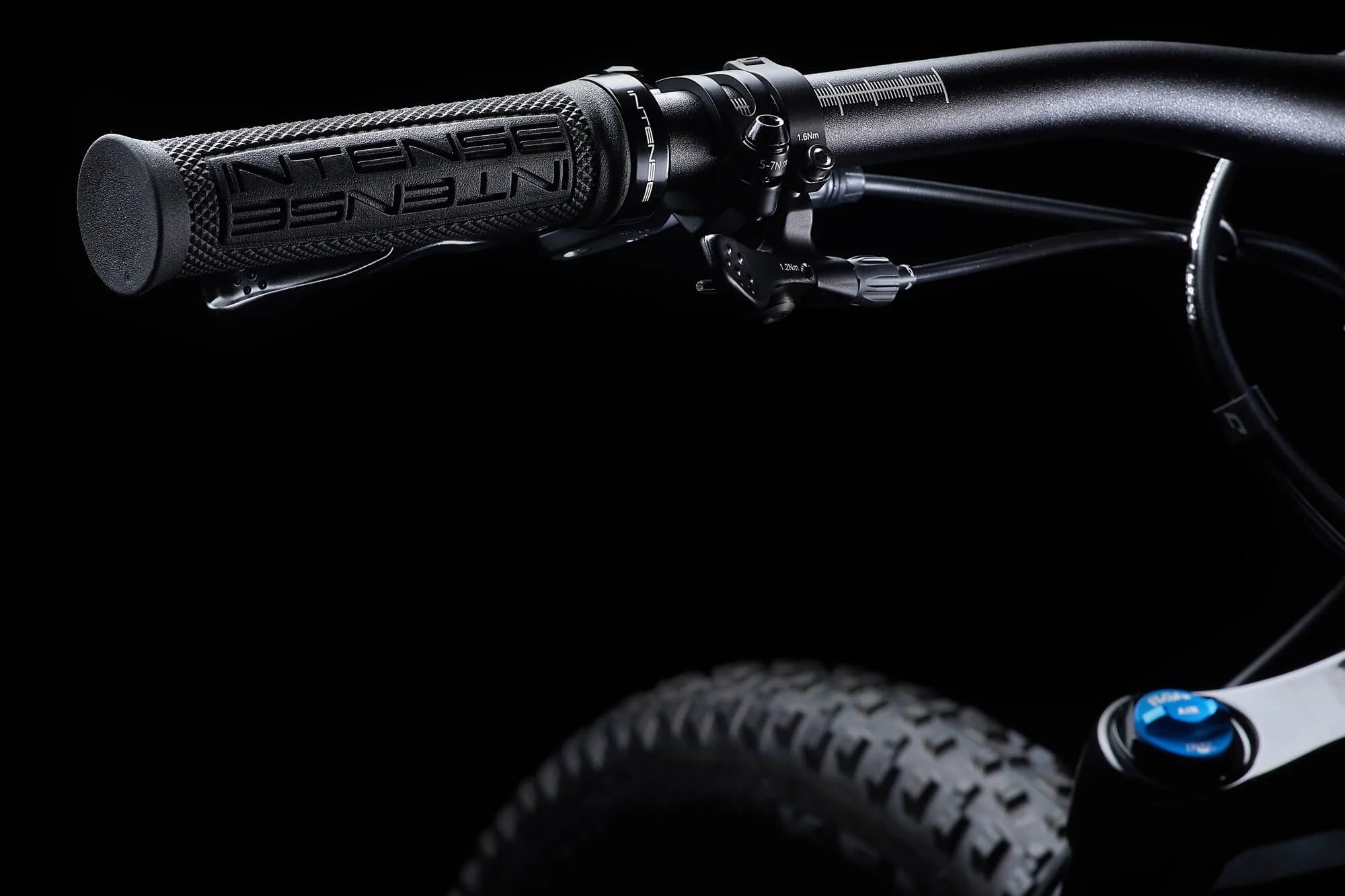

• GRIPS: INTENSE Lock-on

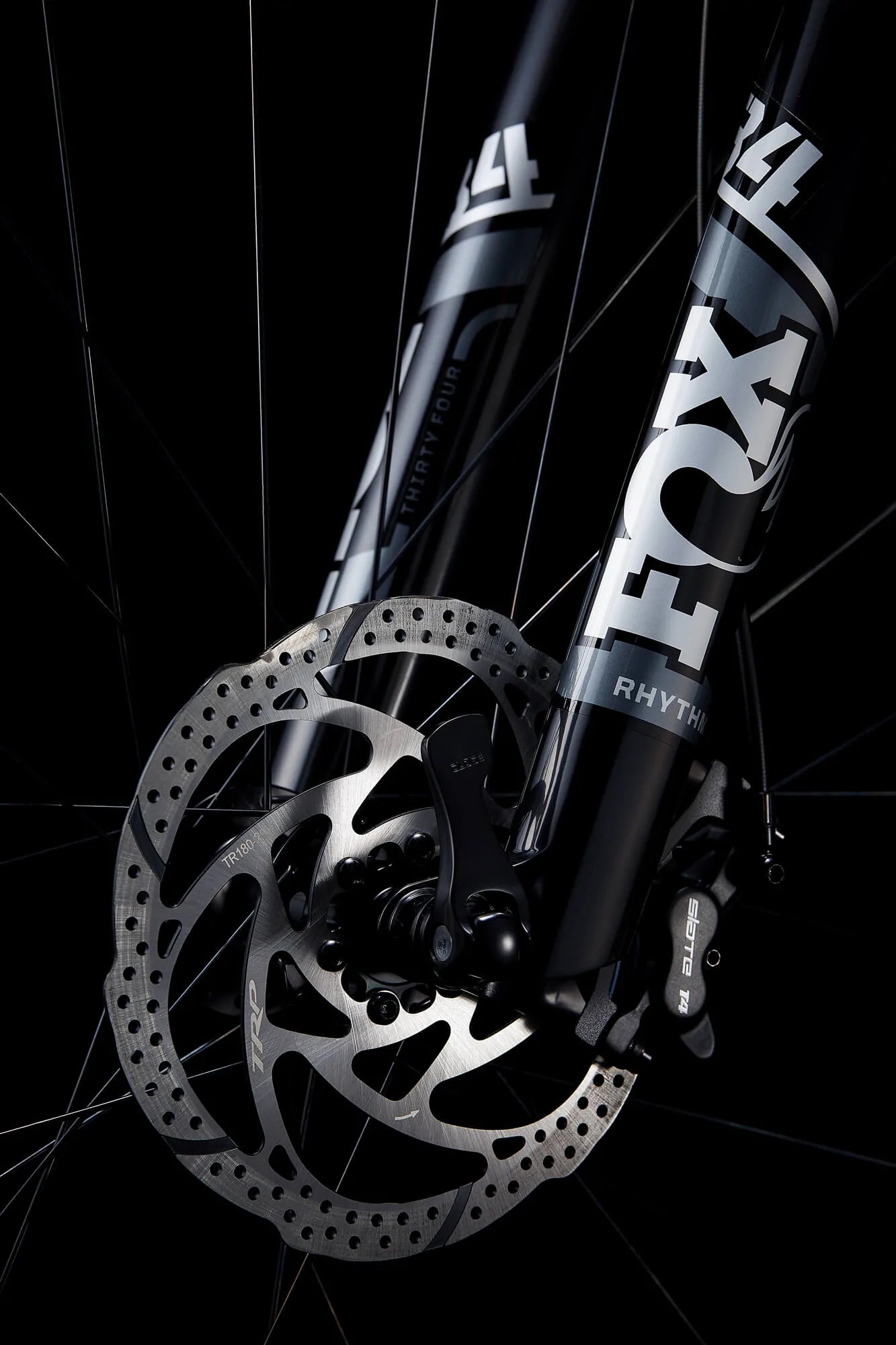

• BRAKES: TRP Slate T4 Calipers and Levers, Front and Rear
• ROTORS: TRP 180mm Front and 160mm Rear
• SHIFTER: SRAM NX Eagle 12sp

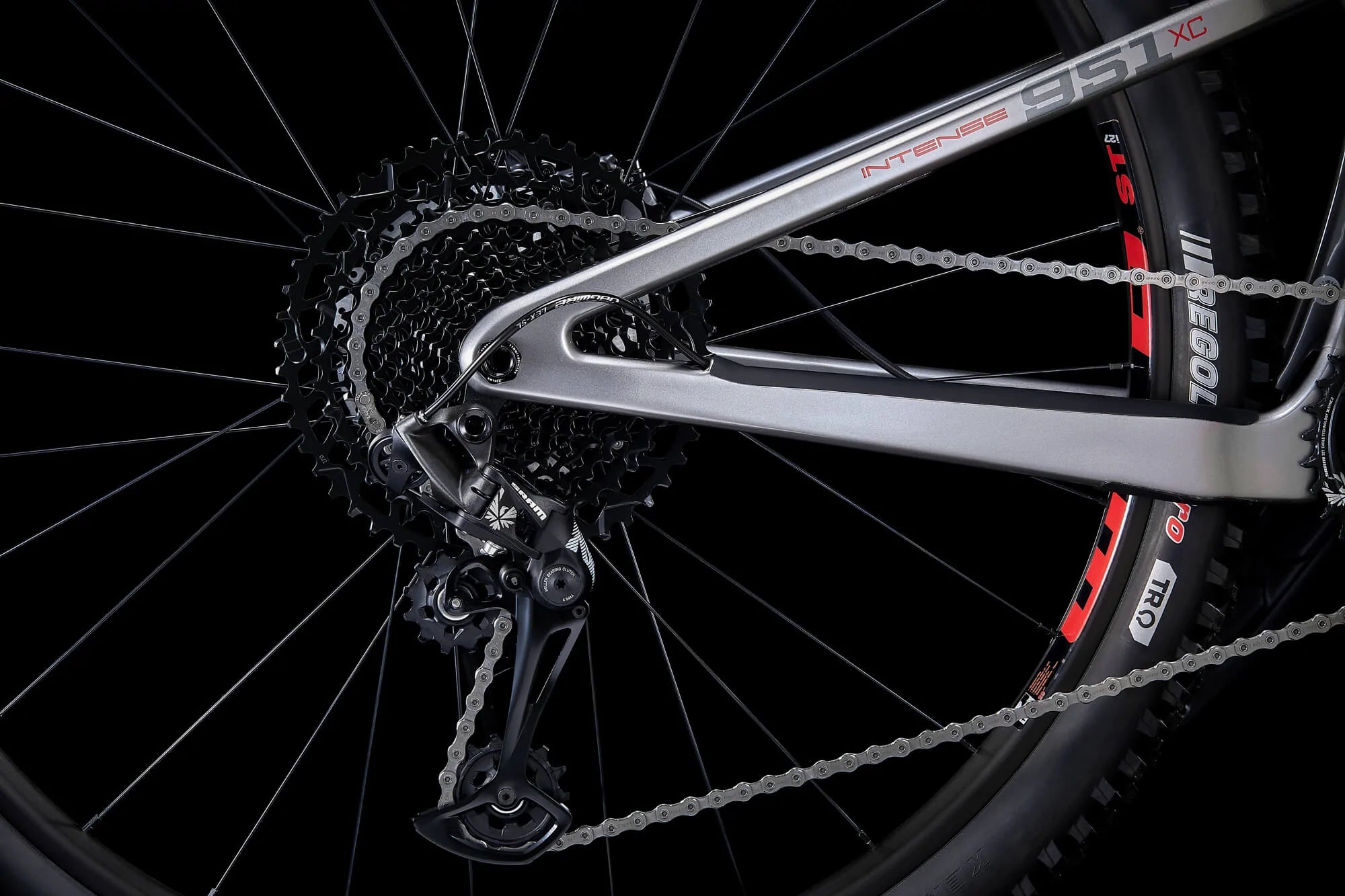

• DERAILLEUR: SRAM NX Eagle 12sp

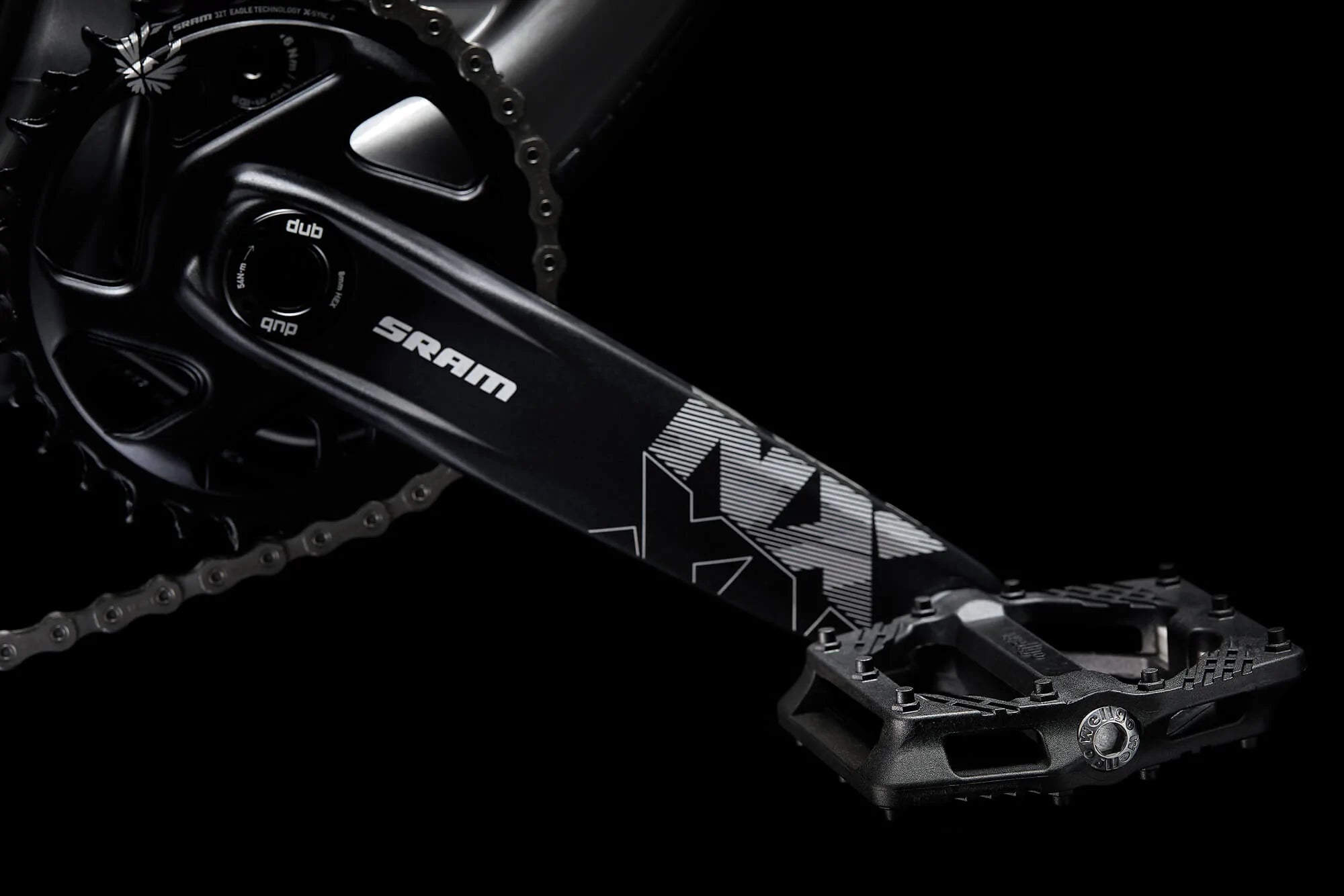

• CRANKS / CHAINRING: SRAM NX Eagle 32T 170mm. (S), 175mm. (M, L, XL)
• BOTTOM BRACKET: SRAM DUB
• CASSETTE: SRAM PG 1230 Eagle 12sp 11-50T
• CHAIN: SRAM NX Eagle 12sp
• HUBS: INTENSE Alloy
• SPOKES: DT
• WHEELS: 29” WTB ST i27 Aluminum (27mm internal width) w/INTENSE alloy hubs
• TIRES: KENDA Regolith 29"x2.20"

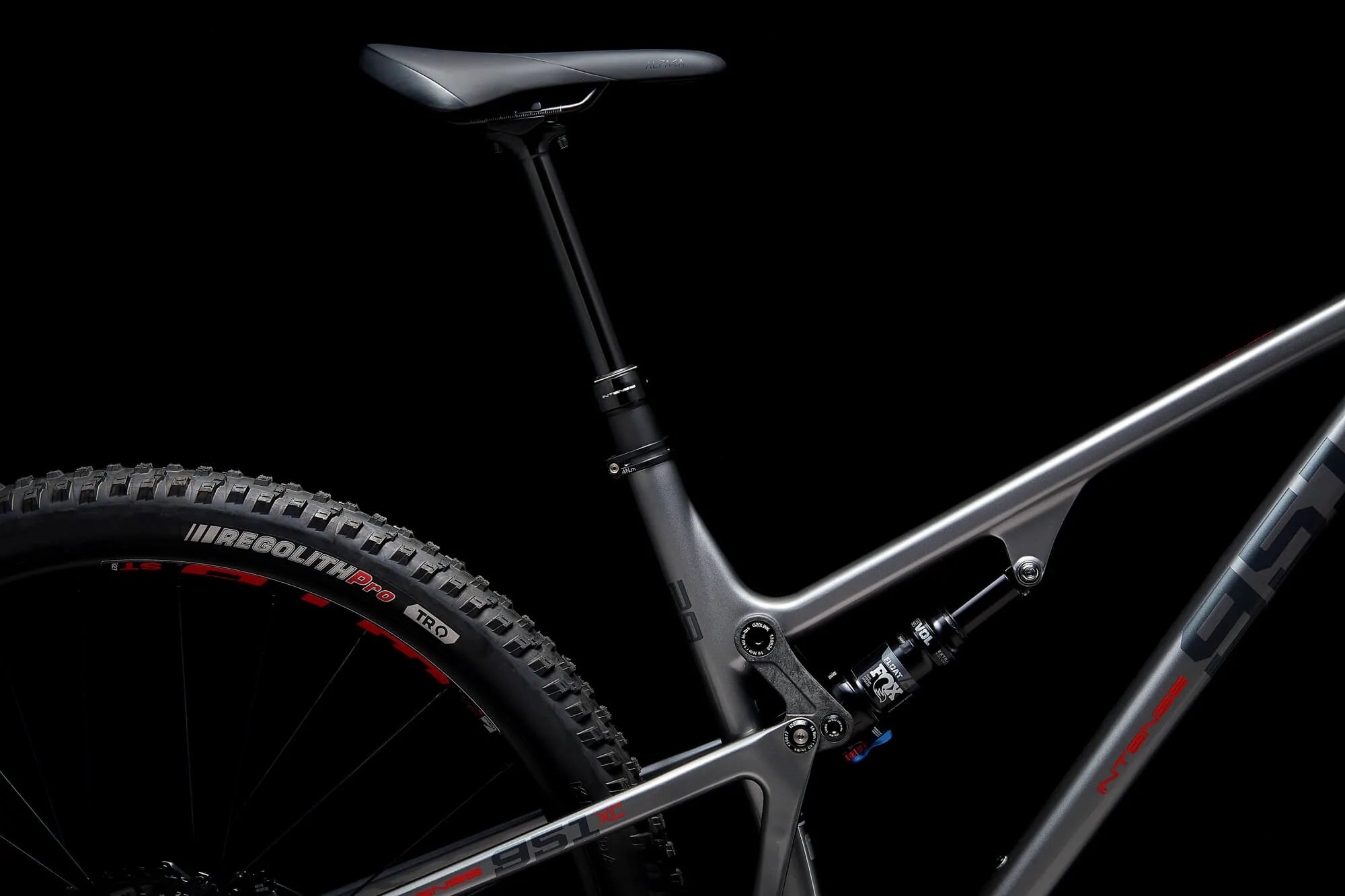

• SEATPOST: INTENSE Recon Dropper 125mm Travel (S), 150mm Travel (M,L), 170mm Travel (XL)
• SADDLE (SEAT): FIZIK Terra Alpaca X5, Alloy Rails

GEOMETRY

NOTE: GEOMETRY TAKEN AT TOP OUT WITH 527.1MM AXLE TO CROWN LENGTH, WITH 120MM TRAVEL FORK AND 51MM FORK OFFSET.

SIZE	Small	Medium	Large	X-Large
A: WHEELBASE	1143mm 45"	1169mm  46"	1196mm  47"	1222mm  48"
B: TOPTUBE LENGTH	589mm 23.2"	614mm  24.2"	640mm  25.2"	665mm  26.2"
C: CHAINSTAY LENGTH	439mm  17.3"	439mm  17.3"	439mm  17.3"	439mm  17.3"
D: HEADTUBE LENGTH	90mm  3.54"	95mm  3.7"	105mm  4.13"	115mm  4.5"
E: HEADTUBE ANGLE	66.4 °	66.4 °	66.4 °	66.4 °
F: REACH	409mm  16.1"	433mm  17.1"	457mm  18."	479mm  18.9"
G: STACK	578mm  22.8"	583mm  22.9"	593mm  23.3"	602mm  23.7"
H: BB HEIGHT	339mm  13.3"	339mm  13.3"	339mm  13.3"	339mm  13.3"
I: BB DROP	30mm  1.17"	30mm  1.17"	30mm  1.17"	30mm  1.17"
J: SEATTUBE ANGLE (EFFECTIVE)	72.8 °	72.8 °	72.8 °	72.8 °
K: SEATTUBE (ACTUAL)	68.3°	68.3°	68.3°	68.3°
L: SEATTUBE LENGTH (K)	406mm  16"	437mm  17.2"	488mm  19.2"	538mm  21.2"
M: STANDOVER HEIGHT	779mm  30.7"	782mm  30.8"	787mm  31"	792mm  31.2"
