Bombtrack Hook Frameset - Glossy Metallic Blue - 2021



"Based around a lightweight Columbus steel frame and full carbon fork it’s got the performance edge for fast gravel paths."

A capable steel frame and light carbon fork render the Hook fast and versatile. Letting you keep the tempo high on gravel or unpaved roads, it can be loaded up in an infinite number of ways. Dotted with fixing points, including direct mounts for a top tube bag, triple cage mounts, plus rack and fender mounts, it’s happy to carry whatever you need. Alternatively, leave it stripped-back and free to fly.

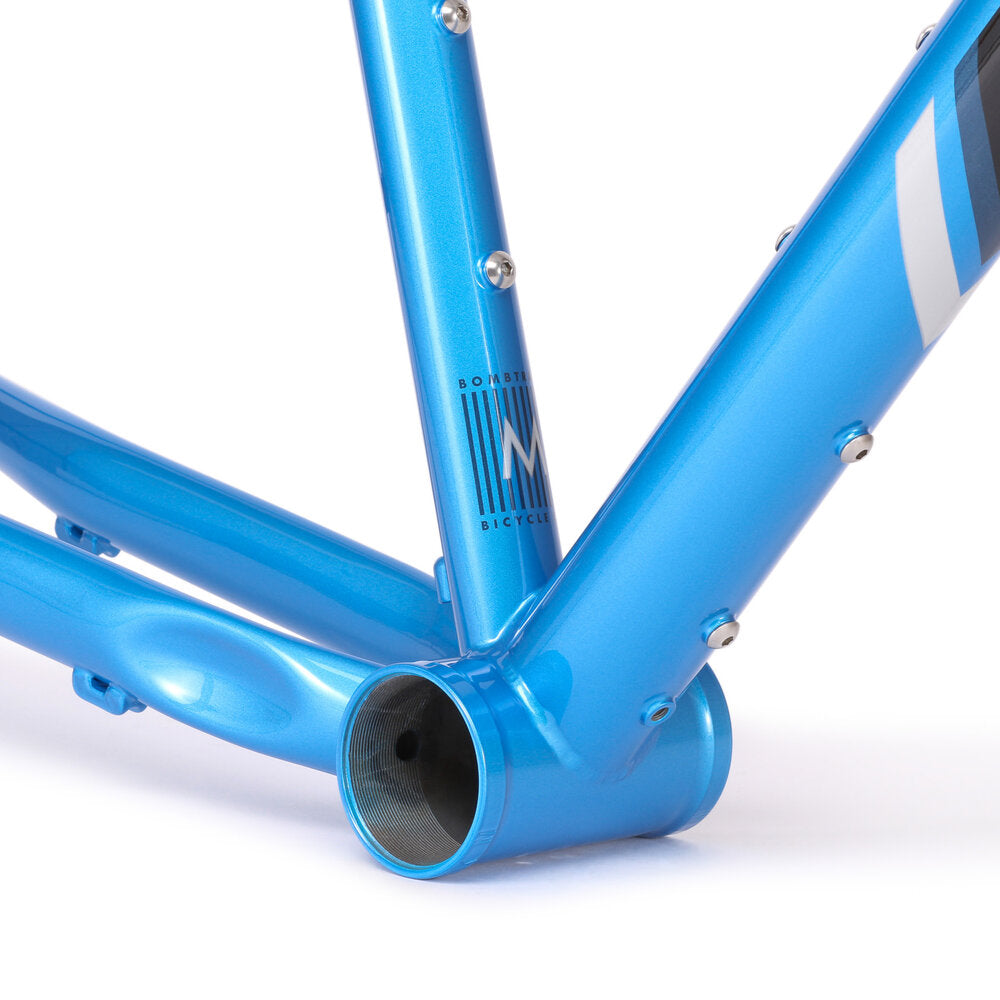

  • Columbus Cromor double butted frame with 86.5 mm wide T47 bottom bracket to increase tire clearance.
  • Size XS and S will come with 650B adjusted geometry to ensure proper fit without any compromises in geometry.
  • Full carbon tapered fork with triple cage mounts.
  • Top tube bag direct mounts, triple cage mount on downtube and seattube for optimized bottle position, bottle cage mounts underneath the downtube and rear rack mounts.
  • Front derailleur compatible.
  • 12 mm through axles front and rear.

Listing Shows Seat-Tube Length in cms please order as necessary...

keyboard_arrow_right Features

  • BB Standard T47 - 86.5 mm shell width

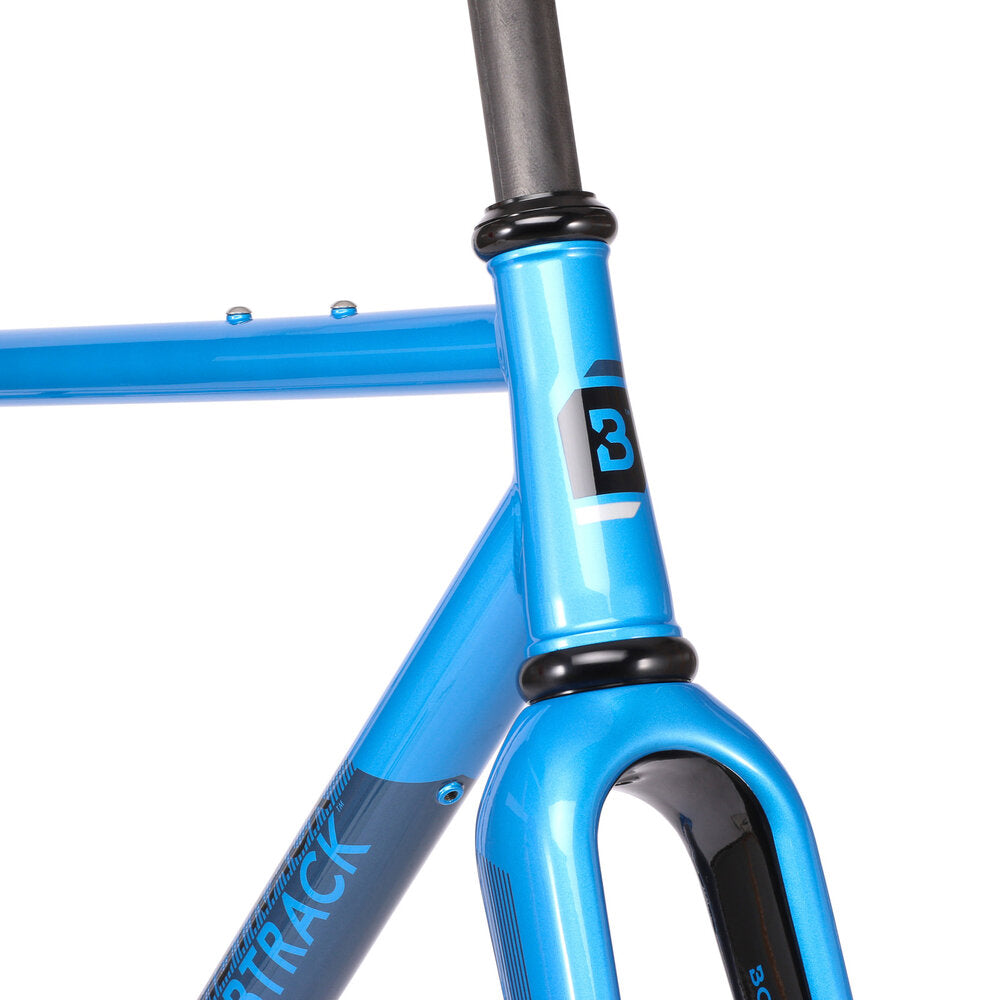

  • Headset Standard (S.H.I.S.) EC34 / 28.6 | EC44 / 40
  • Fork Max Tire Clearance w/o fender XS - S 650B x 52C / M - XL 700C x 45C
  • Frame Max Tire Clearance w/o fender XS - S 650B x 42C / M - XL 700C x 42C
  • Maximum chainring clearance 1x 40 T with 45 mm chainline
  • Maximum chainring clearance 2x 48 / 32 T with 46.9 mm chainline
  • Seat Post Diameter 27.2 mm
  • Seat clamp diameter 29.8 mm
  • Brake mount front FM
  • Brake mount rear FM
  • Maximum rotor clearance front 160 mm
  • Maximum rotor clearance rear 160 mm

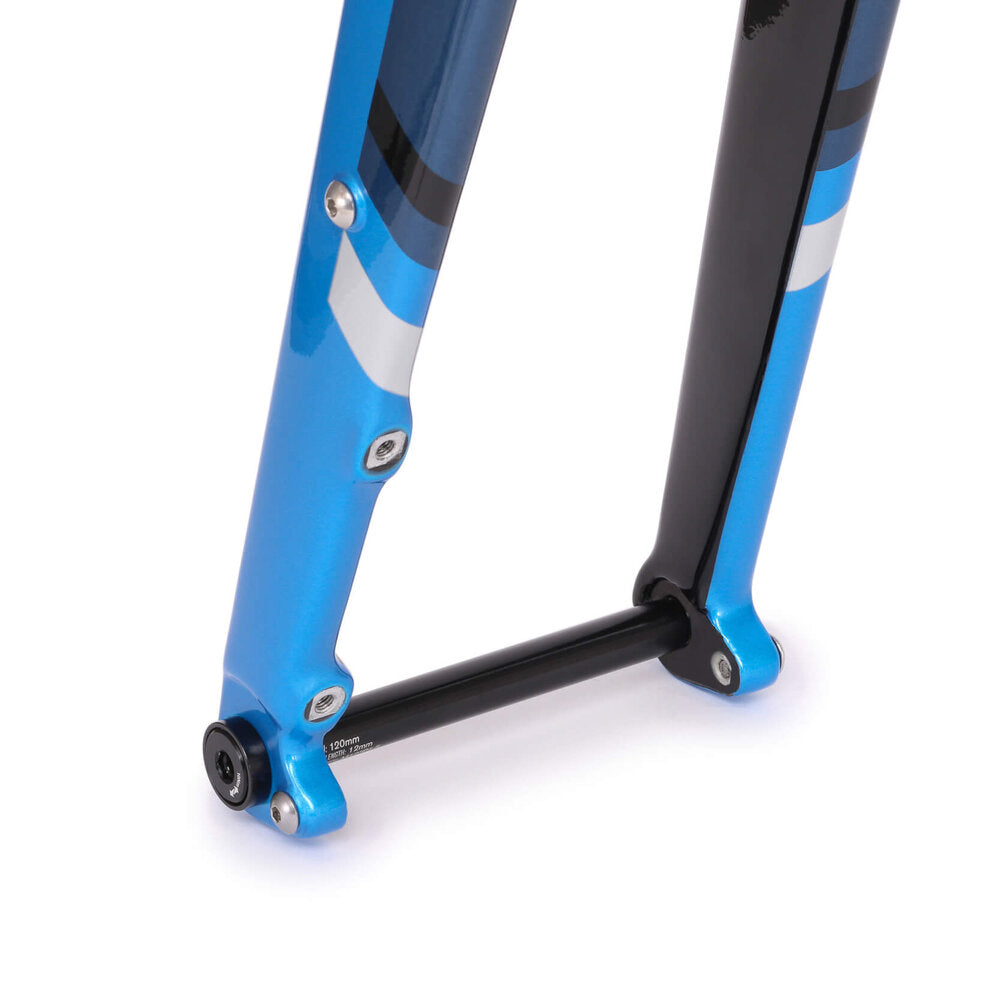

  • Front through axle 12 mm x 100 mm, 1.5 thread pitch

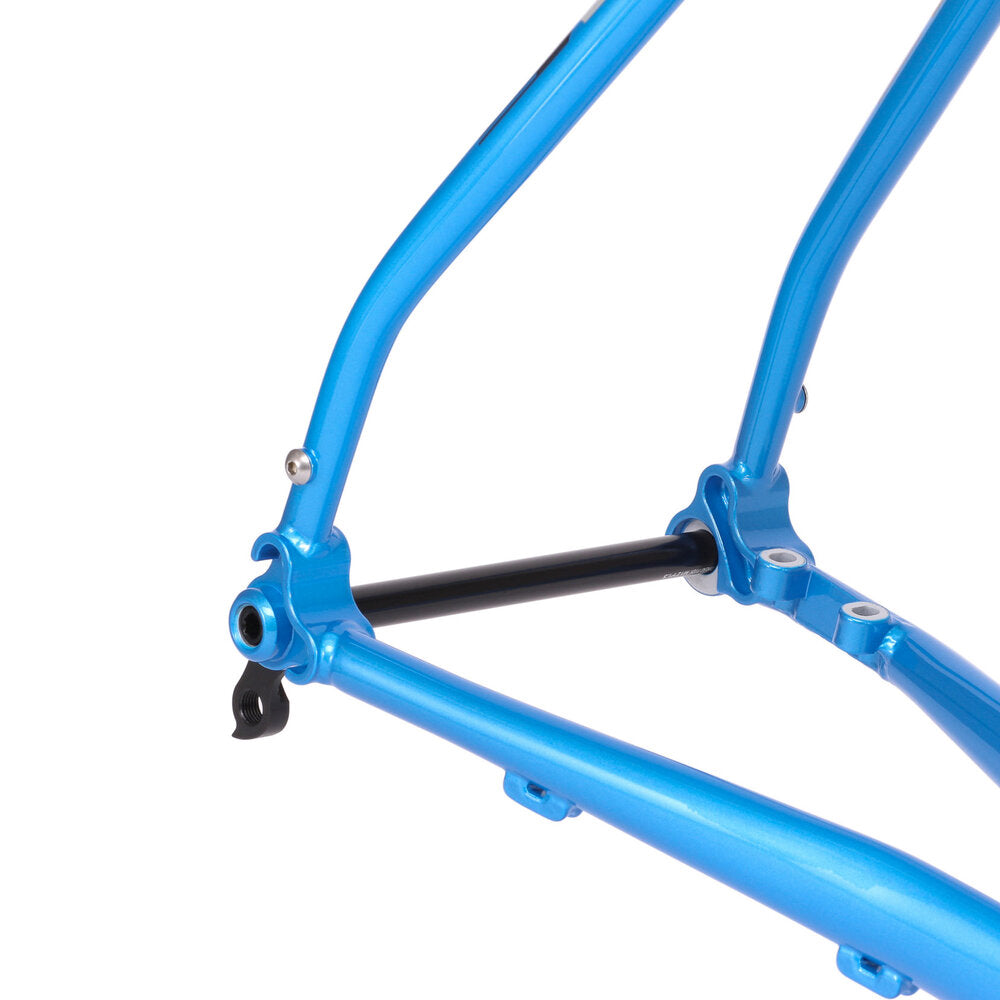

  • Rear through axle 12 mm x 142 mm, 1.5 thread pitch

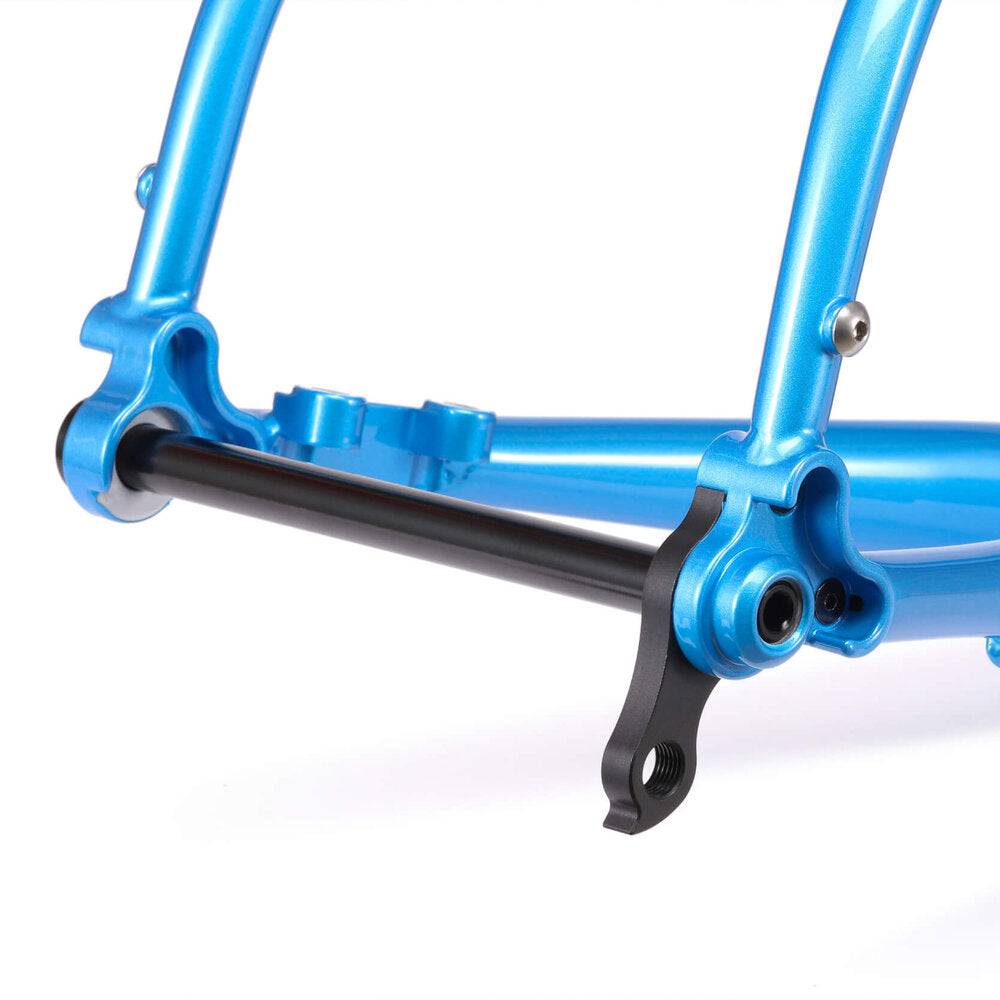

  • Derailleur hanger BT-DH-008
  • ISO testing standard Road

keyboard_arrow_right Specifications

  • Color Glossy Metallic Blue

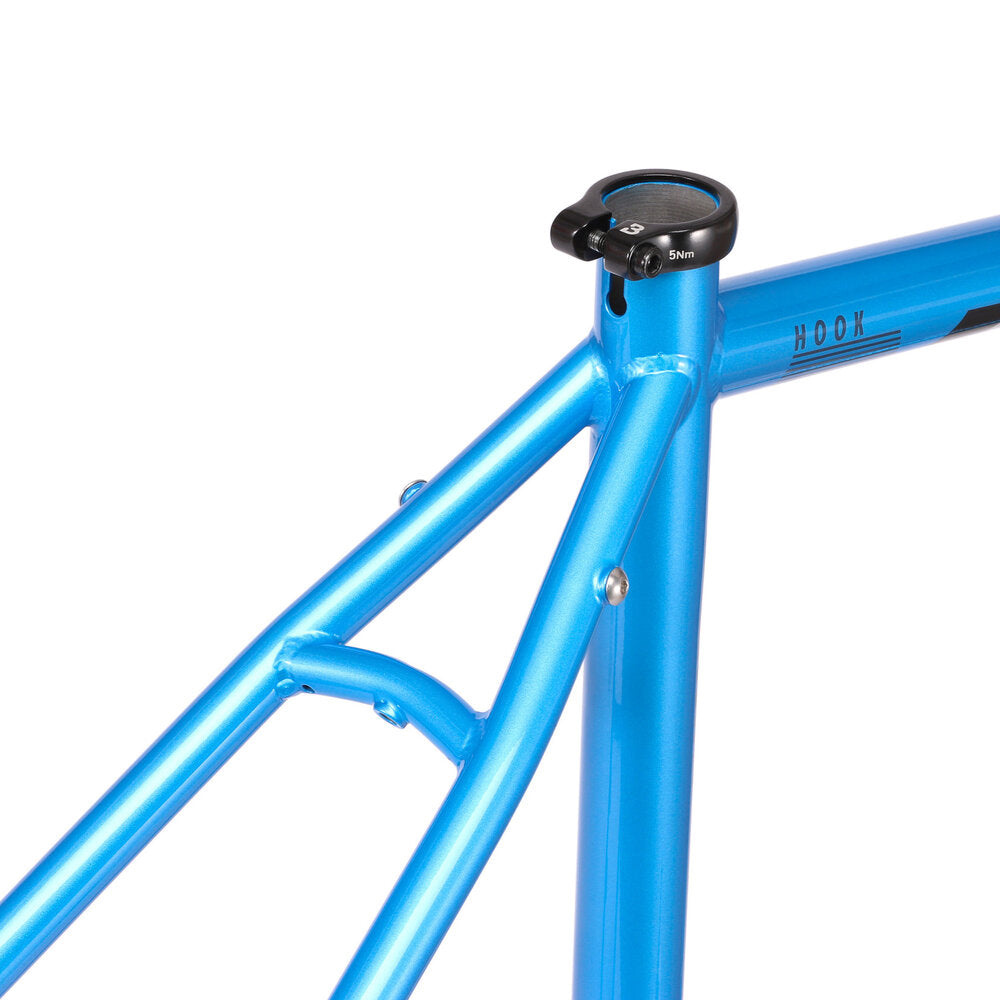

  • Frame COLUMBUS CROMOR double butted, TA dropout, rack / fender mounts, 86.5 mm T47 BB shell
  • Fork Full carbon, TA, 1.1/2'' - 1.1/8'', fender / triple cage mounts
  • Headset Sealed external aheadset, 1.1/2'' - 1.1/8''
  • Through axle 12 x 100 mm / 12 x 142 mm
  • Seat clamp BOMBTRACK ORIGIN 29.8 mm
  • Weight frameset 2420 g frame (size M, incl. TA, hanger)
  • 600 g fork (300 mm steerer, incl. TA)
  • Maximum rider weight 120 kg incl. luggage
  • ASTM riding condition 2



Bike Size XS S M L XL
Wheel size 650B 650B 700C 700C 700C
Seat Tube Length 460 490 525 545 565
Horizontal TT length 508 522 540 562 579
Seat Angle 74.0° 74.0° 74.0° 73.5° 73.5°
Head Angle 71.0° 71.5° 72.0° 72.0° 72.0°
Headtube Length 100 110 130 150 170
BB Drop 57 57 67 67 67
Chainstay Length 410 410 425 425 425
Fork Offset 48 48 48 48 48
Trail 65 62 64 64 64
Wheelbase Length 975 985 1010 1027 1045
Standover 731 751 802 820 840
Reach 358 369 378 389 400
Stack 523 534 565 584 603
Front Center 572 582 594 611 629
Axle to Crown 395 395 395 395 395
Minimum rider height * 1500 1600 1700 1790 1880
Maximum rider height * 1610 1710 1810 1900 1990
